Here you will find all available parts and drawings of the 'Metabo 01008001 (SBE1010PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

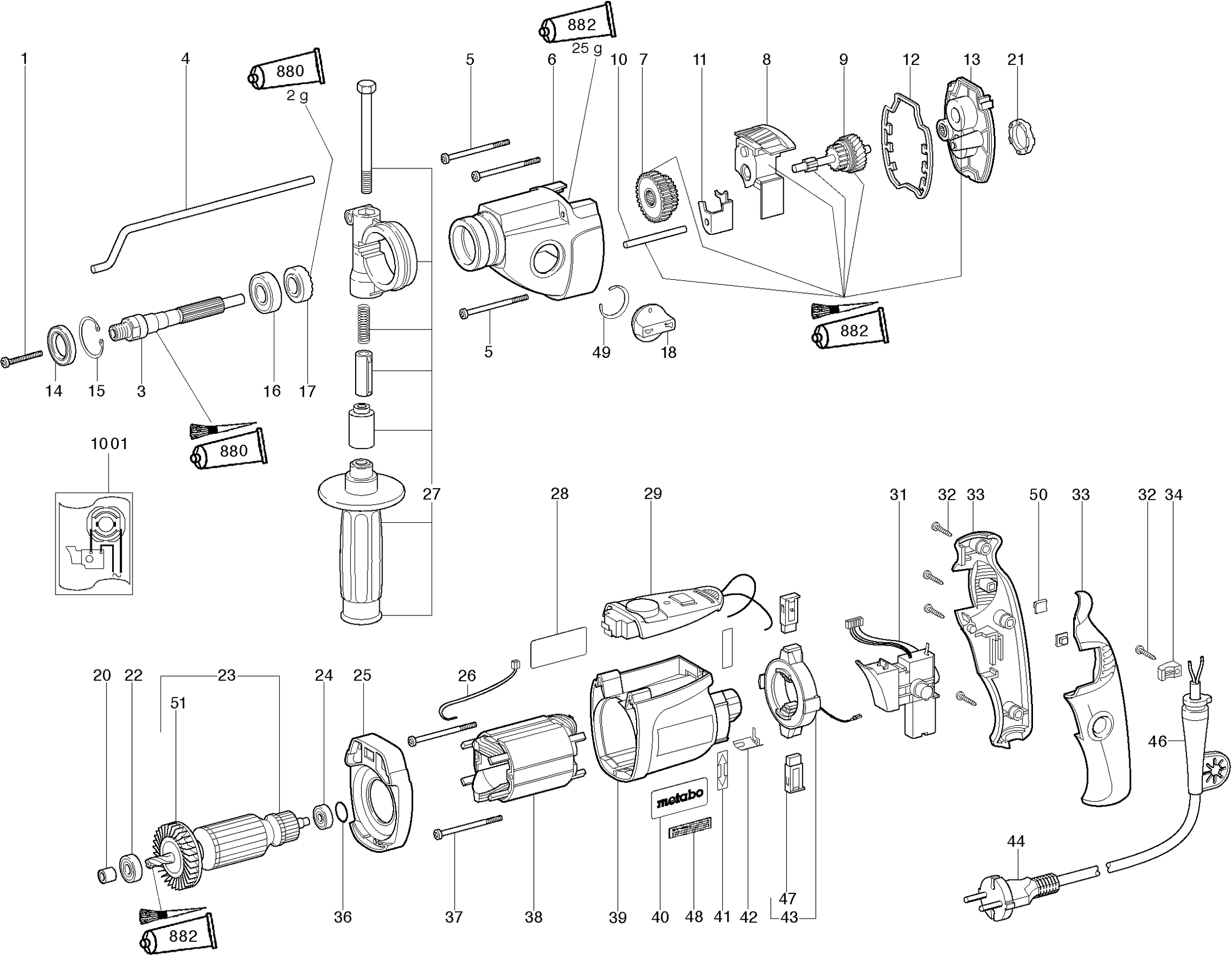

Technical drawing of model Metabo 01008001 (SBE1010PLUS)
Spare parts list of model Metabo 01008001 (SBE1010PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.68 | 2.03 | |
| Drill spindle | ||||
| 3 | 341603640 | 24.23 | 29.32 | |
| Dieptegeleider | ||||
| 4 | 341511630 | 4.51 | 5.46 | |
| Self-tap. fill. h. screw | ||||
| 5 | 141122490 | 1.68 | 2.03 | |
| Tandwielhuis compl. | ||||
| 6 | 316030990 | 48.48 | 58.66 | |
| Sliding gear | ||||
| 7 | 340004010 | 8.89 | 10.76 | |
| Switch house compl. | ||||
| 8 | 316027710 | 11.74 | 14.21 | |
| Veiligheidskoppeling | ||||
| 9 | 316030380 | 60.59 | 73.31 | |
| Guide pin | ||||
| 10 | 341540010 | 4.51 | 5.46 | |
| Schakelvork | ||||
| 11 | 339129270 | 1.68 | 2.03 | |
| Vormpakking | ||||
| 12 | 344095910 | 1.68 | 2.03 | |
| Tandwielflens compl. | ||||
| 13 | 316031000 | 53.86 | 65.17 | |
| Gegolfde dichtring | ||||
| 14 | 339210830 | 2.28 | 2.76 | |
| Retaining ring | ||||
| 15 | 141181680 | 1.56 | 1.89 | |
| Ball bearing 15x32x9 | ||||
| 16 | 143110220 | 18.80 | 22.75 | |
| Slotted disc | ||||
| 17 | 341055650 | 3.71 | 4.49 | |
| Schakelknop compl. | ||||
| 18 | 316029530 | 3.02 | 3.65 | |
| Afdichtring | ||||
| 20 | 343376040 | 1.68 | 2.03 | |
| Rubber buffer | ||||
| 21 | 344095920 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 22 | 143115800 | 2.28 | 2.76 | |
| Anker 230 V | ||||
| 23 | 310007880 | 80.81 | 97.78 | |
| Ball bearing 6x19x 6 | ||||
| 24 | 143114750 | 3.02 | 3.65 | |
| Tussenflens | ||||
| 25 | 343374270 | 5.87 | 7.10 | |
| No longer available, no replacement | ||||
| 26 | 343078020 | |||
| Handgreep compl. | ||||
| 27 | 314000790 | 21.64 | 26.18 | |
| Typeplaatje | ||||
| 28 | 338039080 | 1.56 | 1.89 | |
| VTC Electronics Signal | ||||
| 29 | 343077510 | 74.13 | 89.70 | |
| Potentiometer switch | ||||
| 31 | 343406880 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141117060 | 1.68 | 2.03 | |
| Two-part pistol grip | ||||
| 33 | 343393020 | 8.89 | 10.76 | |
| Cable clip | ||||
| 34 | 343362490 | 1.68 | 2.03 | |
| O-ring | ||||
| 36 | 143192430 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 37 | 141118260 | 1.56 | 1.89 | |
| Field | ||||
| 38 | 311009810 | 18.80 | 22.75 | |
| Motor housing | ||||
| 39 | 315012650 | 13.48 | 16.31 | |
| No longer available, no replacement | ||||
| 40 | 338122160 | |||
| Aanduidingsplaatje | ||||
| 41 | 338115410 | 1.56 | 1.89 | |
| Carbon Brush Contact | ||||
| 42 | 339129390 | 3.02 | 3.65 | |
| Carbon Brush Holder Module R+L | ||||
| 43 | 316028790 | 26.95 | 32.61 | |
| Kabel m. CEE-stekker | ||||
| 44 | 344493180 | 21.64 | 26.18 | |
| Kabelbescherming | ||||
| 46 | 344101160 | 2.28 | 2.76 | |
| Koolborstel set 230 V | ||||
| 47 | 316034960 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 48 | 399999990 | |||
| Half-moon washer | ||||
| 49 | 141155810 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 50 | 343378650 | |||
| Waaier m. stofbescherming | ||||
| 51 | 316035740 | 11.74 | 14.21 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130930 | 32.27 | 39.05 | |
| Grease tube 50 gr. 1,8oz | ||||
| 882 | 344130970 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338502250 | |||
