Here you will find all available parts and drawings of the 'Metabo 01008000 ( SBE1010PLUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

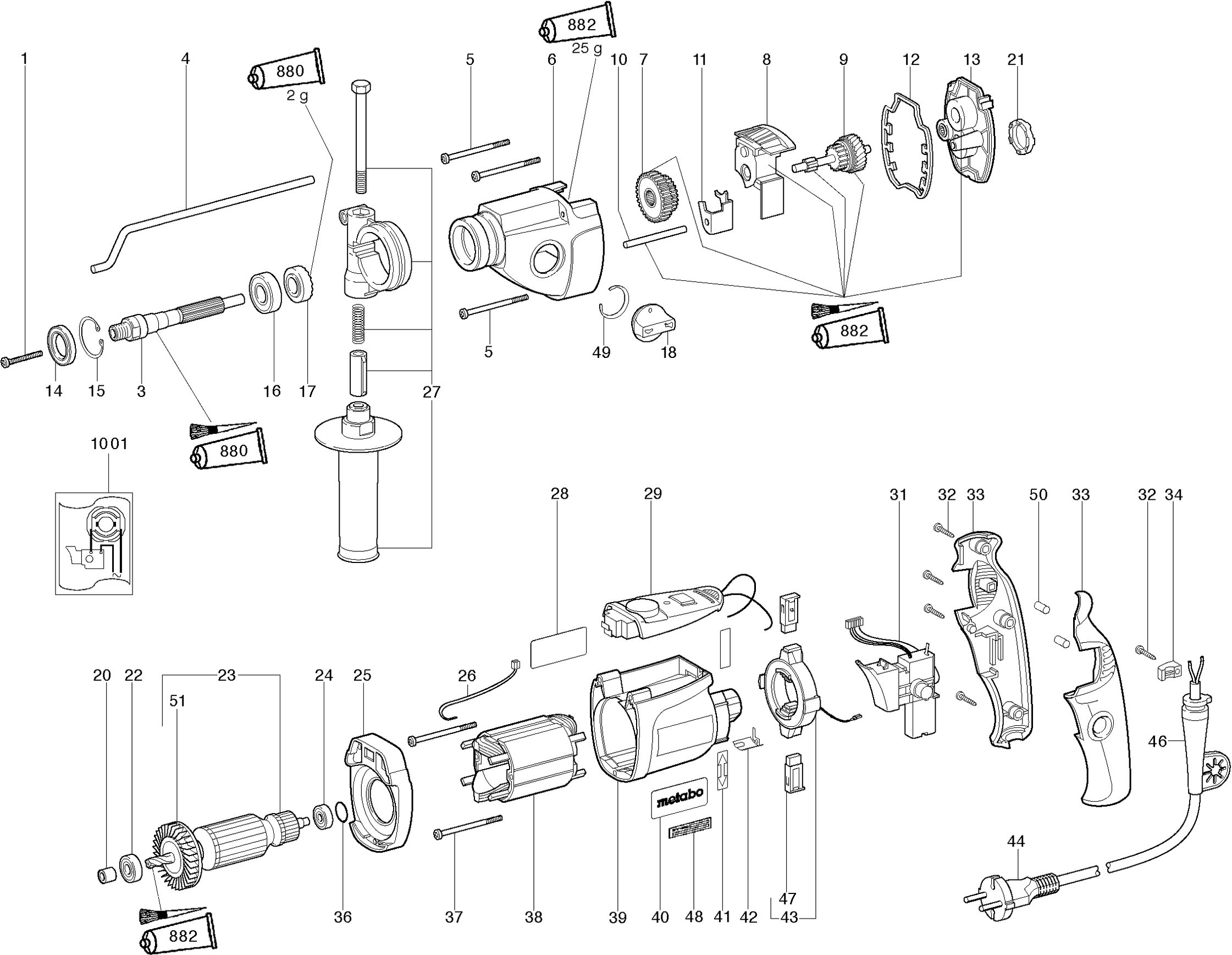

Technical drawing of model Metabo 01008000 ( SBE1010PLUS )

Spare parts list of model Metabo 01008000 ( SBE1010PLUS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cilinderkopschroef
1 341701940 1.67 2.02
Drill spindle
3 341603640 24.23 29.32
Dieptegeleider
4 341511630 4.51 5.46
Self-tap. fill. h. screw
5 141122490 1.67 2.02
Tandwielhuis compl.
6 316030990 48.48 58.66
Sliding gear
7 340004010 8.89 10.76
Switch house compl.
8 316027710 11.74 14.21
Veiligheidskoppeling
9 316030380 60.59 73.31
Guide pin
10 341540010 4.51 5.46
Schakelvork
11 339129270 1.67 2.02
Vormpakking
12 344095910 1.67 2.02
Tandwielflens compl.
13 316031000 53.86 65.17
Gegolfde dichtring
14 339210830 2.28 2.76
Retaining ring
15 141181680 1.55 1.88
Ball bearing 15x32x9
16 143110220 18.80 22.75
Slotted disc
17 341055650 3.71 4.49
Schakelknop compl.
18 316029530 3.02 3.65
Afdichtring
20 343376040 1.67 2.02
Rubber buffer
21 344095920 1.55 1.88
Kogellager 8x22x 7
22 143115800 2.28 2.76
Anker 230 V
23 310007880 80.81 97.78
Ball bearing 6x19x 6
24 143114750 3.02 3.65
Tussenflens
25 343374270 5.87 7.10
No longer available, no replacement
26 343078020
No longer available, no replacement
27 314000610
Typeplaatje
28 338039080 1.55 1.88
VTC Electronics Signal
29 343077510 74.13 89.70
Potentiometer switch
31 343406880 24.23 29.32
Self-tap. fill. h. screw
32 141117060 1.67 2.02
No information available, not orderable
33 343362260
Cable clip
34 343362490 1.67 2.02
O-ring
36 143192430 1.67 2.02
Self-tap. fill. h. screw
37 141118260 1.55 1.88
Field
38 311009810 18.80 22.75
Motor housing
39 315012650 13.48 16.31
No longer available, no replacement
40 338122160
Aanduidingsplaatje
41 338115410 1.55 1.88
Carbon Brush Contact
42 339129390 3.02 3.65
Carbon Brush Holder Module R+L
43 316028790 26.95 32.61
Kabel m. CEE-stekker
44 344493180 21.64 26.18
Kabelbescherming
46 344101160 2.28 2.76
Koolborstel set 230 V
47 316034960 13.48 16.31
No information available, not orderable
48 399999990
Half-moon washer
49 141155810 1.55 1.88
Rubber stop
50 344092220 1.55 1.88
Waaier m. stofbescherming
51 316035740 11.74 14.21
Grease tube 50 gr. 1,8oz
880 344130930 32.27 39.05
Grease tube 50 gr. 1,8oz
882 344130970 11.74 14.21
No information available, not orderable
1001 338502250
