Here you will find all available parts and drawings of the 'Metabo 02199000 ( SB18LTXBLQUICK )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

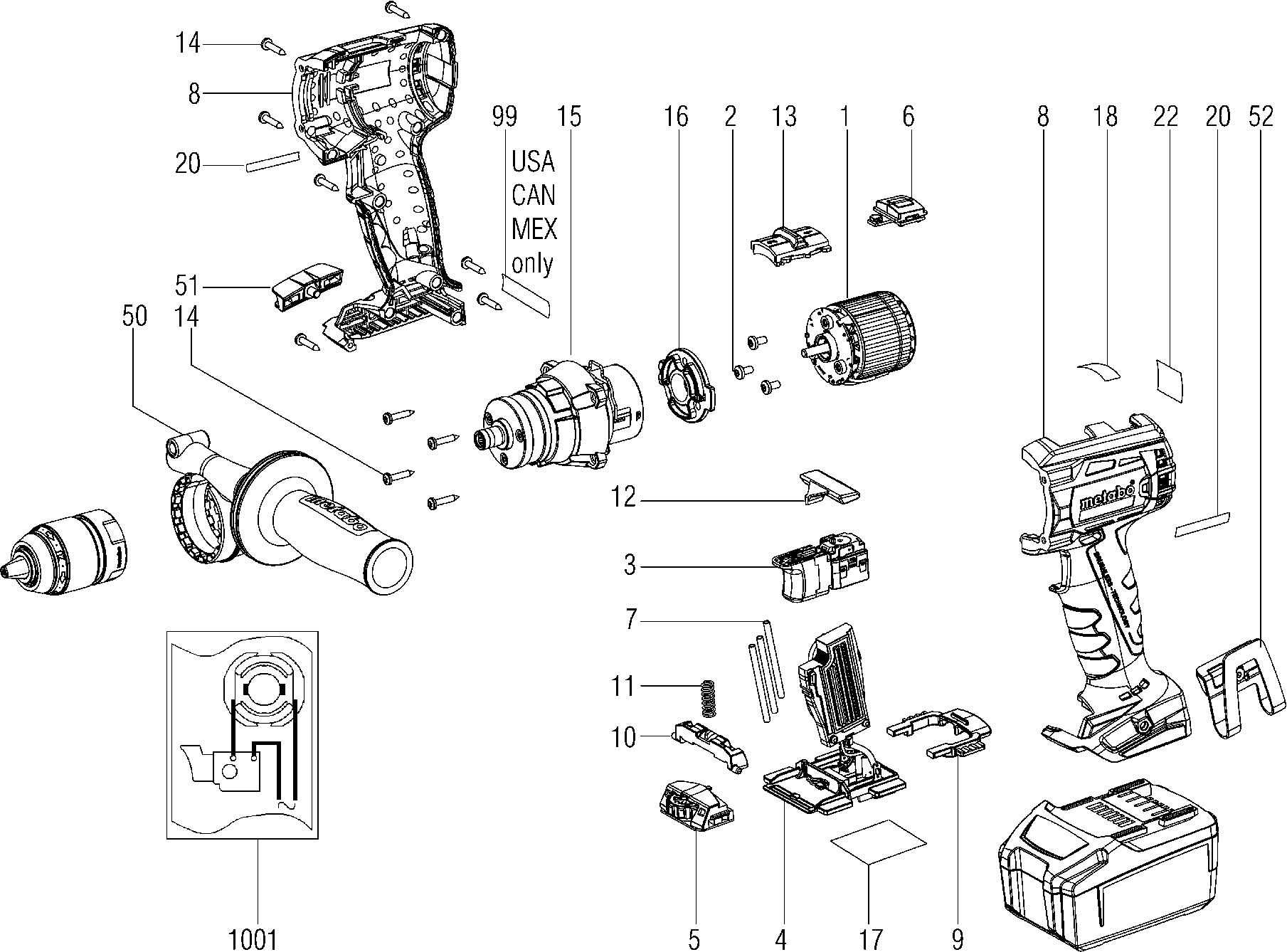

Technical drawing of model Metabo 02199000 ( SB18LTXBLQUICK )
Spare parts list of model Metabo 02199000 ( SB18LTXBLQUICK )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor,18 V | ||||
| 1 | 317004200 | 213.88 | 258.79 | |
| Fillister head screw | ||||
| 2 | 141122220 | 1.67 | 2.02 | |
| Potentioschakelaar | ||||
| 3 | 343410550 | 18.80 | 22.75 | |
| Elektronica | ||||
| 4 | 343083150 | 175.84 | 212.77 | |
| Stelwiel compl. | ||||
| 5 | 343083630 | 21.64 | 26.18 | |
| Complete switch | ||||
| 6 | 343083210 | 18.80 | 22.75 | |
| glas hose | ||||
| 7 | 135190610 | 1.55 | 1.88 | |
| Insulation hose | ||||
| 7 | 339040970 | 1.55 | 1.88 | |
| Huis m.deksel | ||||
| 8 | 343432480 | 21.64 | 26.18 | |
| Locking slide | ||||
| 9 | 343433300 | 2.28 | 2.76 | |
| Vergrendelstuk | ||||
| 10 | 343430520 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 11 | 342003030 | 1.55 | 1.88 | |
| Schakelschuif ,R/L | ||||
| 12 | 343433260 | 1.55 | 1.88 | |
| Schakelschuif compl. | ||||
| 13 | 316051650 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 14 | 141113180 | 1.55 | 1.88 | |
| Aandrijving compl. | ||||
| 15 | 316053420 | 100.74 | 121.90 | |
| Flens,BLDC | ||||
| 16 | 315202750 | 1.55 | 1.88 | |
| Typeplaatje | ||||
| 17 | 338059410 | 2.28 | 2.76 | |
| Aanduidingsplaatje | ||||
| 18 | 338123980 | 2.28 | 2.76 | |
| Typeplaatje,SB 18LTX BL Quick | ||||
| 20 | 338124480 | 1.55 | 1.88 | |
| Identification plate | ||||
| 22 | 338129940 | 1.67 | 2.02 | |
| Indicator label | ||||
| 22 | 338124500 | 1.55 | 1.88 | |
| Side support handle compl. | ||||
| 50 | 314001030 | 12.23 | 14.80 | |
| Bit holder sleeve | ||||
| 51 | 316052130 | 2.28 | 2.76 | |
| Screwdriver-bit depot | ||||
| 51 | 343448690 | 2.28 | 2.76 | |
| Hook | ||||
| 52 | 316052120 | 3.71 | 4.49 | |
| Hook | ||||
| 52 | 339137270 | 2.28 | 2.76 | |
| Aanduidingsplaatje,Warning | ||||
| 99 | 338124510 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 1001 | 338505820 | |||
