Here you will find all available parts and drawings of the 'Metabo 02142001 ( SB18LTIMPULS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

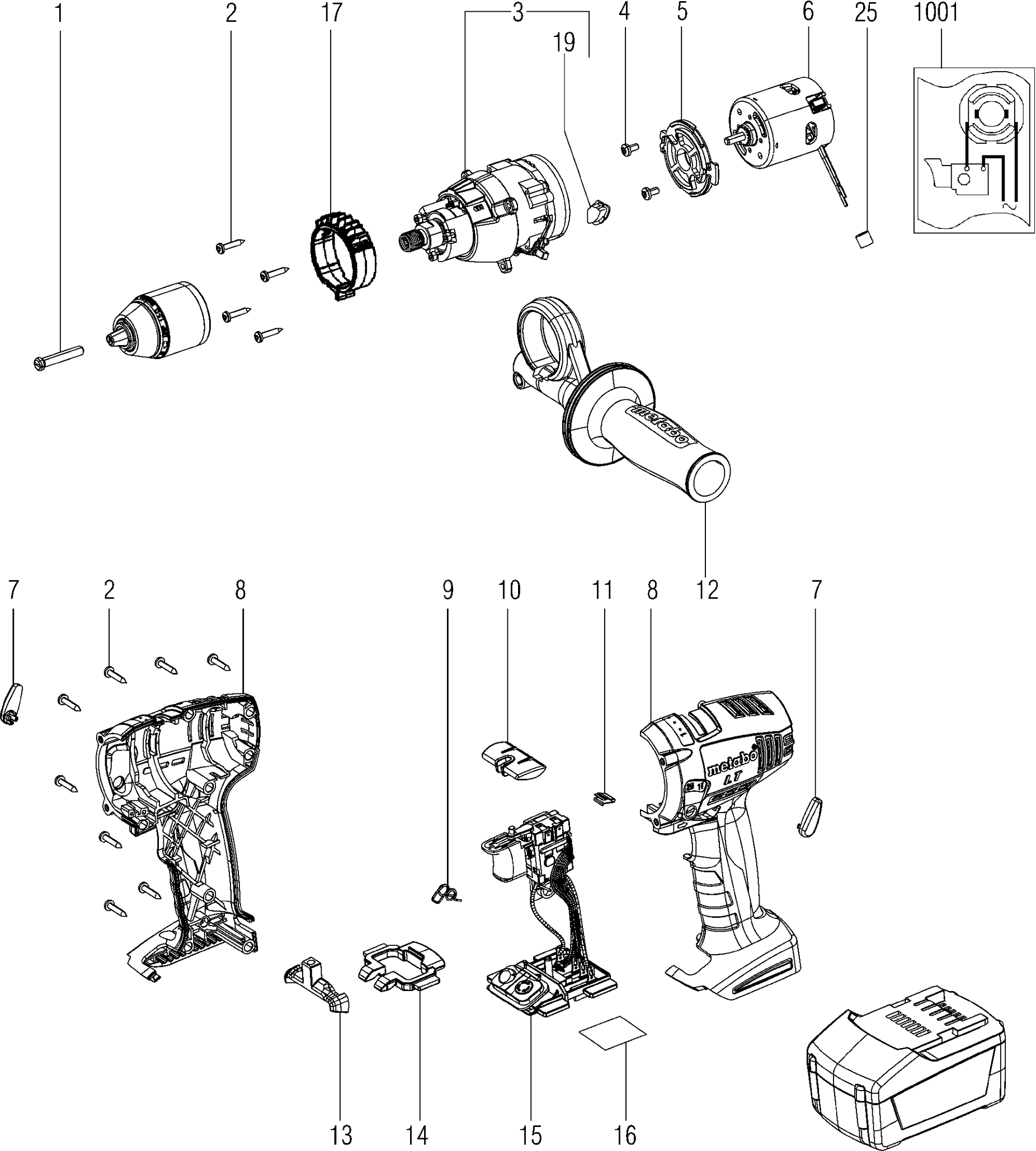

Technical drawing of model Metabo 02142001 ( SB18LTIMPULS )
Spare parts list of model Metabo 02142001 ( SB18LTIMPULS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cilinderkopschroef | ||||
| 1 | 341701940 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 2 | 141113180 | 1.55 | 1.88 | |
| Aandrijving compl. | ||||
| 3 | 316047190 | 100.74 | 121.90 | |
| Fillister head screw | ||||
| 4 | 141119850 | 1.55 | 1.88 | |
| Motorflens | ||||
| 5 | 343395380 | 1.55 | 1.88 | |
| Gelijkstroommotor,18 V | ||||
| 6 | 317003670 | 43.15 | 52.21 | |
| Schakel-element | ||||
| 7 | 343394150 | 1.55 | 1.88 | |
| Huis m.deksel | ||||
| 8 | 343394820 | 18.80 | 22.75 | |
| Thrust Spring | ||||
| 9 | 342021670 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 10 | 343394800 | 1.55 | 1.88 | |
| Flat spring | ||||
| 11 | 342050860 | 1.55 | 1.88 | |
| Handgreep compl. | ||||
| 12 | 314001140 | 12.23 | 14.80 | |
| Pressure plate | ||||
| 13 | 343394770 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 14 | 343394790 | 1.55 | 1.88 | |
| Electronic switch 18 V Pulse | ||||
| 15 | 343408680 | 87.60 | 106.00 | |
| No information available, not orderable | ||||
| 16 | 338051720 | |||
| Screwdriver-bit depot | ||||
| 17 | 343396590 | 1.67 | 2.02 | |
| Electric Unit, 6-20V | ||||
| 19 | 343081780 | 21.64 | 26.18 | |
| Ferrite ring | ||||
| 25 | 143160090 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 1001 | 338504870 | |||
