Here you will find all available parts and drawings of the 'Metabo 14050000 (RWEV1600-2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

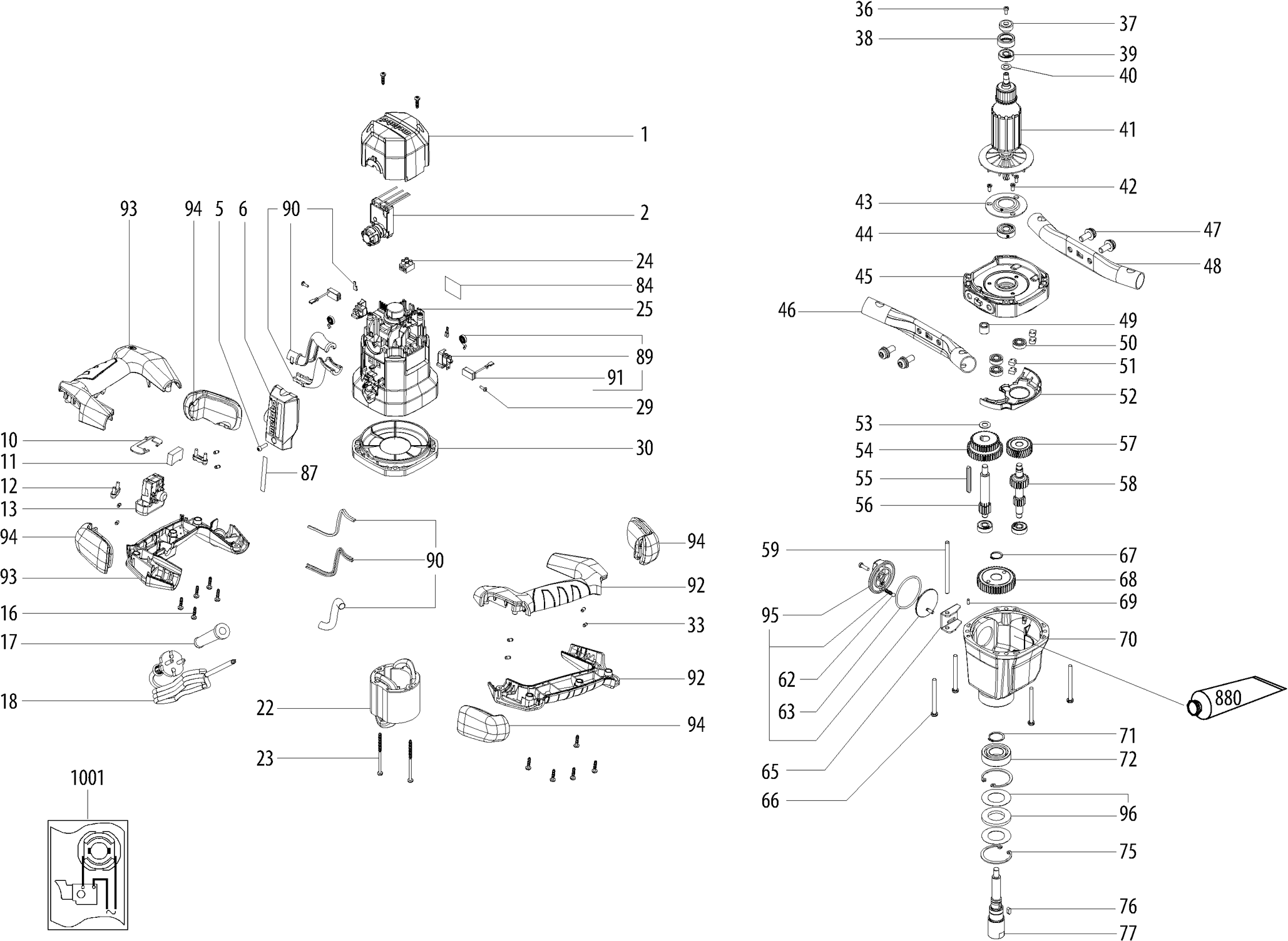

Technical drawing of model Metabo 14050000 (RWEV1600-2)
Spare parts list of model Metabo 14050000 (RWEV1600-2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Hood | ||||
| 1 | 343412940 | 4.78 | 5.78 | |
| Electric unit | ||||
| 2 | 343089880 | 41.32 | 50.00 | |
| Cilinderkopschroef | ||||
| 5 | 141119100 | 1.79 | 2.17 | |
| Housing cover | ||||
| 6 | 343412960 | 1.79 | 2.17 | |
| Stop Plate | ||||
| 10 | 339149820 | 1.67 | 2.02 | |
| CAPACITOR | ||||
| 11 | 343255370 | 1.67 | 2.02 | |
| CORD CLAMP | ||||
| 12 | 343458590 | 1.67 | 2.02 | |
| Switch | ||||
| 13 | 343413010 | 10.82 | 13.09 | |
| Lensplaatschroef | ||||
| 16 | 141124210 | 1.67 | 2.02 | |
| Cable sleeve DRP 18 | ||||
| 17 | 344104420 | 1.67 | 2.02 | |
| Cable with plug (Australia) | ||||
| 18 | 344533860 | 12.19 | 14.75 | |
| Field Pack | ||||
| 22 | 311013790 | 46.99 | 56.86 | |
| SCREW | ||||
| 23 | 341724020 | 1.67 | 2.02 | |
| Terminal Block | ||||
| 24 | 343050440 | 1.67 | 2.02 | |
| Motor Housing | ||||
| 25 | 343412990 | 10.82 | 13.09 | |
| SCREW | ||||
| 29 | 341724040 | 1.67 | 2.02 | |
| Air guide disc | ||||
| 30 | 339153220 | 4.78 | 5.78 | |
| Rubber Sleeve | ||||
| 33 | 344104430 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 36 | 141124800 | 1.67 | 2.02 | |
| Tachometer disc | ||||
| 37 | 343458600 | 4.78 | 5.78 | |
| Rubber Sleeve | ||||
| 38 | 344104440 | 1.67 | 2.02 | |
| Ball bearing, 8X 22X 7 | ||||
| 39 | 143116080 | 4.78 | 5.78 | |
| Washer | ||||
| 40 | 339008500 | 1.67 | 2.02 | |
| Armature | ||||
| 41 | 310102450 | 52.36 | 63.36 | |
| Platverzonken schroef | ||||
| 42 | 141120550 | 1.67 | 2.02 | |
| Passing screw | ||||
| 42 | 341705590 | 1.67 | 2.02 | |
| Bearing cover RTS 400 REQ | ||||
| 43 | 339149830 | 1.67 | 2.02 | |
| Ball Bearing 10x26x8 | ||||
| 44 | 143111120 | 18.28 | 22.12 | |
| Gear Flange | ||||
| 45 | 315203440 | 24.26 | 29.35 | |
| Holder | ||||
| 46 | 339146000 | 9.36 | 11.33 | |
| SCREW | ||||
| 47 | 341724060 | 1.67 | 2.02 | |
| Holder | ||||
| 48 | 339146010 | 9.36 | 11.33 | |
| NEEDLE BEARING | ||||
| 49 | 320051240 | 1.79 | 2.17 | |
| BALL BEARING | ||||
| 50 | 320051230 | 3.89 | 4.71 | |
| FELT | ||||
| 51 | 344070760 | 1.67 | 2.02 | |
| Air Guide Plate | ||||
| 52 | 343458330 | 1.67 | 2.02 | |
| Washer | ||||
| 53 | 339008510 | 1.67 | 2.02 | |
| GEAR | ||||
| 54 | 340004990 | 10.82 | 13.09 | |
| Slot stone | ||||
| 55 | 341164500 | 1.67 | 2.02 | |
| DRIVE SHAFT | ||||
| 56 | 341213980 | 7.58 | 9.17 | |
| GEAR | ||||
| 57 | 340005000 | 4.78 | 5.78 | |
| DRIVE SHAFT | ||||
| 58 | 341213990 | 9.36 | 11.33 | |
| PIN | ||||
| 59 | 341520100 | 1.67 | 2.02 | |
| Ball | ||||
| 62 | 341164520 | 1.67 | 2.02 | |
| O-Ring | ||||
| 63 | 344104450 | 1.67 | 2.02 | |
| Switch Element | ||||
| 65 | 339149840 | 1.79 | 2.17 | |
| SCREW | ||||
| 66 | 341724070 | 1.67 | 2.02 | |
| Lock Ring | ||||
| 67 | 342024670 | 1.67 | 2.02 | |
| GEAR | ||||
| 68 | 340005010 | 9.36 | 11.33 | |
| PIN | ||||
| 69 | 341520130 | 1.67 | 2.02 | |
| Gear Housing | ||||
| 70 | 315203450 | 27.16 | 32.86 | |
| Lock Ring | ||||
| 71 | 342024680 | 1.67 | 2.02 | |
| BALL BEARING | ||||
| 72 | 7100016995 | 12.19 | 14.75 | |
| Lock Ring | ||||
| 75 | 342024690 | 1.67 | 2.02 | |
| Slot stone | ||||
| 76 | 341164510 | 1.67 | 2.02 | |
| Spindle CSP 132 E vollst. | ||||
| 77 | 339149850 | 10.82 | 13.09 | |
| EXTENSION | ||||
| 78 | 341606210 | 15.31 | 18.53 | |
| STEEKSLEUTEL | ||||
| 82 | 344164780 | 3.20 | 3.87 | |
| STEEKSLEUTEL | ||||
| 83 | 344164790 | 3.20 | 3.87 | |
| Type plate HK 85 EB 230V | ||||
| 84 | 338078860 | 1.79 | 2.17 | |
| Type plate HK 85 EB 230V | ||||
| 87 | 338135210 | 1.79 | 2.17 | |
| Carbon brush holder compl. | ||||
| 89 | 316074920 | 6.05 | 7.32 | |
| Cable complete. | ||||
| 90 | 344533890 | 7.58 | 9.17 | |
| BRUSH | ||||
| 91 | 343013740 | 3.89 | 4.71 | |
| Right handle | ||||
| 92 | 343458610 | 10.82 | 13.09 | |
| Left handle | ||||
| 93 | 343458620 | 10.82 | 13.09 | |
| Buffer complete | ||||
| 94 | 316074930 | 12.19 | 14.75 | |
| Control knob cpl. | ||||
| 95 | 316074950 | 1.79 | 2.17 | |
| Gasket cpl. | ||||
| 96 | 316074960 | 1.67 | 2.02 | |
| Grease Tube | ||||
| 880 | 344130940 | 7.58 | 9.17 | |
| No information available, not orderable | ||||
| 1001 | 338510850 | |||
