Here you will find all available parts and drawings of the 'Metabo 14048000 (RWE1200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

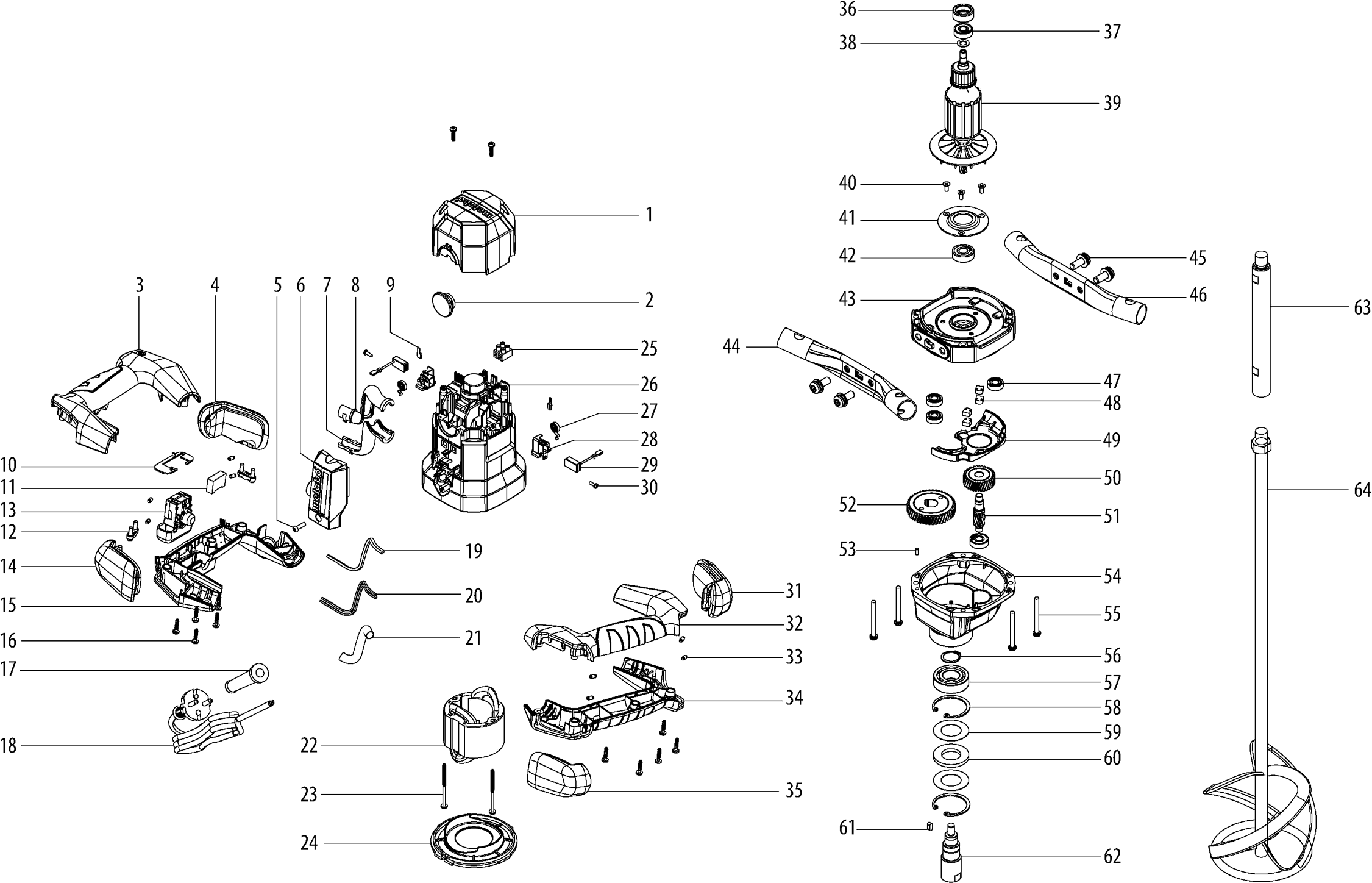

Technical drawing of model Metabo 14048000 (RWE1200)
Spare parts list of model Metabo 14048000 (RWE1200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Hood | ||||
| 1 | 343412940 | 4.51 | 5.46 | |
| Cap | ||||
| 2 | 343458350 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 5 | 141119100 | 1.68 | 2.03 | |
| Housing cover | ||||
| 6 | 343412960 | 1.68 | 2.03 | |
| Stop Plate | ||||
| 10 | 339149820 | 1.56 | 1.89 | |
| CAPACITOR | ||||
| 11 | 343255370 | 1.56 | 1.89 | |
| CORD CLAMP | ||||
| 12 | 343458590 | 1.56 | 1.89 | |
| Switch | ||||
| 13 | 343413060 | 24.23 | 29.32 | |
| Lensplaatschroef | ||||
| 16 | 141124210 | 1.56 | 1.89 | |
| Cable sleeve DRP 18 | ||||
| 17 | 344104420 | 1.56 | 1.89 | |
| Cable with plug (Australia) | ||||
| 18 | 344533860 | 11.74 | 14.21 | |
| Field Pack | ||||
| 22 | 311013790 | 43.15 | 52.21 | |
| SCREW | ||||
| 23 | 341724030 | 1.56 | 1.89 | |
| Air guide disc | ||||
| 24 | 339153240 | 1.56 | 1.89 | |
| Terminal Block | ||||
| 25 | 343050440 | 1.56 | 1.89 | |
| Motor Housing | ||||
| 26 | 343412990 | 10.38 | 12.56 | |
| BRUSH | ||||
| 29 | 343013740 | 3.71 | 4.49 | |
| SCREW | ||||
| 30 | 341724040 | 1.56 | 1.89 | |
| Rubber Sleeve | ||||
| 33 | 344104430 | 1.56 | 1.89 | |
| Rubber Sleeve | ||||
| 36 | 344104440 | 1.56 | 1.89 | |
| Ball bearing, 8X 22X 7 | ||||
| 37 | 143116080 | 4.51 | 5.46 | |
| Washer | ||||
| 38 | 339008500 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 39 | 310014440 | |||
| Platverzonken schroef | ||||
| 40 | 141120550 | 1.56 | 1.89 | |
| Passing screw | ||||
| 40 | 341705590 | 1.56 | 1.89 | |
| Bearing cover RTS 400 REQ | ||||
| 41 | 339149830 | 1.56 | 1.89 | |
| Ball Bearing 10x26x8 | ||||
| 42 | 143111120 | 16.25 | 19.66 | |
| Gear Flange | ||||
| 43 | 315203440 | 1.68 | 2.03 | |
| Holder | ||||
| 44 | 339146000 | 8.89 | 10.76 | |
| SCREW | ||||
| 45 | 341724060 | 1.56 | 1.89 | |
| Holder | ||||
| 46 | 339146010 | 8.89 | 10.76 | |
| BALL BEARING | ||||
| 47 | 320051230 | 3.71 | 4.49 | |
| FELT | ||||
| 48 | 344070760 | 1.56 | 1.89 | |
| Air Guide Plate | ||||
| 49 | 343458330 | 1.56 | 1.89 | |
| GEAR | ||||
| 50 | 340005000 | 4.51 | 5.46 | |
| DRIVE SHAFT | ||||
| 51 | 341214000 | 5.87 | 7.10 | |
| GEAR | ||||
| 52 | 340009950 | 8.89 | 10.76 | |
| PIN | ||||
| 53 | 341520130 | 1.56 | 1.89 | |
| Gear Housing | ||||
| 54 | 315203460 | 16.25 | 19.66 | |
| SCREW | ||||
| 55 | 341724080 | 1.56 | 1.89 | |
| Lock Ring | ||||
| 56 | 342024680 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 57 | 7100016995 | 11.74 | 14.21 | |
| Lock Ring | ||||
| 58 | 342024690 | 1.56 | 1.89 | |
| Slot stone | ||||
| 61 | 341164510 | 1.56 | 1.89 | |
| Spindle CSP 132 E vollst. | ||||
| 62 | 341606060 | 8.89 | 10.76 | |
| EXTENSION | ||||
| 63 | 341606210 | 13.48 | 16.31 | |
| Type plate HK 85 EB 230V | ||||
| 66 | 338078820 | 1.68 | 2.03 | |
| Type plate HK 85 EB 230V | ||||
| 71 | 338135190 | 1.68 | 2.03 | |
| Gasket cpl. | ||||
| 76 | 316074970 | 1.56 | 1.89 | |
| Cable complete. | ||||
| 77 | 344533900 | 7.22 | 8.74 | |
| Right handle | ||||
| 78 | 343458630 | 10.38 | 12.56 | |
| Left handle | ||||
| 79 | 343458640 | 10.38 | 12.56 | |
| Buffer complete | ||||
| 80 | 316074940 | 11.74 | 14.21 | |
| Carbon brush holder compl. | ||||
| 81 | 316074920 | 5.87 | 7.10 | |
| BRUSH | ||||
| 81 | 343013740 | 3.71 | 4.49 | |
| STEEKSLEUTEL | ||||
| 82 | 344164780 | 3.00 | 3.63 | |
| STEEKSLEUTEL | ||||
| 83 | 344164790 | 3.00 | 3.63 | |
| Grease Tube | ||||
| 880 | 344130940 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338506890 | |||
