Here you will find all available parts and drawings of the 'Metabo 03825001 (RSEV19-125RT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

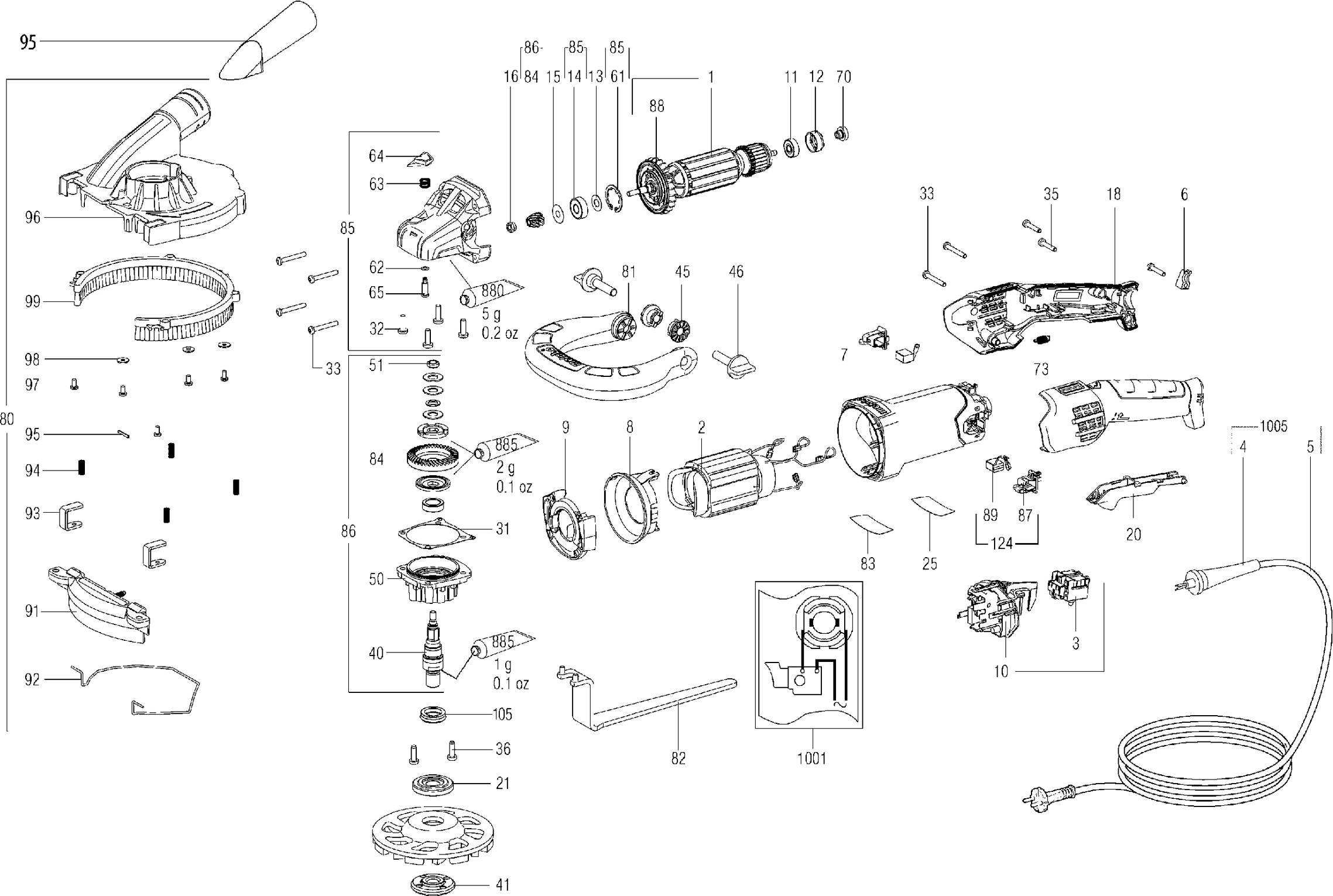

Technical drawing of model Metabo 03825001 (RSEV19-125RT)
Spare parts list of model Metabo 03825001 (RSEV19-125RT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl.,230V | ||||
| 1 | 310012230 | 100.68 | 121.82 | |
| Field | ||||
| 2 | 311012980 | 41.32 | 50.00 | |
| Schakelaar 2-polig,X2 | ||||
| 3 | 343410270 | 10.82 | 13.09 | |
| No information available, not orderable | ||||
| 4 | 399999990 | |||
| No information available, not orderable | ||||
| 5 | 399999990 | |||
| Cable clip | ||||
| 6 | 343362490 | 1.79 | 2.17 | |
| Motor housing | ||||
| 7 | 315013790 | 10.82 | 13.09 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.67 | 2.02 | |
| Elektro.unit m.schakelaar | ||||
| 10 | 316066530 | 64.44 | 77.97 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.43 | 2.94 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.67 | 2.02 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.67 | 2.02 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.20 | 3.87 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.67 | 2.02 | |
| Zeskantmoer | ||||
| 16 | 341102260 | 2.43 | 2.94 | |
| Two-piece handle | ||||
| 18 | 316076120 | 18.28 | 22.12 | |
| Handle 2 part | ||||
| 18 | 343439030 | 10.82 | 13.09 | |
| Switch pusher compl. | ||||
| 20 | 316065300 | 2.43 | 2.94 | |
| Clamping flange | ||||
| 21 | 341031160 | 12.19 | 14.75 | |
| Deksel compl. | ||||
| 24 | 316052780 | 21.22 | 25.68 | |
| Complete brush, D 125 | ||||
| 25 | 344080650 | 18.28 | 22.12 | |
| Draadbeugel | ||||
| 28 | 342200680 | 3.89 | 4.71 | |
| Beschermplaat | ||||
| 29 | 339135870 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 30 | 342003810 | 1.67 | 2.02 | |
| Gasket | ||||
| 31 | 339012450 | 1.67 | 2.02 | |
| Fill. head screw(DIN 7985) | ||||
| 32 | 141121640 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141116980 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 35 | 141117060 | 1.79 | 2.17 | |
| Fillister head screw | ||||
| 36 | 141123660 | 1.67 | 2.02 | |
| Slijpspil M14 | ||||
| 40 | 341605090 | 29.97 | 36.26 | |
| Flange nut | ||||
| 41 | 341106900 | 9.36 | 11.33 | |
| Washer | ||||
| 42 | 141150110 | 1.67 | 2.02 | |
| Lensschroef | ||||
| 43 | 141123980 | 1.67 | 2.02 | |
| Slotted disc | ||||
| 45 | 341070990 | 1.67 | 2.02 | |
| Vleugelschroef compl. | ||||
| 46 | 341112690 | 1.67 | 2.02 | |
| Lagerflens | ||||
| 50 | 316063410 | 41.32 | 50.00 | |
| Nut | ||||
| 51 | 341102460 | 2.43 | 2.94 | |
| Retaining ring | ||||
| 61 | 141156650 | 1.67 | 2.02 | |
| O-Ring | ||||
| 62 | 143196000 | 1.67 | 2.02 | |
| O-ring | ||||
| 62 | 143193650 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 63 | 342003390 | 1.67 | 2.02 | |
| Push button | ||||
| 64 | 343433640 | 1.67 | 2.02 | |
| Bolt | ||||
| 65 | 341515640 | 1.67 | 2.02 | |
| Tachoschijf | ||||
| 70 | 343433060 | 2.43 | 2.94 | |
| Pressure spring | ||||
| 73 | 342004190 | 1.67 | 2.02 | |
| Full protective hood | ||||
| 80 | 316051710 | 94.99 | 114.94 | |
| Beugelgreep compl. | ||||
| 81 | 343399690 | 21.22 | 25.68 | |
| Bent pin wrench | ||||
| 82 | 344160700 | 6.05 | 7.32 | |
| Typeplaatje | ||||
| 83 | 338067670 | 1.67 | 2.02 | |
| Schotelwiel m.Tandwiel | ||||
| 84 | 316054990 | 29.97 | 36.26 | |
| Tandwielhuis compl. | ||||
| 85 | 316066890 | 52.36 | 63.36 | |
| Safety clutch | ||||
| 86 | 316068480 | 126.62 | 153.21 | |
| Brush holder set | ||||
| 87 | 316065420 | 13.93 | 16.86 | |
| Waaier m. Stofbeschermkorf | ||||
| 88 | 316054850 | 3.89 | 4.71 | |
| Carbon brush set uitsch. | ||||
| 89 | 316065450 | 12.19 | 14.75 | |
| Deksel compl. | ||||
| 91 | 316052780 | 21.22 | 25.68 | |
| Draadbeugel | ||||
| 92 | 342200680 | 3.89 | 4.71 | |
| Beschermplaat | ||||
| 93 | 339135870 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 94 | 342003810 | 1.67 | 2.02 | |
| Tightening pin | ||||
| 95 | 141160850 | 1.67 | 2.02 | |
| PROTECTION COVER | ||||
| 96 | 316071620 | 21.22 | 25.68 | |
| Lensschroef | ||||
| 97 | 141123980 | 1.67 | 2.02 | |
| Washer | ||||
| 98 | 141150110 | 1.67 | 2.02 | |
| Complete brush, D 125 | ||||
| 99 | 344080650 | 18.28 | 22.12 | |
| Rubber Element | ||||
| 100 | 344102880 | 3.20 | 3.87 | |
| V-washer | ||||
| 105 | 143195980 | 5.49 | 6.64 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 24.26 | 29.35 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 41.32 | 50.00 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 52.36 | 63.36 | |
| No information available, not orderable | ||||
| 1001 | 338506170 | |||
| Cable with cable entry | ||||
| 1005 | 316067320 | 24.26 | 29.35 | |
