Here you will find all available parts and drawings of the 'Metabo 03823000 ( RF14-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

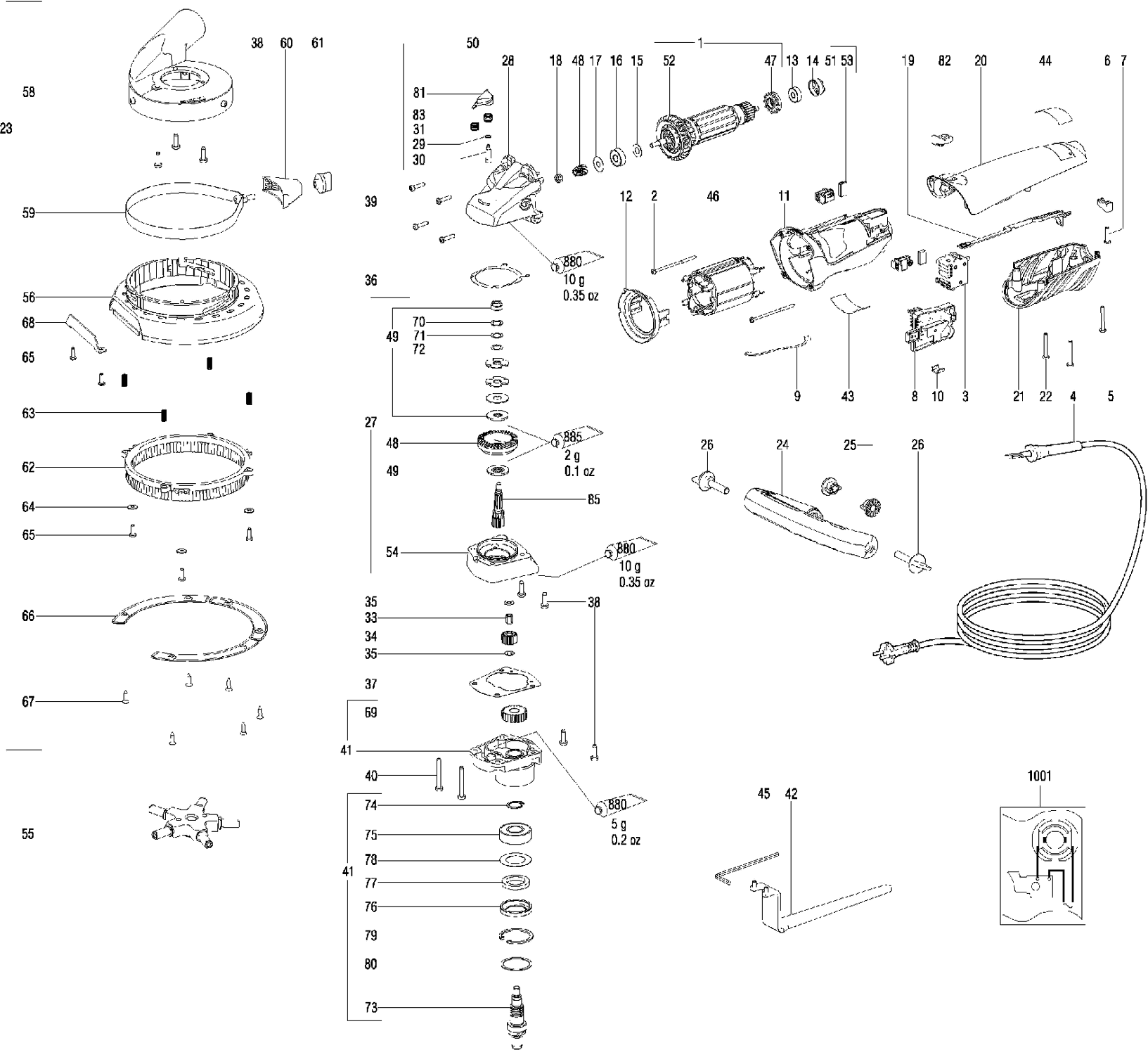

Technical drawing of model Metabo 03823000 ( RF14-115 )
Spare parts list of model Metabo 03823000 ( RF14-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl.,230 V | ||||
| 1 | 310009680 | 67.33 | 81.47 | |
| Self-tap. fill. h. screw | ||||
| 2 | 141118270 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 3 | 343409450 | 11.74 | 14.21 | |
| Kabeldoorvoer | ||||
| 4 | 344100970 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 5 | 344497150 | 16.25 | 19.66 | |
| Cable clip | ||||
| 6 | 343362490 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 7 | 141116020 | 1.67 | 2.02 | |
| Elektro.unit,230V / 50/60Hz | ||||
| 8 | 343082140 | 43.15 | 52.21 | |
| Temperatuurvoeler | ||||
| 9 | 343081140 | 11.74 | 14.21 | |
| Rubber Cord | ||||
| 10 | 344000310 | 1.55 | 1.88 | |
| Motor housing | ||||
| 11 | 315013230 | 8.89 | 10.76 | |
| Luchtgeleidingsschijf | ||||
| 12 | 339151040 | 1.67 | 2.02 | |
| Groefkogellager,6x19x6 | ||||
| 13 | 143115690 | 2.28 | 2.76 | |
| Bus rubber | ||||
| 14 | 344097870 | 1.55 | 1.88 | |
| Washer,8.05x17x0.4 | ||||
| 15 | 339133060 | 1.55 | 1.88 | |
| Groefkogellager,8x22x7 | ||||
| 16 | 143115700 | 3.02 | 3.65 | |
| Washer,7.05x19.5x0.2 | ||||
| 17 | 339006390 | 1.55 | 1.88 | |
| Zeskantmoer | ||||
| 18 | 341102260 | 2.28 | 2.76 | |
| Schakelstang | ||||
| 19 | 343393530 | 1.55 | 1.88 | |
| Deksel v. huis | ||||
| 20 | 343393460 | 5.18 | 6.27 | |
| Housing with black cover | ||||
| 21 | 343395630 | 3.71 | 4.49 | |
| Fillister head screw | ||||
| 22 | 141123490 | 1.55 | 1.88 | |
| Beschermkap | ||||
| 23 | 316049580 | 175.84 | 212.77 | |
| Beugelgreep compl. | ||||
| 24 | 343399690 | 18.80 | 22.75 | |
| Slotted disc | ||||
| 25 | 341070990 | 1.55 | 1.88 | |
| Vleugelschroef compl. | ||||
| 26 | 341112690 | 1.55 | 1.88 | |
| Pre-assembled bearing flange | ||||
| 27 | 316056650 | 87.60 | 106.00 | |
| Tandwielhuis gelakt | ||||
| 28 | 315105050 | 26.95 | 32.61 | |
| O-ring | ||||
| 29 | 143193650 | 1.55 | 1.88 | |
| Bolt | ||||
| 30 | 341515280 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 31 | 342003390 | 1.55 | 1.88 | |
| Naaldlager | ||||
| 32 | 143111430 | 5.18 | 6.27 | |
| Needle Roller and Cage | ||||
| 33 | 143115410 | 5.18 | 6.27 | |
| Gear wheel | ||||
| 34 | 340012740 | 18.80 | 22.75 | |
| Washer | ||||
| 35 | 141152070 | 1.55 | 1.88 | |
| Gasket | ||||
| 36 | 339011570 | 1.55 | 1.88 | |
| Gasket | ||||
| 37 | 339210960 | 5.18 | 6.27 | |
| Fillister head screw | ||||
| 38 | 141123660 | 1.55 | 1.88 | |
| Self-tap fill h screw | ||||
| 39 | 141116020 | 1.67 | 2.02 | |
| Lensschroef | ||||
| 40 | 141124110 | 1.55 | 1.88 | |
| Tandwielhuis compl. | ||||
| 41 | 316055390 | 121.19 | 146.64 | |
| Bent pin wrench | ||||
| 42 | 344160700 | 5.87 | 7.10 | |
| Typeplaatje | ||||
| 43 | 338060990 | 1.55 | 1.88 | |
| M-Schild 08 TR 49-52x22 | ||||
| 44 | 338124630 | 1.67 | 2.02 | |
| Winkelschraubendreher DIN ISO 2936-L SW4 | ||||
| 45 | 344164010 | 3.02 | 3.65 | |
| Field | ||||
| 46 | 311010750 | 74.13 | 89.70 | |
| Tachoschijf | ||||
| 47 | 343399850 | 1.67 | 2.02 | |
| Gear set safety clutch | ||||
| 48 | 316046920 | 53.86 | 65.17 | |
| Frictieschijf compl. | ||||
| 49 | 316041650 | 12.23 | 14.80 | |
| Tandwielhuis compl. | ||||
| 50 | 316049770 | 48.48 | 58.66 | |
| Brush Holder compl. shutdown,230V | ||||
| 51 | 316045170 | 10.38 | 12.56 | |
| Waaier m. stofbescherming | ||||
| 52 | 316041450 | 5.18 | 6.27 | |
| Koolborstel set,230V | ||||
| 53 | 316042070 | 10.38 | 12.56 | |
| Lagerflens compl. | ||||
| 54 | 316055380 | 60.59 | 73.31 | |
| Base body with bolts | ||||
| 55 | 316055400 | 134.27 | 162.47 | |
| Dieptegeleider | ||||
| 56 | 343430770 | 43.15 | 52.21 | |
| Beschermkap compl. | ||||
| 58 | 316050660 | 53.86 | 65.17 | |
| Spanband compl. | ||||
| 59 | 316049570 | 18.80 | 22.75 | |
| Clamping piece | ||||
| 60 | 343430780 | 7.22 | 8.74 | |
| Vleugelmoer | ||||
| 61 | 341111870 | 2.28 | 2.76 | |
| Complete brush | ||||
| 62 | 344080640 | 24.23 | 29.32 | |
| Pressure spring | ||||
| 63 | 342003810 | 1.55 | 1.88 | |
| Washer | ||||
| 64 | 141150110 | 1.55 | 1.88 | |
| Self-tap. fill. h. screw | ||||
| 65 | 141118730 | 1.55 | 1.88 | |
| Sliding sheet | ||||
| 66 | 339135210 | 16.25 | 19.66 | |
| Verzonkenplaatschroef | ||||
| 67 | 141123520 | 1.55 | 1.88 | |
| Beschermplaat | ||||
| 68 | 339135220 | 5.87 | 7.10 | |
| Gear wheel | ||||
| 69 | 340012720 | 21.64 | 26.18 | |
| Washer 10.2 X 14.8 X 1.0 | ||||
| 70 | 141155550 | 1.55 | 1.88 | |
| Washer 10.2 X 14.8 X 0.2 | ||||
| 71 | 141151120 | 1.55 | 1.88 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 72 | 141152300 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 73 | 341161250 | 32.27 | 39.05 | |
| Retaining ring | ||||
| 74 | 141180110 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 75 | 143114460 | |||
| Afstandsring | ||||
| 76 | 341013150 | 8.89 | 10.76 | |
| Felt ring | ||||
| 77 | 143192050 | 1.67 | 2.02 | |
| Washer | ||||
| 78 | 141151950 | 1.67 | 2.02 | |
| Locking ring | ||||
| 79 | 141180410 | 1.55 | 1.88 | |
| Compensating washer | ||||
| 80 | 143115590 | 1.55 | 1.88 | |
| Drukknop geel | ||||
| 81 | 343393410 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 82 | 343392980 | 1.55 | 1.88 | |
| Bushing | ||||
| 83 | 341005880 | 3.02 | 3.65 | |
| Bushing | ||||
| 83 | 341071810 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 84 | 399999990 | |||
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504700 | |||
