Here you will find all available parts and drawings of the 'Metabo 00192000 (RB18LTX60)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

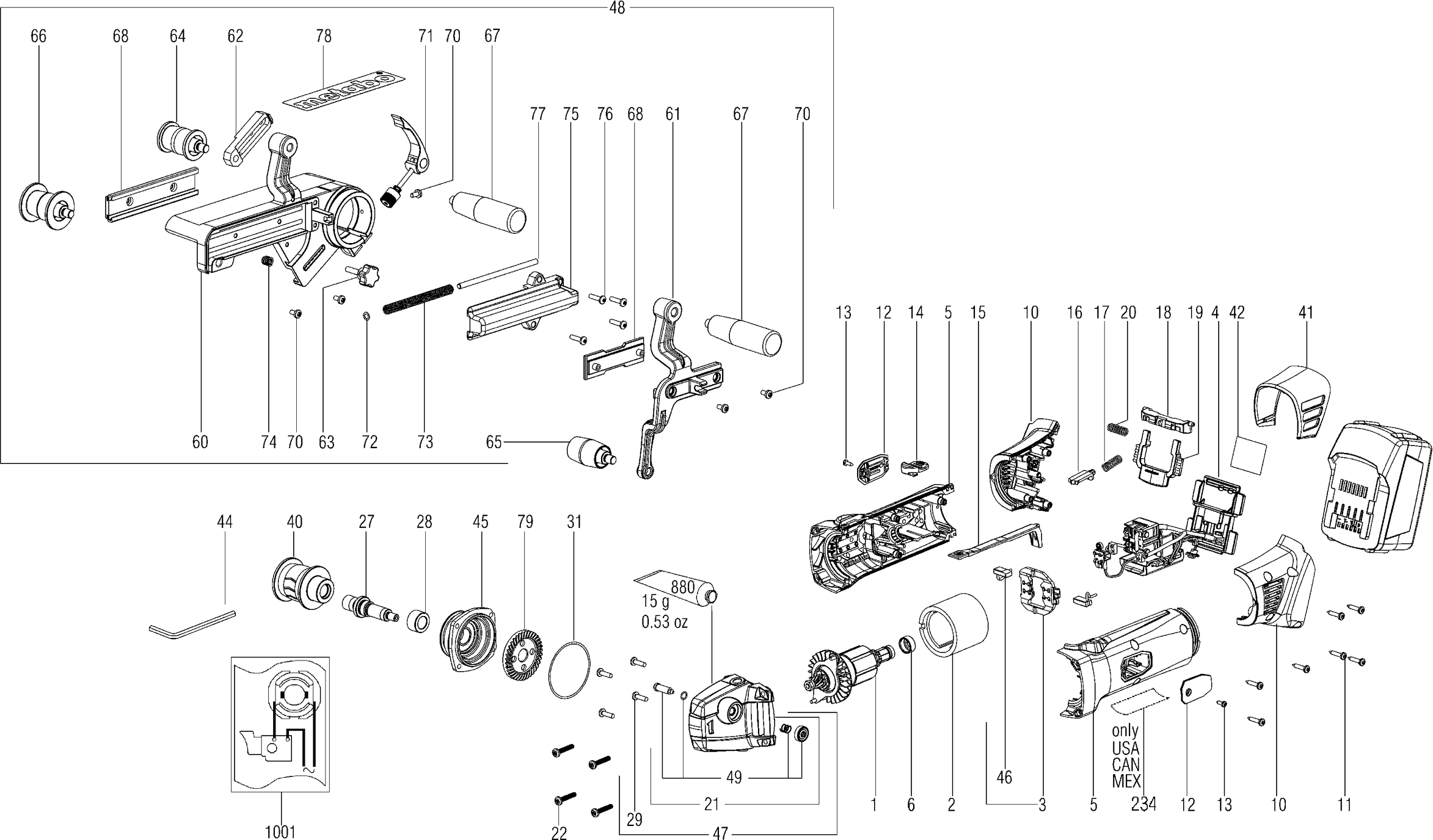

Technical drawing of model Metabo 00192000 (RB18LTX60)
Spare parts list of model Metabo 00192000 (RB18LTX60)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive with Complete Armature, 18 V | ||||
| 1 | 316051440 | 187.73 | 227.15 | |
| Field Pack | ||||
| 2 | 311011150 | 74.13 | 89.70 | |
| Carbon brush holder module compl., 18 V | ||||
| 3 | 316049390 | 16.25 | 19.66 | |
| Electronic Unit, 18v | ||||
| 4 | 343082750 | 113.82 | 137.72 | |
| Motor Housing | ||||
| 5 | 343398580 | 21.64 | 26.18 | |
| Bus rubber | ||||
| 6 | 344098740 | 1.56 | 1.89 | |
| Battery shell black | ||||
| 8 | 343430800 | 8.89 | 10.76 | |
| Battery shell black | ||||
| 10 | 343430800 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 11 | 141113180 | 1.56 | 1.89 | |
| Koolborsteldeksel | ||||
| 12 | 343398600 | 1.56 | 1.89 | |
| Self-tapp. fill. h. screw | ||||
| 13 | 141119900 | 1.56 | 1.89 | |
| Switch slide ,H/L | ||||
| 14 | 343397810 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 15 | 339136560 | 3.02 | 3.65 | |
| Steunstift | ||||
| 16 | 343398620 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 17 | 342003030 | 1.56 | 1.89 | |
| Vergrendelstuk | ||||
| 18 | 343430520 | 1.56 | 1.89 | |
| Schakelschuif | ||||
| 19 | 343430530 | 1.68 | 2.03 | |
| Pressure spring | ||||
| 20 | 342003030 | 1.56 | 1.89 | |
| Tandwielhuis compl. | ||||
| 21 | 316049830 | 32.27 | 39.05 | |
| Self-tap. fill. h. screw | ||||
| 22 | 141117060 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 27 | 318001450 | |||
| Lensschroef | ||||
| 29 | 141124090 | 1.56 | 1.89 | |
| Compensating washer | ||||
| 31 | 339011880 | 2.28 | 2.76 | |
| Aandrijfrol | ||||
| 40 | 343430650 | 60.59 | 73.31 | |
| Dust filter | ||||
| 41 | 343398890 | 5.87 | 7.10 | |
| Typeplaatje | ||||
| 42 | 338055500 | 1.56 | 1.89 | |
| Inbussleutel | ||||
| 44 | 344161510 | 1.68 | 2.03 | |
| Flens compl. | ||||
| 45 | 316049400 | 43.15 | 52.21 | |
| Koolborstelset | ||||
| 46 | 316060540 | 10.38 | 12.56 | |
| Tandwielhuis compl. | ||||
| 47 | 316050220 | 43.15 | 52.21 | |
| Wraparound Tube Sander attachment | ||||
| 48 | 316048760 | 268.64 | 325.05 | |
| Spindle stop compl. | ||||
| 49 | 316040610 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 60 | 315417720 | |||
| Fuehrungsarm | ||||
| 61 | 315417760 | 26.95 | 32.61 | |
| Geleidingsplaat | ||||
| 62 | 339160950 | 12.23 | 14.80 | |
| Star grip screw | ||||
| 63 | 341112820 | 2.28 | 2.76 | |
| Geleidingsrol compl. | ||||
| 64 | 316049930 | 16.25 | 19.66 | |
| Geleidingsrol compl. | ||||
| 64 | 316052820 | 13.48 | 16.31 | |
| Geleidingsrol compl. | ||||
| 65 | 316052810 | 13.48 | 16.31 | |
| Geleidingsrol compl. | ||||
| 66 | 316050030 | 24.23 | 29.32 | |
| Handle | ||||
| 67 | 343430710 | 12.23 | 14.80 | |
| Geleidingsrail compl. | ||||
| 68 | 316051820 | 18.80 | 22.75 | |
| Fillister head screw | ||||
| 70 | 141119850 | 1.56 | 1.89 | |
| Excenterhendel | ||||
| 71 | 341161350 | 8.89 | 10.76 | |
| Washer | ||||
| 72 | 141150920 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 73 | 342003780 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 74 | 342003790 | 1.56 | 1.89 | |
| Covering hood | ||||
| 75 | 343430670 | 3.71 | 4.49 | |
| Ball cylinder head Thread Form | ||||
| 76 | 141119440 | 1.56 | 1.89 | |
| Geleidingsstang | ||||
| 77 | 341059890 | 3.02 | 3.65 | |
| Metabo-plaatje | ||||
| 78 | 338123390 | 3.02 | 3.65 | |
| Serial Indicator Plate 40x14 | ||||
| 234 | 338121750 | 1.56 | 1.89 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
