Here you will find all available parts and drawings of the 'Metabo 01076000 (PowerMaxxSB12)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

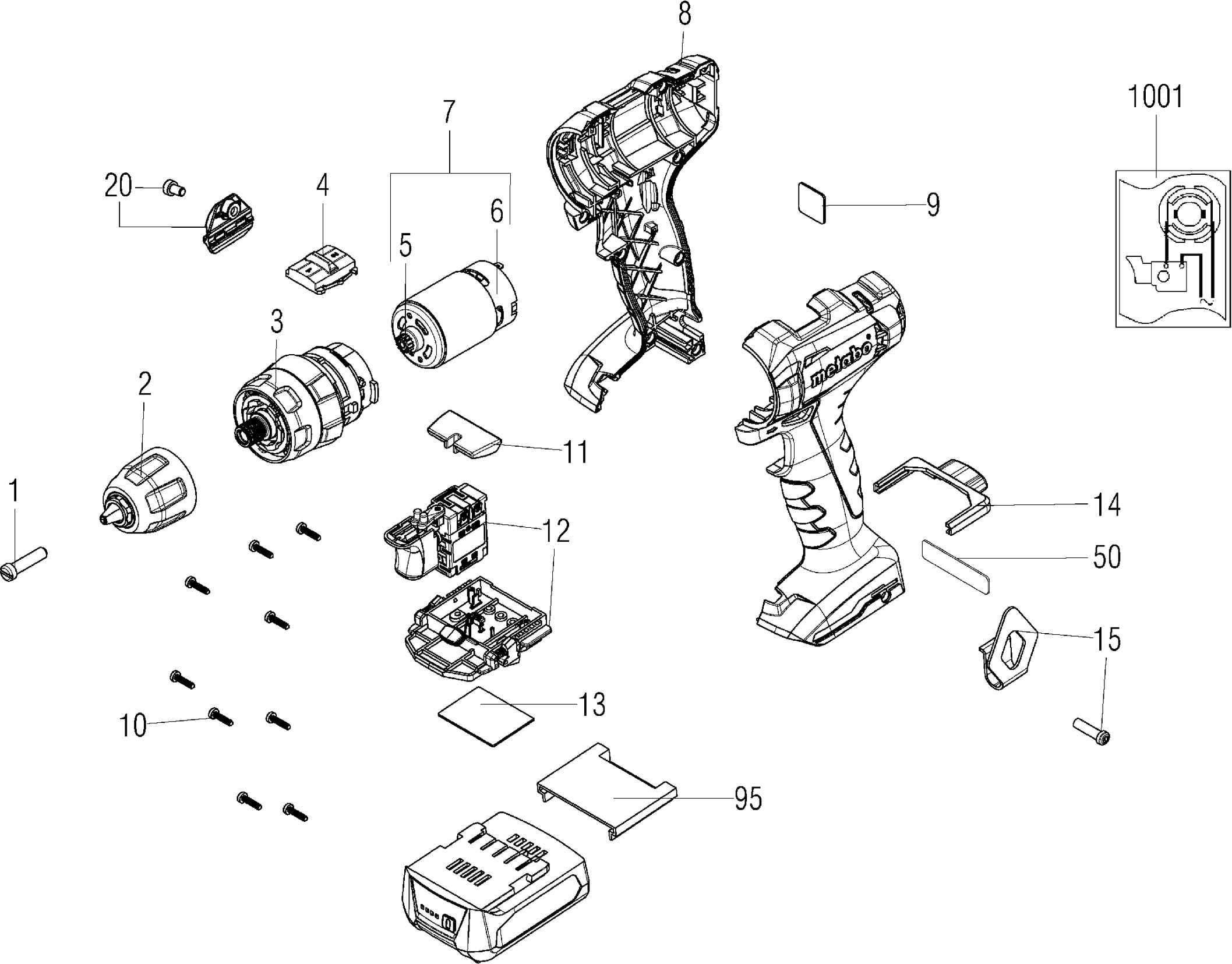

Technical drawing of model Metabo 01076000 (PowerMaxxSB12)
Spare parts list of model Metabo 01076000 (PowerMaxxSB12)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cap screw | ||||
| 1 | 341722830 | 1.56 | 1.89 | |
| Snelspanboorhouder | ||||
| 2 | 301003340 | 12.23 | 14.80 | |
| Aandrijving compl. | ||||
| 3 | 316097290 | 43.15 | 52.21 | |
| Schakelschuif compl. | ||||
| 4 | 316097270 | 2.28 | 2.76 | |
| Motor Compl.,10.8V | ||||
| 7 | 317004310 | 21.64 | 26.18 | |
| Motor housing | ||||
| 8 | 343447710 | 16.25 | 19.66 | |
| Identification plate, CAS | ||||
| 9 | 338133100 | 1.68 | 2.03 | |
| Screw, ST2,9x13 | ||||
| 10 | 341704710 | 1.56 | 1.89 | |
| Switch,R+L | ||||
| 11 | 343411930 | 1.56 | 1.89 | |
| Electronic switch 12 V | ||||
| 12 | 343411940 | 32.27 | 39.05 | |
| Typeplaatje | ||||
| 13 | 338070110 | 1.68 | 2.03 | |
| Vastzetschuif | ||||
| 14 | 343447510 | 1.56 | 1.89 | |
| Hook | ||||
| 15 | 339138160 | 2.28 | 2.76 | |
| Screwdriver-bit depot | ||||
| 20 | 343447860 | 2.28 | 2.76 | |
| Locking device compl. | ||||
| 66 | 316066720 | 3.02 | 3.65 | |
| Compression spring | ||||
| 67 | 342004180 | 1.56 | 1.89 | |
| Cover cap | ||||
| 95 | 343439680 | 1.56 | 1.89 | |
| Snelspanboorhouder | ||||
| 850 | 301003340 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 1001 | 338506400 | |||
