Here you will find all available parts and drawings of the 'Metabo 0102001001-15 ( PK200 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

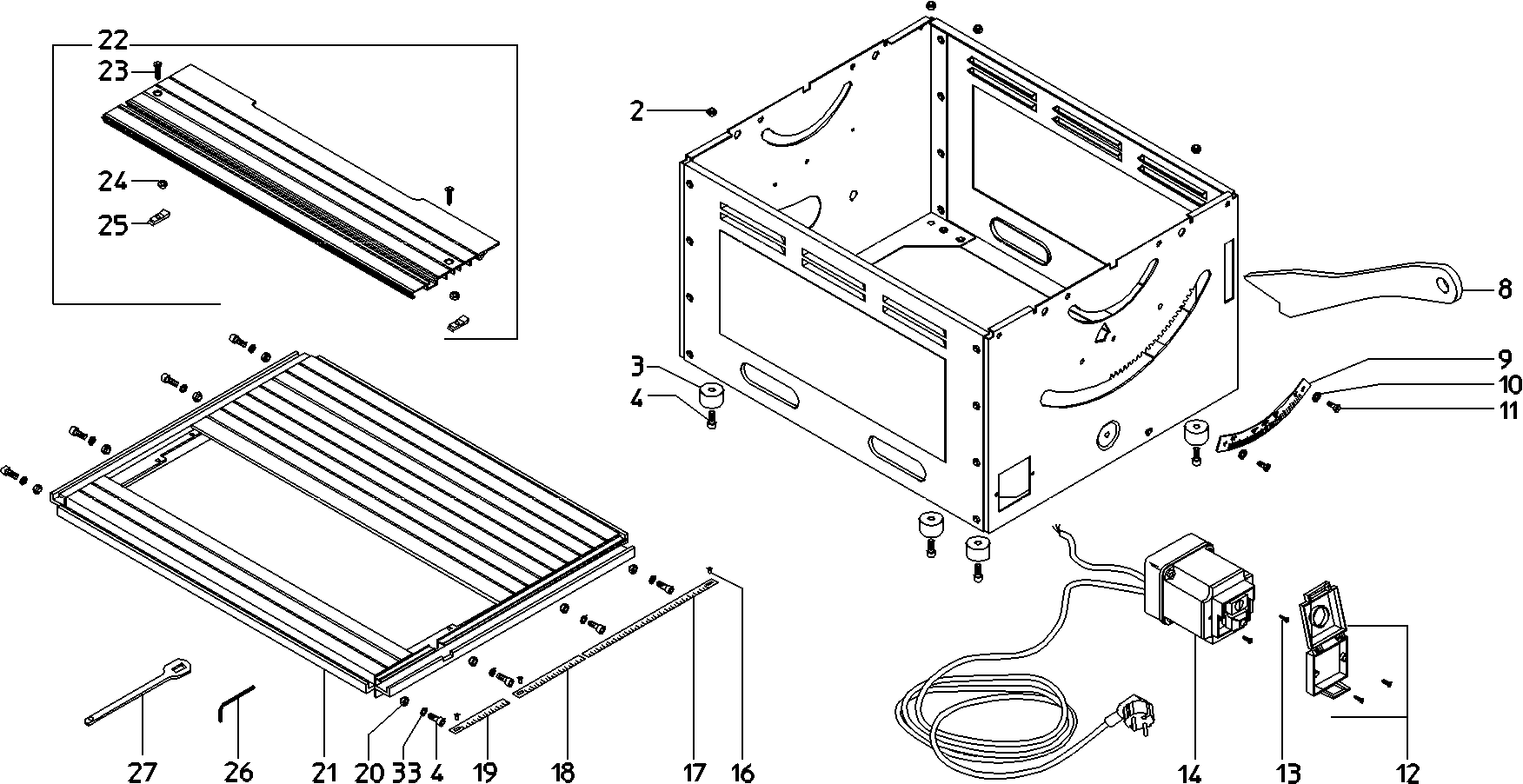

Technical drawing of model Metabo 0102001001-15 ( PK200 )

Spare parts list of model Metabo 0102001001-15 ( PK200 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Hexagon safety nut
2 141130650 1.67 2.02
RUBBER FOOT RD 30X17,5 80 SHORE
3 7057208753 1.67 2.02
Cylinder head screw with inner hexagon
4 6127059193 1.55 1.88
Pushrod
8 1394201630 7.22 8.74
ANGLE MEASURE
9 1142215647 4.51 5.46
Washer
10 141150010 1.55 1.88
Place screw M.crosshead
11 6143639612 1.55 1.88
Shut-off Switch
12 8118411022 5.18 6.27
Countersunk screw m. lens head screw
13 6172001805 1.55 1.88
No information available, not orderable
14 8131221399
Countersunk screw
16 6172091014 1.55 1.88
No information available, not orderable
17 1142221965
No information available, not orderable
18 1142221043
No information available, not orderable
19 1142221027
Flange nut
20 6209114230 1.55 1.88
No information available, not orderable
21 1010651111
No information available, not orderable
22 1010657616
Countersunk screw
23 6174155800 1.55 1.88
No information available, not orderable
24 7632183687
No information available, not orderable
25 6265167657
No information available, not orderable
26 9102016766
No information available, not orderable
27 9105222162
Extraction Tube RDA 37X290
29 1381221845 13.48 16.31
Cilinderkopschroef
30 141113840 1.67 2.02
No information available, not orderable
31 1380220977
HOLDER FL 16X5X48 /2XM6
32 1482222788 3.71 4.49
Washer
33 141151940 1.55 1.88
No information available, not orderable
34 1380220950
Disc spring
35 141155660 1.55 1.88
Retaining ring RD 8 VERZ.
37 6404091580 1.55 1.88
No longer available, no replacement
38 1485221480
Washer
39 141150050 1.55 1.88
No information available, not orderable
41 1382220915
No information available, not orderable
42 6305002486
Flange nut
43 6209110995 1.55 1.88
SQUARE BOLT WITH SQUARE INSERT M 5X16 COAT
44 6110125036 1.55 1.88
Self-locking hexagon nut
46 6202002305 1.55 1.88
No information available, not orderable
47 1482220920
No longer available, no replacement
48 2391202772
No information available, not orderable
49 1485215308
Gearwheel RD 62X19
50 1380215329 7.22 8.74
No information available, not orderable
51 1485221740
No information available, not orderable
52 1381221462
SHEET METAL SCREW WITH HEX SOCKET
53 6123612815 1.55 1.88
Right Angle Gear
54 1381215330 3.71 4.49
PLASTIC LID ROTARY HANDLE
57 1381212846 1.55 1.88
Cap nut
58 6208073395 1.55 1.88
Spring washer
59 6720008511 1.55 1.88
Complete handwheel UK/TKU ET
60 1010657543 32.27 39.05
Retaining ring
61 141180040 1.55 1.88
No information available, not orderable
63 1381220938
No information available, not orderable
64 1010657535
Spacers
67 6442059304 1.55 1.88
Hexagonal plate screw
68 141122680 1.55 1.88
Chuck lever OSC 18
70 7006072385 5.87 7.10
Slotted bolt with square insert
72 6110000594 1.55 1.88
No information available, not orderable
73 1482221803
Flange nut
74 6209018460 1.55 1.88
No information available, not orderable
75 1380220969
No information available, not orderable
76 1380220942
No information available, not orderable
77 1485221090
No information available, not orderable
79 1482222656
No longer available, no replacement
80 1010657527
Washer
81 141151340 1.55 1.88
Zeskantschroef
82 141110320 1.67 2.02
Cylinder head screw
83 6121000839 5.87 7.10
Counter-flange saw blade
84 1482221900 5.18 6.27
Hexagonal Screw M 6X16 curved. Spot Coating
85 6103001356 1.55 1.88
Cover clamp box motor AM21
86 1331700076 1.67 2.02
Plate for riving knife
88 1482221595 1.67 2.02
Riving knife CS 50 EBG
89 1482221587 18.80 22.75
Wheel guard compl.
90 316052430 12.23 14.80
No information available, not orderable
91 1380221400
GUIDE
92 1385221491 13.48 16.31
SAW BLADE FLANGE
93 1485221618 12.23 14.80
Riving knife holder
94 1380221434 13.48 16.31
No information available, not orderable
95 1010720520
SCREW
96 1485221570 3.71 4.49
Clamp box motor AM21
97 1331700068 3.71 4.49
CLAMP 1,5 mm Nr.134S / VDE
98 8216628625 1.67 2.02
Sleeve bend protection type 15-561
99 1341016980 1.67 2.02
No information available, not orderable
100 1382666042
Self-tap. fill. h. screw
101 141116840 1.55 1.88
Trekontlasting
102 8242033664 1.55 1.88
No information available, not orderable
103 7051221952
Hexagon head screw
104 141116250 1.55 1.88
Cilinderkopschroef
105 141113870 1.67 2.02
No information available, not orderable
106 1381221454
Filler Disc 16X22X0,2 ver.
107 6306670482 1.55 1.88
No information available, not orderable
108 1382221725
Countersunk screw
109 6172001830 1.55 1.88
Fixing clamp
110 8242051328 2.28 2.76
No information available, not orderable
111 1010603265
PARALLEL GUIDE
117 1010603257 175.84 212.77
No information available, not orderable
118 1383220838
Countersunk screw
119 6174155800 1.55 1.88
End Cap Guidance Profile
120 1381220822 2.28 2.76
No longer available, no replacement
121 1383220862
Vierkante moer
125 141131020 1.67 2.02
Clamping body
126 1380220845 60.59 73.31
No information available, not orderable
127 6131009460
No information available, not orderable
128 1380222031
No longer available, no replacement
129 1010657560
Cap nut M 4 VERZ.
131 6201001437 1.55 1.88
Hexagon adjustment screw
132 6104220876 3.02 3.65
Disc spring
133 7053016795 1.55 1.88
Guide rail 300 mm
134 1482221129 16.25 19.66
STAR KNOB NUT M 6 (DIN 934) GALVANIZED
135 7000025466 1.67 2.02
Washer
136 141150130 1.55 1.88
Taper Pin with Morse Taper M 6X20 Plated
137 141124480 1.55 1.88
Angle dimension 1.00 2x0-45 degrees
138 1142221132 4.51 5.46
No information available, not orderable
139 1382221148
No information available, not orderable
140 6131001531
No information available, not orderable
141 7632610097
Flat head bolt
145 6110019490 1.55 1.88
RUNNER GUIDE PLATE
146 1392201587 1.55 1.88
Knurled Nut
147 6241125058 1.67 2.02
No information available, not orderable
7500 1153637969
