Here you will find all available parts and drawings of the 'Metabo 0910058967-12 ( PENNENSLEDETKHS/TKHSC )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

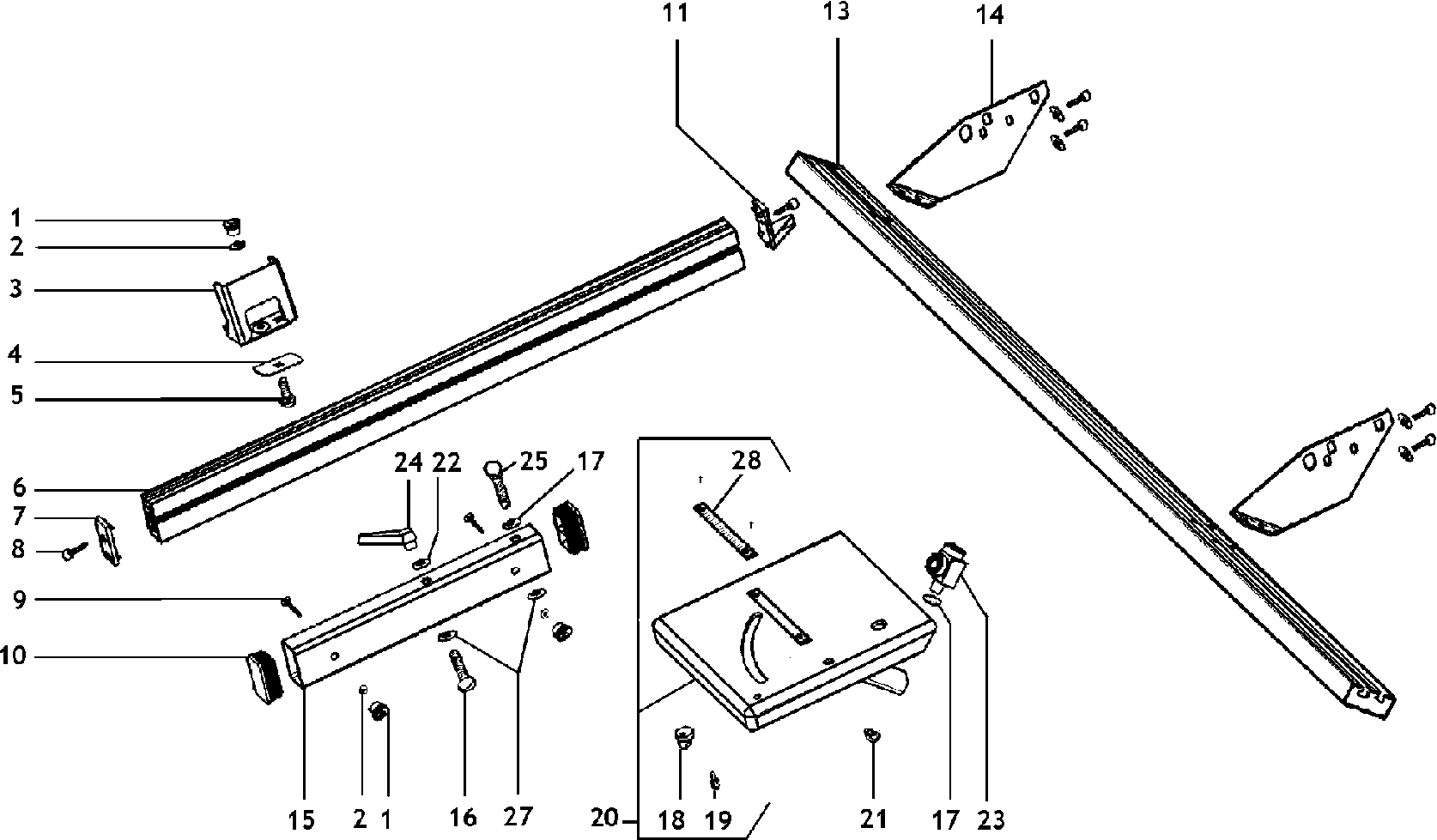

Technical drawing of model Metabo 0910058967-12 ( PENNENSLEDETKHS/TKHSC )

Spare parts list of model Metabo 0910058967-12 ( PENNENSLEDETKHS/TKHSC )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Knurled Nut
1 6241125058 1.67 2.02
Washer
2 141151940 1.55 1.88
RUNNER WITH FLAP
3 2010200388 5.87 7.10
RUNNER GUIDE PLATE
4 1392201587 1.55 1.88
Slotted bolt with square insert
5 6110000608 1.55 1.88
Angular Guide Profile 710 mm ET
6 1393027530 53.86 65.17
End piece
7 2391203760 1.67 2.02
Countersunk screw
8 6174155800 1.55 1.88
SLOT BOLT WITH SQUARE INSERT M 6X45 VERZ
9 6110000624 1.55 1.88
No information available, not orderable
10 1391019459
End piece
11 2391201628 3.02 3.65
Guide profile 1272 long ET slide
13 1383715128 80.81 97.78
Armature PLATE BD 2.99X78X210 ET
14 1392020086 5.87 7.10
SWIVEL ARM 4KT 50X30X1.5X300
15 1392020043 26.95 32.61
No longer available, no replacement
16 6110000667
Washer
17 141150050 1.55 1.88
eccentric disc BL 2.99XRD25/RDI 6.5
18 1482408962 1.55 1.88
Cilinderkopschroef
19 141113840 1.67 2.02
SLIDING TABLE
20 2010000443 80.81 97.78
FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF
21 6209675984 1.55 1.88
Washer
22 141151340 1.55 1.88
CROSS BEARING BLOCK WITH BEARING RIVETED
23 1010014022 16.25 19.66
Clamping lever with internal thread
24 7006028653 7.22 8.74
HEXAGONAL SCREW M10X65
25 6103026847 1.67 2.02
WASHER
27 6300034215 1.55 1.88
No information available, not orderable
28 1142700367
