Here you will find all available parts and drawings of the 'Metabo 15200000 (PE15-20RT)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

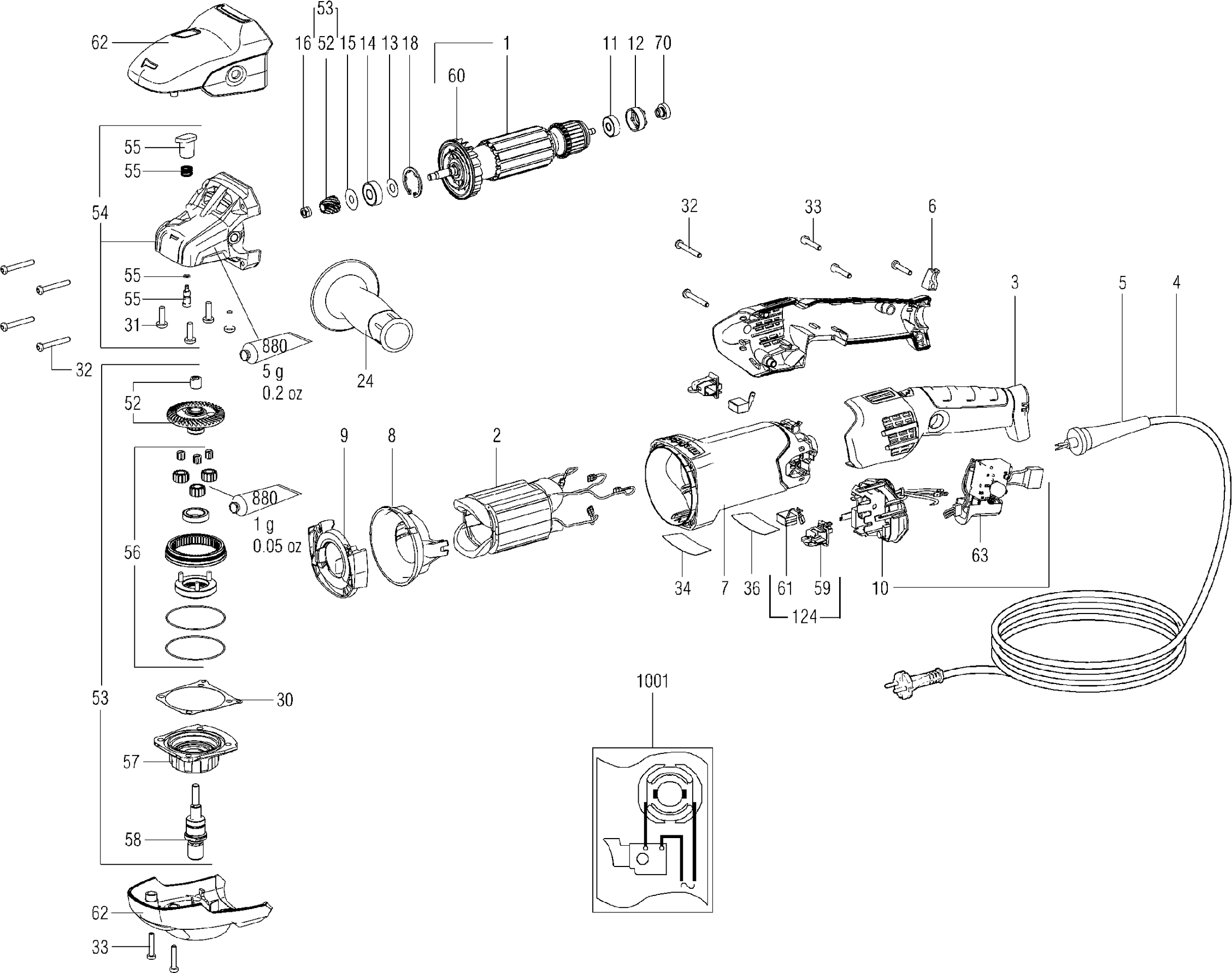

Technical drawing of model Metabo 15200000 (PE15-20RT)
Spare parts list of model Metabo 15200000 (PE15-20RT)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Anker compl.,230V | ||||
| 1 | 310012380 | 94.99 | 114.94 | |
| Field | ||||
| 2 | 311013060 | 70.83 | 85.70 | |
| Two-piece handle | ||||
| 3 | 316076130 | 18.28 | 22.12 | |
| Handle 2 part | ||||
| 3 | 343439040 | 10.82 | 13.09 | |
| Cable with CEE plug | ||||
| 4 | 344531160 | 27.16 | 32.86 | |
| Kabeldoorvoer | ||||
| 5 | 344100970 | 1.79 | 2.17 | |
| Cable clip | ||||
| 6 | 343362490 | 1.79 | 2.17 | |
| Motor housing | ||||
| 7 | 315013790 | 10.82 | 13.09 | |
| Luchtgeleidingsschijf | ||||
| 8 | 339151180 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 9 | 339151200 | 1.67 | 2.02 | |
| Elektro.unit m.schakelaar | ||||
| 10 | 316064720 | 57.79 | 69.93 | |
| Groefkogellager,6x19x6 | ||||
| 11 | 143115690 | 2.43 | 2.94 | |
| Bus rubber | ||||
| 12 | 344097870 | 1.67 | 2.02 | |
| Washer,8.05x17x0.4 | ||||
| 13 | 339133060 | 1.67 | 2.02 | |
| Groefkogellager,8x22x7 | ||||
| 14 | 143115700 | 3.20 | 3.87 | |
| Washer,7.05x19.5x0.2 | ||||
| 15 | 339006390 | 1.67 | 2.02 | |
| Zeskantmoer | ||||
| 16 | 341100940 | 1.79 | 2.17 | |
| Retaining ring | ||||
| 18 | 141156650 | 1.67 | 2.02 | |
| Handgreep compl. | ||||
| 24 | 314000540 | 12.19 | 14.75 | |
| Gasket | ||||
| 30 | 339011970 | 1.67 | 2.02 | |
| Gasket | ||||
| 30 | 339012430 | 1.67 | 2.02 | |
| Fill. head screw(DIN 7985) | ||||
| 31 | 141121640 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 32 | 141116980 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141117060 | 1.79 | 2.17 | |
| Typeplaatje | ||||
| 34 | 338068640 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 36 | 399999990 | |||
| Schotelwiel m.Tandwiel | ||||
| 52 | 316067720 | 46.99 | 56.86 | |
| Tandwielflens compl. | ||||
| 53 | 316067730 | 155.07 | 187.63 | |
| Tandwielhuis compl. | ||||
| 54 | 316066100 | 35.72 | 43.22 | |
| Push button compl. | ||||
| 55 | 316066210 | 12.19 | 14.75 | |
| Complete planet set | ||||
| 56 | 316067830 | 77.08 | 93.27 | |
| Flens compl. | ||||
| 57 | 316066120 | 29.97 | 36.26 | |
| Spindle shaft | ||||
| 58 | 341605360 | 15.31 | 18.53 | |
| Brush holder set | ||||
| 59 | 316065420 | 13.93 | 16.86 | |
| Fan | ||||
| 60 | 330002330 | 3.20 | 3.87 | |
| Carbon brush set uitsch. | ||||
| 61 | 316065450 | 12.19 | 14.75 | |
| Complete Handle Cap | ||||
| 62 | 316066090 | 18.28 | 22.12 | |
| Potentiometer switch without control wheel | ||||
| 63 | 343411330 | 13.93 | 16.86 | |
| Tachoschijf | ||||
| 70 | 343433060 | 2.43 | 2.94 | |
| Carbon brush set with holder 230V | ||||
| 124 | 316067170 | 24.26 | 29.35 | |
| Tube vet 100 gr. | ||||
| 880 | 344131380 | 41.32 | 50.00 | |
| No information available, not orderable | ||||
| 1001 | 338506280 | |||
