Here you will find all available parts and drawings of the 'Metabo 00911000 (P7911)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

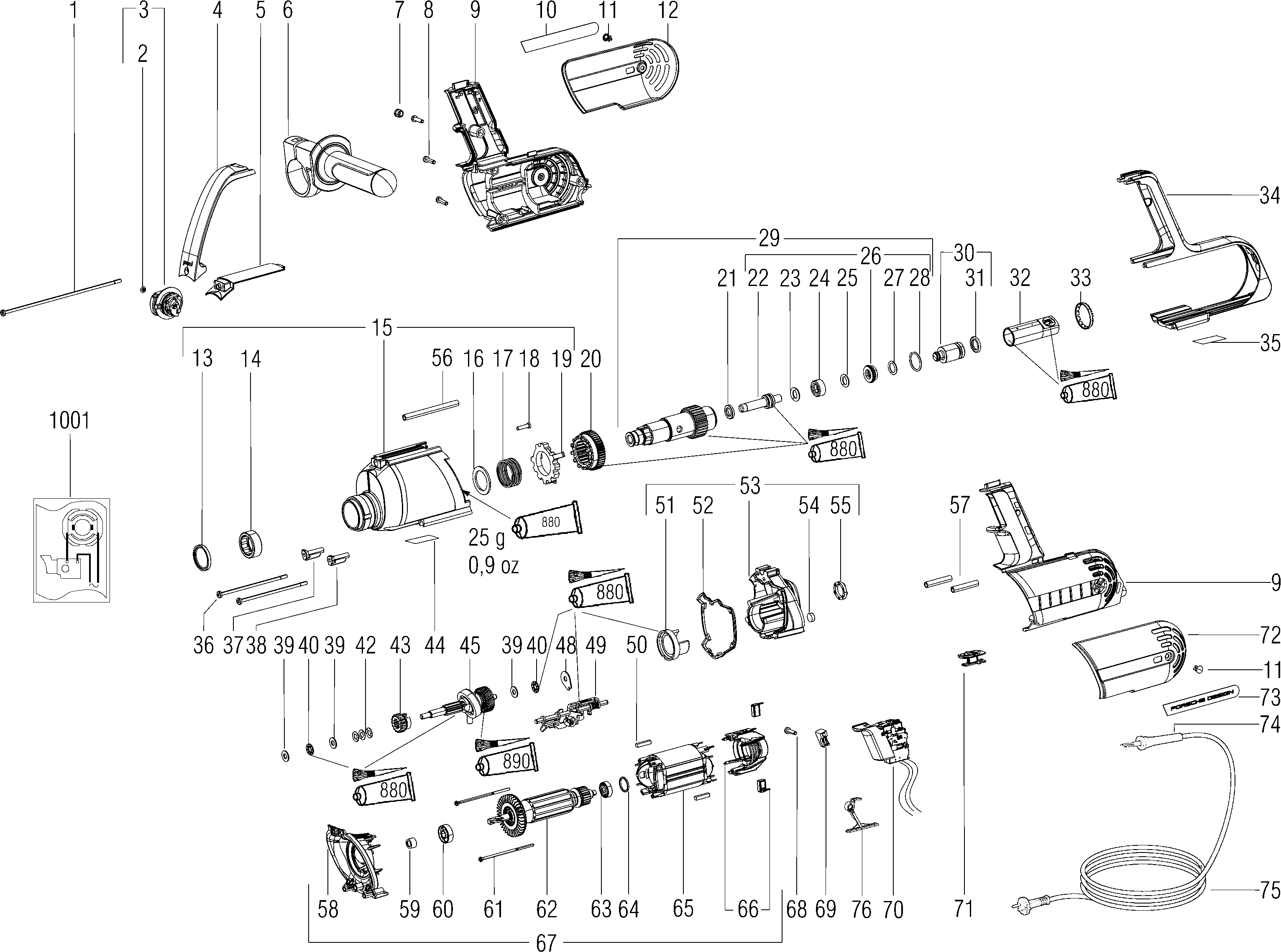

Technical drawing of model Metabo 00911000 (P7911)
Spare parts list of model Metabo 00911000 (P7911)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 341704150 | |||
| Seal | ||||
| 2 | 343376750 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 3 | 316041340 | |||
| No information available, not orderable | ||||
| 4 | 315416170 | |||
| No information available, not orderable | ||||
| 5 | 343392930 | |||
| No information available, not orderable | ||||
| 6 | 314000980 | |||
| No information available, not orderable | ||||
| 7 | 143160020 | |||
| Self-tap fill h screw | ||||
| 8 | 141116020 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 9 | 343392830 | |||
| No information available, not orderable | ||||
| 10 | 338120730 | |||
| No information available, not orderable | ||||
| 11 | 143160010 | |||
| No information available, not orderable | ||||
| 12 | 343393230 | |||
| No longer available, no replacement | ||||
| 13 | 143194910 | |||
| Needle sleeve | ||||
| 14 | 143113830 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 15 | 316041320 | |||
| Support Disk | ||||
| 16 | 141153750 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 17 | 342002690 | |||
| Ball cylinder head Thread Form | ||||
| 18 | 141119440 | 1.67 | 2.02 | |
| Retaining ring | ||||
| 19 | 343374440 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 20 | 316029510 | |||
| Ring | ||||
| 21 | 341012630 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 22 | 316030580 | |||
| O-ring | ||||
| 23 | 143192400 | 1.79 | 2.17 | |
| Supporting ring | ||||
| 24 | 341012550 | 5.49 | 6.64 | |
| No longer available, no replacement | ||||
| 25 | 143193910 | |||
| No information available, not orderable | ||||
| 26 | 316030570 | |||
| O-ring | ||||
| 27 | 143193920 | 6.05 | 7.32 | |
| Borgveer-ring | ||||
| 28 | 141181840 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 29 | 316030560 | |||
| Complete Plunger | ||||
| 30 | 316017660 | 35.72 | 43.22 | |
| Profile-plunger-ring | ||||
| 31 | 344093140 | 4.78 | 5.78 | |
| No longer available, no replacement | ||||
| 32 | 341055770 | |||
| Kogelhouder | ||||
| 33 | 320050480 | 3.20 | 3.87 | |
| No information available, not orderable | ||||
| 34 | 315416180 | |||
| No information available, not orderable | ||||
| 35 | 399999990 | |||
| No information available, not orderable | ||||
| 36 | 341704160 | |||
| No information available, not orderable | ||||
| 37 | 343392920 | |||
| No information available, not orderable | ||||
| 38 | 343392910 | |||
| Washer | ||||
| 39 | 339129610 | 1.67 | 2.02 | |
| Axiaal-naaldlager | ||||
| 40 | 143114280 | 6.05 | 7.32 | |
| Schotelveer | ||||
| 42 | 141154920 | 1.79 | 2.17 | |
| Coupling sleeve | ||||
| 43 | 340003230 | 15.31 | 18.53 | |
| No information available, not orderable | ||||
| 44 | 338048230 | |||
| No information available, not orderable | ||||
| 45 | 316041350 | |||
| Aanloopplaat | ||||
| 48 | 339130980 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 49 | 316029560 | |||
| Rubber stop | ||||
| 50 | 344093350 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 51 | 341056480 | |||
| No information available, not orderable | ||||
| 52 | 344097720 | |||
| No information available, not orderable | ||||
| 53 | 316041330 | |||
| Sealing felt | ||||
| 54 | 344070670 | 1.67 | 2.02 | |
| Rubber buffer | ||||
| 55 | 344095920 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 56 | 339040940 | |||
| No information available, not orderable | ||||
| 57 | 339040920 | |||
| No information available, not orderable | ||||
| 58 | 343392840 | |||
| Afdichtring | ||||
| 59 | 343376040 | 1.79 | 2.17 | |
| Ball bearing 8x22x 7 | ||||
| 60 | 143114880 | 3.20 | 3.87 | |
| Self-tap. fill. h. screw | ||||
| 61 | 341570120 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 62 | 310009010 | |||
| Ball bearing 6x19x 6 | ||||
| 63 | 143114750 | 3.20 | 3.87 | |
| O-ring | ||||
| 64 | 143192430 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 65 | 311010430 | |||
| Carbon brush complete with insert,230V | ||||
| 66 | 316041730 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 67 | 317003590 | |||
| Self-tap. fill. h. screw | ||||
| 68 | 141117060 | 1.79 | 2.17 | |
| Cable clip | ||||
| 69 | 343362490 | 1.79 | 2.17 | |
| No information available, not orderable | ||||
| 70 | 343408490 | |||
| No information available, not orderable | ||||
| 71 | 343392940 | |||
| No information available, not orderable | ||||
| 72 | 343393220 | |||
| No information available, not orderable | ||||
| 73 | 338120740 | |||
| Kabelbescherming | ||||
| 74 | 344101140 | 2.43 | 2.94 | |
| Cable with CEE plug | ||||
| 75 | 344486730 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 76 | 343393860 | |||
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 21.22 | 25.68 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 890 | 344130560 | 52.36 | 63.36 | |
| No information available, not orderable | ||||
| 1001 | 338504460 | |||
