Here you will find all available parts and drawings of the 'Metabo 01229003 ( OFE1229SIGNAL )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

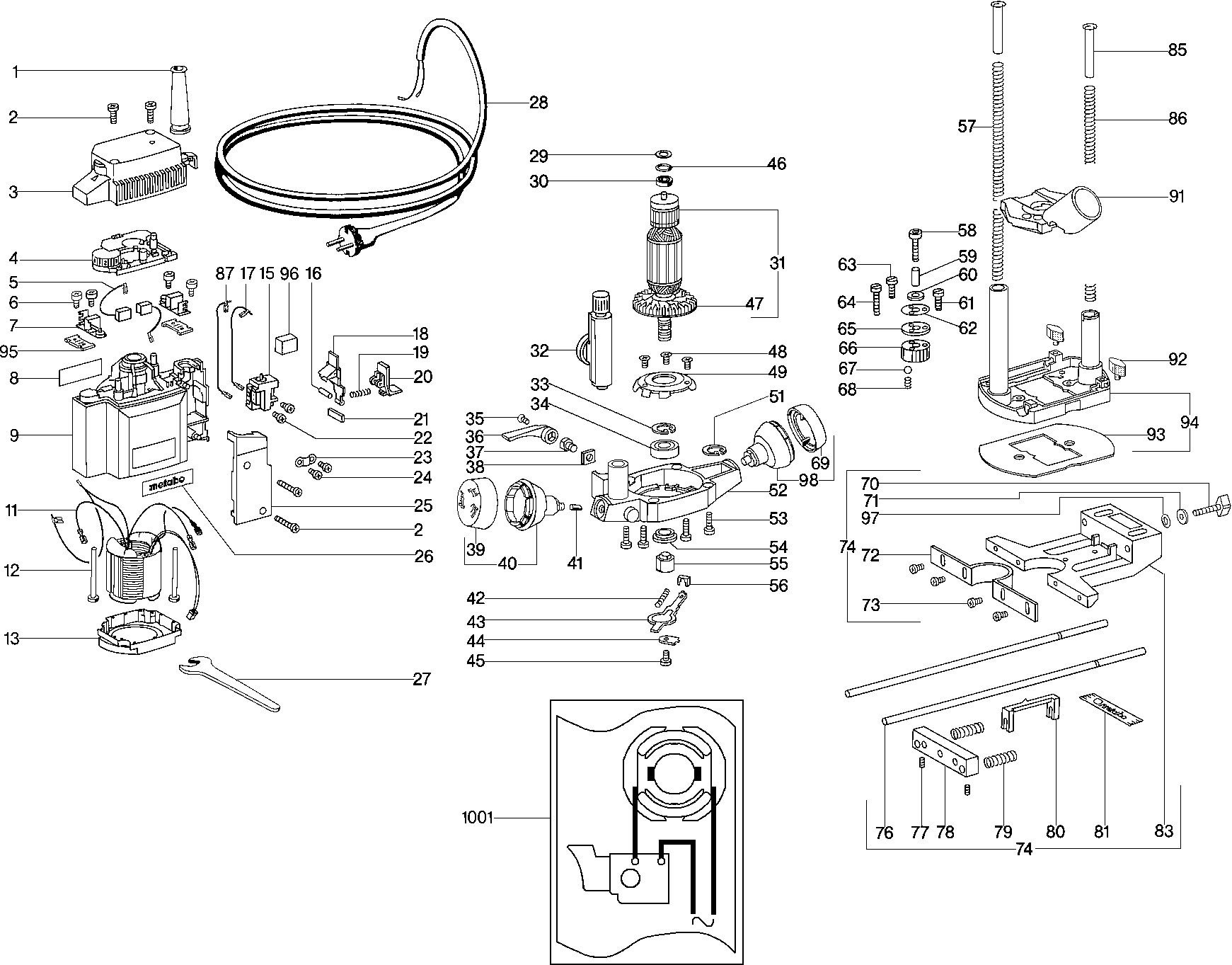

Technical drawing of model Metabo 01229003 ( OFE1229SIGNAL )
Spare parts list of model Metabo 01229003 ( OFE1229SIGNAL )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Kabelbescherming | ||||
| 1 | 344100640 | 2.28 | 2.76 | |
| Electronic unit, 230V | ||||
| 4 | 343089920 | 48.48 | 58.66 | |
| Carbon brush set | ||||
| 5 | 316033420 | 16.25 | 19.66 | |
| Koolborstelhouder | ||||
| 7 | 343000480 | 7.22 | 8.74 | |
| Typeplaatje | ||||
| 8 | 338024650 | 1.55 | 1.88 | |
| Field | ||||
| 11 | 311012960 | 80.81 | 97.78 | |
| Air guide cover | ||||
| 13 | 343363850 | 7.22 | 8.74 | |
| Pressure Switch | ||||
| 15 | 343413040 | 21.64 | 26.18 | |
| Cylindrical pin | ||||
| 16 | 141160290 | 1.55 | 1.88 | |
| Strand cpl. Awg18sw | ||||
| 17 | 344533810 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 18 | 343363720 | 4.51 | 5.46 | |
| Switch slider compl. | ||||
| 20 | 316021590 | 5.87 | 7.10 | |
| M-label 56x25 | ||||
| 26 | 338122370 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 27 | 623902000 | |||
| Kabel m. CEE-stekker | ||||
| 28 | 344493180 | 21.64 | 26.18 | |
| Kogellager 8x22x 7 | ||||
| 30 | 143115800 | 2.28 | 2.76 | |
| Anker 220 V | ||||
| 31 | 310005780 | 175.84 | 212.77 | |
| Adjustment Dial | ||||
| 32 | 316017080 | 80.81 | 97.78 | |
| Kogellager 15x35x11 | ||||
| 34 | 143114020 | 12.23 | 14.80 | |
| Countersunk screw | ||||
| 35 | 141112120 | 1.55 | 1.88 | |
| Vastzethendel | ||||
| 36 | 343360210 | 3.02 | 3.65 | |
| Zeskantschroef | ||||
| 37 | 341702130 | 2.28 | 2.76 | |
| Description | ||||
| 38 | 339124980 | 1.67 | 2.02 | |
| Greepdeel boven | ||||
| 39 | 341111560 | 5.18 | 6.27 | |
| Greepdeel onder | ||||
| 40 | 316033050 | 5.87 | 7.10 | |
| Platverzonken schroef | ||||
| 48 | 141122320 | 1.55 | 1.88 | |
| Lagerflens | ||||
| 49 | 339124720 | 12.23 | 14.80 | |
| Bearing flange compl. | ||||
| 52 | 316021600 | 107.70 | 130.32 | |
| Spantang 8 mm met spanmoer (6-kant) | ||||
| 55 | 631946000 | 11.95 | 14.46 | |
| Cilinderkopschroef | ||||
| 58 | 141113900 | 1.67 | 2.02 | |
| Schotelveer | ||||
| 60 | 141152620 | 1.55 | 1.88 | |
| Cilinderkopschroef | ||||
| 61 | 141111230 | 1.55 | 1.88 | |
| Handle part above | ||||
| 69 | 341111320 | 5.87 | 7.10 | |
| Vleugelschroef | ||||
| 70 | 341110800 | 2.28 | 2.76 | |
| Parallelgeleider | ||||
| 74 | 631507000 | 72.36 | 87.56 | |
| Geleidingsstang | ||||
| 76 | 341051890 | 5.87 | 7.10 | |
| Threaded rod | ||||
| 77 | 141115000 | 1.67 | 2.02 | |
| Pointer v.size indication | ||||
| 80 | 344350280 | 11.74 | 14.21 | |
| Maataanduiding | ||||
| 81 | 338113730 | 1.67 | 2.02 | |
| Guide holder | ||||
| 83 | 315412570 | 48.48 | 58.66 | |
| Strand cpl. Awg18sw | ||||
| 87 | 344533850 | 1.55 | 1.88 | |
| Exhaust connection piece complete | ||||
| 91 | 316025140 | 18.80 | 22.75 | |
| Vleugelschroef | ||||
| 92 | 341111030 | 2.28 | 2.76 | |
| Description | ||||
| 93 | 339124480 | 4.51 | 5.46 | |
| Grondplaat compl. | ||||
| 94 | 316020730 | 87.60 | 106.00 | |
| Isolatieplaat | ||||
| 95 | 339010870 | 1.55 | 1.88 | |
| Inleg licht ontvlambaar | ||||
| 96 | 344098520 | 1.55 | 1.88 | |
| Lower grip part | ||||
| 98 | 316033040 | 5.18 | 6.27 | |
