Here you will find all available parts and drawings of the 'Metabo 01406000 (MT400Quick)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

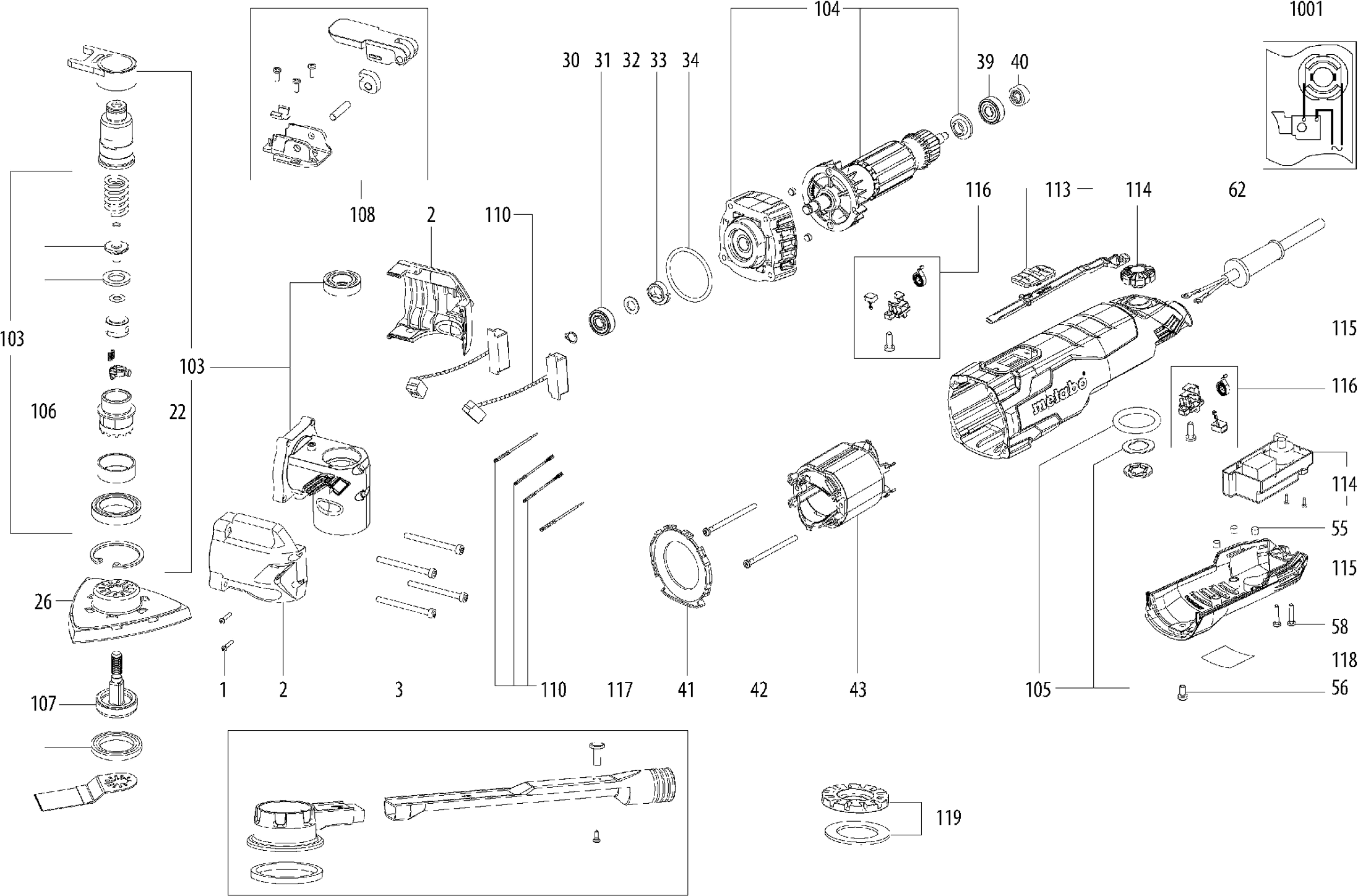

Technical drawing of model Metabo 01406000 (MT400Quick)
Spare parts list of model Metabo 01406000 (MT400Quick)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 341722230 | 1.56 | 1.89 | |
| Cover (f. gear) | ||||
| 2 | 343441570 | 8.89 | 10.76 | |
| Screw | ||||
| 3 | 341722220 | 1.56 | 1.89 | |
| Gereedschaphouder | ||||
| 22 | 341211230 | 24.23 | 29.32 | |
| Schuurzool | ||||
| 26 | 344199200 | 18.80 | 22.75 | |
| sealing ring | ||||
| 30 | 342024040 | 1.56 | 1.89 | |
| Bearing | ||||
| 31 | 320054040 | 8.89 | 10.76 | |
| Washer | ||||
| 32 | 339009360 | 1.56 | 1.89 | |
| Coupling | ||||
| 33 | 343441560 | 1.56 | 1.89 | |
| 344113180 | ||||
| 34 | 344113150 | 1.56 | 1.89 | |
| Kogellager | ||||
| 39 | 320054380 | 5.87 | 7.10 | |
| Ringmagneet | ||||
| 40 | 343445900 | 3.02 | 3.65 | |
| Luchtgeleiderschijf | ||||
| 41 | 339153540 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 42 | 141124780 | 1.56 | 1.89 | |
| Field | ||||
| 43 | 311012720 | 87.60 | 106.00 | |
| Rubber plug | ||||
| 55 | 344113750 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 56 | 141110450 | 1.56 | 1.89 | |
| Screw self-tapping | ||||
| 58 | 341722890 | 1.56 | 1.89 | |
| Cable | ||||
| 62 | 344531300 | 21.64 | 26.18 | |
| Aandrijving compl. | ||||
| 103 | 316092380 | 148.53 | 179.72 | |
| Anker compl. | ||||
| 104 | 310012360 | 48.48 | 58.66 | |
| BEVESTIGING cpl. | ||||
| 105 | 316096640 | 1.56 | 1.89 | |
| Spanstuk compl. | ||||
| 106 | 316092390 | 37.65 | 45.56 | |
| Opname compl. | ||||
| 107 | 316096650 | 16.25 | 19.66 | |
| Spanhendel | ||||
| 108 | 316092370 | 37.65 | 45.56 | |
| Complete transistor | ||||
| 110 | 316096660 | 16.25 | 19.66 | |
| Field | ||||
| 111 | 311012720 | 87.60 | 106.00 | |
| Schakelhendel compl. | ||||
| 113 | 316096670 | 2.28 | 2.76 | |
| Elektro.unit compl. | ||||
| 114 | 343086300 | 48.48 | 58.66 | |
| Huis compl. | ||||
| 115 | 316096690 | 16.25 | 19.66 | |
| Kohlebuerstenhalter vollst. | ||||
| 116 | 316096680 | 7.22 | 8.74 | |
| Complete dust extraction | ||||
| 117 | 343445910 | 7.22 | 8.74 | |
| Typeplaatje | ||||
| 118 | 338068530 | 1.56 | 1.89 | |
| Multi-adaptor Mt 18 Ltx | ||||
| 119 | 344199150 | 10.38 | 12.56 | |
| Washer | ||||
| 120 | 339009360 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 1001 | 338510190 | |||
