Here you will find all available parts and drawings of the 'Metabo 0911053187-10 ( MORTICINGATTACHMENTHC333 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

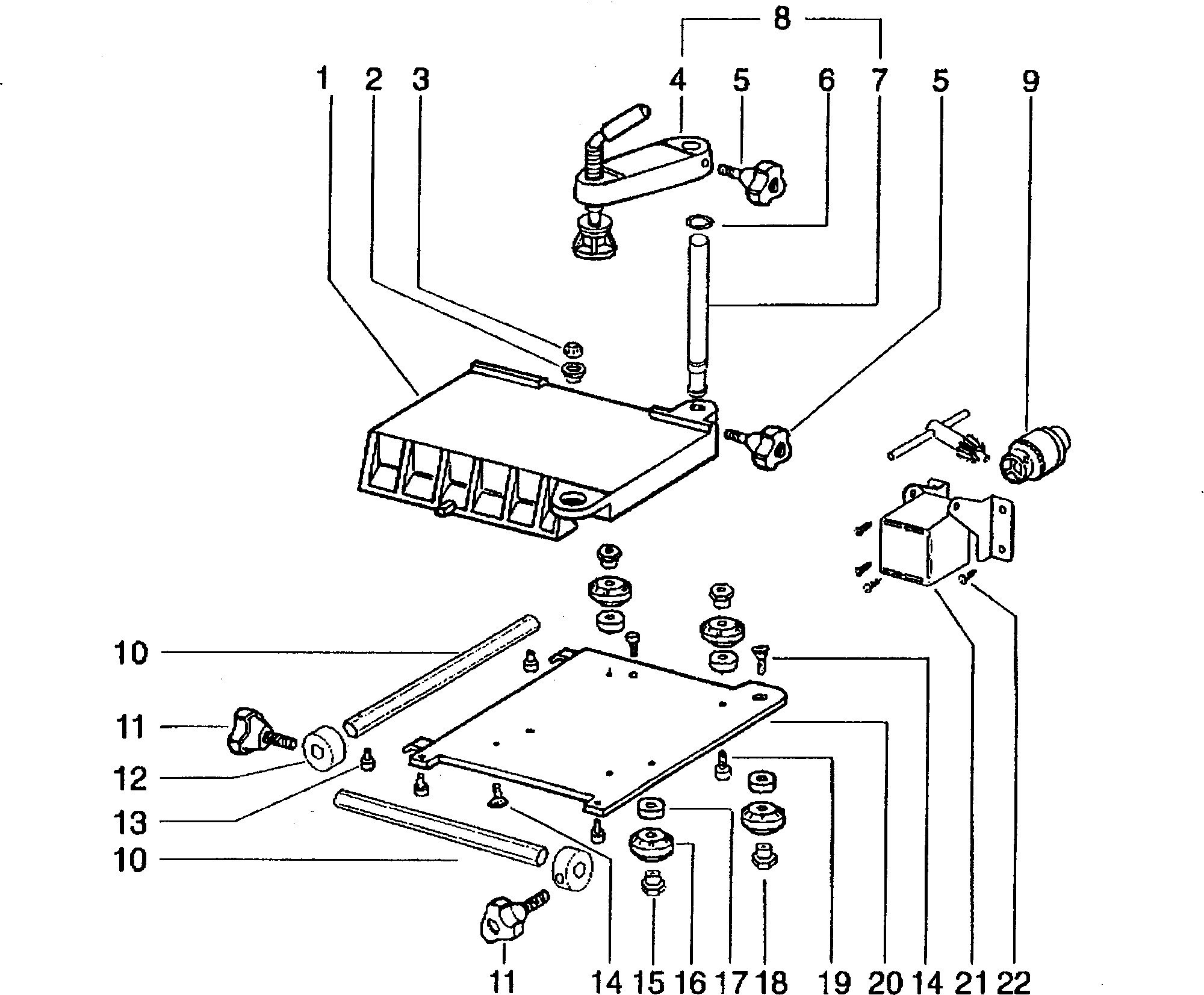

Technical drawing of model Metabo 0911053187-10 ( MORTICINGATTACHMENTHC333 )

Spare parts list of model Metabo 0911053187-10 ( MORTICINGATTACHMENTHC333 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 1380659244
No information available, not orderable
2 1381659158
No information available, not orderable
3 1381659140
No information available, not orderable
4 1011659418
Star Knob Screw M 8X23 (DIN 933) Galvanized
5 7001144191 2.28 2.76
Lock Ring
6 141180100 1.67 2.02
No information available, not orderable
7 1385659420
No information available, not orderable
8 1011659400
No information available, not orderable
9 9431018770
No information available, not orderable
10 1388659196
No information available, not orderable
11 7001124212
No information available, not orderable
12 1380659170
Cylinder head screw
13 6121023081 1.55 1.88
No information available, not orderable
14 141112310
No information available, not orderable
15 1385659136
No information available, not orderable
16 1381659204
No information available, not orderable
17 1385659187
No information available, not orderable
18 1385659160
Cilinderkopschroef
19 141113890 1.67 2.02
No information available, not orderable
20 1382659224
No information available, not orderable
21 1011659892
Place screw M.crosshead
22 6172015687 1.55 1.88
No information available, not orderable
23 1380659235
Hexagonal screw M 6X35 curved.
24 6103004916 1.55 1.88
Washer
25 141151940 1.55 1.88
No information available, not orderable
26 6121151608
No information available, not orderable
27 1388659390
No information available, not orderable
28 1485658579
Disc spring
29 141150540 1.55 1.88
Zeskante moer
30 141130130 1.67 2.02
Cylinder head screw
31 6121023081 1.55 1.88
No information available, not orderable
32 1011656290
Zeskante moer
33 141130100 1.55 1.88
No information available, not orderable
34 7002659900
No information available, not orderable
35 1385659217
No information available, not orderable
36 1381659255
Washer
37 141150130 1.55 1.88
Cilinderkopschroef
38 141113840 1.67 2.02
No information available, not orderable
39 1381659379
No information available, not orderable
40 1385659276
No information available, not orderable
41 1385659314
Cilinderkopschroef
42 141113840 1.67 2.02
Zeskante moer
43 141130130 1.67 2.02
No information available, not orderable
44 1385659268
No information available, not orderable
45 1381659328
No information available, not orderable
46 6132158523
No information available, not orderable
47 1388659439
No information available, not orderable
48 7003659342
No information available, not orderable
49 1385659365
No information available, not orderable
50 1382659330
No information available, not orderable
51 1385659292
No information available, not orderable
52 1382659283
Washer
53 141150050 1.55 1.88
No information available, not orderable
54 1380659308
No information available, not orderable
55 1385659357
No information available, not orderable
56 6200002278
