Here you will find all available parts and drawings of the 'Metabo 0901009210-10 (MHS450SET)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

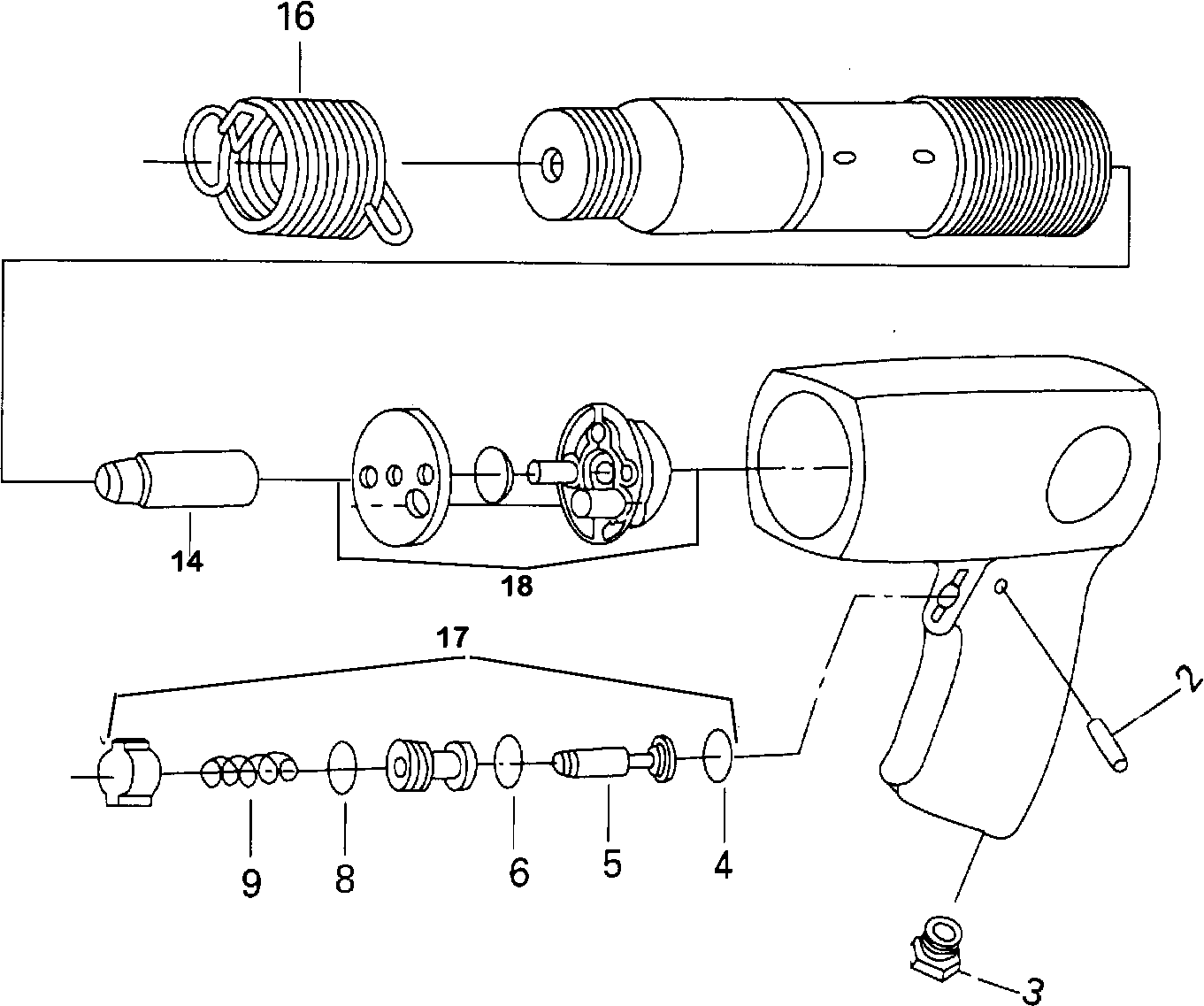

Technical drawing of model Metabo 0901009210-10 (MHS450SET)
Spare parts list of model Metabo 0901009210-10 (MHS450SET)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tension pin 3x20 Et | ||||
| 2 | 141164130 | 1.68 | 2.03 | |
| Air inlet reducer ET | ||||
| 3 | 7809189354 | 4.51 | 5.46 | |
| O-RING 11,5X2,4 ET | ||||
| 4 | 7632189170 | 2.28 | 2.76 | |
| VALVE ROD ET | ||||
| 5 | 1319189153 | 12.23 | 14.80 | |
| O-RING 11,5X2,4 ET | ||||
| 6 | 7632189170 | 2.28 | 2.76 | |
| O-RING 11,5X2,4 ET | ||||
| 8 | 7632189170 | 2.28 | 2.76 | |
| Spiral spring ET | ||||
| 9 | 1319189188 | 2.28 | 2.76 | |
| Piston ET | ||||
| 14 | 1319189196 | 12.23 | 14.80 | |
| No information available, not orderable | ||||
| 16 | 0901013047 | |||
| CONTROL VALVE COMPLETE ET | ||||
| 17 | 7836163146 | 48.48 | 58.66 | |
| COMPLETE SHUT-OFF VALVE ET | ||||
| 18 | 1319166196 | 11.74 | 14.21 | |
