Here you will find all available parts and drawings of the 'Metabo 00770000 (MHEV11BL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

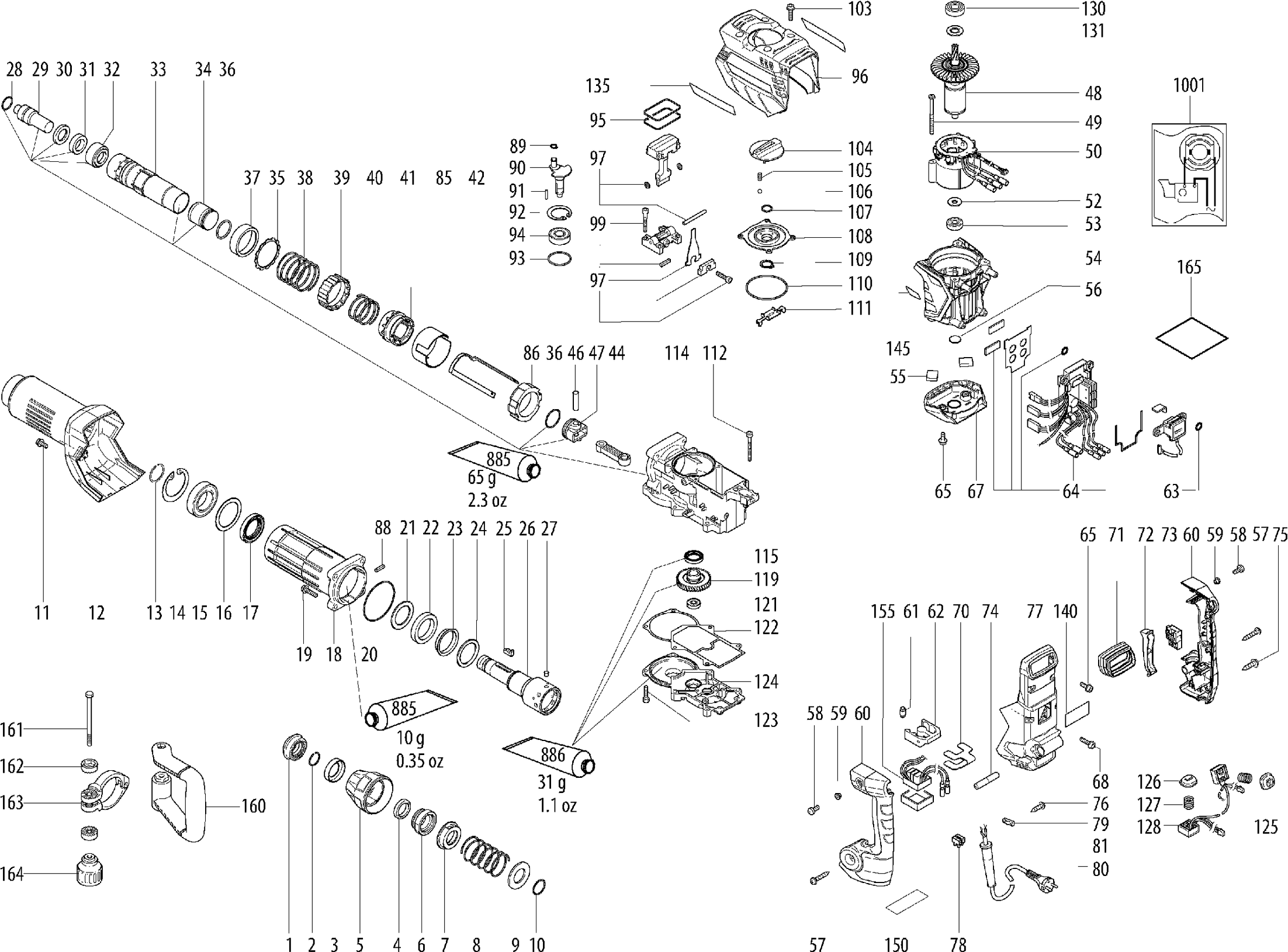

Technical drawing of model Metabo 00770000 (MHEV11BL)
Spare parts list of model Metabo 00770000 (MHEV11BL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubber cap | ||||
| 1 | 344114200 | 3.71 | 4.49 | |
| Lock Ring | ||||
| 2 | 342024380 | 1.56 | 1.89 | |
| Washer | ||||
| 3 | 339009480 | 5.18 | 6.27 | |
| DAMPER | ||||
| 4 | 344114370 | 12.23 | 14.80 | |
| Slide Sleeve | ||||
| 5 | 341213270 | 3.71 | 4.49 | |
| SLEEVE | ||||
| 6 | 341213280 | 11.74 | 14.21 | |
| Support Disk | ||||
| 7 | 341020400 | 3.71 | 4.49 | |
| Compression Spring | ||||
| 8 | 342011030 | 3.02 | 3.65 | |
| Guide Plate | ||||
| 9 | 339149350 | 1.68 | 2.03 | |
| Geleidingsplaat | ||||
| 9 | 339149060 | 1.56 | 1.89 | |
| O-Ring | ||||
| 10 | 344114290 | 1.56 | 1.89 | |
| SCREW | ||||
| 11 | 341723550 | 1.56 | 1.89 | |
| Cover | ||||
| 12 | 343449370 | 18.80 | 22.75 | |
| Retaining ring | ||||
| 13 | 342024490 | 5.18 | 6.27 | |
| Lock Ring | ||||
| 14 | 342024500 | 7.22 | 8.74 | |
| BALL BEARING OSC 18 | ||||
| 15 | 320054550 | 18.80 | 22.75 | |
| Washer | ||||
| 16 | 341020270 | 2.28 | 2.76 | |
| Shaft sealing ring | ||||
| 17 | 339013260 | 7.22 | 8.74 | |
| Gear Housing | ||||
| 18 | 315420390 | 48.48 | 58.66 | |
| SCREW | ||||
| 19 | 341723410 | 1.68 | 2.03 | |
| O-Ring | ||||
| 20 | 344114430 | 1.68 | 2.03 | |
| Support Disk | ||||
| 21 | 341020260 | 2.28 | 2.76 | |
| Damping Ring | ||||
| 22 | 344114460 | 7.22 | 8.74 | |
| SLEEVE | ||||
| 23 | 341006630 | 1.68 | 2.03 | |
| Supporting ring | ||||
| 24 | 341020300 | 4.51 | 5.46 | |
| Carrier | ||||
| 25 | 339149080 | 16.25 | 19.66 | |
| Drill driving sleeve | ||||
| 26 | 341213420 | 74.13 | 89.70 | |
| Cylindrical pin | ||||
| 27 | 341519830 | 1.68 | 2.03 | |
| O-ring | ||||
| 28 | 344113900 | 3.71 | 4.49 | |
| Doepper | ||||
| 29 | 341020310 | 26.95 | 32.61 | |
| Support Disk | ||||
| 30 | 341020320 | 3.71 | 4.49 | |
| DAMPER | ||||
| 31 | 344114470 | 3.02 | 3.65 | |
| Support Disk | ||||
| 32 | 341020330 | 10.38 | 12.56 | |
| Drill driving sleeve | ||||
| 33 | 341213430 | 74.13 | 89.70 | |
| Striker | ||||
| 34 | 341213450 | 16.25 | 19.66 | |
| Washer | ||||
| 35 | 341020280 | 2.28 | 2.76 | |
| O-Ring | ||||
| 36 | 344114440 | 5.18 | 6.27 | |
| SLEEVE | ||||
| 37 | 341020350 | 21.64 | 26.18 | |
| Compression Spring | ||||
| 38 | 342024510 | 2.28 | 2.76 | |
| Washer | ||||
| 39 | 343449380 | 2.28 | 2.76 | |
| Compression Spring | ||||
| 40 | 342024520 | 2.28 | 2.76 | |
| Clutch Sleeve | ||||
| 41 | 341213460 | 53.86 | 65.17 | |
| Control Fork | ||||
| 42 | 341020380 | 7.22 | 8.74 | |
| Connecting rod cpl. | ||||
| 44 | 316098230 | 13.48 | 16.31 | |
| PIN | ||||
| 46 | 341519840 | 2.28 | 2.76 | |
| PISTON | ||||
| 47 | 343449390 | 10.38 | 12.56 | |
| Armature | ||||
| 48 | 310012970 | 296.22 | 358.43 | |
| SCREW | ||||
| 49 | 341723380 | 1.56 | 1.89 | |
| Complete stator 220-240V | ||||
| 50 | 316098210 | 87.60 | 106.00 | |
| Washer | ||||
| 52 | 339009520 | 1.56 | 1.89 | |
| BALL BEARING OSC 18 | ||||
| 53 | 320054530 | 5.87 | 7.10 | |
| Motor Housing | ||||
| 54 | 315420290 | 94.12 | 113.89 | |
| Buffer | ||||
| 55 | 344114540 | 1.68 | 2.03 | |
| Dust seal | ||||
| 56 | 344114400 | 1.56 | 1.89 | |
| PAN HD.PLASTIC SCR. | ||||
| 57 | 341723060 | 1.56 | 1.89 | |
| SCREW | ||||
| 58 | 341723430 | 1.56 | 1.89 | |
| Spacers | ||||
| 59 | 341723260 | 1.56 | 1.89 | |
| Complete Handgrip | ||||
| 60 | 343448550 | 24.23 | 29.32 | |
| Rubber Sleeve | ||||
| 61 | 344114270 | 1.56 | 1.89 | |
| FORK | ||||
| 62 | 315420340 | 5.18 | 6.27 | |
| LED | ||||
| 63 | 343087410 | 18.80 | 22.75 | |
| Electronic unit 220V-240V | ||||
| 64 | 343087530 | 187.73 | 227.15 | |
| Screw | ||||
| 65 | 341571030 | 1.56 | 1.89 | |
| Motor Hood | ||||
| 67 | 343449360 | 4.51 | 5.46 | |
| Screw with flange | ||||
| 68 | 341570990 | 1.68 | 2.03 | |
| screw | ||||
| 68 | 341723050 | 1.56 | 1.89 | |
| Stop Plate | ||||
| 70 | 341213410 | 2.28 | 2.76 | |
| Bellows | ||||
| 71 | 344114410 | 7.22 | 8.74 | |
| Red switch button | ||||
| 72 | 343449270 | 3.02 | 3.65 | |
| Switch | ||||
| 73 | 343412140 | 18.80 | 22.75 | |
| Bearing pin | ||||
| 74 | 341519820 | 1.56 | 1.89 | |
| SCREW | ||||
| 75 | 341723450 | 1.56 | 1.89 | |
| SCREW | ||||
| 76 | 341723440 | 1.56 | 1.89 | |
| Cover | ||||
| 77 | 343448540 | 11.74 | 14.21 | |
| Terminal Block | ||||
| 78 | 343087720 | 1.68 | 2.03 | |
| Cable clip | ||||
| 79 | 343447450 | 1.56 | 1.89 | |
| Cable with CEE plug | ||||
| 80 | 344532140 | 32.27 | 39.05 | |
| Kabeldoorvoer | ||||
| 81 | 344114120 | 1.68 | 2.03 | |
| SLEEVE | ||||
| 85 | 341020370 | 1.68 | 2.03 | |
| PROFILE RING | ||||
| 86 | 341213470 | 21.64 | 26.18 | |
| Cylindrical pin | ||||
| 88 | 341525480 | 1.68 | 2.03 | |
| Lock Ring | ||||
| 89 | 342024480 | 2.28 | 2.76 | |
| Eccentric shaft | ||||
| 90 | 341605730 | 37.65 | 45.56 | |
| Wedge TSF 55 | ||||
| 91 | 339101140 | 1.56 | 1.89 | |
| Lock Ring | ||||
| 92 | 342024530 | 2.28 | 2.76 | |
| O-Ring | ||||
| 93 | 344114490 | 1.56 | 1.89 | |
| BALL BEARING OSC 18 | ||||
| 94 | 320054570 | 8.89 | 10.76 | |
| O-Ring | ||||
| 95 | 344114330 | 3.02 | 3.65 | |
| Cap | ||||
| 96 | 343448460 | 13.48 | 16.31 | |
| Dampener full. | ||||
| 97 | 316098290 | 80.81 | 97.78 | |
| SCREW | ||||
| 99 | 341723390 | 1.56 | 1.89 | |
| SCREW | ||||
| 103 | 341723470 | 1.56 | 1.89 | |
| Rotary knob ABB OHYS2AJ | ||||
| 104 | 343449450 | 3.02 | 3.65 | |
| Compression Spring | ||||
| 105 | 342024430 | 1.56 | 1.89 | |
| STALEN KOGEL | ||||
| 106 | 341166880 | 1.56 | 1.89 | |
| O-ring | ||||
| 107 | 344113940 | 7.22 | 8.74 | |
| PROFILE RING | ||||
| 108 | 341167170 | 13.48 | 16.31 | |
| Retaining ring | ||||
| 109 | 141180130 | 1.56 | 1.89 | |
| O-Ring | ||||
| 110 | 344114450 | 1.68 | 2.03 | |
| Switch Element | ||||
| 111 | 339149400 | 2.28 | 2.76 | |
| Screw | ||||
| 112 | 341571000 | 1.68 | 2.03 | |
| Rear gear housing | ||||
| 114 | 315420420 | 11.74 | 14.21 | |
| Shaft sealing ring | ||||
| 115 | 339013270 | 5.87 | 7.10 | |
| GEAR | ||||
| 119 | 340037590 | 16.25 | 19.66 | |
| BALL BEARING OSC 18 | ||||
| 121 | 320054490 | 7.22 | 8.74 | |
| Gasket | ||||
| 122 | 344114500 | 1.68 | 2.03 | |
| SCREW | ||||
| 123 | 341723400 | 1.56 | 1.89 | |
| Gear bearing cover | ||||
| 124 | 315420430 | 37.65 | 45.56 | |
| Lock Knob | ||||
| 125 | 343448570 | 2.28 | 2.76 | |
| Button AGC 18 | ||||
| 126 | 343448580 | 2.28 | 2.76 | |
| Compression Spring | ||||
| 127 | 342024420 | 2.28 | 2.76 | |
| Push button switch | ||||
| 128 | 343412150 | 32.27 | 39.05 | |
| Push button switch | ||||
| 128 | 343412190 | 26.95 | 32.61 | |
| BALL BEARING OSC 18 | ||||
| 130 | 320054540 | 7.22 | 8.74 | |
| Centrifuge Disc | ||||
| 131 | 339009530 | 1.56 | 1.89 | |
| Type plate HK 85 EB 230V | ||||
| 135 | 338130730 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 140 | 338071580 | |||
| Identification plate | ||||
| 145 | 338130760 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 150 | 399999990 | |||
| Interference capacitor 220V-240V | ||||
| 155 | 343255220 | 18.80 | 22.75 | |
| Handle bracket | ||||
| 160 | 343449440 | 12.23 | 14.80 | |
| SCREW | ||||
| 161 | 341723460 | 5.18 | 6.27 | |
| Cam | ||||
| 162 | 341072200 | 1.56 | 1.89 | |
| Clamping Piece | ||||
| 163 | 344650020 | 32.27 | 39.05 | |
| Nut | ||||
| 164 | 341109150 | 4.51 | 5.46 | |
| Cleaning Cloth | ||||
| 165 | 341167130 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 166 | 631800000 | |||
| Special grease 500g | ||||
| 885 | 344131350 | 60.59 | 73.31 | |
| GREASE | ||||
| 886 | 344131360 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338510530 | |||
