Here you will find all available parts and drawings of the 'Metabo 00396002 ( MHE96 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

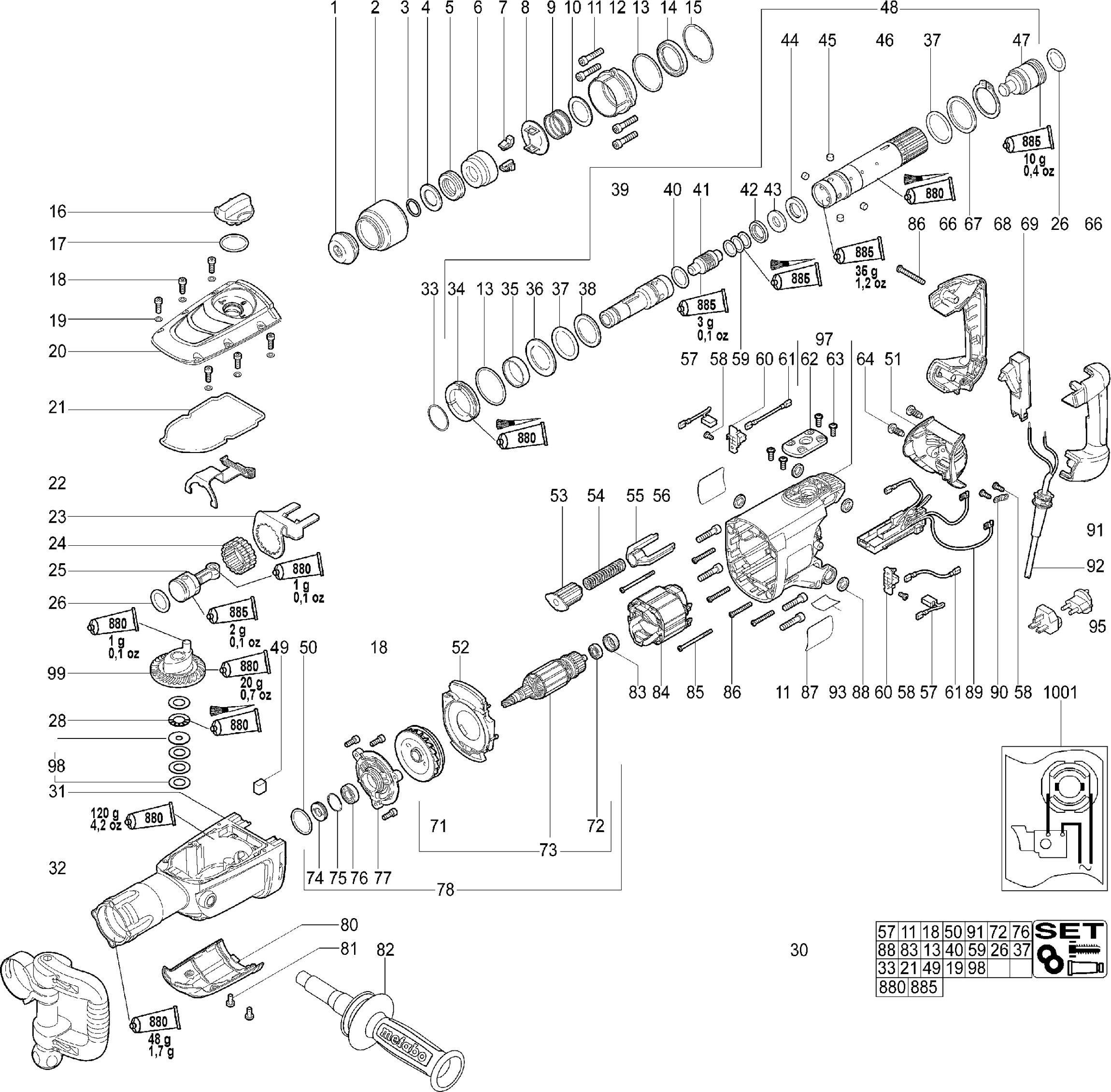

Technical drawing of model Metabo 00396002 ( MHE96 )

Spare parts list of model Metabo 00396002 ( MHE96 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Rubberen kap
1 344097970 11.74 14.21
Sleeve
2 343394280 18.80 22.75
Lock Ring
3 141155450 1.55 1.88
Ring
4 341012850 26.95 32.61
Dempingsring
5 344097980 16.25 19.66
Sleeve
6 341058650 67.33 81.47
Carrier
7 339007080 26.95 32.61
Tussenplaat
8 339133170 43.15 52.21
Pressure spring
9 342003480 3.02 3.65
Washer
10 341012920 4.51 5.46
Cilinderkopschroef
11 141114040 1.55 1.88
Retaining ring
12 339132760 7.22 8.74
O-ring
13 344098140 1.55 1.88
Gegolfde dichtring
14 339011620 5.18 6.27
Retaining ring
15 141180450 1.67 2.02
Schakelknop
16 343394250 11.74 14.21
O-ring
17 344098090 1.55 1.88
Cap screw
18 141123570 1.55 1.88
Washer
19 141150020 1.55 1.88
Tandwieldeksel
20 315416310 100.74 121.90
Vormpakking
21 344098050 8.89 10.76
Schakelvork
22 339133150 60.59 73.31
Retaining sheet
23 339133160 43.15 52.21
Setting ring
24 343394270 3.71 4.49
Zuiger compl.
25 316042440 43.15 52.21
O-ring
26 344098180 1.55 1.88
Bearing
28 320050630 11.74 14.21
Onderhoudset
30 316042470 134.27 162.47
No information available, not orderable
31 315104720
Handgreep extra compl.
32 316042080 48.48 58.66
Circlip
33 342022080 1.55 1.88
Ring
34 341070580 24.23 29.32
Ring
35 341012840 21.64 26.18
Steunschijf
36 341070570 5.87 7.10
O-ring
37 344098190 12.23 14.80
Guide Ring
38 339006940 5.18 6.27
Drill driving sleeve
39 341058630 148.53 179.72
O-ring
40 344098150 1.55 1.88
Dopper compl.
41 316042420 60.59 73.31
Geleiderring
42 341012820 13.48 16.31
Ring,NBR
43 344098040 4.51 5.46
Geleiderring
44 341012830 18.80 22.75
Pin
45 341058640 2.28 2.76
Sleeve
46 341058620 256.98 310.95
Plunjer compl.
47 316042430 53.86 65.17
Spindle compl.,SDS-M
48 316042410 671.04 811.96
Afdichtvilt
49 344098060 1.55 1.88
O-ring
50 344098110 1.55 1.88
No longer available, no replacement
51 343392340
Air guide disc
52 339151090 10.38 12.56
Pressure plate
53 343394230 3.71 4.49
Pressure spring
54 342003470 3.02 3.65
Tussenstuk
55 343394240 3.02 3.65
Typeplaatje
56 338049450 1.67 2.02
Koolborstelset
57 316042480 43.15 52.21
Screw,
58 341704240 1.55 1.88
O-ring
59 344098160 1.55 1.88
Koolborstelhouder
60 343000920 7.22 8.74
Connection wire switch
61 344497400 1.67 2.02
Cover
62 339132750 53.86 65.17
Screw ,C-K6x16 T25
63 341704230 1.55 1.88
Screw,
64 341704250 1.55 1.88
Handgreep 2-delig
66 343394220 43.15 52.21
Guide Ring
67 339007090 5.18 6.27
Retaining ring
68 141156350 1.55 1.88
Schakelaar
69 343407670 48.48 58.66
Fan
71 330001860 21.64 26.18
Kogellager
72 320050650 11.74 14.21
Anker compl.,220-240V
73 310012060 321.76 389.33
Afdichtring
74 344098030 13.48 16.31
Retaining ring
75 342022070 1.55 1.88
Groefkogellager
76 320050670 16.25 19.66
Lagerschild
77 315300620 53.86 65.17
No information available, not orderable
78 316063890
Blank faceplate
80 343394260 13.48 16.31
Fillister head screw
81 141123580 1.55 1.88
Complete Anti-Vibration Handle
82 314001050 32.27 39.05
Rubberen bus
83 344098020 1.55 1.88
Field
84 311012610 87.60 106.00
Screw ,4x64
85 341704210 1.55 1.88
Screw ,K5x45 T20
86 341704220 1.55 1.88
Metabo plaatje
87 338121120 3.71 4.49
O-ring
88 344098120 1.55 1.88
Electronic unit, 220-240 V
89 343081310 87.60 106.00
Cable clip
90 343394210 1.55 1.88
Kabelbescherming
91 344098010 4.51 5.46
Cable m.CEE-connector
92 344497430 32.27 39.05
Identification plate,104 dB, MHE 56
93 338121150 3.71 4.49
No information available, not orderable
95 399999990
Motorhuis compl.
97 316042090 94.12 113.89
Lock washer set
98 316043160 11.74 14.21
Complete gear wheel
99 316063910 228.10 276.00
Tube of grease, 45 g Urethyn
880 344131170 13.48 16.31
Tube vet,Gadus S5V220
885 344131160 21.64 26.18
No information available, not orderable
1001 338504730
