Metabo Mhe 96 spare parts and technical drawings

Here you will find all available parts and drawings of the 'Metabo 00396000 (MHE96)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

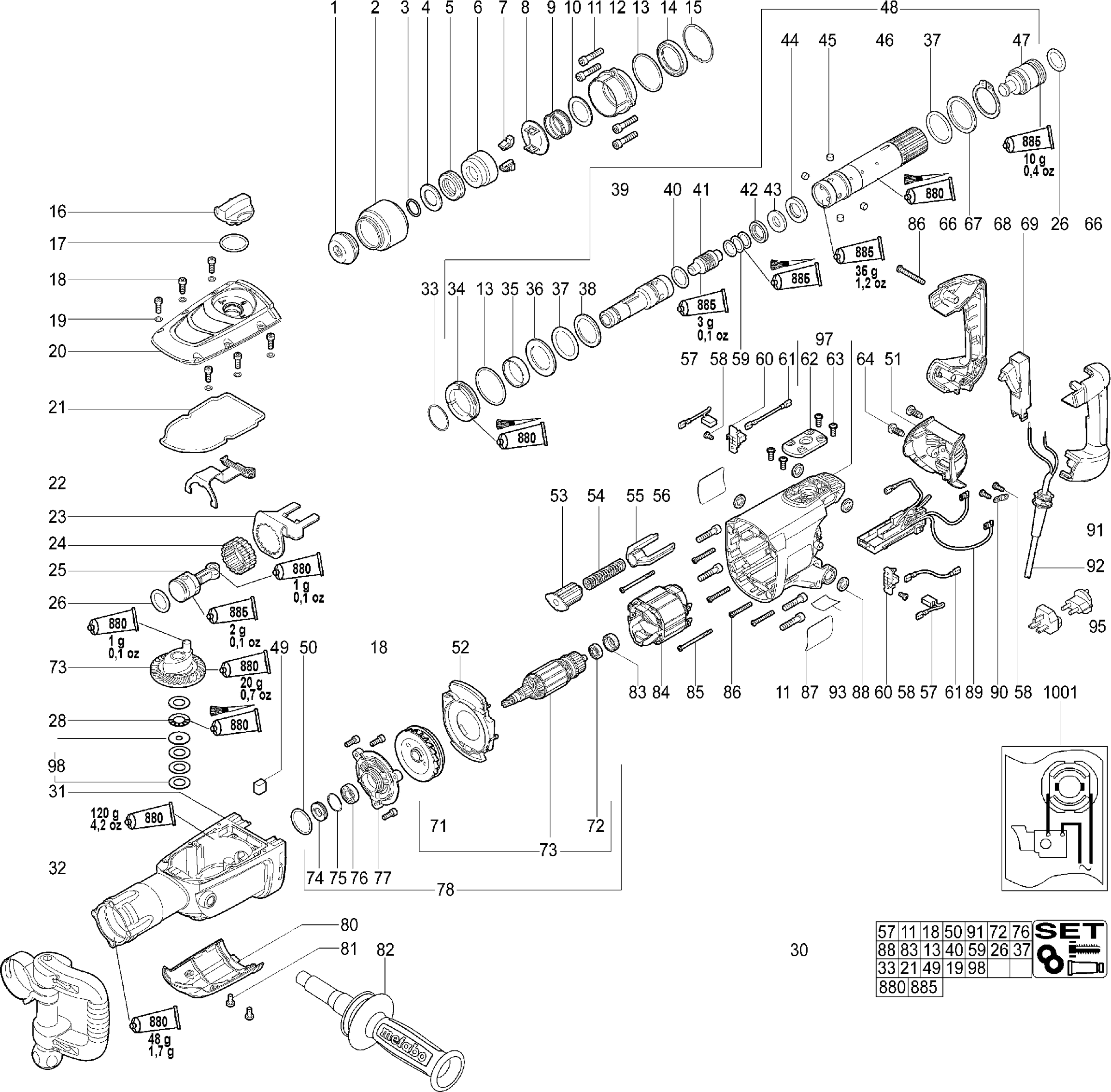

Technical drawing of model Metabo 00396000 (MHE96)

Spare parts list of model Metabo 00396000 (MHE96)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Rubberen kap
1	344097970	11.74	14.21

Sleeve
2	343394280	18.80	22.75

Lock Ring
3	141155450	1.56	1.89

Ring
4	341012850	26.95	32.61

Dempingsring
5	344097980	16.25	19.66

Sleeve
6	341058650	67.33	81.47

Carrier
7	339007080	26.95	32.61

Tussenplaat
8	339133170	43.15	52.21

Pressure spring
9	342003480	3.02	3.65

Washer
10	341012920	4.51	5.46

Cilinderkopschroef
11	141114040	1.56	1.89

Retaining ring
12	339132760	7.22	8.74

O-ring
13	344098140	1.56	1.89

Gegolfde dichtring
14	339011620	5.18	6.27

Retaining ring
15	141180450	1.68	2.03

Schakelknop
16	343394250	11.74	14.21

O-ring
17	344098090	1.56	1.89

Cap screw
18	141123570	1.56	1.89

Washer
19	141150020	1.56	1.89

Tandwieldeksel
20	315416310	100.74	121.90

Vormpakking
21	344098050	8.89	10.76

Schakelvork
22	339133150	60.59	73.31

Retaining sheet
23	339133160	43.15	52.21

Setting ring
24	343394270	3.71	4.49

Zuiger compl.
25	316042440	43.15	52.21

O-ring
26	344098180	1.56	1.89

Bearing
28	320050630	11.74	14.21

Onderhoudset
30	316042470	134.27	162.47

No information available, not orderable
31	315104720

Handgreep extra compl.
32	316042080	48.48	58.66

Circlip
33	342022080	1.56	1.89

Ring
34	341070580	24.23	29.32

Ring
35	341012840	21.64	26.18

Steunschijf
36	341070570	5.87	7.10

O-ring
37	344098190	12.23	14.80

Guide Ring
38	339006940	5.18	6.27

Drill driving sleeve
39	341058630	148.53	179.72

O-ring
40	344098150	1.56	1.89

Dopper compl.
41	316042420	60.59	73.31

Geleiderring
42	341012820	13.48	16.31

Ring,NBR
43	344098040	4.51	5.46

Geleiderring
44	341012830	18.80	22.75

Pin
45	341058640	2.28	2.76

Sleeve
46	341058620	256.98	310.95

Plunjer compl.
47	316042430	53.86	65.17

Spindle compl.,SDS-M
48	316042410	671.04	811.96

Afdichtvilt
49	344098060	1.56	1.89

O-ring
50	344098110	1.56	1.89

No longer available, no replacement
51	343392340

Air guide disc
52	339151090	10.38	12.56

Pressure plate
53	343394230	3.71	4.49

Pressure spring
54	342003470	3.02	3.65

Tussenstuk
55	343394240	3.02	3.65

Typeplaatje
56	338049450	1.68	2.03

Koolborstelset
57	316042480	43.15	52.21

Screw,
58	341704240	1.56	1.89

O-ring
59	344098160	1.56	1.89

Koolborstelhouder
60	343000920	7.22	8.74

Connection wire switch
61	344497400	1.68	2.03

Cover
62	339132750	53.86	65.17

Screw ,C-K6x16 T25
63	341704230	1.56	1.89

Screw,
64	341704250	1.56	1.89

Handgreep 2-delig
66	343394220	43.15	52.21

Guide Ring
67	339007090	5.18	6.27

Retaining ring
68	141156350	1.56	1.89

Schakelaar
69	343407670	48.48	58.66

Fan
71	330001860	21.64	26.18

Kogellager
72	320050650	11.74	14.21

Armature Compl. ,220-240 V+Gear
73	316048150	348.32	421.47

Afdichtring
74	344098030	13.48	16.31

Retaining ring
75	342022070	1.56	1.89

Groefkogellager
76	320050670	16.25	19.66

Lagerschild
77	315300620	53.86	65.17

Armature Compl. ,220-240 V+Gear
78	316048150	348.32	421.47

Blank faceplate
80	343394260	13.48	16.31

Fillister head screw
81	141123580	1.56	1.89

Complete Anti-Vibration Handle
82	314001050	32.27	39.05

Rubberen bus
83	344098020	1.56	1.89

Field package m.winding,220-240 V
84	311010830	80.81	97.78

Screw ,4x64
85	341704210	1.56	1.89

Screw ,K5x45 T20
86	341704220	1.56	1.89

Metabo plaatje
87	338121120	3.71	4.49

O-ring
88	344098120	1.56	1.89

Electronic unit, 220-240 V
89	343081310	87.60	106.00

Cable clip
90	343394210	1.56	1.89

Kabelbescherming
91	344098010	4.51	5.46

Cable m.CEE-connector
92	344497430	32.27	39.05

Identification plate,104 dB, MHE 56
93	338121150	3.71	4.49

No information available, not orderable
95	399999990

Motorhuis compl.
97	316042090	94.12	113.89

Lock washer set
98	316043160	11.74	14.21

Tube of grease, 45 g Urethyn
880	344131170	13.48	16.31

Tube vet,Gadus S5V220
885	344131160	21.64	26.18

No information available, not orderable
1001	338504730
