Here you will find all available parts and drawings of the 'Metabo 00688000 (MHE5)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

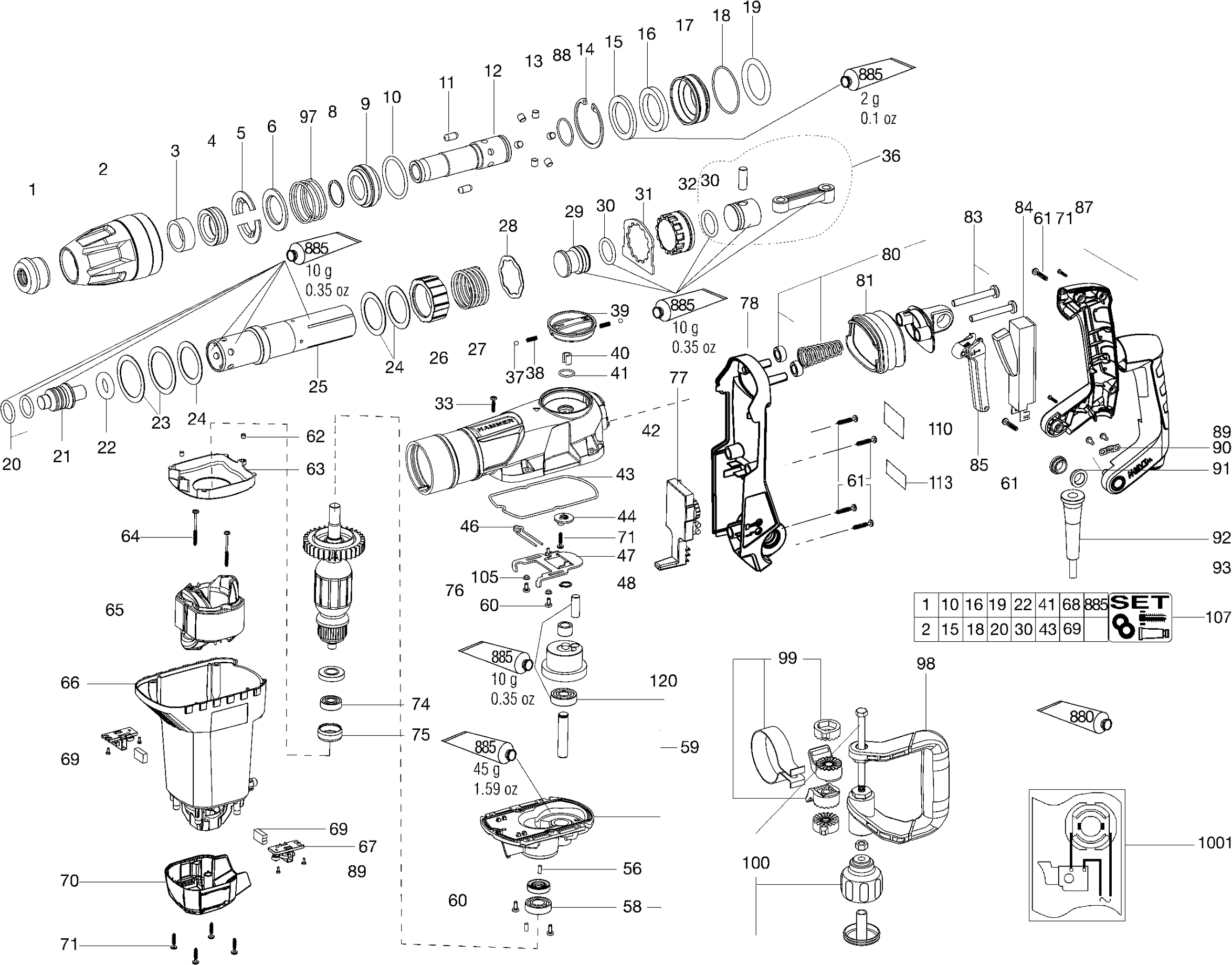

Technical drawing of model Metabo 00688000 (MHE5)
Spare parts list of model Metabo 00688000 (MHE5)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubberen bus | ||||
| 1 | 344102550 | 2.28 | 2.76 | |
| Sleeve | ||||
| 2 | 341210930 | 10.38 | 12.56 | |
| Ring | ||||
| 3 | 343440260 | 1.68 | 2.03 | |
| Support ring | ||||
| 4 | 341013400 | 13.48 | 16.31 | |
| semi ring | ||||
| 5 | 341013320 | 4.51 | 5.46 | |
| Support ring | ||||
| 6 | 341013330 | 5.87 | 7.10 | |
| Retaining ring | ||||
| 8 | 141156720 | 5.18 | 6.27 | |
| Setting ring | ||||
| 9 | 343440990 | 24.23 | 29.32 | |
| O-ring | ||||
| 10 | 143195760 | 1.68 | 2.03 | |
| Pin | ||||
| 11 | 341520340 | 3.71 | 4.49 | |
| Boorhuls,SDS | ||||
| 12 | 341210940 | 213.88 | 258.79 | |
| Roller | ||||
| 13 | 341211130 | 3.02 | 3.65 | |
| Retaining ring | ||||
| 14 | 141156730 | 2.28 | 2.76 | |
| Bellows | ||||
| 15 | 344113010 | 12.23 | 14.80 | |
| Bellows | ||||
| 15 | 344113000 | 1.68 | 2.03 | |
| Bellows | ||||
| 16 | 344113010 | 12.23 | 14.80 | |
| Bellows | ||||
| 16 | 344113000 | 1.68 | 2.03 | |
| Support ring | ||||
| 17 | 341013410 | 37.65 | 45.56 | |
| O-ring | ||||
| 18 | 143195770 | 1.56 | 1.89 | |
| O-ring | ||||
| 19 | 143195780 | 1.56 | 1.89 | |
| O-ring | ||||
| 20 | 143195790 | 4.51 | 5.46 | |
| Piston | ||||
| 21 | 341210950 | 26.95 | 32.61 | |
| O-ring | ||||
| 22 | 143195840 | 8.89 | 10.76 | |
| Washer | ||||
| 23 | 339147540 | 3.02 | 3.65 | |
| Afstandsring | ||||
| 24 | 341013420 | 3.71 | 4.49 | |
| No information available, not orderable | ||||
| 25 | 341210960 | |||
| Retaining ring | ||||
| 26 | 343440280 | 8.89 | 10.76 | |
| Spring | ||||
| 27 | 342022630 | 3.71 | 4.49 | |
| Washer | ||||
| 28 | 339147550 | 3.71 | 4.49 | |
| Striker | ||||
| 29 | 341210970 | 26.95 | 32.61 | |
| O-ring | ||||
| 30 | 143195810 | 5.87 | 7.10 | |
| Retaining sheet | ||||
| 31 | 339147610 | 5.18 | 6.27 | |
| Koppelingshuls | ||||
| 32 | 341210980 | 16.25 | 19.66 | |
| Screw | ||||
| 33 | 141124410 | 1.56 | 1.89 | |
| Zuiger compl. | ||||
| 36 | 316059480 | 60.59 | 73.31 | |
| Ball | ||||
| 37 | 143115720 | 1.56 | 1.89 | |
| Spring | ||||
| 38 | 342024030 | 3.71 | 4.49 | |
| Schakelknop | ||||
| 39 | 343440290 | 3.71 | 4.49 | |
| Felt | ||||
| 40 | 344071010 | 1.68 | 2.03 | |
| O-ring | ||||
| 41 | 143195820 | 1.56 | 1.89 | |
| Tandwielhuis | ||||
| 42 | 315105480 | 100.74 | 121.90 | |
| Afdichtring | ||||
| 43 | 344112710 | 5.87 | 7.10 | |
| Washer | ||||
| 44 | 339012090 | 1.68 | 2.03 | |
| Spring | ||||
| 46 | 342022650 | 13.48 | 16.31 | |
| Fork | ||||
| 47 | 339147600 | 16.25 | 19.66 | |
| RETAINING RING | ||||
| 48 | 141180060 | 1.56 | 1.89 | |
| Cylindrical pin | ||||
| 56 | 141160330 | 1.56 | 1.89 | |
| Bearing | ||||
| 58 | 320054010 | 16.25 | 19.66 | |
| Lagerdeksel compl. | ||||
| 59 | 316061260 | 74.13 | 89.70 | |
| Screw | ||||
| 60 | 141124420 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 61 | 141124400 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 62 | 344112980 | 1.56 | 1.89 | |
| Air Guide Disk | ||||
| 63 | 339153130 | 3.71 | 4.49 | |
| Screw | ||||
| 64 | 141124390 | 1.56 | 1.89 | |
| Field | ||||
| 65 | 311012260 | 67.33 | 81.47 | |
| Housing | ||||
| 66 | 315107520 | 26.95 | 32.61 | |
| Koolborstelhouder compl. | ||||
| 67 | 316059420 | 5.87 | 7.10 | |
| Koolborstel set | ||||
| 69 | 316067120 | 24.23 | 29.32 | |
| Motor cap | ||||
| 70 | 343436470 | 8.89 | 10.76 | |
| Screw | ||||
| 71 | 341722180 | 1.56 | 1.89 | |
| Bearing | ||||
| 74 | 320054020 | 13.48 | 16.31 | |
| Rubberen bus | ||||
| 75 | 344112670 | 1.68 | 2.03 | |
| Anker compl. | ||||
| 76 | 316061180 | 175.84 | 212.77 | |
| Elektronische unit | ||||
| 77 | 343084820 | 161.61 | 195.55 | |
| Cover | ||||
| 78 | 343440070 | 8.89 | 10.76 | |
| Verbindingsstuk | ||||
| 80 | 316059450 | 3.71 | 4.49 | |
| Bellows | ||||
| 81 | 344112680 | 5.87 | 7.10 | |
| Screw | ||||
| 83 | 341722190 | 1.56 | 1.89 | |
| Schakelaar compl. | ||||
| 84 | 343410590 | 60.59 | 73.31 | |
| CAP | ||||
| 85 | 343441000 | 7.22 | 8.74 | |
| Handgreep 2-delig | ||||
| 87 | 343441010 | 24.23 | 29.32 | |
| O-ring | ||||
| 88 | 143195750 | 1.56 | 1.89 | |
| Screw | ||||
| 89 | 341722200 | 1.56 | 1.89 | |
| CABLE CLAMP | ||||
| 90 | 343440240 | 1.56 | 1.89 | |
| Rubberen bus | ||||
| 91 | 344112690 | 1.56 | 1.89 | |
| Kabeldoorvoer | ||||
| 92 | 344112700 | 1.68 | 2.03 | |
| Kabel m.stekker | ||||
| 93 | 344499920 | 26.95 | 32.61 | |
| Spring | ||||
| 97 | 342022640 | 4.51 | 5.46 | |
| Handgreep extra | ||||
| 98 | 343441020 | 48.48 | 58.66 | |
| Clamping piece complete | ||||
| 99 | 316061190 | 16.25 | 19.66 | |
| Omschakelaar compl. | ||||
| 100 | 316061200 | 16.25 | 19.66 | |
| Bush | ||||
| 105 | 341006240 | 7.22 | 8.74 | |
| Onderhoudset | ||||
| 107 | 316061210 | 121.19 | 146.64 | |
| Typeplaatje | ||||
| 110 | 338063700 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 113 | 399999990 | |||
| Tandwielspil compl. | ||||
| 120 | 316061220 | 60.59 | 73.31 | |
| No information available, not orderable | ||||
| 880 | 631800000 | |||
| No longer available, no replacement | ||||
| 885 | 136012900 | |||
| No information available, not orderable | ||||
| 1001 | 338510010 | |||
