Metabo Mhe 5 spare parts and technical drawings

Here you will find all available parts and drawings of the 'Metabo 00148000 (MHE5)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

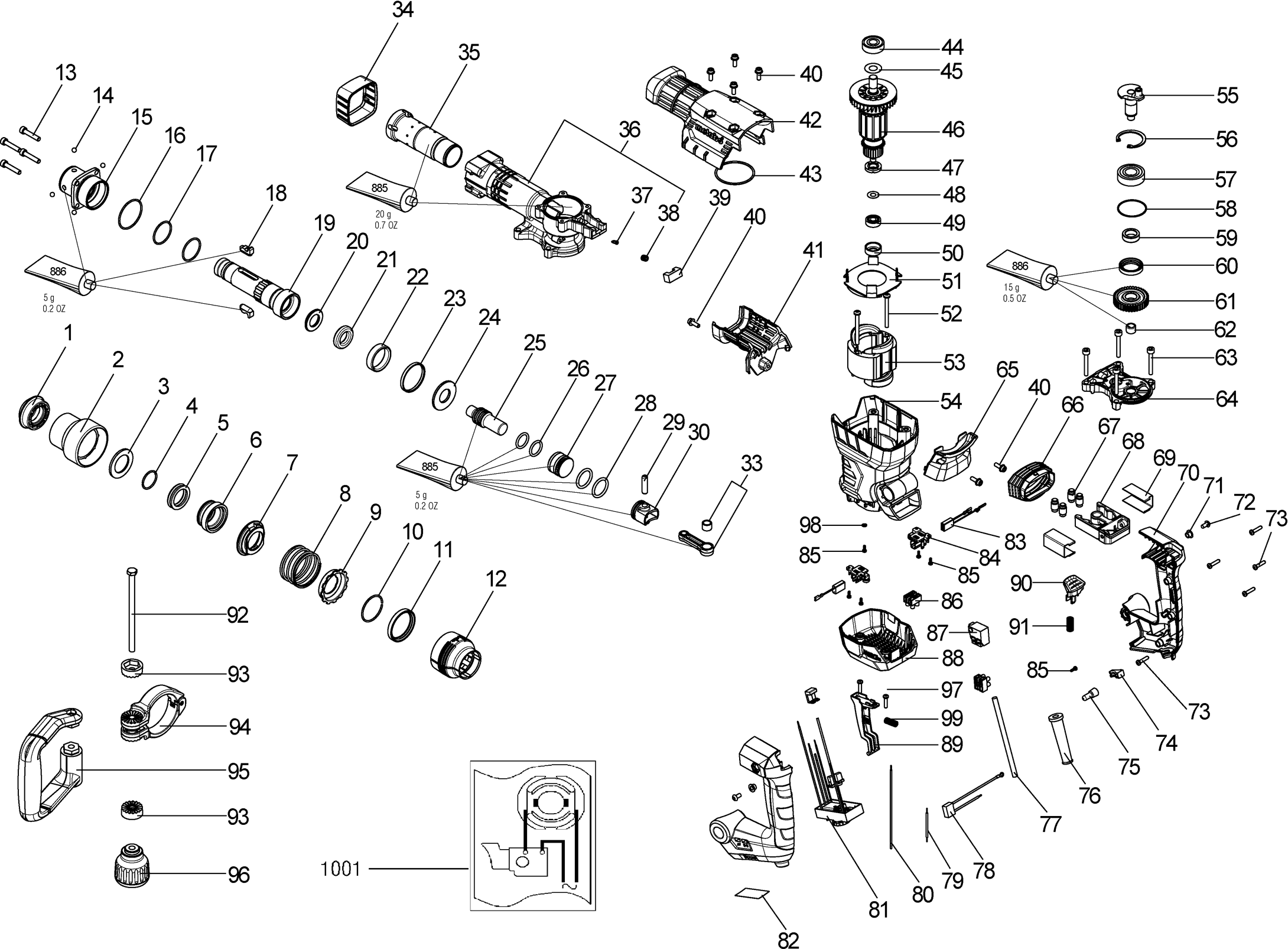

Technical drawing of model Metabo 00148000 (MHE5)

Spare parts list of model Metabo 00148000 (MHE5)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Rubber cap
1	344114200	3.71	4.49

Slide Sleeve
2	343454660	5.18	6.27

Washer
3	339008620	4.51	5.46

Lock Ring
4	342024380	1.56	1.89

DAMPER
5	344114210	1.68	2.03

Retaining ring
6	339149050	5.87	7.10

Support Disk
7	341723200	12.23	14.80

Compression Spring
8	342022870	3.71	4.49

Guide Plate
9	339145930	4.51	5.46

Lock Ring
10	342022880	1.56	1.89

Ball Holder
11	320054730	5.87	7.10

Slide Sleeve
12	343454670	3.02	3.65

SCREW
13	341721620	1.68	2.03

steel ball
14	341163090	2.28	2.76

Cover Missing in this Language
15	343454650	37.65	45.56

O-Ring
16	344103770	1.56	1.89

O-Ring
17	344103760	1.56	1.89

Carrier
18	339149080	16.25	19.66

Drill driving sleeve
19	341605900	67.33	81.47

Support Disk
20	341721850	4.51	5.46

DAMPER
21	344103790	3.02	3.65

Damping Ring
22	344103780	1.56	1.89

DAMPER
23	344103820	1.56	1.89

Washer
24	341721860	3.71	4.49

Doepper
25	341605910	16.25	19.66

O-ring
26	344113880	3.71	4.49

Striker
27	341605920	8.89	10.76

O-Ring
28	344103800	3.02	3.65

PIN
29	341570170	2.28	2.76

PISTON
30	343454690	10.38	12.56

Connecting rod cpl.
33	316071500	11.74	14.21

Cover TURBO II
34	343454680	1.68	2.03

Drill driving sleeve
35	341605940	48.48	58.66

Crankcase cpl.
36	316071490	60.59	73.31

Valve
37	344113950	7.22	8.74

Air bleed screw
38	341721610	1.56	1.89

FELT
39	344071210	1.68	2.03

Passing screw
40	341724000	1.56	1.89

Motor Hood
41	343454140	3.71	4.49

Cap
42	343454930	13.48	16.31

O-Ring
43	344114940	1.56	1.89

Kogellager 12x32x10
44	143110400	16.25	19.66

Washer,25x12x0.2
45	339136050	1.56	1.89

Armature,230V
46	310013340	48.48	58.66

Tachometer disc
47	343454510	2.28	2.76

Washer
48	339007940	1.56	1.89

Ball bearing, 8X 22X 7
49	143116020	3.02	3.65

Rubber bushing
50	344113330	1.56	1.89

Air guide disc
51	339153660	1.56	1.89

Lensplaatschroef
52	141124450	1.56	1.89

Field package,230V
53	311013490	32.27	39.05

Motor Housing
54	315015120	21.64	26.18

Eccentric shaft
55	341605930	24.23	29.32

RETAINING RING
56	342024300	1.68	2.03

BALL BEARING OSC 18
57	320054500	8.89	10.76

O-Ring
58	344114260	1.56	1.89

Support Disk
59	341721870	4.51	5.46

Shaft sealing ring
60	339012480	3.02	3.65

GEAR
61	340034410	16.25	19.66

Needle sleeve AGC 18
62	143116110	1.68	2.03

Cylinder head screw
63	141124970	1.56	1.89

Gear bearing cover
64	315420770	13.48	16.31

Motor Hood
65	343454130	1.68	2.03

Bellows
66	344114970	1.56	1.89

Rubber Sleeve
67	344114270	1.56	1.89

FORK
68	315420780	5.18	6.27

Stop Plate
69	339138870	1.68	2.03

Handle
70	343454450	16.25	19.66

Washer
71	339149750	1.56	1.89

Flathead bolt
72	141124990	1.56	1.89

Self-tap fill h screw
73	141116020	1.68	2.03

Cable clip
74	343362490	1.68	2.03

End piece
75	341163080	8.89	10.76

Kabeldoorvoer
76	343446380	1.56	1.89

Cable m.CEE-connector
77	344533060	16.25	19.66

CAPACITOR
78	343255300	1.68	2.03

CONNECTING WIRE
79	344533090	1.56	1.89

CONNECTING WIRE
80	344533100	1.56	1.89

Electronic unit 220V-240V
81	343088940	26.95	32.61

Type plate HK 85 EB 230V
82	338075960	1.56	1.89

Carbon brush holder compl.
83	316072430	10.38	12.56

Carbon Brush Holder
84	343013660	3.02	3.65

Self-tapp. fill. h. screw
85	141119900	1.56	1.89

Terminal Block
86	343089320	1.68	2.03

Schakelaar
87	343411810	12.23	14.80

Motor Hood
88	343454110	8.89	10.76

Red switch button
89	343454170	1.56	1.89

Lock Knob
90	343453300	1.56	1.89

Compression Spring
91	342011060	1.56	1.89

SCREW
92	341723460	5.18	6.27

Cam
93	341072200	1.56	1.89

Clamping Piece
94	341072210	21.64	26.18

Handle bracket
95	343449440	12.23	14.80

Nut
96	341109150	4.51	5.46

Self-tap. fill. h. screw
97	141116800	1.56	1.89

Washer
98	141155950	1.56	1.89

Compression Spring
99	342011090	1.56	1.89

Identification plate,
101	338135010	1.56	1.89

Special grease 500g
885	344131350	60.59	73.31

GREASE
886	344131360	13.48	16.31

No information available, not orderable
1001	338506640
