Here you will find all available parts and drawings of the 'Metabo 00365000 (MFE65)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

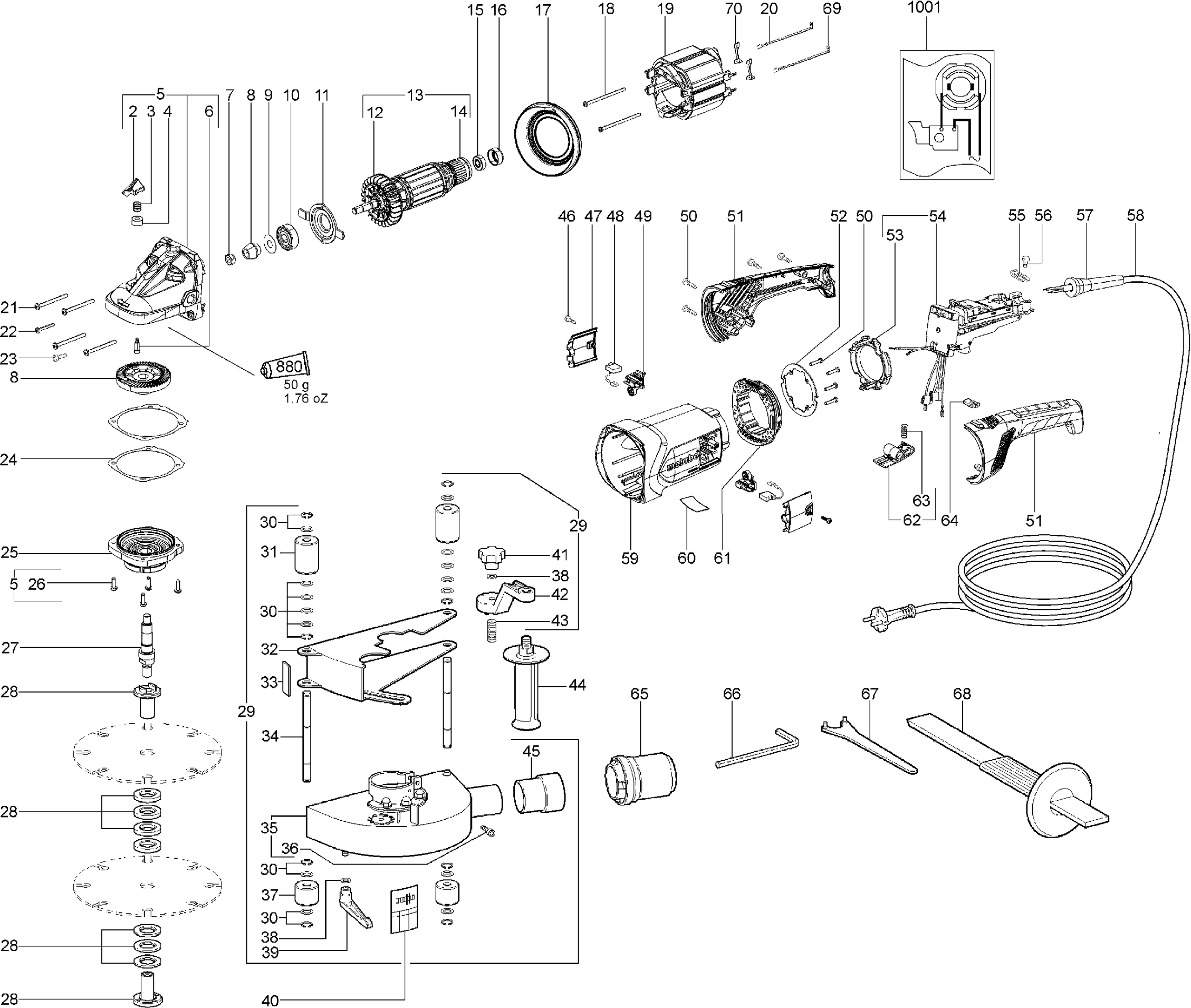

Technical drawing of model Metabo 00365000 (MFE65)
Spare parts list of model Metabo 00365000 (MFE65)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drukknop zwart | ||||
| 2 | 343399790 | 1.56 | 1.89 | |
| Pressure spring | ||||
| 3 | 342003390 | 1.56 | 1.89 | |
| Geleidingsbus | ||||
| 4 | 341005830 | 3.71 | 4.49 | |
| Tandwielhuis compl. | ||||
| 5 | 316045500 | 67.33 | 81.47 | |
| Bolt | ||||
| 6 | 341515430 | 1.56 | 1.89 | |
| Zeskantmoer | ||||
| 7 | 341100660 | 3.02 | 3.65 | |
| Tandwiel set | ||||
| 8 | 316045530 | 53.86 | 65.17 | |
| Washer | ||||
| 9 | 141123870 | 1.56 | 1.89 | |
| Ball bearing 12x37x12 | ||||
| 10 | 143115510 | 4.51 | 5.46 | |
| Vaste lagerdeksel | ||||
| 11 | 339007280 | 3.02 | 3.65 | |
| Waaier m. Stofbeschermkorf | ||||
| 12 | 316045560 | 10.38 | 12.56 | |
| Anker compl.,230 V | ||||
| 13 | 310011330 | 128.32 | 155.27 | |
| Centrifugeerschijf | ||||
| 14 | 343390630 | 1.56 | 1.89 | |
| Kogellager 8x22x 7 | ||||
| 15 | 143115800 | 2.28 | 2.76 | |
| Rubber bushing | ||||
| 16 | 344102590 | 1.68 | 2.03 | |
| Luchtgeleidingsschijf | ||||
| 17 | 339151130 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 18 | 141121680 | 1.56 | 1.89 | |
| Field coil | ||||
| 19 | 311009590 | 60.59 | 73.31 | |
| No information available, not orderable | ||||
| 20 | 399999990 | |||
| Self-tap. fill. h. screw | ||||
| 21 | 141119370 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 22 | 141122020 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 23 | 141119850 | 1.56 | 1.89 | |
| Gasket | ||||
| 24 | 339011810 | 1.56 | 1.89 | |
| Tandwielflens compl. | ||||
| 25 | 316045540 | 43.15 | 52.21 | |
| Fill. head screw(DIN 7985) | ||||
| 26 | 141121640 | 1.56 | 1.89 | |
| Spindle shaft | ||||
| 27 | 341602980 | 26.95 | 32.61 | |
| Clamping set | ||||
| 28 | 316028880 | 175.84 | 212.77 | |
| Beschermkap kompl. | ||||
| 29 | 316035640 | 809.10 | 979.01 | |
| Set of washers for safety coupling | ||||
| 30 | 316029640 | 5.87 | 7.10 | |
| Roller | ||||
| 31 | 343374650 | 26.95 | 32.61 | |
| Roller | ||||
| 32 | 315415850 | 201.99 | 244.41 | |
| Roller seal | ||||
| 33 | 344080550 | 11.74 | 14.21 | |
| Roller | ||||
| 34 | 341514690 | 18.80 | 22.75 | |
| Afdekkap compl. | ||||
| 35 | 316036210 | 405.62 | 490.80 | |
| Cilinderkopschroef | ||||
| 36 | 141113850 | 1.68 | 2.03 | |
| Roller | ||||
| 37 | 343374660 | 43.15 | 52.21 | |
| Washer | ||||
| 38 | 141150800 | 1.56 | 1.89 | |
| Clamping lever with internal thread | ||||
| 39 | 7006028653 | 7.22 | 8.74 | |
| Identification Plate | ||||
| 40 | 338114140 | 3.71 | 4.49 | |
| Toggle Star Handle | ||||
| 41 | 341112450 | 32.27 | 39.05 | |
| Swivel arm | ||||
| 42 | 315414960 | 94.12 | 113.89 | |
| Pressure spring | ||||
| 43 | 342002740 | 5.18 | 6.27 | |
| Handgreep compl. | ||||
| 44 | 314000280 | 16.25 | 19.66 | |
| Suction adaptor | ||||
| 45 | 343374670 | 74.13 | 89.70 | |
| Screw | ||||
| 46 | 341702050 | 1.56 | 1.89 | |
| Koolborstelhouderdeksel | ||||
| 47 | 343395530 | 1.56 | 1.89 | |
| Koolborstelset,230 V | ||||
| 48 | 316045570 | 13.48 | 16.31 | |
| Koolborstelhouder | ||||
| 49 | 343000950 | 7.22 | 8.74 | |
| Self-tap fill h screw | ||||
| 50 | 141116020 | 1.68 | 2.03 | |
| Handgreep boven/onderdeel | ||||
| 51 | 343395510 | 10.38 | 12.56 | |
| Retaining sheet | ||||
| 52 | 339007320 | 1.68 | 2.03 | |
| Kantenbescherming | ||||
| 53 | 343399800 | 1.56 | 1.89 | |
| Electronic Switch set, Defond 230V | ||||
| 54 | 316052180 | 74.13 | 89.70 | |
| Cable clip | ||||
| 55 | 339127730 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 56 | 141116800 | 1.56 | 1.89 | |
| Kabelbescherming | ||||
| 57 | 344094550 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 58 | 344487800 | 16.25 | 19.66 | |
| Motorhuis dennen groen | ||||
| 59 | 315013300 | 16.25 | 19.66 | |
| Typeplaatje | ||||
| 60 | 338056240 | 1.56 | 1.89 | |
| Damper | ||||
| 61 | 343397490 | 8.89 | 10.76 | |
| Vastzethendel | ||||
| 62 | 343397700 | 1.68 | 2.03 | |
| Locking lever | ||||
| 62 | 343395520 | 1.68 | 2.03 | |
| Pressure spring | ||||
| 63 | 342002170 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 64 | 399999990 | |||
| Afzuigadapter | ||||
| 65 | 343376840 | 37.65 | 45.56 | |
| Angle screwdriver | ||||
| 66 | 344161520 | 1.68 | 2.03 | |
| Pin wrench | ||||
| 67 | 344160840 | 5.18 | 6.27 | |
| Mortise Chisel | ||||
| 68 | 344147650 | 48.48 | 58.66 | |
| No information available, not orderable | ||||
| 69 | 399999990 | |||
| No information available, not orderable | ||||
| 70 | 399999990 | |||
| No information available, not orderable | ||||
| 160 | 399999990 | |||
| Tube of grease 100 gr. | ||||
| 880 | 344130910 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338505670 | |||
