Here you will find all available parts and drawings of the 'Metabo 01119000 ( MFE30 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

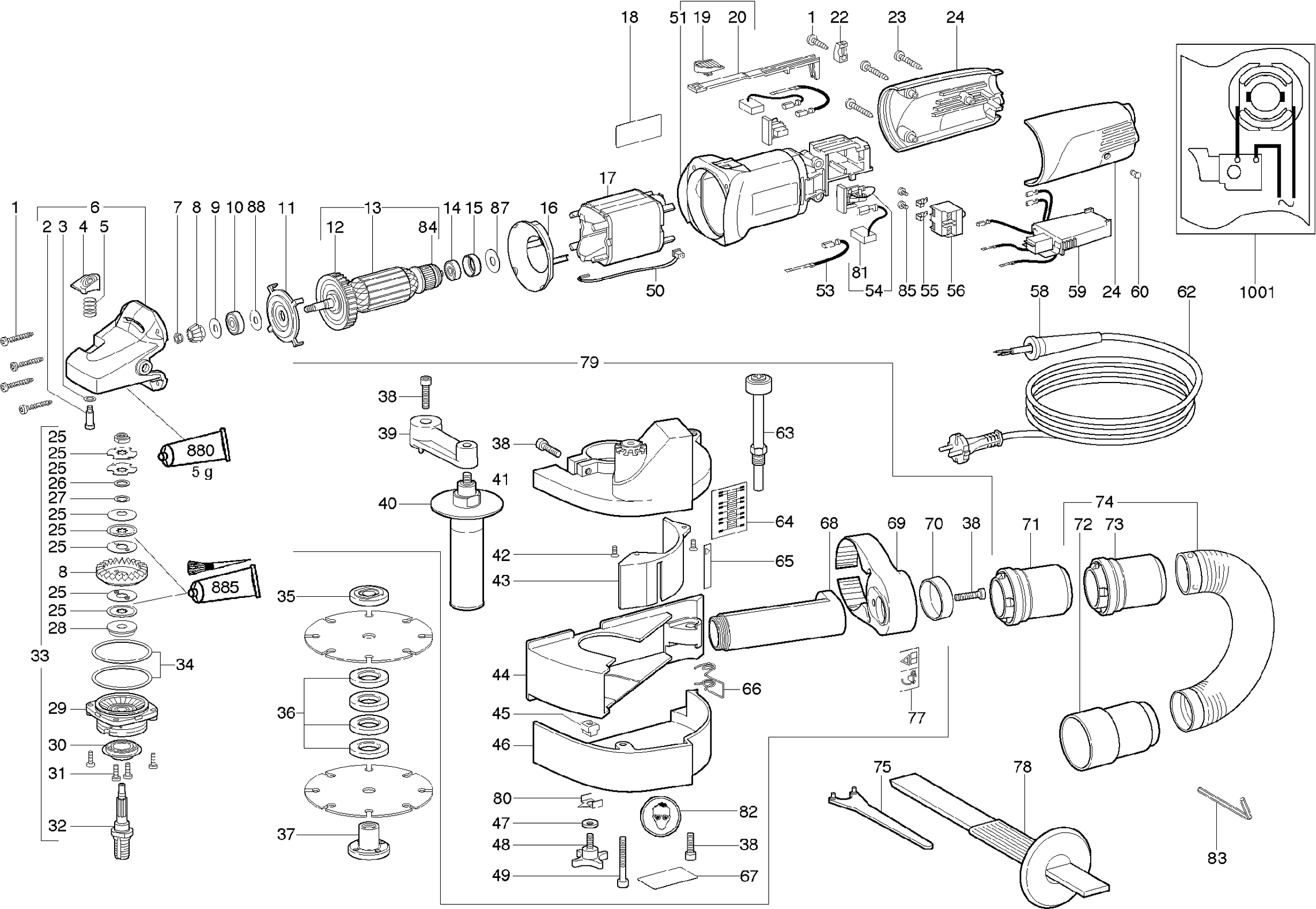

Technical drawing of model Metabo 01119000 ( MFE30 )
Spare parts list of model Metabo 01119000 ( MFE30 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-tap fill h screw | ||||
| 1 | 141116020 | 1.67 | 2.02 | |
| Bolt | ||||
| 2 | 341513790 | 3.71 | 4.49 | |
| Afdichtring | ||||
| 3 | 339006520 | 1.55 | 1.88 | |
| Black push button | ||||
| 4 | 343373720 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 5 | 342001550 | 1.55 | 1.88 | |
| Tandwielhuis compl. | ||||
| 6 | 316029310 | 53.86 | 65.17 | |
| Zeskantmoer | ||||
| 7 | 341100940 | 1.67 | 2.02 | |
| Tandwiel set | ||||
| 8 | 316030170 | 26.95 | 32.61 | |
| Washer,7.05x19.5x0.2 | ||||
| 9 | 339006390 | 1.55 | 1.88 | |
| Ball Bearing, 8x22x7 | ||||
| 10 | 143115060 | 5.87 | 7.10 | |
| Cover | ||||
| 11 | 343373670 | 2.28 | 2.76 | |
| Fan with dust protection | ||||
| 12 | 316031210 | 10.38 | 12.56 | |
| Anker 230 V | ||||
| 13 | 310007810 | 128.32 | 155.27 | |
| Ball bearing 6x19x6 | ||||
| 14 | 143115810 | 2.28 | 2.76 | |
| Rubber bus | ||||
| 15 | 344095260 | 1.67 | 2.02 | |
| Luchtgeleidingsschijf | ||||
| 16 | 339150890 | 1.67 | 2.02 | |
| Field | ||||
| 17 | 311009890 | 67.33 | 81.47 | |
| Typeplaatje | ||||
| 18 | 338040950 | 1.55 | 1.88 | |
| Schakelschuif | ||||
| 19 | 343394180 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 20 | 343391880 | 1.55 | 1.88 | |
| Cable clip | ||||
| 22 | 343362490 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 23 | 141116990 | 1.67 | 2.02 | |
| Two-part Engine Cover | ||||
| 24 | 343376710 | 4.51 | 5.46 | |
| Complete Friction Disc | ||||
| 25 | 316029480 | 11.74 | 14.21 | |
| Washer 10.2 X 14.8 X 0.1 | ||||
| 26 | 141152300 | 1.67 | 2.02 | |
| Washer | ||||
| 27 | 141155560 | 1.55 | 1.88 | |
| Tussenstuk | ||||
| 28 | 341051480 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 29 | 343373420 | |||
| Centrifugeerschijf | ||||
| 30 | 343375540 | 1.55 | 1.88 | |
| Fillister head screw | ||||
| 31 | 141119860 | 1.67 | 2.02 | |
| Spindle shaft | ||||
| 32 | 341161030 | 21.64 | 26.18 | |
| Veiligheidskoppeling | ||||
| 33 | 316030160 | 87.60 | 106.00 | |
| Compensating Washer | ||||
| 34 | 339060160 | 1.67 | 2.02 | |
| Clamping flange | ||||
| 35 | 341031160 | 11.74 | 14.21 | |
| Afstandsring | ||||
| 36 | 341012140 | 3.02 | 3.65 | |
| Clamping nut M 14 | ||||
| 37 | 341101650 | 12.23 | 14.80 | |
| Cilinderkopschroef | ||||
| 38 | 141113890 | 1.67 | 2.02 | |
| Holder | ||||
| 39 | 315415570 | 53.86 | 65.17 | |
| Handgreep compl. | ||||
| 40 | 314000540 | 11.74 | 14.21 | |
| Extraction hood | ||||
| 41 | 315415410 | 100.74 | 121.90 | |
| Countersunk screw | ||||
| 42 | 141112160 | 1.67 | 2.02 | |
| Luchtgeleidingsplaat | ||||
| 43 | 315415440 | 12.23 | 14.80 | |
| Height caliper | ||||
| 44 | 315415430 | 100.74 | 121.90 | |
| Slot stone | ||||
| 45 | 341147510 | 4.51 | 5.46 | |
| Beschermkap | ||||
| 46 | 315415420 | 53.86 | 65.17 | |
| Afstandsring | ||||
| 47 | 341012410 | 4.51 | 5.46 | |
| Cross handle complete | ||||
| 48 | 316023560 | 8.89 | 10.76 | |
| Cilinderkopschroef | ||||
| 49 | 141117000 | 2.28 | 2.76 | |
| Temperatuurvoeler | ||||
| 50 | 343077490 | 10.38 | 12.56 | |
| Motorgehaeuse mit Drueckereinheit | ||||
| 51 | 316052200 | 18.80 | 22.75 | |
| Verbindingsdraad compl. | ||||
| 53 | 344493960 | 1.67 | 2.02 | |
| Koolborstelhouder | ||||
| 54 | 316035480 | 11.74 | 14.21 | |
| Flat plug | ||||
| 55 | 339080310 | 1.55 | 1.88 | |
| Schakelaar | ||||
| 56 | 343406740 | 18.80 | 22.75 | |
| Kabeldoorvoer | ||||
| 58 | 344100970 | 1.67 | 2.02 | |
| Elektronische unit | ||||
| 59 | 343078180 | 60.59 | 73.31 | |
| Lichtgeleider | ||||
| 60 | 343077280 | 1.55 | 1.88 | |
| Kabel m. CEE-stekker | ||||
| 62 | 344493180 | 21.64 | 26.18 | |
| Supporting roller | ||||
| 63 | 316032150 | 16.25 | 19.66 | |
| Aanduidingsplaatje | ||||
| 64 | 338108760 | 3.02 | 3.65 | |
| Aanduidingsplaatje | ||||
| 65 | 338108780 | 3.02 | 3.65 | |
| Thrust Spring | ||||
| 66 | 342021730 | 8.89 | 10.76 | |
| M-label 56x25 | ||||
| 67 | 338122370 | 1.67 | 2.02 | |
| Afzuigbuis | ||||
| 68 | 315415400 | 113.82 | 137.72 | |
| Clamping piece | ||||
| 69 | 316035170 | 80.81 | 97.78 | |
| Slangkoppeling | ||||
| 70 | 343375000 | 26.95 | 32.61 | |
| Afzuigadapter | ||||
| 71 | 343376840 | 37.65 | 45.56 | |
| Dust bag connector | ||||
| 72 | 343363880 | 32.27 | 39.05 | |
| Koppelingsstuk | ||||
| 73 | 343361980 | 32.27 | 39.05 | |
| Suction hose | ||||
| 74 | 344094340 | 161.61 | 195.55 | |
| Pennensleutel | ||||
| 75 | 344163920 | 3.02 | 3.65 | |
| Aanduidingsplaatje | ||||
| 77 | 338121250 | 1.55 | 1.88 | |
| Mortise Chisel | ||||
| 78 | 344147650 | 48.48 | 58.66 | |
| Mounting set | ||||
| 79 | 316035550 | 469.34 | 567.90 | |
| Saw depth indicator | ||||
| 80 | 339131250 | 18.80 | 22.75 | |
| Koolborstel set | ||||
| 81 | 316035510 | 12.23 | 14.80 | |
| Aanduidingsplaatje | ||||
| 82 | 338116910 | 1.55 | 1.88 | |
| Angle screwdriver | ||||
| 83 | 344161520 | 1.67 | 2.02 | |
| Tacho disc | ||||
| 84 | 343391120 | 3.71 | 4.49 | |
| Fillister head screw | ||||
| 85 | 141115780 | 1.55 | 1.88 | |
| Washer | ||||
| 87 | 141153340 | 1.55 | 1.88 | |
| Washer | ||||
| 88 | 339132280 | 1.55 | 1.88 | |
| Tube of grease GF 078 100Gr 3,6oz | ||||
| 880 | 344130840 | 13.48 | 16.31 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 885 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504140 | |||
