Here you will find all available parts and drawings of the 'Metabo 0230145200-10 ( MEGA490-100W230-1-50 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

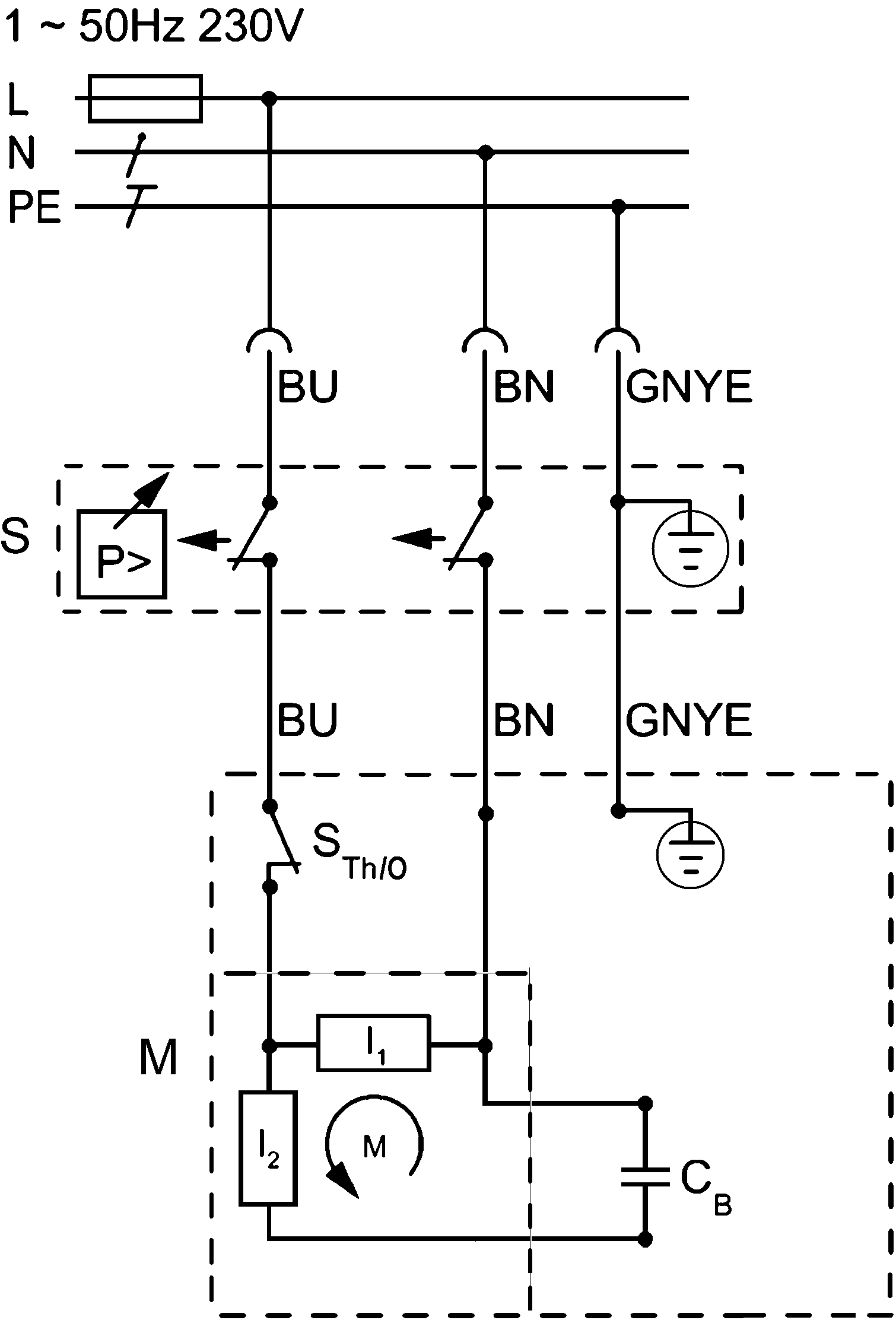

Technical drawing of model Metabo 0230145200-10 ( MEGA490-100W230-1-50 )
Spare parts list of model Metabo 0230145200-10 ( MEGA490-100W230-1-50 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 52 | 1319741310 | |||
| Wielenset compl. | ||||
| 101 | 316050560 | 74.13 | 89.70 | |
| Wheel 200x47 | ||||
| 102 | 7270744091 | 24.23 | 29.32 | |
| TUBE FOR HANDLE ET | ||||
| 104 | 1317723624 | 37.65 | 45.56 | |
| CHECK VALV | ||||
| 105 | 341164890 | 60.59 | 73.31 | |
| Snelkoppeling Euro 1/2" AG | ||||
| 106 | 7802009105 | 6.64 | 8.03 | |
| WATER DRAIN VALVE R 1/4" | ||||
| 107 | 7830740931 | 32.27 | 39.05 | |
| REDUCEERVENTIEL | ||||
| 108 | 341164940 | 175.84 | 212.77 | |
| Manometer | ||||
| 109 | 343440400 | 32.27 | 39.05 | |
| Safety valve | ||||
| 110 | 341164980 | 74.13 | 89.70 | |
| nipple | ||||
| 112 | 339083710 | 26.95 | 32.61 | |
| ROTATING HANDLE RD 20 ET | ||||
| 117 | 7008679490 | 32.27 | 39.05 | |
| V-BELT DISC 120x1A | ||||
| 125 | 7240741339 | 53.86 | 65.17 | |
| V-Belt type 520 13X1321 | ||||
| 126 | 7230167731 | 37.65 | 45.56 | |
| Plastic hose | ||||
| 127 | 316061030 | 21.64 | 26.18 | |
| PRESSURE REGULATOR 3/8" | ||||
| 131 | 8101740979 | 94.12 | 113.89 | |
| Cable | ||||
| 132 | 344500050 | 43.15 | 52.21 | |
| MOTOR HP3 230V | ||||
| 135 | 8402741296 | 809.10 | 979.01 | |
| Thermic protection | ||||
| 138 | 343409690 | 26.95 | 32.61 | |
| BELT GUARD MOTOR SIDE | ||||
| 141 | 1381741377 | 24.23 | 29.32 | |
| Protection grid missing in this language | ||||
| 142 | 344112780 | 43.15 | 52.21 | |
| No information available, not orderable | ||||
| 145 | 1001741418 | |||
| GASKET ET | ||||
| 900 | 1319731870 | 175.84 | 212.77 | |
| No information available, not orderable | ||||
| 901 | 1319741050 | |||
| Crankshaft with bearing | ||||
| 902 | 1319741034 | 161.61 | 195.55 | |
| HOUSING COVER WITH SEAL | ||||
| 903 | 1310741040 | 94.12 | 113.89 | |
| GASKET ET | ||||
| 904 | 1319731900 | 405.62 | 490.80 | |
| Bearing cap complete | ||||
| 905 | 1319741077 | 74.13 | 89.70 | |
| Cylinder Head ET | ||||
| 906 | 1319738076 | 175.84 | 212.77 | |
| Fan wheel RD 280 | ||||
| 907 | 1319741085 | 175.84 | 212.77 | |
| Aftercooler 11 fins B3800B /ET | ||||
| 908 | 1319707448 | 48.48 | 58.66 | |
| Gasket | ||||
| 909 | 1319741387 | 100.74 | 121.90 | |
| Vent and oil sight glass | ||||
| 910 | 1319741093 | 60.59 | 73.31 | |
| AIR FILTER COMPLETE | ||||
| 911 | 7825741393 | 80.81 | 97.78 | |
| Piston rings complete | ||||
| 912 | 1319741069 | 74.13 | 89.70 | |
