Here you will find all available parts and drawings of the 'Metabo 01536000 ( MEGA400-50W )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

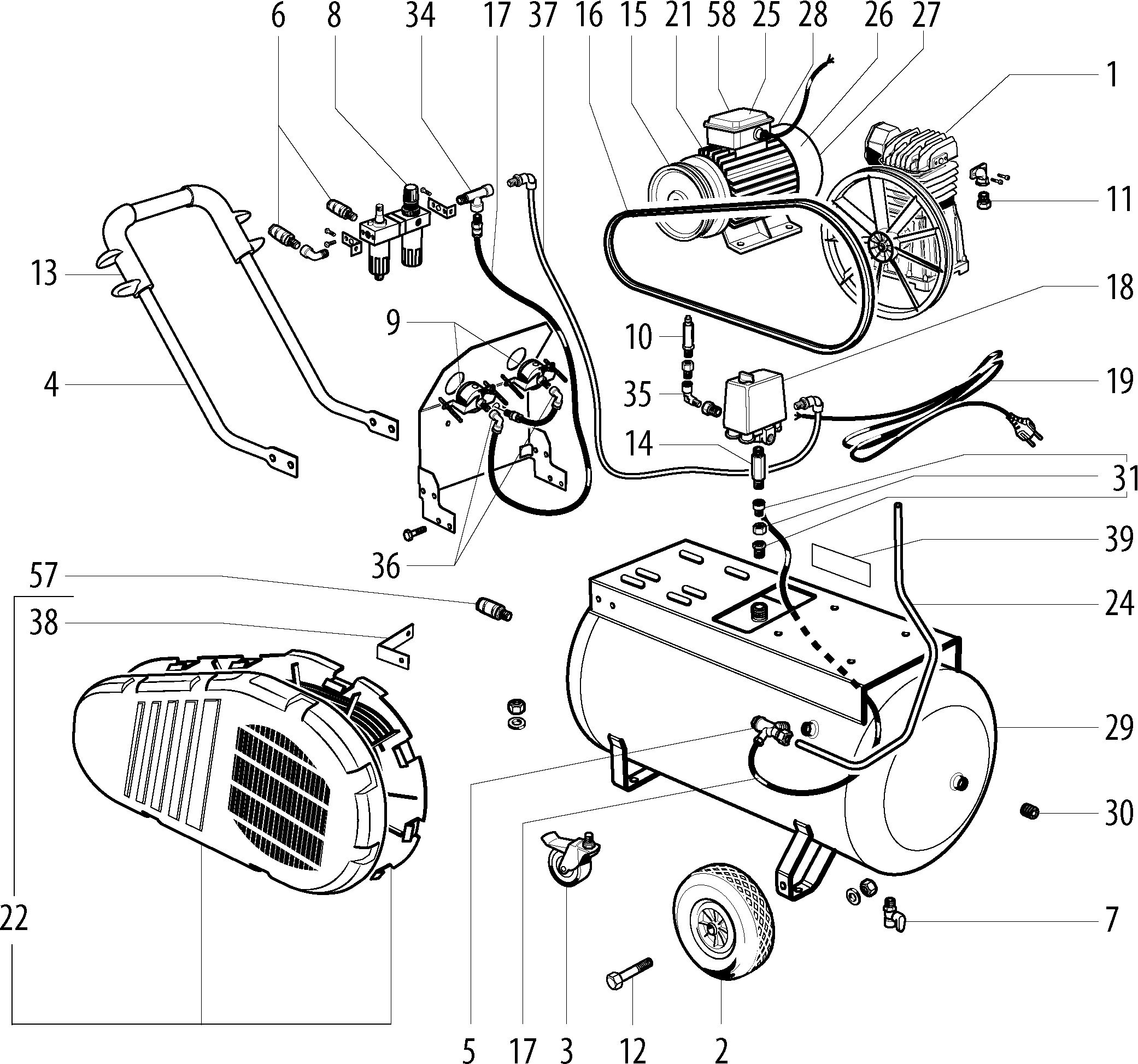

Technical drawing of model Metabo 01536000 ( MEGA400-50W )
Spare parts list of model Metabo 01536000 ( MEGA400-50W )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| VERDICHTER cpl. | ||||
| 1 | 316059940 | 539.38 | 652.65 | |
| Wheel | ||||
| 2 | 343438100 | 60.59 | 73.31 | |
| Caster | ||||
| 3 | 341164870 | 60.59 | 73.31 | |
| Handle | ||||
| 4 | 343440380 | 87.60 | 106.00 | |
| CHECK VALV | ||||
| 5 | 341164910 | 74.13 | 89.70 | |
| Clutch | ||||
| 6 | 341165480 | 10.38 | 12.56 | |
| Ball drain valve 3/8" | ||||
| 7 | 341165010 | 24.23 | 29.32 | |
| PRESSURE REGULATOR | ||||
| 8 | 341164960 | 375.44 | 454.28 | |
| Manometer | ||||
| 9 | 343440920 | 80.81 | 97.78 | |
| Safety valve | ||||
| 10 | 341164980 | 74.13 | 89.70 | |
| nipple | ||||
| 11 | 339083740 | 48.48 | 58.66 | |
| Wheel hub | ||||
| 12 | 341164990 | 5.87 | 7.10 | |
| Handle | ||||
| 13 | 343440420 | 37.65 | 45.56 | |
| nipple | ||||
| 14 | 339083750 | 10.38 | 12.56 | |
| Belt pulley | ||||
| 15 | 315418780 | 175.84 | 212.77 | |
| V-belt | ||||
| 16 | 344260390 | 24.23 | 29.32 | |
| Plastic hose | ||||
| 17 | 316061030 | 21.64 | 26.18 | |
| Drukschakelaar | ||||
| 18 | 343410680 | 148.53 | 179.72 | |
| Cable | ||||
| 19 | 344500050 | 43.15 | 52.21 | |
| Motor | ||||
| 21 | 317004490 | 739.06 | 894.26 | |
| Beschermrooster compl. | ||||
| 22 | 316097320 | 148.53 | 179.72 | |
| PERSLEIDING | ||||
| 24 | 315418850 | 43.15 | 52.21 | |
| TERMINAL BOX | ||||
| 25 | 344112840 | 21.64 | 26.18 | |
| Fan | ||||
| 26 | 330006940 | 11.74 | 14.21 | |
| FAN COVER | ||||
| 27 | 330002240 | 7.22 | 8.74 | |
| Condensator | ||||
| 28 | 343254920 | 48.48 | 58.66 | |
| Tank 50 | ||||
| 29 | 341165060 | 671.04 | 811.96 | |
| Plug | ||||
| 30 | 341165080 | 3.02 | 3.65 | |
| Adapter cpl. | ||||
| 31 | 316097830 | 43.15 | 52.21 | |
| Verbindingsstuk | ||||
| 34 | 341162040 | 13.48 | 16.31 | |
| Complete corner, AG 1/4" | ||||
| 35 | 341165990 | 18.80 | 22.75 | |
| Complete corner, AG 1/4" IG 1/4" | ||||
| 36 | 341166000 | 24.23 | 29.32 | |
| hose | ||||
| 37 | 344113340 | 7.22 | 8.74 | |
| VERBENDINGPLAAT | ||||
| 38 | 339148030 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 39 | 338062090 | |||
| air filter | ||||
| 40 | 343440430 | 32.27 | 39.05 | |
| CILINDERKOP set | ||||
| 41 | 315418880 | 321.76 | 389.33 | |
| SET PAKKINGEN AFSLUITPLAAT | ||||
| 43 | 341148410 | 100.74 | 121.90 | |
| Bearing Cover Set | ||||
| 44 | 315417580 | 121.19 | 146.64 | |
| Pakking set | ||||
| 45 | 316059990 | 60.59 | 73.31 | |
| Elbow assembly set | ||||
| 47 | 316062460 | 13.48 | 16.31 | |
| Cylinder set | ||||
| 48 | 341006210 | 256.98 | 310.95 | |
| Belt wheel | ||||
| 49 | 315419000 | 201.99 | 244.41 | |
| STOTER DRIJFSTANG SET | ||||
| 50 | 341211030 | 107.70 | 130.32 | |
| Öldeckel mit Ölschauglas | ||||
| 51 | 343440440 | 24.23 | 29.32 | |
| Bodemplaat set | ||||
| 52 | 315419010 | 60.59 | 73.31 | |
| Maintenance kit | ||||
| 55 | 316060020 | 43.15 | 52.21 | |
| Clutch | ||||
| 57 | 341162010 | 12.23 | 14.80 | |
| Motor protection switch, 14A | ||||
| 58 | 343412100 | 37.65 | 45.56 | |
