Here you will find all available parts and drawings of the 'Metabo 00636000 (MAG50)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

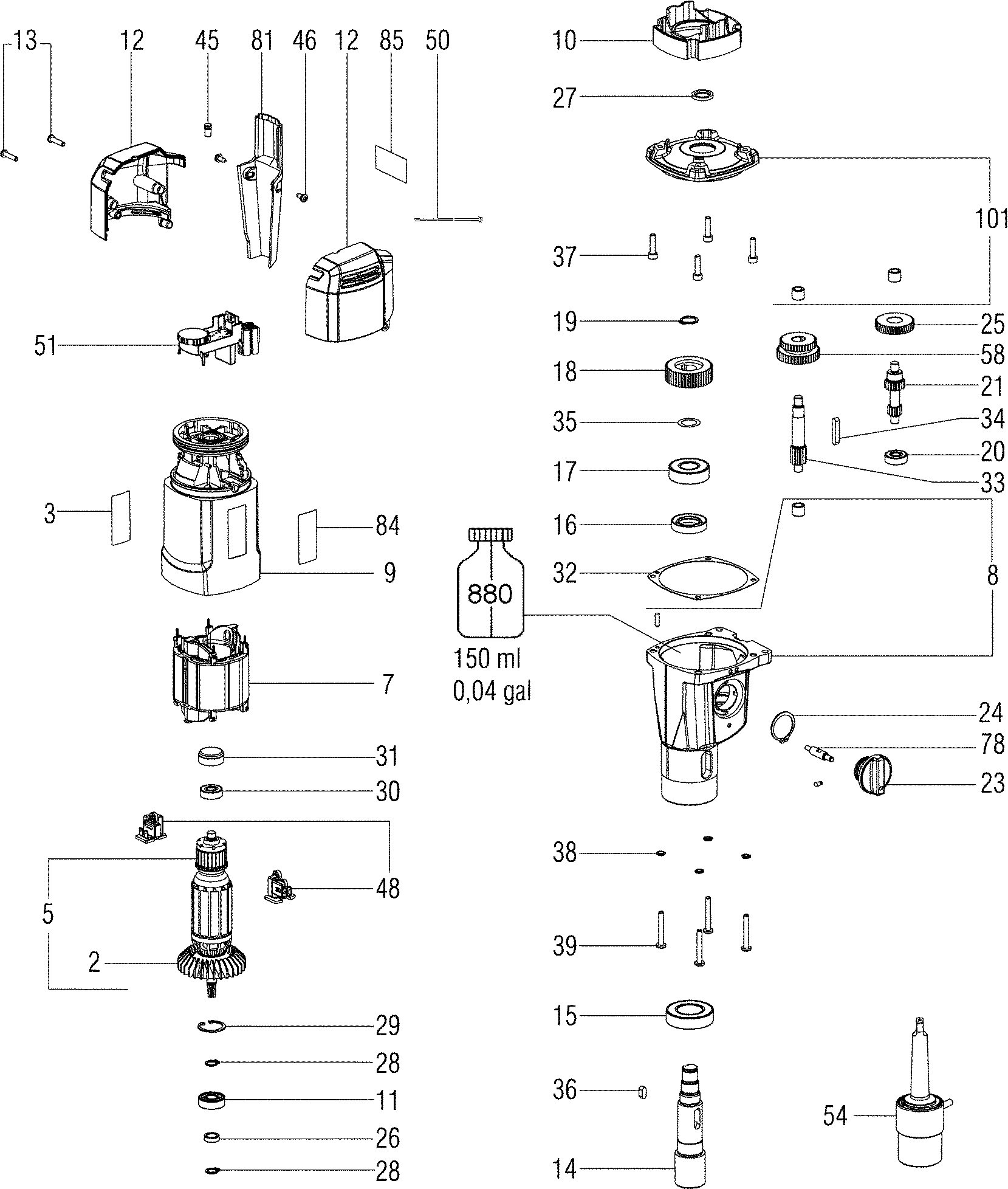

Technical drawing of model Metabo 00636000 (MAG50)
Spare parts list of model Metabo 00636000 (MAG50)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Elektro.unit | ||||
| 1 | 343083660 | 35.72 | 43.22 | |
| Waaier m. stofbescherming | ||||
| 2 | 316032610 | 10.82 | 13.09 | |
| Typeplaatje | ||||
| 3 | 338053390 | 1.67 | 2.02 | |
| Anker compl.,230 V | ||||
| 5 | 310009660 | 106.50 | 128.86 | |
| Long Right Angle Screwdriver SW 5 | ||||
| 6 | 344163620 | 9.36 | 11.33 | |
| Field package with winding | ||||
| 7 | 311011140 | 57.79 | 69.93 | |
| Tandwielhuis compl. | ||||
| 8 | 316052360 | 145.97 | 176.62 | |
| Motor housing | ||||
| 9 | 315012780 | 18.28 | 22.12 | |
| Luchtgeleidingsschijf | ||||
| 10 | 339150970 | 6.05 | 7.32 | |
| Ball Bearing 10x26x8 | ||||
| 11 | 143111120 | 18.28 | 22.12 | |
| Motorkap 2-delig | ||||
| 12 | 343398690 | 13.93 | 16.86 | |
| Self-tap fill h screw | ||||
| 13 | 141116020 | 1.79 | 2.17 | |
| Spindle | ||||
| 14 | 341604120 | 117.12 | 141.72 | |
| Kogellager | ||||
| 15 | 143115150 | 12.19 | 14.75 | |
| Corrugated sealing ring | ||||
| 16 | 143195290 | 18.28 | 22.12 | |
| Deep groove ball bearing,17x40x12 | ||||
| 17 | 143115240 | 6.05 | 7.32 | |
| Spur gear | ||||
| 18 | 340004120 | 52.36 | 63.36 | |
| snap ring | ||||
| 19 | 141180090 | 1.79 | 2.17 | |
| Kogellager 8x22x 7 | ||||
| 20 | 143115800 | 2.43 | 2.94 | |
| Tandwielas | ||||
| 21 | 340004130 | 100.68 | 121.82 | |
| Cilinderkopschroef | ||||
| 22 | 141113880 | 1.67 | 2.02 | |
| Schakelknop compl. | ||||
| 23 | 316052800 | 27.16 | 32.86 | |
| Retaining ring | ||||
| 24 | 141181650 | 1.67 | 2.02 | |
| Spur gear | ||||
| 25 | 340012660 | 64.44 | 77.97 | |
| Bush | ||||
| 26 | 341005780 | 15.31 | 18.53 | |
| Gegolfde dichtring | ||||
| 27 | 143195170 | 13.93 | 16.86 | |
| Retaining ring | ||||
| 28 | 141180040 | 1.67 | 2.02 | |
| Retaining ring | ||||
| 29 | 141180350 | 1.79 | 2.17 | |
| Kogellager 8x22x 7 | ||||
| 30 | 143115800 | 2.43 | 2.94 | |
| Rubber bearing ring | ||||
| 31 | 344096020 | 1.79 | 2.17 | |
| Gasket | ||||
| 32 | 339011840 | 2.43 | 2.94 | |
| Tandwielas | ||||
| 33 | 340004140 | 83.19 | 100.66 | |
| PRALLEL KEY | ||||
| 34 | 141154910 | 1.67 | 2.02 | |
| Shim | ||||
| 35 | 141156450 | 1.67 | 2.02 | |
| Parallel key | ||||
| 36 | 141131980 | 1.67 | 2.02 | |
| Cylinder head screw | ||||
| 37 | 141113700 | 1.79 | 2.17 | |
| Gasket | ||||
| 38 | 339210910 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 39 | 141120560 | 1.67 | 2.02 | |
| Trekontlasting | ||||
| 40 | 341147980 | 9.36 | 11.33 | |
| Feinsicherung (elektrisch) | ||||
| 41 | 142110180 | 1.67 | 2.02 | |
| Kabeldoorvoer | ||||
| 42 | 344099280 | 2.43 | 2.94 | |
| No information available, not orderable | ||||
| 43 | 626608000 | |||
| No information available, not orderable | ||||
| 44 | 626609000 | |||
| Lichtgeleider | ||||
| 45 | 343398570 | 3.89 | 4.71 | |
| Self-tap. fill. h. screw | ||||
| 46 | 141116130 | 1.67 | 2.02 | |
| Carbon brush holder compl.,230 V | ||||
| 48 | 316047020 | 12.19 | 14.75 | |
| No information available, not orderable | ||||
| 49 | 642395000 | |||
| Temperatuurvoeler | ||||
| 50 | 343077490 | 10.82 | 13.09 | |
| Elektro.unit,230V 50/60Hz | ||||
| 51 | 343082020 | 70.83 | 85.70 | |
| Press button | ||||
| 53 | 343409890 | 7.58 | 9.17 | |
| Industrial tool holder,MK2 | ||||
| 54 | 316046240 | 327.60 | 396.40 | |
| Complete cable, 230 V | ||||
| 55 | 344499090 | 70.83 | 85.70 | |
| Cable clip | ||||
| 56 | 343398970 | 1.67 | 2.02 | |
| Transmission holder | ||||
| 57 | 315417510 | 21.22 | 25.68 | |
| Schuifblok | ||||
| 58 | 340004150 | 126.62 | 153.21 | |
| Holder | ||||
| 59 | 339135780 | 3.20 | 3.87 | |
| Beugelstandaard compl. | ||||
| 60 | 316051550 | 155.07 | 187.63 | |
| Cilinderkopschroef | ||||
| 61 | 141117050 | 1.67 | 2.02 | |
| Geleidingsstrip | ||||
| 62 | 341148240 | 64.44 | 77.97 | |
| Stelschroef | ||||
| 63 | 141123910 | 1.67 | 2.02 | |
| Zeskante moer | ||||
| 64 | 141130090 | 1.67 | 2.02 | |
| Rack | ||||
| 65 | 341148220 | 35.72 | 43.22 | |
| Cilinderkopschroef | ||||
| 66 | 141113850 | 1.79 | 2.17 | |
| Tandwielas | ||||
| 68 | 340004290 | 46.99 | 56.86 | |
| Greep compl. | ||||
| 69 | 314001370 | 6.05 | 7.32 | |
| Washer | ||||
| 70 | 141156530 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 71 | 141113080 | 1.67 | 2.02 | |
| Steunstift | ||||
| 72 | 342001140 | 1.79 | 2.17 | |
| Plastic Latch | ||||
| 73 | 341148250 | 7.58 | 9.17 | |
| Knob | ||||
| 74 | 341148260 | 1.79 | 2.17 | |
| Handgreep extra | ||||
| 75 | 314001360 | 29.97 | 36.26 | |
| Cilinderkopschroef | ||||
| 76 | 141113840 | 1.79 | 2.17 | |
| Cylinderkopschroef | ||||
| 77 | 141123020 | 1.67 | 2.02 | |
| Schakelstift | ||||
| 78 | 341210300 | 12.19 | 14.75 | |
| Fillister head screw | ||||
| 79 | 141122790 | 1.67 | 2.02 | |
| MagneetVoet | ||||
| 80 | 341148490 | 327.60 | 396.40 | |
| Cable Channel | ||||
| 81 | 343398700 | 7.58 | 9.17 | |
| Cilinderkopschroef | ||||
| 82 | 341704970 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 83 | 343409860 | 13.93 | 16.86 | |
| No longer available, no replacement | ||||
| 84 | 338122160 | |||
| Aanduidingsplaatje | ||||
| 85 | 338122350 | 1.67 | 2.02 | |
| Metal splint | ||||
| 86 | 339135910 | 21.22 | 25.68 | |
| Electronics compl. | ||||
| 87 | 316053630 | 281.70 | 340.86 | |
| O-ring | ||||
| 88 | 143194810 | 1.67 | 2.02 | |
| O-RING | ||||
| 89 | 143192410 | 1.67 | 2.02 | |
| Fillister head screw | ||||
| 90 | 141119850 | 1.67 | 2.02 | |
| Toothed lock washer | ||||
| 91 | 141150410 | 1.79 | 2.17 | |
| Fillister head screw | ||||
| 92 | 141122210 | 1.67 | 2.02 | |
| Self-tap. fill. h. screw | ||||
| 93 | 141116800 | 1.67 | 2.02 | |
| Kabeldeckel | ||||
| 94 | 343432310 | 7.58 | 9.17 | |
| Aanduidingsplaatje | ||||
| 95 | 338123760 | 2.43 | 2.94 | |
| Cable clip | ||||
| 96 | 339136140 | 1.67 | 2.02 | |
| Cilinderkopschroef | ||||
| 97 | 341705040 | 1.67 | 2.02 | |
| Kuehlmitteltank vollst. | ||||
| 98 | 316048530 | 64.44 | 77.97 | |
| Slide compl. | ||||
| 99 | 316052040 | 100.68 | 121.82 | |
| Belt tension | ||||
| 100 | 341148140 | 46.99 | 56.86 | |
| Lagerschild compl. | ||||
| 101 | 316053940 | 41.32 | 50.00 | |
| Cilinderkopschroef | ||||
| 102 | 141113870 | 1.79 | 2.17 | |
| Complete Hose | ||||
| 103 | 316050840 | 21.22 | 25.68 | |
| Washer | ||||
| 104 | 141152590 | 1.79 | 2.17 | |
| Bus 6-polig | ||||
| 106 | 142110200 | 4.78 | 5.78 | |
| Bus 1-polig | ||||
| 107 | 142110190 | 1.67 | 2.02 | |
| Cable harness | ||||
| 108 | 316051180 | 64.44 | 77.97 | |
| Housing compl. | ||||
| 109 | 316066390 | 52.36 | 63.36 | |
| Oil | ||||
| 880 | 344131190 | 100.68 | 121.82 | |
| Grease tube 50 gr. 1,8oz | ||||
| 885 | 344130990 | 27.16 | 32.86 | |
| No information available, not orderable | ||||
| 1001 | 338505620 | |||
