Here you will find all available parts and drawings of the 'Metabo 00330000 (MAG32)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

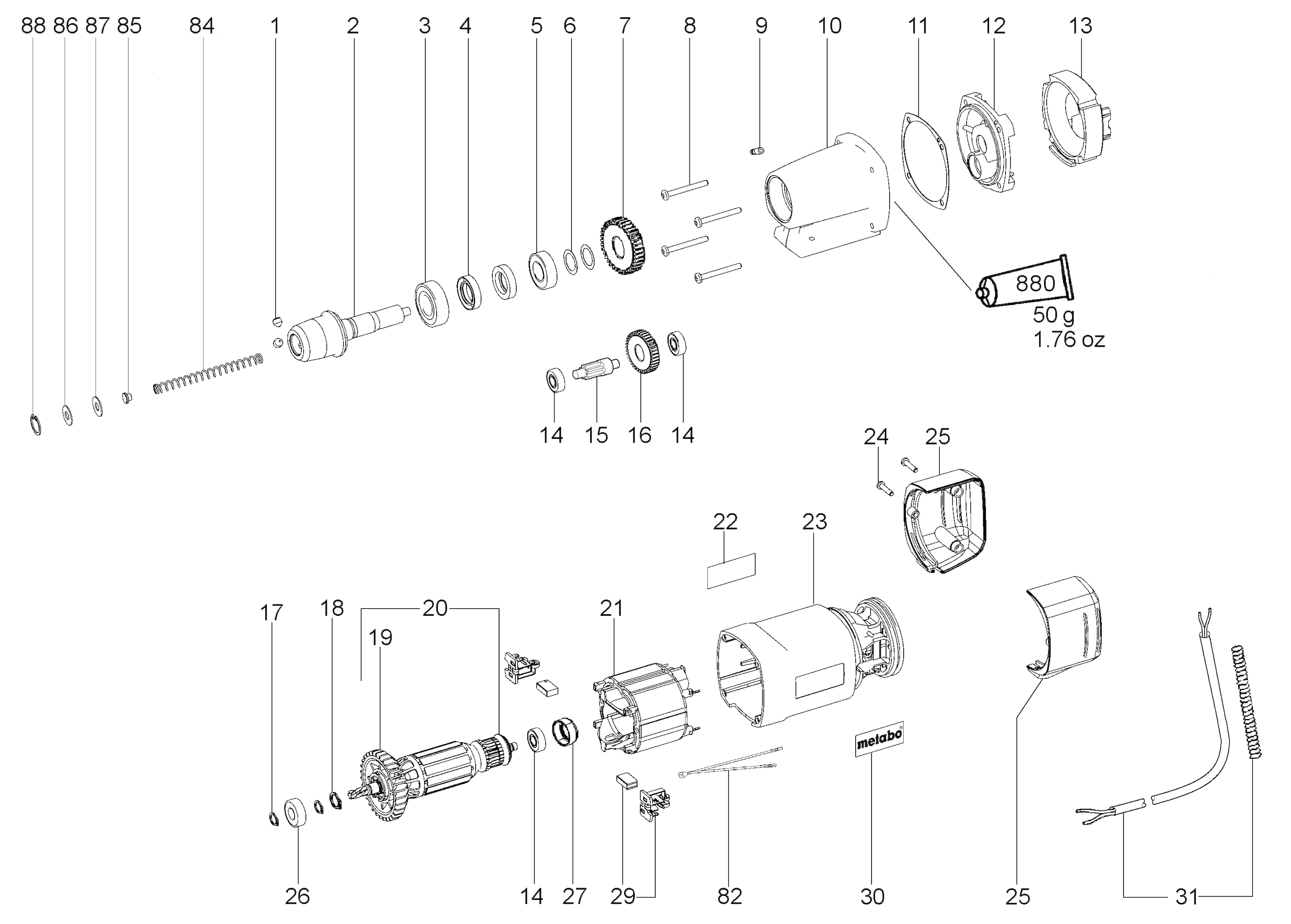

Technical drawing of model Metabo 00330000 (MAG32)
Spare parts list of model Metabo 00330000 (MAG32)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| GEWINDESTIFT | ||||
| 1 | 141115080 | 1.56 | 1.89 | |
| Spindle | ||||
| 2 | 341604110 | 148.53 | 179.72 | |
| Ball bearing, 20x42x12 | ||||
| 3 | 143112970 | 18.80 | 22.75 | |
| Corrugated sealing ring | ||||
| 4 | 143195280 | 7.22 | 8.74 | |
| Ball Bearing 17x35x10 | ||||
| 5 | 143111450 | 8.89 | 10.76 | |
| Washer | ||||
| 6 | 141151330 | 1.68 | 2.03 | |
| Spindle wheel | ||||
| 7 | 340003370 | 43.15 | 52.21 | |
| Self-tap. fill. h. screw | ||||
| 8 | 141118810 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 9 | 341059420 | |||
| No information available, not orderable | ||||
| 10 | 316046860 | |||
| Gasket | ||||
| 11 | 339210850 | 3.02 | 3.65 | |
| Bearing Shield Complete | ||||
| 12 | 316046870 | 37.65 | 45.56 | |
| Luchtgeleidingsschijf | ||||
| 13 | 339150970 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 14 | 143113400 | |||
| Tandwielas | ||||
| 15 | 340003380 | 43.15 | 52.21 | |
| Tussenwiel | ||||
| 16 | 340012030 | 43.15 | 52.21 | |
| Retaining ring | ||||
| 17 | 141180040 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 18 | 141180350 | 1.68 | 2.03 | |
| Waaier m. stofbescherming | ||||
| 19 | 316032610 | 10.38 | 12.56 | |
| Anker compl.,230 V | ||||
| 20 | 310009650 | 94.12 | 113.89 | |
| Field package m.winding,230 V | ||||
| 21 | 311011160 | 53.86 | 65.17 | |
| Typeplaatje | ||||
| 22 | 338053380 | 1.56 | 1.89 | |
| Motor housing | ||||
| 23 | 315012780 | 16.25 | 19.66 | |
| Self-tap fill h screw | ||||
| 24 | 141116020 | 1.68 | 2.03 | |
| Motorkap 2-delig | ||||
| 25 | 343398680 | 10.38 | 12.56 | |
| Ball Bearing 10x26x8 | ||||
| 26 | 143111120 | 16.25 | 19.66 | |
| Rubber bearing ring | ||||
| 27 | 344096020 | 1.68 | 2.03 | |
| Koolborstel compl. uitsch. | ||||
| 29 | 316035910 | 13.48 | 16.31 | |
| No longer available, no replacement | ||||
| 30 | 338122160 | |||
| No information available, not orderable | ||||
| 31 | 344498360 | |||
| Countersunk screw | ||||
| 41 | 141123840 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 42 | 339134730 | |||
| No information available, not orderable | ||||
| 43 | 141112280 | |||
| No information available, not orderable | ||||
| 44 | 339007330 | |||
| No information available, not orderable | ||||
| 45 | 339134790 | |||
| Cilinderkopschroef | ||||
| 46 | 141113590 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 47 | 316046770 | |||
| No information available, not orderable | ||||
| 48 | 316046910 | |||
| No information available, not orderable | ||||
| 49 | 340012670 | |||
| No information available, not orderable | ||||
| 50 | 314001240 | |||
| Trekontlasting | ||||
| 51 | 341147980 | 8.89 | 10.76 | |
| Kabeldoorvoer | ||||
| 52 | 344098630 | 11.74 | 14.21 | |
| Kabel compl. | ||||
| 53 | 344497920 | 60.59 | 73.31 | |
| Cilinderkopschroef | ||||
| 54 | 141113850 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 55 | 315417400 | |||
| Cilinderkopschroef | ||||
| 56 | 141113840 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 57 | 141117050 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 58 | 141151930 | |||
| Flat hex nut | ||||
| 59 | 141130030 | 1.56 | 1.89 | |
| Stelschroef | ||||
| 60 | 141123910 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 61 | 341148070 | |||
| No information available, not orderable | ||||
| 62 | 341148080 | |||
| Rack | ||||
| 63 | 341148050 | 94.12 | 113.89 | |
| No information available, not orderable | ||||
| 64 | 341148150 | |||
| No information available, not orderable | ||||
| 65 | 141112090 | |||
| Lock washer | ||||
| 66 | 141150350 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 67 | 141113870 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 68 | 142110140 | |||
| Zeskante moer | ||||
| 69 | 141130070 | 1.56 | 1.89 | |
| Spring washer | ||||
| 70 | 141150280 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 71 | 344498400 | |||
| Feinsicherung (elektrisch) | ||||
| 72 | 142110150 | 8.89 | 10.76 | |
| Electronic Unit, 50/60Hz | ||||
| 73 | 343082210 | 48.48 | 58.66 | |
| Belt tension | ||||
| 74 | 341148140 | 43.15 | 52.21 | |
| Long Right Angle Screwdriver SW 4 | ||||
| 75 | 344163630 | 8.89 | 10.76 | |
| Magnet block | ||||
| 76 | 341148040 | 321.76 | 389.33 | |
| Suppressor | ||||
| 77 | 343254630 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 78 | 339134740 | |||
| No longer available, no replacement | ||||
| 79 | 343409320 | |||
| Elektro.schakelaar,230 V | ||||
| 80 | 343409310 | 18.80 | 22.75 | |
| Complete Hose | ||||
| 81 | 316050840 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 82 | 399999990 | |||
| Pressure spring | ||||
| 84 | 342003900 | 1.56 | 1.89 | |
| Pressure plate | ||||
| 85 | 341059810 | 7.22 | 8.74 | |
| Washer | ||||
| 86 | 339007740 | 1.56 | 1.89 | |
| Rubber pakking | ||||
| 87 | 344099130 | 1.56 | 1.89 | |
| Retaining ring | ||||
| 88 | 141180830 | 1.68 | 2.03 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| Grease tube 50 gr. 1,8oz | ||||
| 885 | 344130990 | 24.23 | 29.32 | |
| No information available, not orderable | ||||
| 1001 | 338505200 | |||
