Here you will find all available parts and drawings of the 'Metabo 0910003518-11 ( MACHINESTANDAARDKGS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

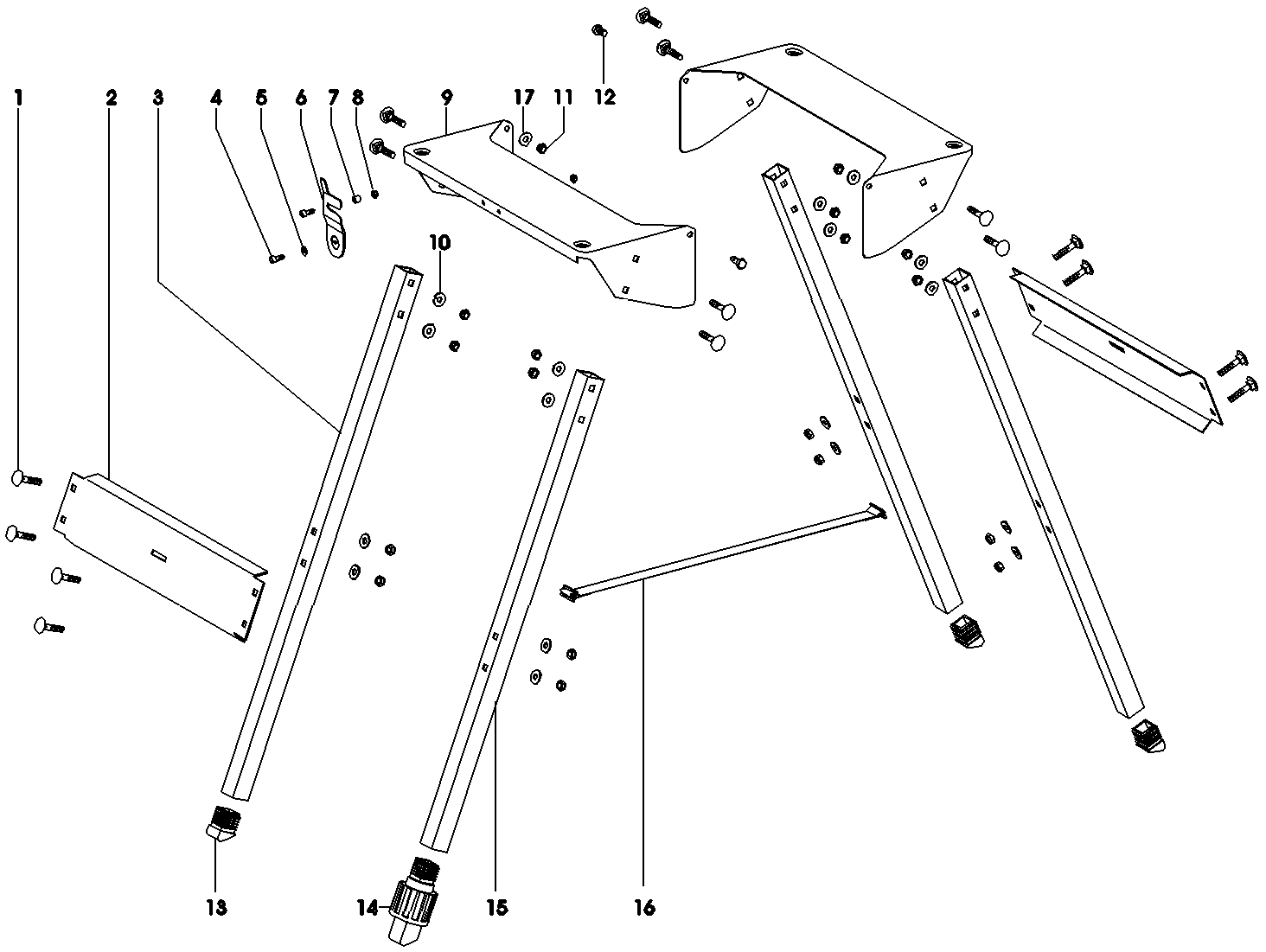

Technical drawing of model Metabo 0910003518-11 ( MACHINESTANDAARDKGS )
Spare parts list of model Metabo 0910003518-11 ( MACHINESTANDAARDKGS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Flat head bolt | ||||
| 1 | 6110059297 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 2 | 1382210057 | |||
| No information available, not orderable | ||||
| 3 | 1382210073 | |||
| Cylinder head screw | ||||
| 4 | 6121023081 | 1.55 | 1.88 | |
| Disc spring | ||||
| 5 | 141155660 | 1.55 | 1.88 | |
| FIXING HOOK BL 2.00X45X124 | ||||
| 6 | 1492043555 | 2.28 | 2.76 | |
| Spacers | ||||
| 7 | 6442059304 | 1.55 | 1.88 | |
| Hexagon safety nut | ||||
| 8 | 141130650 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 9 | 1392203121 | |||
| No information available, not orderable | ||||
| 10 | 6305002486 | |||
| Hexagonal screw | ||||
| 12 | 6103001178 | 1.55 | 1.88 | |
| FOOTSTAND | ||||
| 13 | 1381726173 | 3.02 | 3.65 | |
| FOOTGROUP ADJUSTABLE | ||||
| 14 | 2010200787 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 15 | 1382210081 | |||
| No information available, not orderable | ||||
| 16 | 4841203459 | |||
| Washer | ||||
| 17 | 141151340 | 1.55 | 1.88 | |
| Self-locking hexagon nut | ||||
| 18 | 6202002305 | 1.55 | 1.88 | |
| No information available, not orderable | ||||
| 7500 | 1153658265 | |||
