Metabo Lsv 5-225 Comfort spare parts and technical drawings

Here you will find all available parts and drawings of the 'Metabo 00136000 (LSV5-225Comfort)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

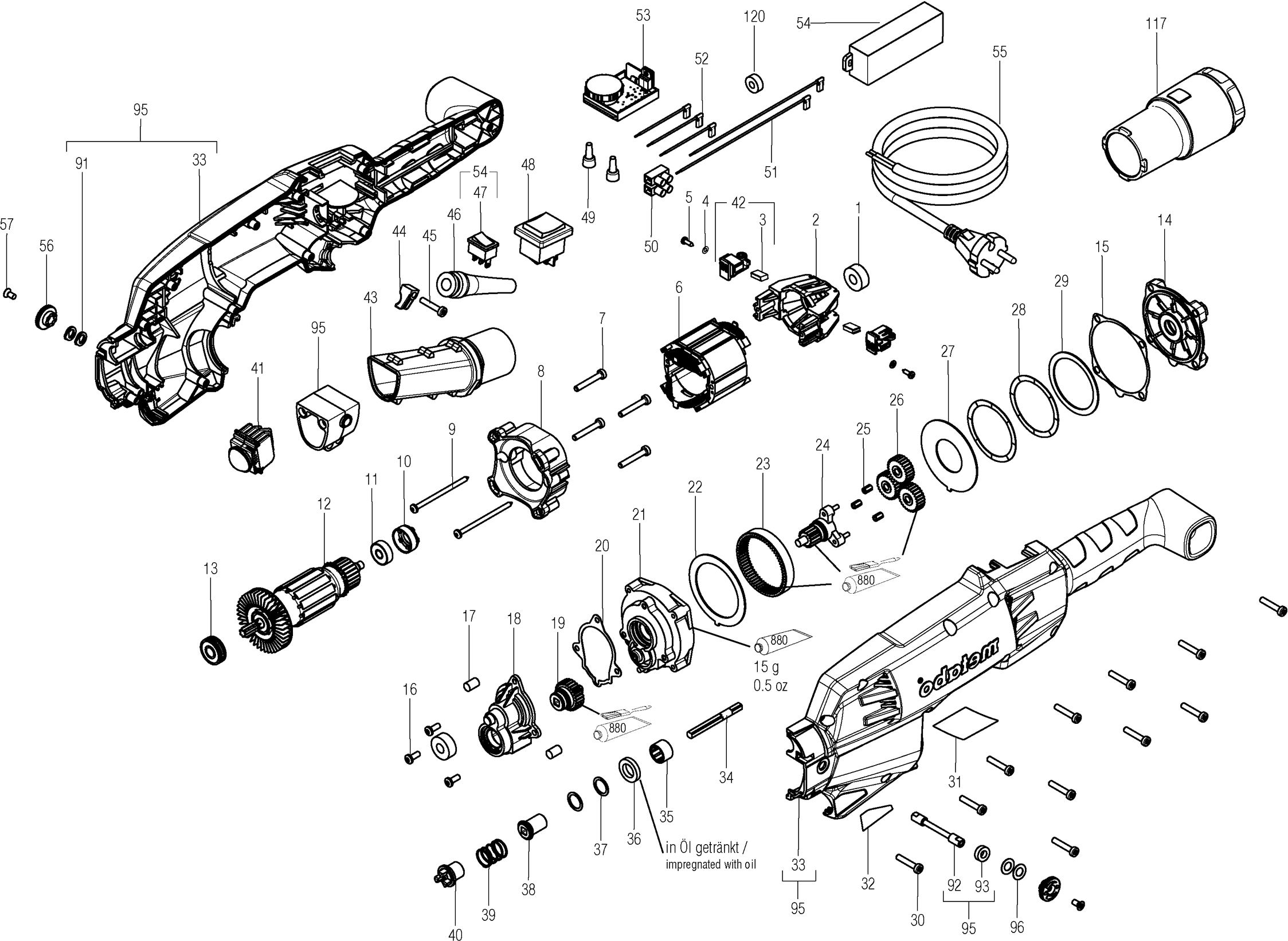

Technical drawing of model Metabo 00136000 (LSV5-225Comfort)

Spare parts list of model Metabo 00136000 (LSV5-225Comfort)

Pos.	Description	Price excl. VAT	Price incl. VAT
Prices shown include VAT

Dempingsring
1	344101760	1.56	1.89

Koolborstelhouder-moduul
2	343437770	3.02	3.65

Brush Set Turn Off
3	316046900	11.74	14.21

Washer
4	141155950	1.56	1.89

Self-tapp. fill. h. screw
5	141119900	1.56	1.89

Field
6	311012320	37.65	45.56

Lensschroef
7	141124100	1.56	1.89

Motorflens
8	343437780	3.02	3.65

Self-tap. fill. h. screw
9	141118260	1.56	1.89

Bus rubber
10	344097870	1.56	1.89

Ball bearing 6x19x 6
11	143114750	3.02	3.65

Anker compl.,230V
12	310011590	37.65	45.56

Kogellager, 8X 22X 7
13	143115890	4.51	5.46

Flange
14	315202930	18.80	22.75

Gearbox Seal
15	339012140	2.28	2.76

Fillister head screw
16	141110540	1.56	1.89

Rubber stop
17	344091420	1.56	1.89

Tandwieldeksel compl.
18	316063070	37.65	45.56

Intermediate shaft compl.
19	316063080	21.64	26.18

Gearbox Seal
20	339012130	3.02	3.65

Tussenflens compl.
21	316063090	32.27	39.05

Anlaufscheibe
22	339007890	1.56	1.89

Internal gear
23	340004370	5.87	7.10

Planetentraeger vollst.
24	316063100	12.23	14.80

Needle Roller and Cage
25	143115450	4.51	5.46

Planetenrad
26	340004380	3.71	4.49

Anlaufscheibe
27	339007900	1.56	1.89

Kugell.Ausgleichssch.
28	143115880	1.56	1.89

Shim
29	141156760	1.56	1.89

Self-tap fill h screw
30	141116020	1.68	2.03

Typeplaatje
31	338065300	1.56	1.89

Identification plate
32	338127050	1.67	2.02

Huis m.deksel compl.
33	343437640	21.64	26.18

Shaft
34	341604830	11.74	14.21

Naaldlager
35	143111740	3.02	3.65

Afdichtvilt
36	344071030	1.56	1.89

Washer
37	339001110	1.56	1.89

Koppelingsstuk
38	341071700	2.28	2.76

Pressure spring
39	342004040	1.56	1.89

Klauenring
40	341071680	3.02	3.65

LED compl.
41	343085180	37.65	45.56

Koolborstelhouder compl. uitsch.,230V
42	316046890	11.74	14.21

Afzuigkanaal
43	343437680	5.18	6.27

Cable clip
44	343362490	1.68	2.03

Self-tap. fill. h. screw
45	141117060	1.68	2.03

Kabelbescherming
46	344101140	2.28	2.76

Schakelaar
47	343410840	5.18	6.27

Schakelaar
48	343411540	8.89	10.76

End piece
49	341162190	1.56	1.89

Terminal Strip 2 pole
50	343050140	1.68	2.03

Verbindingsdraad compl.
51	344530490	1.56	1.89

Verbindingsdraad compl.
52	344530480	1.56	1.89

Electro unit,230V 50/60Hz
53	343085690	48.48	58.66

Complete transformer
54	316097070	24.23	29.32

Kabel m. CEE-stekker
55	344493180	21.64	26.18

Verstelhuls
56	341071740	1.56	1.89

Countersunk screw
57	141122860	1.56	1.89

Self-tap. fill. h. screw
58	141113180	1.56	1.89

Spannexzenter
59	341211180	1.56	1.89

Klauenring
61	341071690	3.71	4.49

Spanhendel
62	343437700	2.28	2.76

Fillister head screw
65	141119850	1.56	1.89

Two-part housing
66	343437810	4.51	5.46

Clamping hook
67	315419120	2.28	2.76

Washer
68	141150110	1.56	1.89

Buishouder
69	341112880	32.27	39.05

Verbindingsstuk
71	343438050	1.56	1.89

Complete hollow shaft.
72	316061990	53.86	65.17

Complete adapter flange
73	343437800	5.18	6.27

Hollow shaft complete.
74	316061980	48.48	58.66

Buishouder
76	341112870	26.95	32.61

Retaining ring
77	141180040	1.56	1.89

Ball Bearing 10x26x8
78	143111120	16.25	19.66

Intermediate shaft
79	341604820	16.25	19.66

Aufnahmehuelse
80	341071770	2.28	2.76

Circlip
81	141156360	1.56	1.89

Extraction hose complete.
82	316062030	7.22	8.74

Steun compl.
83	343437790	13.48	16.31

Cylinder head screw
84	141111050	1.56	1.89

Afsluitdeksel
85	343438600	1.56	1.89

Afsluitdeksel
86	343438610	1.56	1.89

Complete fork
87	343437760	18.80	22.75

Complete swivel flange
88	343437820	5.87	7.10

Slide bushing
89	341006290	1.56	1.89

Self-tap. fill. h. screw
90	141116130	1.56	1.89

Blokkerring
91	339007990	1.68	2.03

Connector screw
92	341515860	4.51	5.46

Felt washer D 20/14 2mm
93	339012230	1.68	2.03

Inlegelement
94	316064360	24.23	29.32

Intermediate flange compl.
95	316065150	80.81	97.78

Washer
96	339009440	1.56	1.89

Bearing bracket
98	343437710	1.56	1.89

Gleitbuchse
99	341006280	1.56	1.89

Beschermkap
100	343437830	13.48	16.31

Gleitbuchse
101	341006270	1.56	1.89

Covering hood
102	343437720	1.68	2.03

Support angle
103	343437730	1.56	1.89

Adjustment ring
104	316063120	67.33	81.47

Edge protection
105	343437690	3.71	4.49

Sealing lip
106	344101740	3.71	4.49

No longer available, no replacement
107	342004050

No longer available, no replacement
108	343438280

No information available, not orderable
109	626663000

Grinding disc complete.
110	316062010	74.13	89.70

Washer
111	141151940	1.56	1.89

Cilinderkopschroef
112	141113840	1.68	2.03

Insert element
113	316063130	16.25	19.66

Flexibele as
114	345000170	148.53	179.72

Bearing flange compl.
115	316063110	48.48	58.66

Countersunk flat screw
116	141119430	1.56	1.89

Anschlussmuffe vollst.
117	316062390	16.25	19.66

Ferrite ring
120	143160180	1.56	1.89

Lagerflens
121	315202920	8.89	10.76

RETAINING RING
122	141180060	1.56	1.89

Kogellager 12x28x 8
123	143111440	21.64	26.18

Gegolfde dichtring
124	143194880	1.68	2.03

Intermediate Piece
125	341013440	2.28	2.76

Retaining ring
126	141180360	1.68	2.03

Aandrijfas
127	341211150	5.18	6.27

Flexibele binnenas in verpakk.
199	316064470	32.27	39.05

Grease tube 50 gr. 1,8oz
880	344130930	32.27	39.05

No information available, not orderable
1001	338506390
