Here you will find all available parts and drawings of the 'Metabo 06872001 (KU6872)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

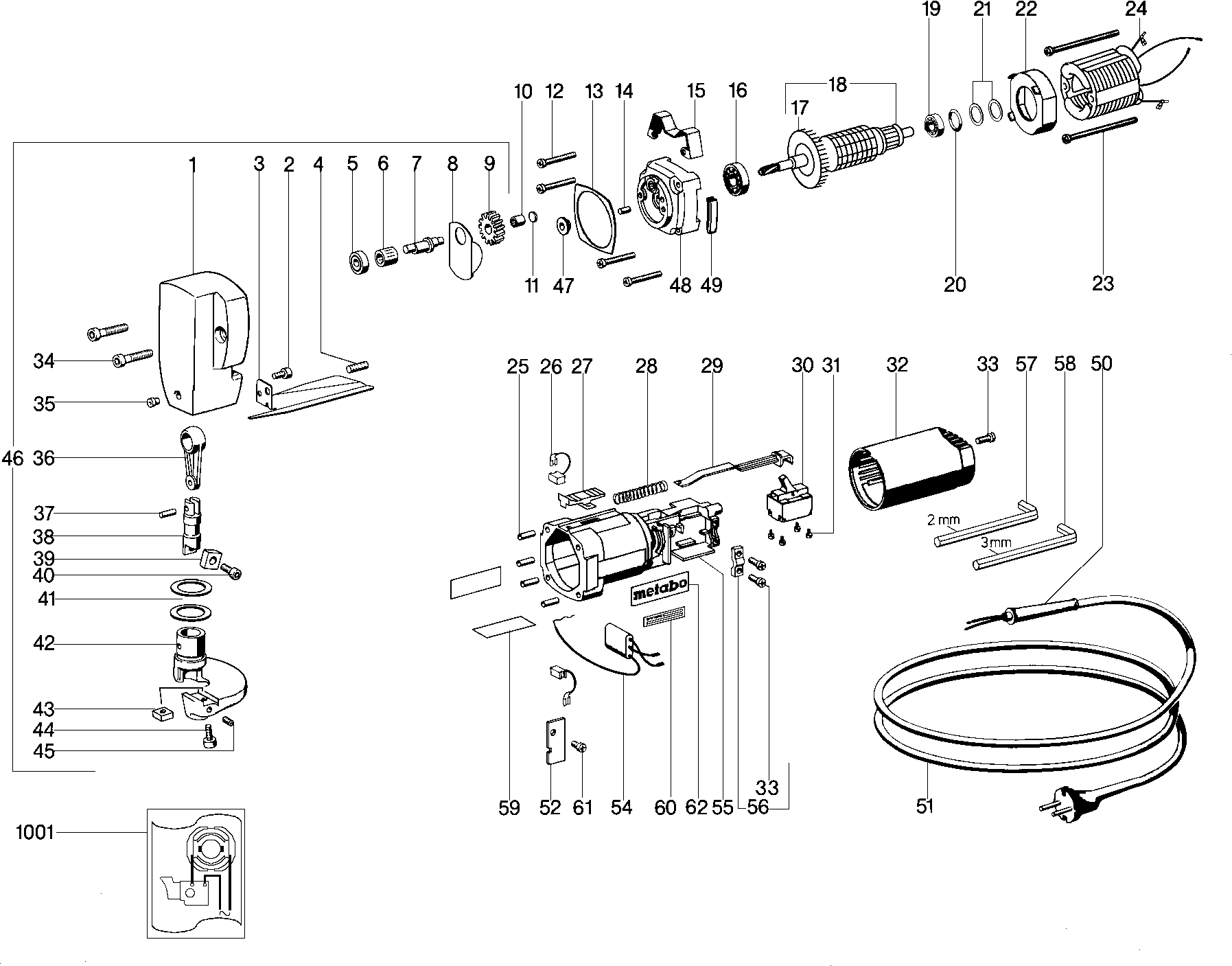

Technical drawing of model Metabo 06872001 (KU6872)
Spare parts list of model Metabo 06872001 (KU6872)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 315103130 | |||
| Cilinderkopschroef | ||||
| 2 | 141113670 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 3 | 339122150 | |||
| Stelschroef | ||||
| 4 | 341701610 | 11.74 | 14.21 | |
| Kogellager 6x19x 6 | ||||
| 5 | 143115660 | 2.28 | 2.76 | |
| Naaldlager | ||||
| 6 | 320050180 | 13.48 | 16.31 | |
| Excenteras | ||||
| 7 | 341602820 | 161.61 | 195.55 | |
| No information available, not orderable | ||||
| 8 | 339122140 | |||
| Spur gear | ||||
| 9 | 340011030 | 16.25 | 19.66 | |
| Naaldlager | ||||
| 10 | 143111430 | 5.18 | 6.27 | |
| Aanloopring | ||||
| 11 | 339001290 | 1.56 | 1.89 | |
| Self-tap. fill. h. screw | ||||
| 12 | 141116990 | 1.68 | 2.03 | |
| Gasket | ||||
| 13 | 339010770 | 1.68 | 2.03 | |
| Cylindrical pin | ||||
| 14 | 141160340 | 1.56 | 1.89 | |
| Foot | ||||
| 15 | 339034890 | 4.51 | 5.46 | |
| Kogellager 8x22x 7 | ||||
| 16 | 143115800 | 2.28 | 2.76 | |
| Fan | ||||
| 17 | 330000860 | 2.28 | 2.76 | |
| Anker 220 V | ||||
| 18 | 310002130 | 161.61 | 195.55 | |
| Ball bearing 7x22x7 | ||||
| 19 | 143110030 | 11.74 | 14.21 | |
| O-ring | ||||
| 20 | 143192510 | 1.68 | 2.03 | |
| Washer | ||||
| 21 | 141151320 | 1.68 | 2.03 | |
| Luchtgeleidingsschijf | ||||
| 22 | 339150510 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 23 | 141118260 | 1.56 | 1.89 | |
| Field | ||||
| 24 | 311007210 | 67.33 | 81.47 | |
| Cylinder liner | ||||
| 25 | 142160280 | 1.56 | 1.89 | |
| Koolborstel set | ||||
| 26 | 316033570 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 27 | 316017230 | |||
| Pressure spring | ||||
| 28 | 342000820 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 29 | 343355910 | 1.68 | 2.03 | |
| Schakelaar | ||||
| 30 | 343404230 | 24.23 | 29.32 | |
| Fillister head screw | ||||
| 31 | 141116970 | 1.68 | 2.03 | |
| Motor cap | ||||
| 32 | 343355880 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 33 | 141116800 | 1.56 | 1.89 | |
| Cilinderkopschroef | ||||
| 34 | 141113720 | 1.68 | 2.03 | |
| Smeernippel | ||||
| 35 | 143190180 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 36 | 341142600 | |||
| No information available, not orderable | ||||
| 37 | 341513560 | |||
| No information available, not orderable | ||||
| 38 | 341051160 | |||
| No information available, not orderable | ||||
| 39 | 631041000 | |||
| Cilinderkopschroef | ||||
| 40 | 341701600 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 41 | 339003970 | |||
| No information available, not orderable | ||||
| 42 | 341142580 | |||
| No information available, not orderable | ||||
| 43 | 631042000 | |||
| Cilinderkopschroef | ||||
| 44 | 141113590 | 1.68 | 2.03 | |
| Stelschroef | ||||
| 45 | 141116480 | 1.56 | 1.89 | |
| Shear head | ||||
| 46 | 316021280 | 539.38 | 652.65 | |
| Pakkingring | ||||
| 47 | 343378120 | 5.87 | 7.10 | |
| Flens compl. | ||||
| 48 | 316007430 | 128.32 | 155.27 | |
| Afdekstrip | ||||
| 49 | 343353340 | 1.68 | 2.03 | |
| Kabelbescherming | ||||
| 50 | 344100640 | 2.28 | 2.76 | |
| Kabel m. CEE-stekker | ||||
| 51 | 344488350 | 18.80 | 22.75 | |
| Cover | ||||
| 52 | 339010750 | 1.68 | 2.03 | |
| Condenser | ||||
| 54 | 343252530 | 12.23 | 14.80 | |
| Motorhuis compl. | ||||
| 55 | 316019660 | 60.59 | 73.31 | |
| Cable clip | ||||
| 56 | 316024890 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 57 | 344161570 | |||
| Inbussleutel | ||||
| 58 | 344161540 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 59 | 338007220 | |||
| Metabo-plaatje | ||||
| 60 | 338123580 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 61 | 141118730 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 62 | 399999990 | |||
| No information available, not orderable | ||||
| 1001 | 338500700 | |||
