Here you will find all available parts and drawings of the 'Metabo 00545001 ( KSE68PLUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

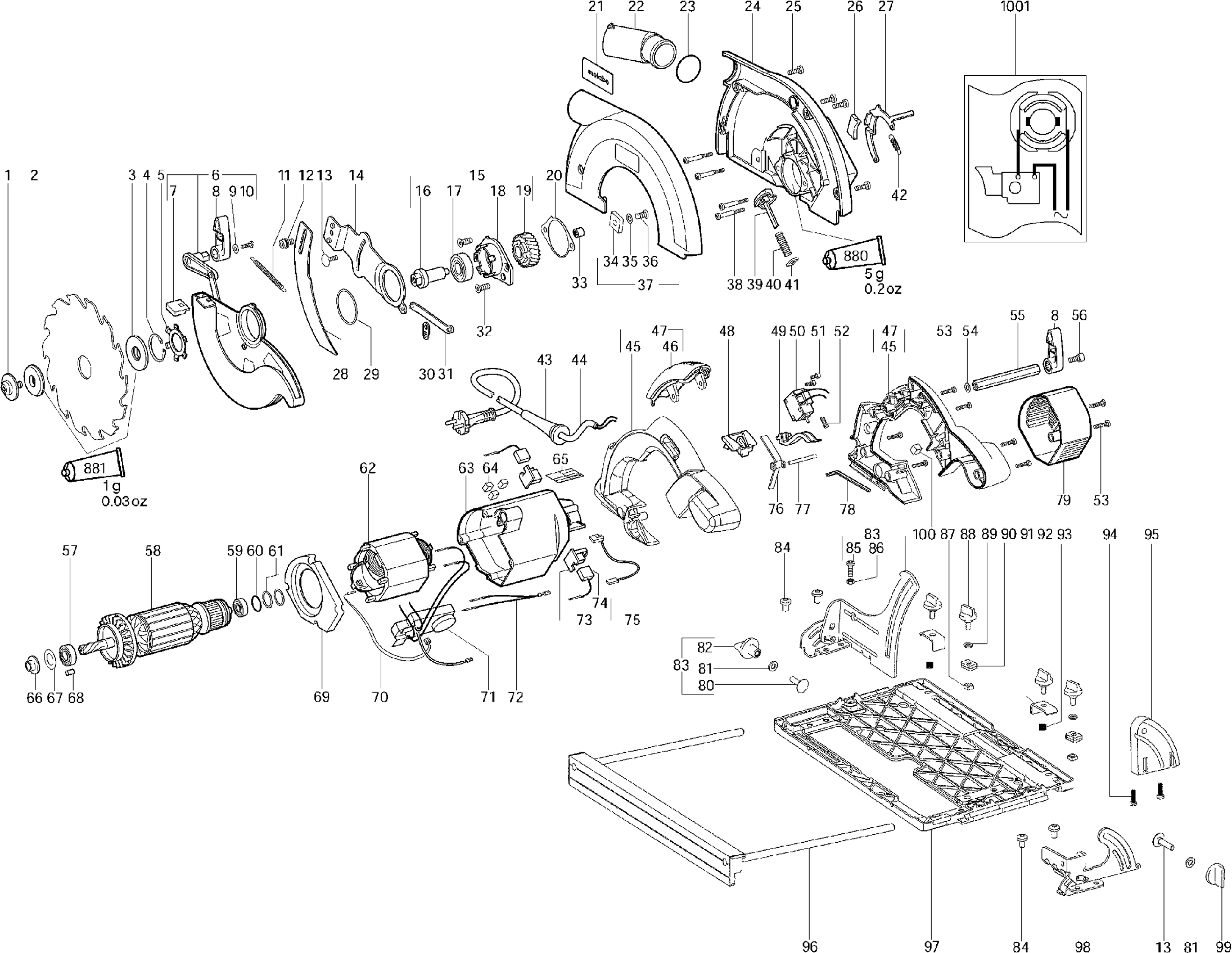

Technical drawing of model Metabo 00545001 ( KSE68PLUS )

Spare parts list of model Metabo 00545001 ( KSE68PLUS )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw complete
1 316034800 8.89 10.76
Clamping flange
2 341031790 16.25 19.66
Clamping flange
3 341031780 7.22 8.74
Retaining ring
4 141180390 1.67 2.02
Tandschijf
5 339131510 2.28 2.76
Pendelbeschermkap compl.
6 316043360 134.27 162.47
Cap
7 343378080 1.67 2.02
Spanhendel
8 343398140 2.28 2.76
Washer
9 141150110 1.55 1.88
Self-tap. fill. h. screw
10 141118730 1.55 1.88
Tension spring
11 342010260 1.55 1.88
Cilinderkopschroef
12 141122830 1.67 2.02
Truss head screw
13 341703660 1.55 1.88
Spouwmeshouder
14 339134340 8.89 10.76
Zaagas compl.
15 316034590 67.33 81.47
Saw axle
16 341057010 16.25 19.66
Kogellager 15x35x11
17 143114870 13.48 16.31
Tandwielflens
18 315415670 21.64 26.18
Spur gear
19 341057020 21.64 26.18
geargasket
20 339210870 1.55 1.88
No longer available, no replacement
21 338122160
Afzuigverbindingsstuk
22 343377760 3.02 3.65
O-ring
23 143194270 1.55 1.88
Zaaghuis compl.
24 316034640 121.19 146.64
Fill. head screw(DIN 7985)
25 141121640 1.55 1.88
Remvoering
26 339011410 5.87 7.10
GUIDER
27 339131540 7.22 8.74
Riving knife
28 339131570 7.22 8.74
Washer
29 141154070 1.67 2.02
Verbindungsteil
30 341070690 3.71 4.49
Afdekplaat
31 339133890 2.28 2.76
Platverzonken schroef
32 141123040 1.55 1.88
Naaldlager
33 143111180 8.89 10.76
Rubber buffer
34 344096260 1.55 1.88
Washer ZN5BK
35 141153390 1.55 1.88
Platverzonken schroef
36 141123190 1.55 1.88
Deksel compl.
37 316034580 53.86 65.17
Passchroef
38 341701490 1.55 1.88
Spilblokkering
39 316043330 16.25 19.66
Pressure spring
40 342007800 1.67 2.02
Felt Cover
41 344070600 1.55 1.88
Pressure spring
42 342003020 1.55 1.88
Kabeldoorvoer
43 344100970 1.67 2.02
Cable with CEE plug
44 344486730 18.80 22.75
Handle with cover
45 343393730 18.80 22.75
Grip element
46 343393720 5.87 7.10
Handgreep compl.
47 316041860 37.65 45.56
Red switch lock
48 343394510 5.87 7.10
Schakelaardrukker
49 343394500 3.02 3.65
Drukschakelaar
50 343406260 8.89 10.76
Fillister head screw
51 141116970 1.67 2.02
Pressure spring
52 342003140 1.55 1.88
Self-tap fill h screw
53 141116020 1.67 2.02
Washer
54 339004350 7.22 8.74
Spacer
55 341056960 5.18 6.27
Cilinderkopschroef
56 141113840 1.67 2.02
Kogellager 10x26x 8
57 143114840 11.74 14.21
Anker 230 V
58 310008550 148.53 179.72
Kogellager 8x22x 7
59 143115800 2.28 2.76
O-ring
60 143192130 1.67 2.02
Washer
61 141151320 1.67 2.02
Field coil
62 311010130 80.81 97.78
Motor housing
63 343377710 21.64 26.18
Inleg licht ontvlambaar
64 344098520 1.55 1.88
Typeplaatje
65 338050120 1.55 1.88
Centrifugeerschijf
66 343377790 1.55 1.88
Washer
67 141153220 1.55 1.88
Rubberen stop
68 344097580 1.55 1.88
Luchtgeleidingsschijf
69 343377740 3.71 4.49
Temperatuurvoeler
70 343077490 10.38 12.56
Elektronische unit 230 V
71 343078700 74.13 89.70
Koolborstel compl. uitsch.
73 316035910 13.48 16.31
Koolborstel set 230 V
74 316034600 16.25 19.66
Speed Transmission
75 343078690 13.48 16.31
Schakelplaat
76 339131550 5.18 6.27
Cilinderstift
77 141163230 1.55 1.88
Angle screwdriver
78 344161520 1.67 2.02
Motordeksel
79 343377730 7.22 8.74
Truss head screw
80 141116050 1.67 2.02
Washer
81 141151940 1.55 1.88
Wing Nut,M6
82 341112670 3.02 3.65
Einstellwinkel vollst.
83 316043270 48.48 58.66
Lensplaatschroef
84 141123650 1.55 1.88
Fillister head screw
85 141116780 1.55 1.88
Zeskante moer
86 141130090 1.55 1.88
Vierkante moer
87 141130660 1.55 1.88
Vleugelschroef
88 341111920 2.28 2.76
Washer
89 141150120 1.55 1.88
Sliding piece
90 343393790 1.67 2.02
Champing claw
91 339133030 1.55 1.88
Vleugelschroef compl.
92 341112650 1.67 2.02
Pressure spring
93 342001070 1.55 1.88
Self-tap. fill. h. screw
94 141116800 1.55 1.88
Console
95 343394560 5.18 6.27
Complete parallel guide
96 316042930 80.81 97.78
Geleidingsplaat compl.
97 316042940 60.59 73.31
Zwenksegment compl.
98 316043280 43.15 52.21
Vleugelmoer
99 341111870 2.28 2.76
Inleg licht ontvlambaar
100 344098540 1.55 1.88
Tube vet 100 gr.
880 344130920 37.65 45.56
Grease Tube 50 gr. SF 011 1,8oz
881 344130560 32.27 39.05
No information available, not orderable
1001 338503930
