Here you will find all available parts and drawings of the 'Metabo 01885001 ( KS85 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

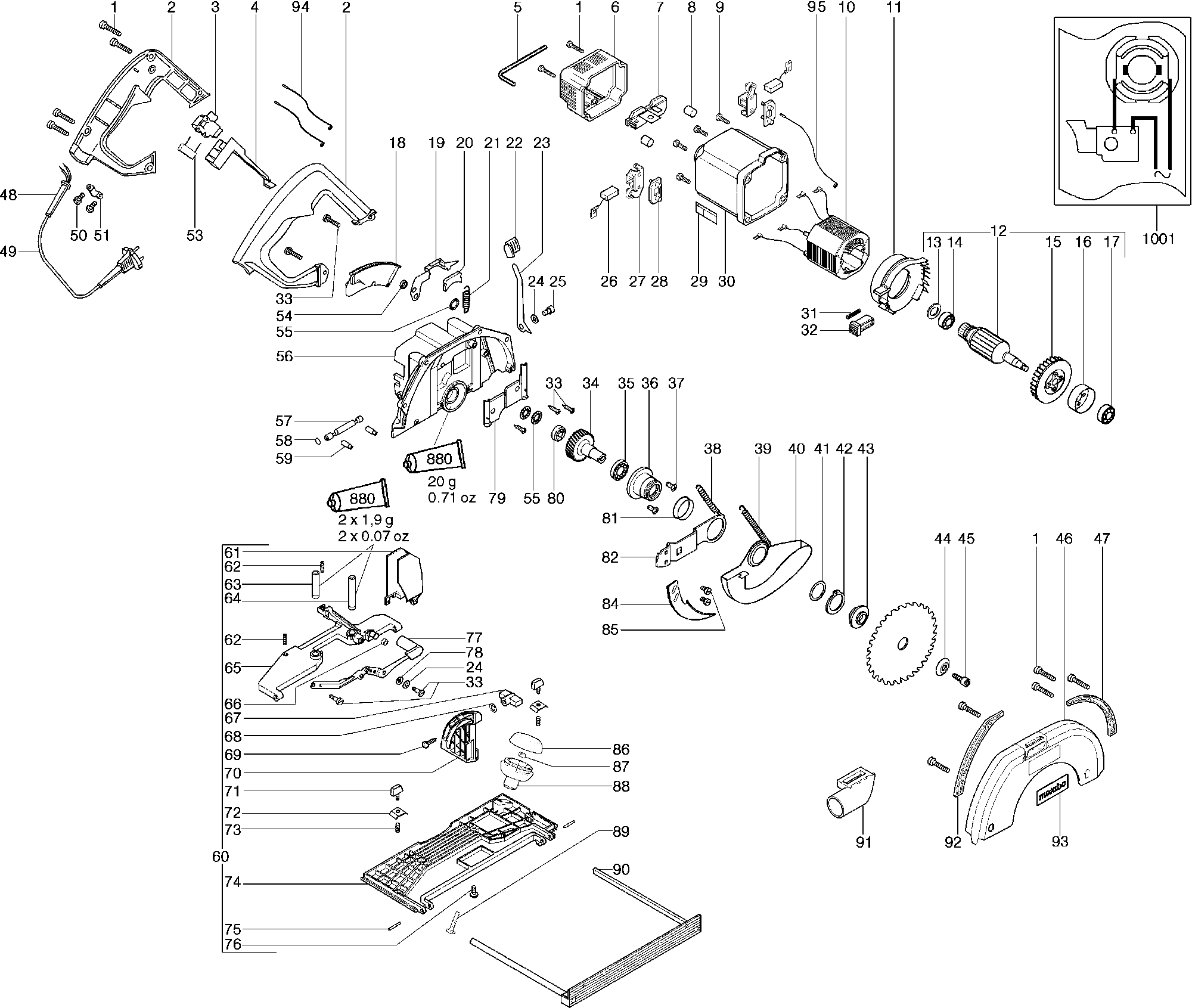

Technical drawing of model Metabo 01885001 ( KS85 )

Spare parts list of model Metabo 01885001 ( KS85 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 341703640
No information available, not orderable
2 343378870
No information available, not orderable
3 343407410
No information available, not orderable
4 343378950
Angle screwdriver
5 344161520 1.67 2.02
No information available, not orderable
6 343378880
No information available, not orderable
7 343081070
No information available, not orderable
8 344096410
No information available, not orderable
9 341703620
No information available, not orderable
10 311010670
No information available, not orderable
11 343378920
No information available, not orderable
12 310009120
No information available, not orderable
13 141154350
Ball bearing 9x26x 8
14 143114860 11.74 14.21
No information available, not orderable
15 330001630
No information available, not orderable
16 341057130
Ball bearing 15x32x9
17 143110220 18.80 22.75
No information available, not orderable
18 343378910
No information available, not orderable
19 339131820
No information available, not orderable
20 339011420
No information available, not orderable
21 342003070
No information available, not orderable
22 343379040
No information available, not orderable
23 339131880
Washer
24 141150110 1.55 1.88
Cilinderkopschroef
25 141113570 1.67 2.02
No information available, not orderable
26 316041420
No information available, not orderable
27 343000830
No information available, not orderable
28 343378960
No information available, not orderable
29 338043590
No information available, not orderable
30 315013030
No information available, not orderable
31 342003090
No information available, not orderable
32 343378970
No information available, not orderable
33 341703630
No information available, not orderable
34 341603830
Ball Bearing 17x35x10
35 143111450 8.89 10.76
No information available, not orderable
36 341031820
No information available, not orderable
37 341703610
No information available, not orderable
38 342003050
No information available, not orderable
39 342003060
No information available, not orderable
40 339202850
No information available, not orderable
41 141155980
No information available, not orderable
42 141180200
No information available, not orderable
43 341031830
No information available, not orderable
44 341031840
Cilinderkopschroef
45 141114610 1.67 2.02
No information available, not orderable
46 339202860
No information available, not orderable
47 343378930
No information available, not orderable
48 344101330
No information available, not orderable
49 344495310
No information available, not orderable
50 341703650
No information available, not orderable
51 339131870
No information available, not orderable
53 343254240
No information available, not orderable
54 343378990
No information available, not orderable
55 141155970
No information available, not orderable
56 315104230
No information available, not orderable
57 341540160
No information available, not orderable
58 143194900
No information available, not orderable
59 341520070
No information available, not orderable
60 316035100
No information available, not orderable
61 343378980
Adjusting screw
62 6163121261 1.55 1.88
No information available, not orderable
63 341057110
No information available, not orderable
64 341057090
No information available, not orderable
65 315415840
No information available, not orderable
66 344096420
No information available, not orderable
67 341100970
Washer
68 141151940 1.55 1.88
No information available, not orderable
69 141111560
No information available, not orderable
70 343378890
No longer available, no replacement
71 341111630
No information available, not orderable
72 339131830
No information available, not orderable
73 342003080
No information available, not orderable
74 315415830
No information available, not orderable
75 141162350
No information available, not orderable
76 141123120
No information available, not orderable
77 316035140
No information available, not orderable
78 141155990
No information available, not orderable
79 343379030
Kogellager 8x22x 7
80 143114740 11.74 14.21
No information available, not orderable
81 341057140
No information available, not orderable
82 339131840
No information available, not orderable
84 339131850
Cylinder head screw
85 141113830 1.55 1.88
Handle part above
86 341111320 5.87 7.10
Zeskante moer
87 141130100 1.55 1.88
No information available, not orderable
88 341111480
No information available, not orderable
89 141118830
No information available, not orderable
90 316035120
No information available, not orderable
91 343379010
No information available, not orderable
92 343378940
Metabo label
93 338115510 1.67 2.02
No information available, not orderable
94 344497010
No information available, not orderable
95 344497020
No information available, not orderable
880 344130170
