Here you will find all available parts and drawings of the 'Metabo 01066000 (KS66FS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

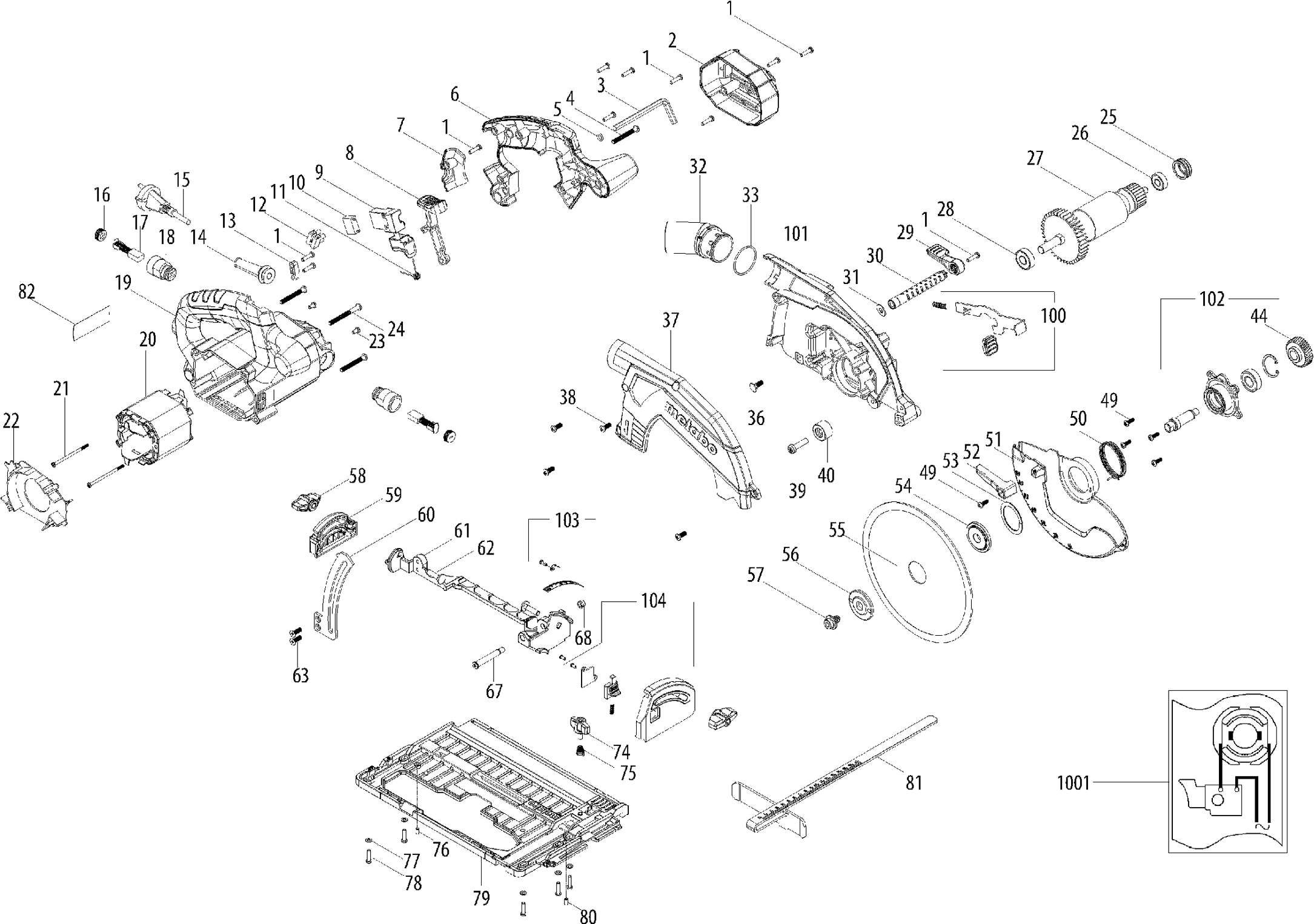

Technical drawing of model Metabo 01066000 (KS66FS)
Spare parts list of model Metabo 01066000 (KS66FS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lensplaatschroef | ||||
| 1 | 141123760 | 1.67 | 2.02 | |
| Cover TURBO II | ||||
| 2 | 343450420 | 3.89 | 4.71 | |
| Hex Key | ||||
| 3 | 344199360 | 1.67 | 2.02 | |
| SCREW | ||||
| 4 | 341723660 | 1.67 | 2.02 | |
| O-Ring | ||||
| 5 | 344114620 | 1.67 | 2.02 | |
| Handle Cover | ||||
| 6 | 343450430 | 21.22 | 25.68 | |
| Handle Cover | ||||
| 7 | 343450440 | 1.67 | 2.02 | |
| Blocking | ||||
| 8 | 343450450 | 1.67 | 2.02 | |
| Switch | ||||
| 9 | 343412350 | 7.58 | 9.17 | |
| CAPACITOR | ||||
| 10 | 343255260 | 1.79 | 2.17 | |
| Spring | ||||
| 11 | 342024560 | 1.67 | 2.02 | |
| Terminal Block | ||||
| 12 | 343050400 | 1.67 | 2.02 | |
| CORD CLAMP | ||||
| 13 | 343450460 | 1.67 | 2.02 | |
| Cable sleeve DRP 18 | ||||
| 14 | 344114590 | 1.67 | 2.02 | |
| Kabel m. CEE-stekker | ||||
| 15 | 344493180 | 24.26 | 29.35 | |
| BRUSH COVER | ||||
| 16 | 343450480 | 1.67 | 2.02 | |
| Carbon brush holder compl. | ||||
| 17 | 316098710 | 4.78 | 5.78 | |
| Carbon Brush Holder | ||||
| 18 | 343003150 | 3.89 | 4.71 | |
| Motor Housing | ||||
| 19 | 343450470 | 21.22 | 25.68 | |
| Field Pack | ||||
| 20 | 311013240 | 52.36 | 63.36 | |
| SCREW | ||||
| 21 | 341723580 | 1.67 | 2.02 | |
| Air guide disc | ||||
| 22 | 339153590 | 1.67 | 2.02 | |
| SCREW | ||||
| 23 | 341723570 | 1.67 | 2.02 | |
| SCREW | ||||
| 24 | 341723590 | 1.67 | 2.02 | |
| Rubber Sleeve | ||||
| 25 | 344114600 | 1.67 | 2.02 | |
| BALL BEARING | ||||
| 26 | 320054620 | 6.05 | 7.32 | |
| Anker 220 V | ||||
| 27 | 310013140 | 57.79 | 69.93 | |
| BALL BEARING | ||||
| 28 | 320054630 | 1.79 | 2.17 | |
| Chuck lever OSC 18 | ||||
| 29 | 343450490 | 1.67 | 2.02 | |
| Spacer | ||||
| 30 | 343450500 | 3.89 | 4.71 | |
| Washer | ||||
| 31 | 339009540 | 1.67 | 2.02 | |
| Exhaust nozzle | ||||
| 32 | 343450510 | 2.43 | 2.94 | |
| O-ring | ||||
| 33 | 143192750 | 1.79 | 2.17 | |
| SCREW | ||||
| 36 | 341723600 | 1.67 | 2.02 | |
| COVER | ||||
| 37 | 315420530 | 13.93 | 16.86 | |
| SCREW | ||||
| 38 | 341723640 | 1.67 | 2.02 | |
| SCREW | ||||
| 39 | 341723650 | 1.67 | 2.02 | |
| Rubber Sleeve | ||||
| 40 | 344114610 | 1.67 | 2.02 | |
| GEAR | ||||
| 44 | 340037620 | 12.19 | 14.75 | |
| Fillister head screw | ||||
| 49 | 141113040 | 1.67 | 2.02 | |
| Spring | ||||
| 50 | 342024570 | 1.67 | 2.02 | |
| PROTECTION COVER | ||||
| 51 | 315420540 | 13.93 | 16.86 | |
| Lever KA 65 | ||||
| 52 | 343450520 | 1.67 | 2.02 | |
| Spring washer | ||||
| 53 | 342024580 | 1.67 | 2.02 | |
| Flange for saw blade | ||||
| 54 | 341039680 | 4.78 | 5.78 | |
| No information available, not orderable | ||||
| 55 | 628675000 | |||
| Flange for saw blade | ||||
| 56 | 341039690 | 1.79 | 2.17 | |
| SCREW | ||||
| 57 | 341723610 | 1.67 | 2.02 | |
| KNOB | ||||
| 58 | 343450540 | 1.67 | 2.02 | |
| Bracket DW125 | ||||
| 59 | 343450550 | 1.79 | 2.17 | |
| Adjustment Angle | ||||
| 60 | 341039700 | 3.89 | 4.71 | |
| Stop Lever | ||||
| 61 | 315420550 | 12.19 | 14.75 | |
| SCREW | ||||
| 62 | 341723620 | 1.67 | 2.02 | |
| Platverzonken schroef | ||||
| 63 | 141116560 | 1.67 | 2.02 | |
| SCREW | ||||
| 67 | 339009550 | 1.67 | 2.02 | |
| Hexagon safety nut | ||||
| 68 | 141130650 | 1.79 | 2.17 | |
| Wing Screw | ||||
| 74 | 343450530 | 1.67 | 2.02 | |
| Spring | ||||
| 75 | 342024590 | 1.67 | 2.02 | |
| Pin Tap with Morse Taper Galvanized | ||||
| 76 | 141124620 | 1.67 | 2.02 | |
| Washer | ||||
| 77 | 339013290 | 1.67 | 2.02 | |
| Lensplaatschroef | ||||
| 78 | 141123690 | 1.67 | 2.02 | |
| Guide Plate | ||||
| 79 | 315420560 | 27.16 | 32.86 | |
| Allen screw | ||||
| 80 | 341723630 | 1.67 | 2.02 | |
| PARALLEL GUIDE | ||||
| 81 | 331054760 | 5.49 | 6.64 | |
| Type plate HK 85 EB 230V | ||||
| 82 | 338072170 | 1.79 | 2.17 | |
| Spindle Lock compl. | ||||
| 100 | 316098720 | 3.20 | 3.87 | |
| Complete saw housing | ||||
| 101 | 316098730 | 41.32 | 50.00 | |
| Gear flange cpl. | ||||
| 102 | 316098740 | 29.97 | 36.26 | |
| DIMENSION INDICATION | ||||
| 103 | 343450390 | 2.43 | 2.94 | |
| Console cpl. | ||||
| 104 | 316098750 | 4.78 | 5.78 | |
| No information available, not orderable | ||||
| 1001 | 338510490 | |||
