Here you will find all available parts and drawings of the 'Metabo 00540000 (KS54)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

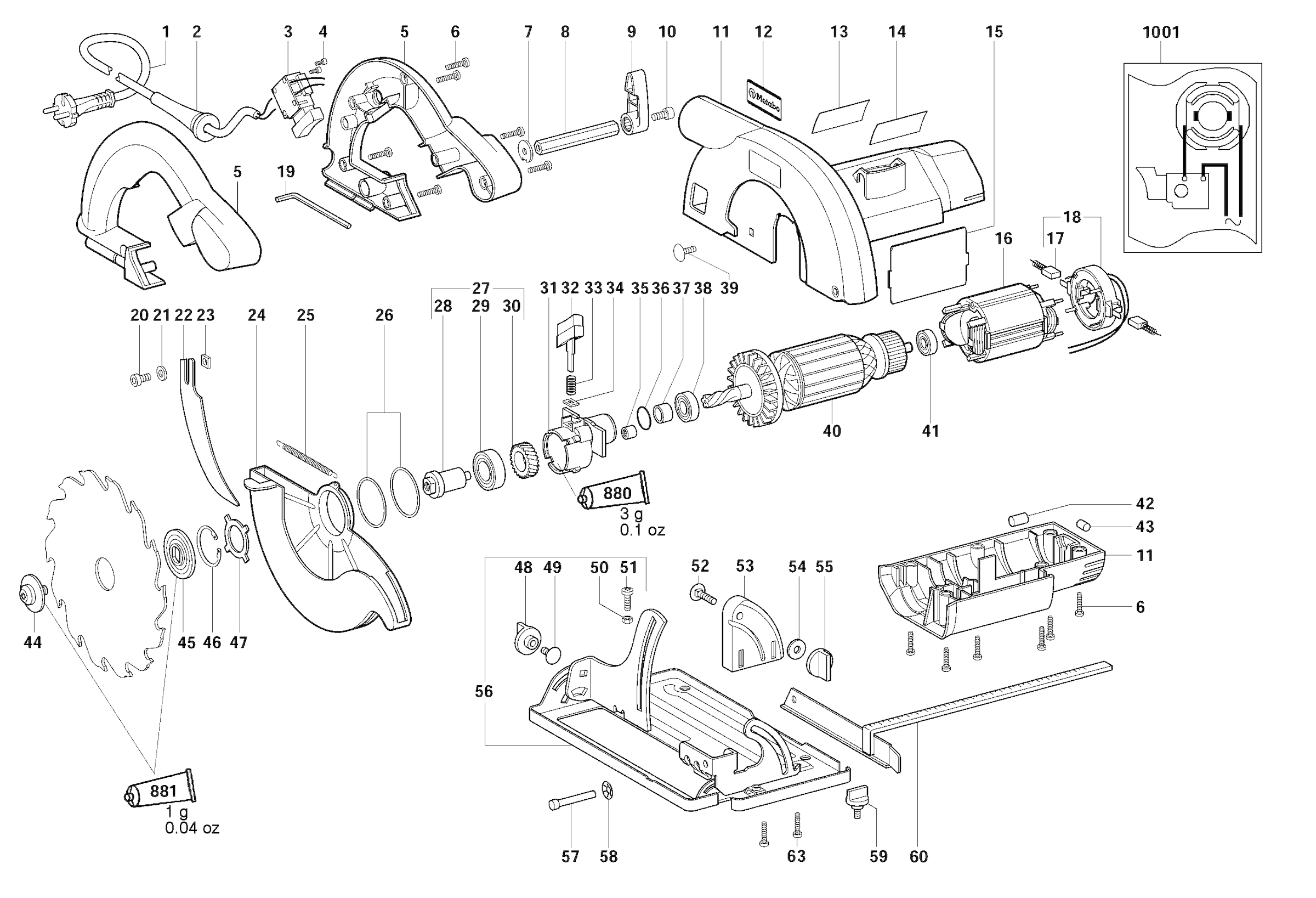

Technical drawing of model Metabo 00540000 (KS54)
Spare parts list of model Metabo 00540000 (KS54)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Kabel m. stekker | ||||
| 1 | 344498420 | 7.22 | 8.74 | |
| Kabeldoorvoer | ||||
| 2 | 344100970 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 3 | 343407360 | |||
| Fillister head screw | ||||
| 4 | 141116970 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 5 | 343377650 | |||
| Self-tap fill h screw | ||||
| 6 | 141116020 | 1.68 | 2.03 | |
| Washer | ||||
| 7 | 339004350 | 7.22 | 8.74 | |
| Spacer | ||||
| 8 | 341056960 | 5.18 | 6.27 | |
| Spanhendel | ||||
| 9 | 343398140 | 2.28 | 2.76 | |
| Cilinderkopschroef | ||||
| 10 | 141113840 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 11 | 343377620 | |||
| No longer available, no replacement | ||||
| 12 | 338122160 | |||
| No information available, not orderable | ||||
| 13 | 338043360 | |||
| No information available, not orderable | ||||
| 14 | 399999990 | |||
| No information available, not orderable | ||||
| 15 | 339131750 | |||
| No information available, not orderable | ||||
| 16 | 311010180 | |||
| No information available, not orderable | ||||
| 17 | 316034550 | |||
| No information available, not orderable | ||||
| 18 | 316032910 | |||
| Angle screwdriver | ||||
| 19 | 344161520 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 20 | 141113840 | 1.68 | 2.03 | |
| Washer | ||||
| 21 | 141150130 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 22 | 339131420 | |||
| Vierkante moer | ||||
| 23 | 141131370 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 24 | 339131410 | |||
| No information available, not orderable | ||||
| 25 | 342021820 | |||
| Washer | ||||
| 26 | 141154070 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 27 | 316034540 | |||
| Saw axle | ||||
| 28 | 341056970 | 16.25 | 19.66 | |
| Kogellager 15x35x11 | ||||
| 29 | 143114020 | 12.23 | 14.80 | |
| Spur gear | ||||
| 30 | 341056990 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 31 | 315104110 | |||
| No information available, not orderable | ||||
| 32 | 316034820 | |||
| Pressure spring | ||||
| 33 | 342001070 | 1.56 | 1.89 | |
| Felt Cover | ||||
| 34 | 344070600 | 1.56 | 1.89 | |
| Naaldlager | ||||
| 35 | 143111180 | 8.89 | 10.76 | |
| O-ring | ||||
| 36 | 143192570 | 1.68 | 2.03 | |
| Afdichtring | ||||
| 37 | 343376040 | 1.68 | 2.03 | |
| Ball bearing 8x22x 7 | ||||
| 38 | 143114980 | 11.74 | 14.21 | |
| Truss head screw | ||||
| 39 | 141111530 | 1.68 | 2.03 | |
| Armature cpl. 230 V | ||||
| 40 | 310008380 | 107.70 | 130.32 | |
| Ball bearing 6x19x 6 | ||||
| 41 | 143114750 | 3.02 | 3.65 | |
| Rubber prop | ||||
| 42 | 344092550 | 1.56 | 1.89 | |
| Rubber stop | ||||
| 43 | 344091420 | 1.56 | 1.89 | |
| Screw complete | ||||
| 44 | 316034800 | 8.89 | 10.76 | |
| Flange | ||||
| 45 | 339131430 | 7.22 | 8.74 | |
| Retaining ring | ||||
| 46 | 141180390 | 1.68 | 2.03 | |
| Retraining sheet | ||||
| 47 | 339122780 | 1.68 | 2.03 | |
| Vleugelmoer | ||||
| 48 | 341111890 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 49 | 141120180 | |||
| Zeskante moer | ||||
| 50 | 141130090 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 51 | 141116780 | 1.56 | 1.89 | |
| Truss head screw | ||||
| 52 | 141111550 | 1.67 | 2.02 | |
| Console | ||||
| 53 | 343377670 | 5.18 | 6.27 | |
| Washer | ||||
| 54 | 141151940 | 1.56 | 1.89 | |
| Vleugelmoer | ||||
| 55 | 341111870 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 56 | 316034530 | |||
| No information available, not orderable | ||||
| 57 | 141163340 | |||
| Circlip | ||||
| 58 | 141180930 | 1.56 | 1.89 | |
| Vleugelschroef | ||||
| 59 | 341111920 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 60 | 331050650 | |||
| Self-tap. fill. h. screw | ||||
| 63 | 141116800 | 1.56 | 1.89 | |
| Grease tube 50 gr. 1,8oz | ||||
| 880 | 344130970 | 11.74 | 14.21 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 881 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338504030 | |||
