Here you will find all available parts and drawings of the 'Metabo 19216000 ( KS216MLASERCUT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

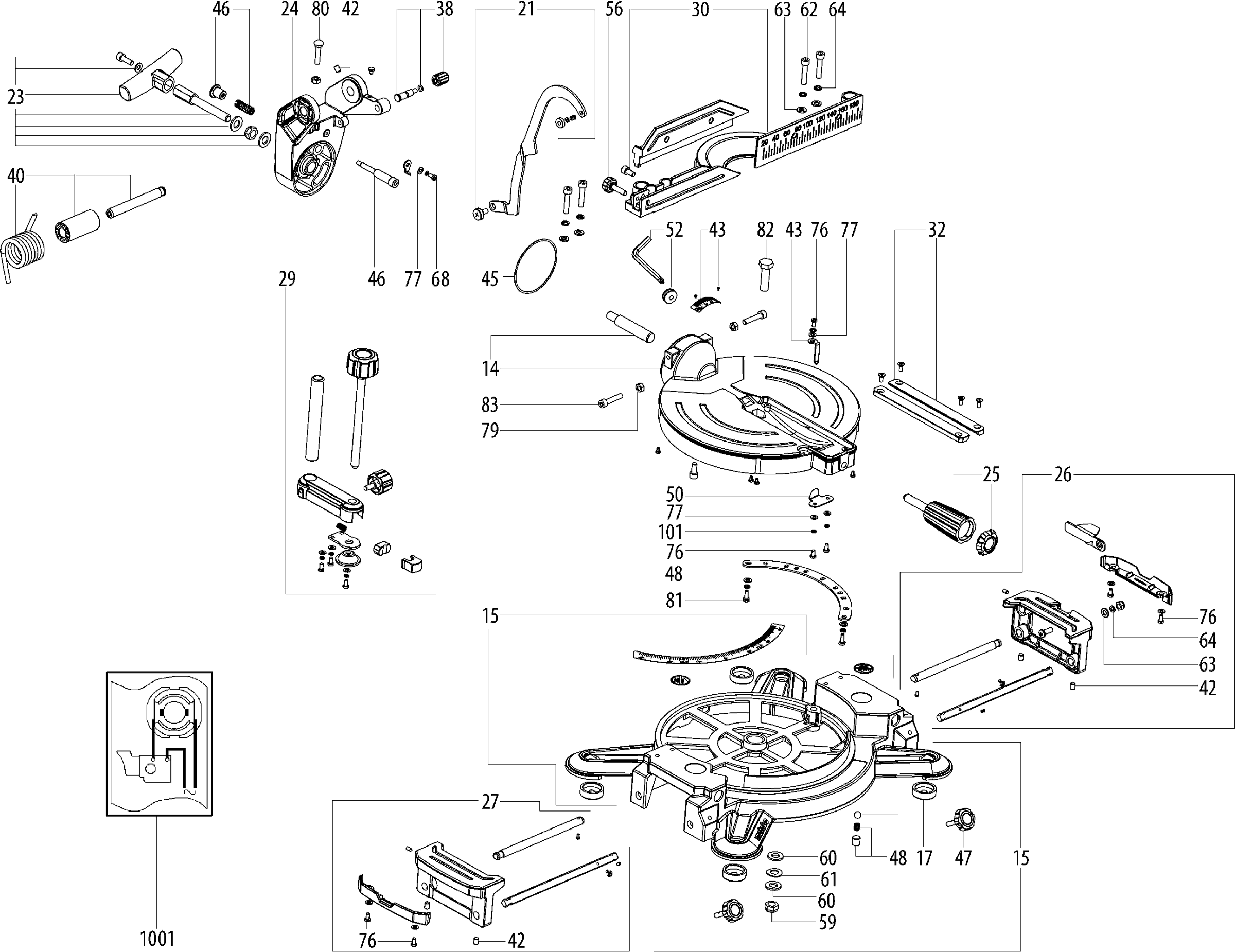

Technical drawing of model Metabo 19216000 ( KS216MLASERCUT )

Spare parts list of model Metabo 19216000 ( KS216MLASERCUT )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motordeksel
1 343435810 3.02 3.65
Flens compl.
2 316060610 10.38 12.56
Kohlebuerstenhalter vollst.
3 316060620 4.51 5.46
Koolborstelset
4 316060650 3.71 4.49
LED Light
5 343436090 8.89 10.76
Lighting Cover
6 343436110 1.55 1.88
Stator
7 310011410 53.86 65.17
ARMATURE
8 310011460 74.13 89.70
Aandrijving compl.
9 316060690 21.64 26.18
Condensator
10 343254900 1.55 1.88
Greepdeel boven cpl.
11 316060720 3.71 4.49
Schakelaar compl.
12 316056690 10.38 12.56
Power supply
13 343440900 13.48 16.31
Complete Rotary Table
14 316055950 48.48 58.66
Tafel compl.
15 316055920 87.60 106.00
Pendelbeschermkap compl.
16 316056300 10.38 12.56
Voet compl.
17 316060840 1.55 1.88
stress relieve compl.
18 316060850 12.23 14.80
Beschermkap compl.
19 316056220 60.59 73.31
Complete decoupling lever
20 316056700 3.02 3.65
Complete Lever
21 316056900 12.23 14.80
Greepdeel onder
22 343435740 16.25 19.66
Spanhendel compl.
23 316056750 3.71 4.49
Complete Motor Mount
24 316056060 32.27 39.05
Draaigreep compl.
25 316056780 3.71 4.49
Tafelverbreding rechts
26 315418510 18.80 22.75
Tafelverbreding links
27 315418480 18.80 22.75
Motorhuis compl.
28 316056260 24.23 29.32
Complete workpiece holder
29 316056680 16.25 19.66
Geleider compl.
30 316055980 37.65 45.56
Tafel-inlegstuk
32 343436010 1.67 2.02
Laser with holder
33 343436070 11.74 14.21
No longer available, no replacement
34 316075450
Spanfanghaube
35 343435770 1.67 2.02
Extraction Funnel
36 343436250 1.55 1.88
Spilblokkering compl.
37 316056870 3.02 3.65
Complete Transport Lock
38 316056810 2.28 2.76
Dieptegeleider compl.
39 316057450 1.55 1.88
Complete cap for axle
40 316061390 12.23 14.80
Cover (cable channel)
41 343441090 1.55 1.88
Plug in buffer
42 344113030 1.55 1.88
Complete scale set
43 316061430 1.55 1.88
Motor compl.
44 316061460 161.61 195.55
Sliding sheet
45 339147640 1.55 1.88
End guide complete
46 316061510 3.02 3.65
Stergreep-schroef
47 343436220 1.55 1.88
Arretierung Tischverstellung vollst.
48 316044520 4.51 5.46
Bearing cover complete
49 316061540 3.02 3.65
Locking element
50 339136750 1.55 1.88
Bus rubber
51 344113040 1.55 1.88
Gereedschaphouder cpl.
52 316061550 1.55 1.88
Typeplaatje
54 338063050 1.55 1.88
Stergreep-schroef
56 343437040 1.55 1.88
Groefkogellager,8x22x7
57 143115700 3.02 3.65
Groefkogellager
58 143115730 3.02 3.65
Moer zeskant
59 141132030 1.55 1.88
Washer
60 141150050 1.55 1.88
Lock washer
61 141150390 1.55 1.88
Cilinderkopschroef
62 141113870 1.67 2.02
Washer
63 141150130 1.55 1.88
Lock washer
64 141155240 1.67 2.02
Lensplaatschroef
66 141123710 1.55 1.88
Countersunk screw
67 141123840 1.55 1.88
Fillister head screw
68 141110540 1.55 1.88
Stelschroef
69 141116480 1.55 1.88
Cilinderkopschroef
70 141113590 1.67 2.02
PLAATSCHROEF M.KRUISKOP ST 4,2X9,5-C-H V
71 141124470 1.55 1.88
Fillister head screw
72 141111430 1.67 2.02
Self-tap. fill. h. screw
73 141118730 1.55 1.88
Self-tap. fill. h. screw
74 141116800 1.55 1.88
Self-tap. fill. h. screw
75 141123940 1.55 1.88
Fillister head screw
76 141113220 1.55 1.88
Lock washer
77 141150350 1.55 1.88
Taper Pin with Morse Taper M 6X20 Plated
78 141124480 1.55 1.88
Zeskante moer
79 141130100 1.55 1.88
Platbolkopbout
80 141124490 1.55 1.88
Fillister head screw
81 141110600 1.55 1.88
ZESKANTSCHROEF M 10X40 VERZ.
82 141124500 1.55 1.88
Cilinderkopschroef
83 141113900 1.67 2.02
No information available, not orderable
1001 338505990
