Here you will find all available parts and drawings of the 'Metabo 0102160300-10 ( KS216MLASERCUT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

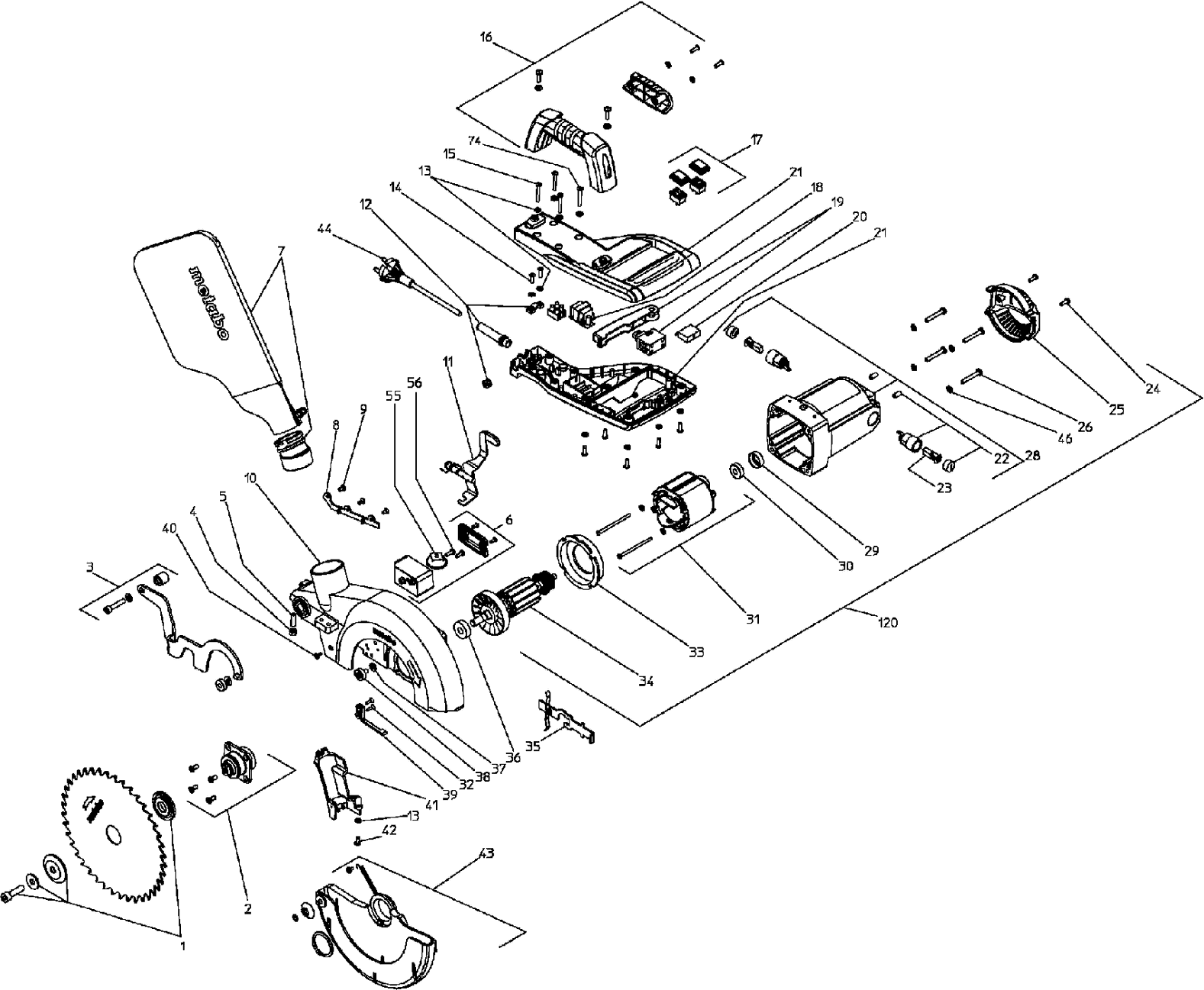

Technical drawing of model Metabo 0102160300-10 ( KS216MLASERCUT )

Spare parts list of model Metabo 0102160300-10 ( KS216MLASERCUT )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Flens compl.
1 316060610 10.38 12.56
No longer available, no replacement
2 1010734602
Swivel lever complete
3 1010734130 8.89 10.76
Zeskante moer
4 141130100 1.55 1.88
Taper Pin with Morse Taper M 6X20 Plated
5 141124480 1.55 1.88
Complete lighting cover
6 1010735005 7.22 8.74
No longer available, no replacement
7 1010734572
Cable Channel Cover
8 1381734729 1.55 1.88
No information available, not orderable
9 6131001531
Complete protective cover
10 1010734580 48.48 58.66
No longer available, no replacement
11 1010734548
Strain relief complete
12 1010734157 1.55 1.88
Washer
13 141150010 1.55 1.88
Place screw M.Cross head ST 4,2X13-C-TX V
14 6172722847 1.55 1.88
No information available, not orderable
15 141111420
No longer available, no replacement
16 1010734190
Switch Set
17 1010734203 3.71 4.49
Power supply
18 8106734071 8.89 10.76
No information available, not orderable
19 1010734084
No longer available, no replacement
20 8050734103
Complete Handle
21 1010734173 21.64 26.18
Carbon brush holder complete
22 1010733983 1.67 2.02
Carbon brush set (2pcs)
23 1388734023 2.28 2.76
Countersunk screw
24 6172001821 1.55 1.88
MOTOR COVER
25 1381733960 18.80 22.75
No longer available, no replacement
26 141116770
Rotating table complete
27 1010735030 43.15 52.21
No longer available, no replacement
28 1010734009
Rubber bushing
29 7057734846 1.55 1.88
Groefkogellager,8x22x7
30 143115700 3.02 3.65
No information available, not orderable
31 8014734040
SELF-TAPPING SCREW WITH CROSSHEAD
32 6174001900 1.55 1.88
No information available, not orderable
33 1331734868
No longer available, no replacement
34 8014734881
Spindle Lock compl.
35 1010734815 1.55 1.88
KOGELLAGER
36 143115740 4.51 5.46
Washer
37 141151940 1.55 1.88
No information available, not orderable
38 1010734807
No longer available, no replacement
39 1381735660
No information available, not orderable
40 6174188961
No longer available, no replacement
41 1381734770
Place screw M.crosshead
42 141124560 1.55 1.88
No longer available, no replacement
43 1010734629
RUBBER CABLE WITH PLUG
44 8402734940 10.38 12.56
Hexagonal flat nut
45 6205028046 1.55 1.88
Washer
46 141150020 1.55 1.88
Toothed lock washer
47 141150420 1.55 1.88
Place screw M.crosshead
48 6172015687 1.55 1.88
Washer
49 141150110 1.55 1.88
Complete shaft cover
50 1010734661 10.38 12.56
Miter Arm
51 1380735047 7.22 8.74
Hexagonal screw
52 6103001127 1.55 1.88
Cilinderkopschroef
53 141113870 1.67 2.02
Stelschroef
54 341701070 5.18 6.27
No longer available, no replacement
55 8602735010
Fillister head screw
56 141113040 1.55 1.88
Hexagon-Socket Key
57 9102689833 4.51 5.46
Zeskantschroef
58 141110290 1.67 2.02
Miter arm complete
59 1010734483 24.23 29.32
Tension Plate
60 1482735076 1.55 1.88
Complete transport lock
62 1010734530 1.55 1.88
Lock washer
64 141150390 1.55 1.88
Laser Housing
65 1381735024 1.55 1.88
No longer available, no replacement
70 1010734467
Complete scale set
73 1010734394 1.55 1.88
SELF-DRILLING SCREW M.CROSSHEAD ST 4,2X32-C-H VE
74 6172006963 1.55 1.88
PLACE SCREW WITH CROSSHEAD M 4X8 COATED DUO-
75 141125180 1.55 1.88
Tension lever complete
79 1010734360 3.02 3.65
Tipping Axle
90 1385735061 1.55 1.88
ZESKANTSCHROEF M 10X40 VERZ.
91 141124500 1.55 1.88
Countersunk screw
92 141112180 1.55 1.88
Table insert
93 1381734958 1.55 1.88
Cilinderkopschroef
97 141113890 1.67 2.02
Toothed lock washer
98 141150410 1.67 2.02
No longer available, no replacement
99 341111630
Thumb Screw M6 x 12
100 341112750 1.55 1.88
Complete workpiece holder
101 316056680 16.25 19.66
TABLE EXTENSION RIGHT
102 1010734300 26.95 32.61
No longer available, no replacement
103 1010734335
No longer available, no replacement
104 1010734220
Voet compl.
106 316060840 1.55 1.88
Washer
107 141150050 1.55 1.88
TABLE EXTENSION LEFT
109 1010734270 26.95 32.61
Moer zeskant
110 141132030 1.55 1.88
Complete guide
111 1010734980 24.23 29.32
Complete table
112 1010734246 60.59 73.31
Securing lever complete right
113 1010734343 1.67 2.02
Complete table adjustment lock
114 1010735056 2.28 2.76
No information available, not orderable
120 1010735595
