Here you will find all available parts and drawings of the 'Metabo 02363000 (KS165)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

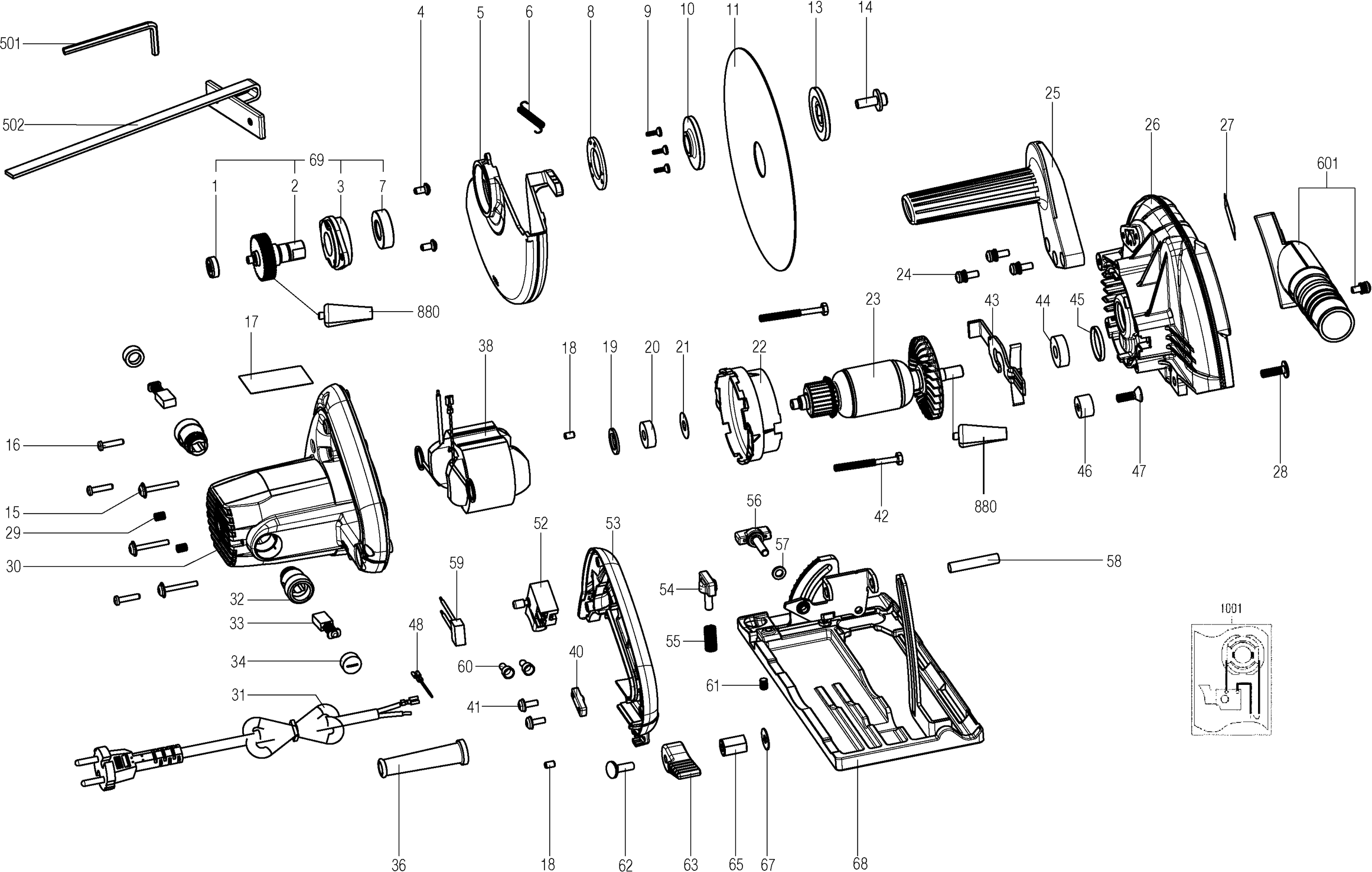

Technical drawing of model Metabo 02363000 (KS165)
Spare parts list of model Metabo 02363000 (KS165)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| BALL BEARING | ||||
| 1 | 143116140 | 1.56 | 1.89 | |
| Gear shaft compl. | ||||
| 2 | 316073930 | 12.23 | 14.80 | |
| Gear Housing | ||||
| 3 | 315106750 | 3.71 | 4.49 | |
| SCREW | ||||
| 4 | 141125010 | 1.56 | 1.89 | |
| LOWER GUARD | ||||
| 5 | 339209220 | 7.22 | 8.74 | |
| Compression Spring | ||||
| 6 | 342010610 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 7 | 143116150 | 3.02 | 3.65 | |
| Fixed Bearing Cover | ||||
| 8 | 315106760 | 1.56 | 1.89 | |
| Security screw | ||||
| 9 | 141125020 | 1.56 | 1.89 | |
| Washer | ||||
| 10 | 339008380 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 11 | 628416000 | |||
| Clamping Piece | ||||
| 13 | 343457310 | 1.68 | 2.03 | |
| Hexagonal nut | ||||
| 14 | 341108720 | 1.56 | 1.89 | |
| SCREW | ||||
| 15 | 141125030 | 1.56 | 1.89 | |
| SCREW | ||||
| 16 | 141125040 | 1.56 | 1.89 | |
| Type plate HK 85 EB 230V | ||||
| 17 | 338077780 | 2.28 | 2.76 | |
| Rubber Stop | ||||
| 18 | 344104180 | 1.56 | 1.89 | |
| Washer | ||||
| 19 | 339008310 | 1.56 | 1.89 | |
| BALL BEARING | ||||
| 20 | 320051110 | 3.71 | 4.49 | |
| Washer | ||||
| 21 | 339008320 | 1.56 | 1.89 | |
| Air guide disc | ||||
| 22 | 339153170 | 1.56 | 1.89 | |
| Armature,230V | ||||
| 23 | 310013580 | 53.86 | 65.17 | |
| SCREW | ||||
| 24 | 141125050 | 1.56 | 1.89 | |
| Extra Handle | ||||
| 25 | 343457130 | 4.51 | 5.46 | |
| Gear Housing | ||||
| 26 | 315106780 | 32.27 | 39.05 | |
| Metabo label | ||||
| 27 | 338134480 | 1.56 | 1.89 | |
| SCREW | ||||
| 28 | 141125060 | 1.56 | 1.89 | |
| SCREW | ||||
| 29 | 141125070 | 1.56 | 1.89 | |
| Motor Housing | ||||
| 30 | 315014110 | 24.23 | 29.32 | |
| Connecting Cable | ||||
| 31 | 344533570 | 7.22 | 8.74 | |
| Carbon Brush Holder | ||||
| 32 | 343001430 | 3.71 | 4.49 | |
| Carbon Brush Holder | ||||
| 33 | 343001440 | 4.51 | 5.46 | |
| BRUSH COVER | ||||
| 34 | 343457170 | 3.71 | 4.49 | |
| Cable sleeve DRP 18 | ||||
| 36 | 343457160 | 1.56 | 1.89 | |
| Field package,230V | ||||
| 38 | 311013650 | 32.27 | 39.05 | |
| CORD CLAMP | ||||
| 40 | 343457150 | 1.56 | 1.89 | |
| PAN HD.PLASTIC SCR. | ||||
| 41 | 341723070 | 1.56 | 1.89 | |
| Schroef zeskant | ||||
| 42 | 341723040 | 1.56 | 1.89 | |
| Chuck lever OSC 18 | ||||
| 43 | 316073790 | 1.56 | 1.89 | |
| Groefkogellager | ||||
| 44 | 320054470 | 4.51 | 5.46 | |
| O-Ring | ||||
| 45 | 344104190 | 1.56 | 1.89 | |
| Rubber Stop | ||||
| 46 | 344104200 | 1.56 | 1.89 | |
| SCREW | ||||
| 47 | 141125100 | 1.56 | 1.89 | |
| Verbindingsdraad set compl. | ||||
| 48 | 316096600 | 1.56 | 1.89 | |
| Switch | ||||
| 52 | 343412800 | 12.23 | 14.80 | |
| Handle | ||||
| 53 | 343457140 | 4.51 | 5.46 | |
| Wing Screw | ||||
| 54 | 341705660 | 1.56 | 1.89 | |
| Compression Spring | ||||
| 55 | 342010620 | 1.56 | 1.89 | |
| Wing Screw | ||||
| 56 | 341705670 | 1.56 | 1.89 | |
| Washer | ||||
| 57 | 339008340 | 1.56 | 1.89 | |
| PIN | ||||
| 58 | 341516450 | 1.56 | 1.89 | |
| Noise filter | ||||
| 59 | 344104210 | 2.28 | 2.76 | |
| Verbindingsklem set | ||||
| 60 | 339148870 | 1.56 | 1.89 | |
| SCREW | ||||
| 61 | 141125120 | 1.56 | 1.89 | |
| SCREW | ||||
| 62 | 141125130 | 1.56 | 1.89 | |
| Shifter Rod | ||||
| 63 | 339139070 | 1.56 | 1.89 | |
| Hexagonal nut | ||||
| 65 | 141132100 | 1.68 | 2.03 | |
| Washer | ||||
| 67 | 339008370 | 1.56 | 1.89 | |
| GROUND PLATE | ||||
| 68 | 339153190 | 32.27 | 39.05 | |
| Complete flange | ||||
| 69 | 316073810 | 21.64 | 26.18 | |
| Right Angle Screwdriver | ||||
| 501 | 344164540 | 1.56 | 1.89 | |
| Adapter CMS-OF | ||||
| 502 | 339153210 | 1.68 | 2.03 | |
| Dust bag cpl. | ||||
| 601 | 316073800 | 7.22 | 8.74 | |
| GREASE | ||||
| 880 | 344131360 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 1001 | 338506750 | |||
