Here you will find all available parts and drawings of the 'Metabo 00191001 ( KNS18LTX150 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

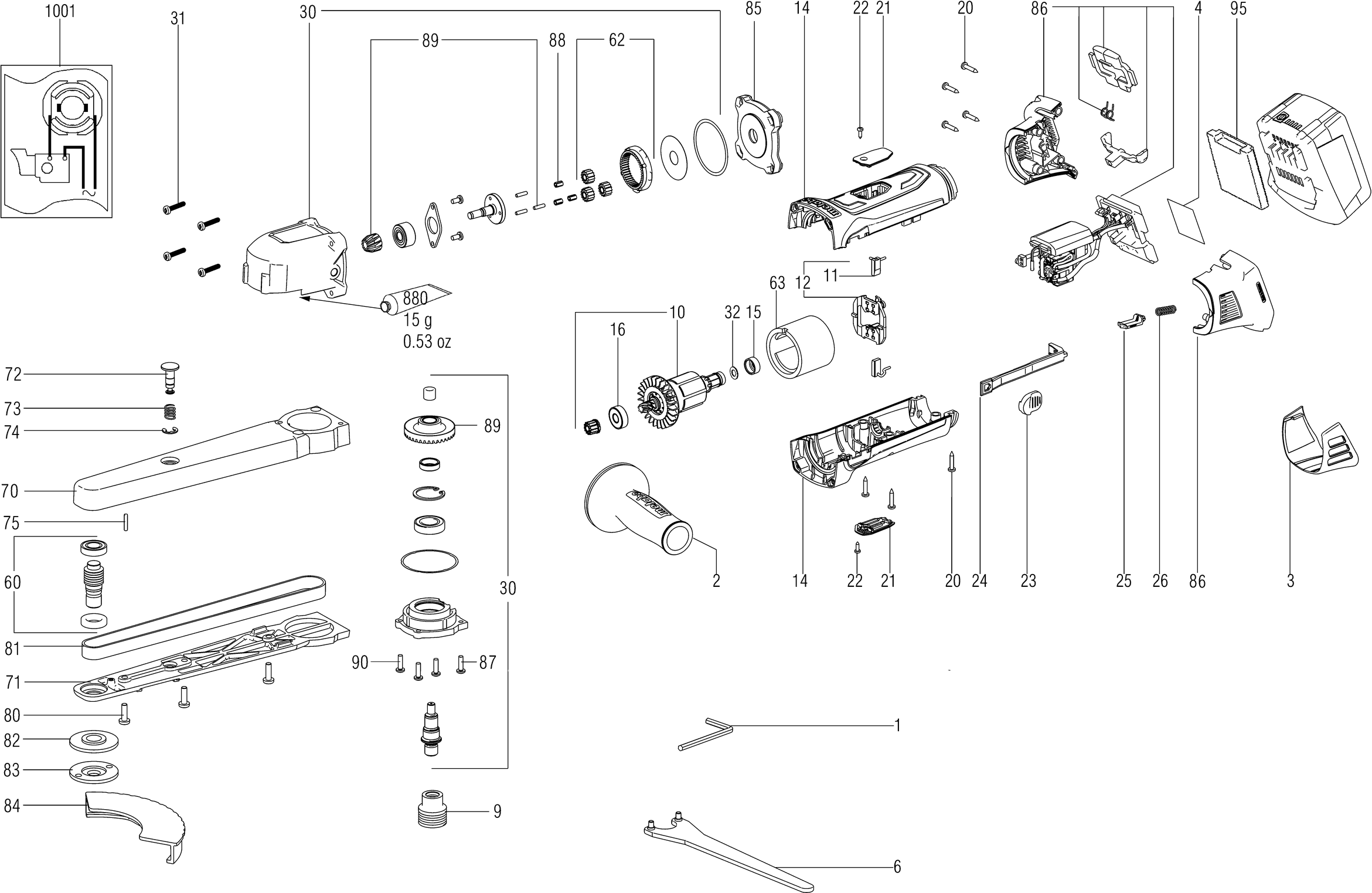

Technical drawing of model Metabo 00191001 ( KNS18LTX150 )
Spare parts list of model Metabo 00191001 ( KNS18LTX150 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Inbussleutel | ||||
| 1 | 344161510 | 1.67 | 2.02 | |
| Handgreep extra compl. | ||||
| 2 | 316046590 | 8.89 | 10.76 | |
| Dust filter | ||||
| 3 | 343398890 | 5.87 | 7.10 | |
| Typeplaatje | ||||
| 4 | 338055510 | 1.55 | 1.88 | |
| Pennensleutel | ||||
| 6 | 344163920 | 3.02 | 3.65 | |
| Aandrijfas | ||||
| 9 | 341605340 | 12.23 | 14.80 | |
| Anker 220 V | ||||
| 10 | 316068770 | 48.48 | 58.66 | |
| Koolborstelset | ||||
| 11 | 316060540 | 10.38 | 12.56 | |
| Carbon brush holder compl., 18 V | ||||
| 12 | 316053210 | 12.23 | 14.80 | |
| Motor Housing | ||||
| 14 | 343398580 | 21.64 | 26.18 | |
| Bus rubber | ||||
| 15 | 344098740 | 1.55 | 1.88 | |
| Ball bearing 8x22x 7 | ||||
| 16 | 143114880 | 3.02 | 3.65 | |
| Self-tap. fill. h. screw | ||||
| 20 | 141113180 | 1.55 | 1.88 | |
| Koolborsteldeksel | ||||
| 21 | 343398600 | 1.55 | 1.88 | |
| Self-tapp. fill. h. screw | ||||
| 22 | 141119900 | 1.55 | 1.88 | |
| Switch slide ,H/L | ||||
| 23 | 343397810 | 1.55 | 1.88 | |
| Schakelstang | ||||
| 24 | 339136560 | 3.02 | 3.65 | |
| Steunstift | ||||
| 25 | 343398620 | 1.55 | 1.88 | |
| Pressure spring | ||||
| 26 | 342003030 | 1.55 | 1.88 | |
| Aandrijving compl. | ||||
| 30 | 316063950 | 228.10 | 276.00 | |
| Self-tap. fill. h. screw | ||||
| 31 | 141123380 | 1.55 | 1.88 | |
| Washer | ||||
| 32 | 141152720 | 1.67 | 2.02 | |
| Shaft compl. | ||||
| 60 | 316065430 | 53.86 | 65.17 | |
| Getriebeteile vollst. | ||||
| 62 | 316063500 | 8.89 | 10.76 | |
| Field | ||||
| 63 | 311012660 | 48.48 | 58.66 | |
| Housing | ||||
| 70 | 315419640 | 21.64 | 26.18 | |
| Housing cover | ||||
| 71 | 315419650 | 21.64 | 26.18 | |
| Blokkeerstift | ||||
| 72 | 341515850 | 10.38 | 12.56 | |
| Spring | ||||
| 73 | 342003690 | 1.55 | 1.88 | |
| Borgschijf | ||||
| 74 | 141181500 | 1.55 | 1.88 | |
| Needle roller | ||||
| 75 | 143115440 | 1.55 | 1.88 | |
| Fill. head screw(DIN 7985) | ||||
| 80 | 141121640 | 1.55 | 1.88 | |
| V-belt | ||||
| 81 | 344260320 | 48.48 | 58.66 | |
| clamping flange | ||||
| 82 | 341032350 | 16.25 | 19.66 | |
| Clamping nut | ||||
| 83 | 341102620 | 18.80 | 22.75 | |
| Beschermkap | ||||
| 84 | 339204740 | 26.95 | 32.61 | |
| Lagerflens | ||||
| 85 | 315202610 | 24.23 | 29.32 | |
| Huis compl. | ||||
| 86 | 316049680 | 100.74 | 121.90 | |
| Lensschroef | ||||
| 87 | 141124090 | 1.55 | 1.88 | |
| Needle Roller and Cage | ||||
| 88 | 143115450 | 4.51 | 5.46 | |
| Full Planetary Carrier | ||||
| 89 | 316068660 | 87.60 | 106.00 | |
| Lensschroef | ||||
| 90 | 141124370 | 1.55 | 1.88 | |
| Cover cap | ||||
| 95 | 343439680 | 1.55 | 1.88 | |
| Tube vet 100 gr. | ||||
| 880 | 344130920 | 37.65 | 45.56 | |
| No information available, not orderable | ||||
| 1001 | 338505280 | |||
