Here you will find all available parts and drawings of the 'Metabo 06875003 (KN6875)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

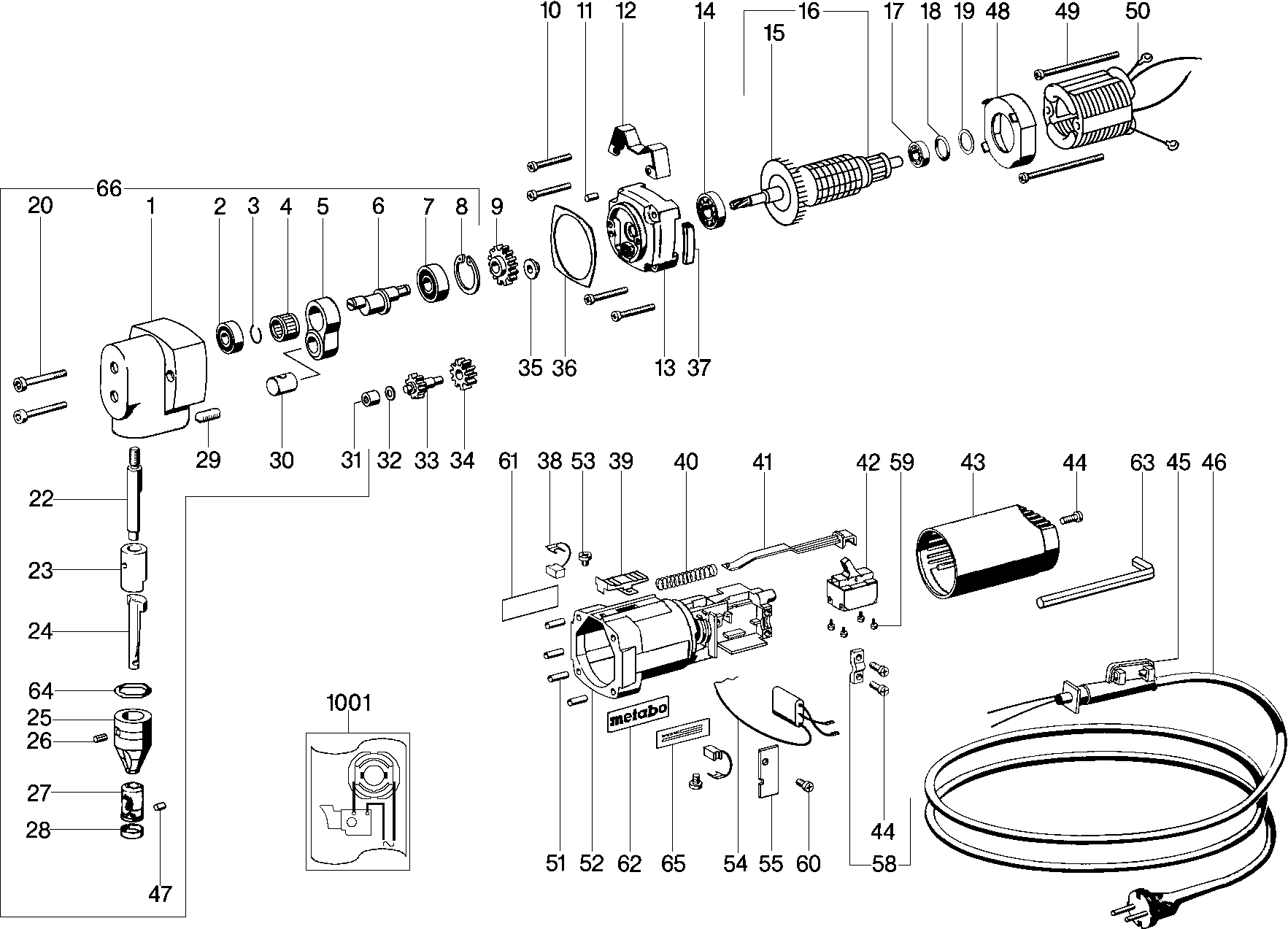

Technical drawing of model Metabo 06875003 (KN6875)
Spare parts list of model Metabo 06875003 (KN6875)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 315102640 | 375.44 | 454.28 | |
| Ball bearing 9x26x8 | ||||
| 2 | 143110060 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 3 | 342020680 | |||
| Naaldenkooi | ||||
| 4 | 320050100 | 16.25 | 19.66 | |
| No information available, not orderable | ||||
| 5 | 341142040 | |||
| No information available, not orderable | ||||
| 6 | 341602710 | |||
| Ball Bearing 10x30x9 | ||||
| 7 | 143111090 | 13.48 | 16.31 | |
| Ball bearing, 10x30x9 | ||||
| 7 | 143115600 | 7.22 | 8.74 | |
| Retaining ring | ||||
| 8 | 141180370 | 1.56 | 1.89 | |
| Spur gear | ||||
| 9 | 340011050 | 26.95 | 32.61 | |
| Self-tap. fill. h. screw | ||||
| 10 | 141116990 | 1.68 | 2.03 | |
| Cylindrical pin | ||||
| 11 | 141160340 | 1.56 | 1.89 | |
| Foot | ||||
| 12 | 339034890 | 4.51 | 5.46 | |
| Flens compl. | ||||
| 13 | 316007430 | 128.32 | 155.27 | |
| Kogellager 8x22x 7 | ||||
| 14 | 143115800 | 2.28 | 2.76 | |
| Fan | ||||
| 15 | 330000860 | 2.28 | 2.76 | |
| Anker 220 V | ||||
| 16 | 310001970 | 161.61 | 195.55 | |
| Ball bearing 7x22x7 | ||||
| 17 | 143110030 | 11.74 | 14.21 | |
| Supporting ring | ||||
| 18 | 344091990 | 1.68 | 2.03 | |
| Washer | ||||
| 19 | 141151320 | 1.68 | 2.03 | |
| Cilinderkopschroef | ||||
| 20 | 141113730 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 22 | 630202000 | |||
| Guide sleeve | ||||
| 23 | 341141040 | 121.19 | 146.64 | |
| Support pin compl. | ||||
| 24 | 316007440 | 213.88 | 258.79 | |
| Stempelgeleiding | ||||
| 25 | 338300870 | 296.22 | 358.43 | |
| Cone kerf pin 3x8 | ||||
| 26 | 341800050 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 27 | 630203000 | |||
| Cover | ||||
| 28 | 341011320 | 5.87 | 7.10 | |
| Stelschroef | ||||
| 29 | 341701060 | 12.23 | 14.80 | |
| Connecting rod pin | ||||
| 30 | 341144160 | 100.74 | 121.90 | |
| Naaldlager | ||||
| 31 | 143113450 | 37.65 | 45.56 | |
| Washer | ||||
| 32 | 141150920 | 1.56 | 1.89 | |
| Tandwielas | ||||
| 33 | 340011260 | 48.48 | 58.66 | |
| Spur gear | ||||
| 34 | 340011030 | 16.25 | 19.66 | |
| Pakkingring | ||||
| 35 | 343378120 | 5.87 | 7.10 | |
| Gasket | ||||
| 36 | 339010770 | 1.68 | 2.03 | |
| Afdekstrip | ||||
| 37 | 343353340 | 1.68 | 2.03 | |
| Carbon brush set | ||||
| 38 | 316033460 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 39 | 316017230 | |||
| Pressure spring | ||||
| 40 | 342000820 | 1.56 | 1.89 | |
| Schakelstang | ||||
| 41 | 343355910 | 1.68 | 2.03 | |
| Schakelaar | ||||
| 42 | 343404230 | 24.23 | 29.32 | |
| Motor cap | ||||
| 43 | 343355880 | 8.89 | 10.76 | |
| Self-tap. fill. h. screw | ||||
| 44 | 141116800 | 1.56 | 1.89 | |
| Kabelbescherming | ||||
| 45 | 344100210 | 2.28 | 2.76 | |
| Cable with CEE-plug | ||||
| 46 | 344489060 | 18.80 | 22.75 | |
| Cilinderstift | ||||
| 47 | 341513840 | 1.56 | 1.89 | |
| Luchtgeleidingsschijf | ||||
| 48 | 339150510 | 2.28 | 2.76 | |
| Self-tap. fill. h. screw | ||||
| 49 | 141118260 | 1.56 | 1.89 | |
| Field 220 V | ||||
| 50 | 311004220 | 74.13 | 89.70 | |
| Cylinder liner | ||||
| 51 | 142160280 | 1.56 | 1.89 | |
| Motorhuis compl. | ||||
| 52 | 316019670 | 32.27 | 39.05 | |
| Fillister head screw | ||||
| 53 | 141110450 | 1.56 | 1.89 | |
| Condenser | ||||
| 54 | 343252530 | 12.23 | 14.80 | |
| Cover | ||||
| 55 | 339010750 | 1.68 | 2.03 | |
| Cable clip | ||||
| 58 | 316024890 | 3.02 | 3.65 | |
| Fillister head screw | ||||
| 59 | 141116970 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 60 | 141116130 | 1.56 | 1.89 | |
| Typeplaatje | ||||
| 61 | 338013070 | 1.56 | 1.89 | |
| Metabo-plaatje | ||||
| 62 | 338123580 | 2.28 | 2.76 | |
| Inbussleutel | ||||
| 63 | 344161530 | 1.68 | 2.03 | |
| O-ring | ||||
| 64 | 143194470 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 65 | 399999990 | |||
| Nibbler head comp. | ||||
| 66 | 316011710 | 809.10 | 979.01 | |
| No information available, not orderable | ||||
| 1001 | 338500700 | |||
