Here you will find all available parts and drawings of the 'Metabo 00659000 ( KHE3251 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

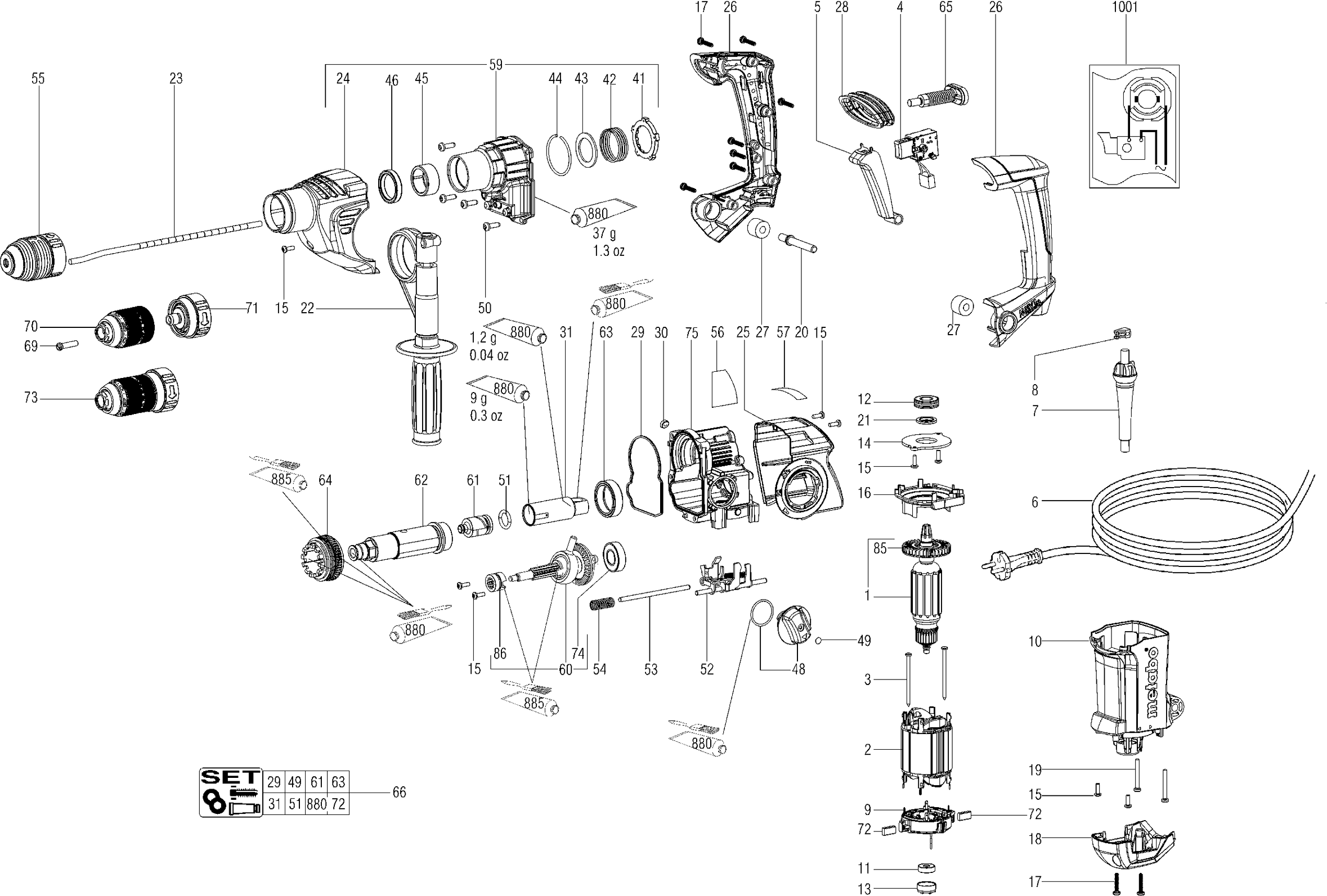

Technical drawing of model Metabo 00659000 ( KHE3251 )

Spare parts list of model Metabo 00659000 ( KHE3251 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Anker 230 V
1 310009760 87.60 106.00
Field
2 311011730 18.80 22.75
Self-tap. fill. h. screw
3 141118260 1.55 1.88
Elektro.schakelaar zonder stelwiel,230V
4 343409370 18.80 22.75
Schakelaardrukker
5 343399080 1.55 1.88
Cable with CEE plug
6 344486730 18.80 22.75
Kabeldoorvoer
7 343394300 1.67 2.02
Cable clip
8 343362490 1.67 2.02
Brush holder module, 230V V 700W-800W
9 316051940 12.23 14.80
Motor housing
10 315013430 12.23 14.80
Groefkogellager,6x19x6
11 143115690 2.28 2.76
Deep Groove Ball Bearing, 12X 28X 8
12 143115360 5.87 7.10
Bus rubber
13 344097870 1.55 1.88
Vaste lagerdeksel
14 339007360 1.67 2.02
Fill. head screw
15 141120070 1.55 1.88
Luchtgeleiderschijf
16 343399130 2.28 2.76
Self-tap. fill. h. screw
17 141117060 1.67 2.02
Motor cap
18 343399100 2.28 2.76
Lensschroef
19 141124000 1.55 1.88
Lagerstift
20 341515550 8.89 10.76
Afstandshuls
21 341006050 3.71 4.49
Handgreep compl.
22 314001380 18.80 22.75
Dieptegeleider
23 341511630 4.51 5.46
Huis m. deksel Ergänzung fehlt in dieser
24 343430070 7.22 8.74
Housing with rear cover
25 343430080 5.87 7.10
Handgreep boven/onderdeel
26 343399110 18.80 22.75
Dempingsring
27 344098790 11.74 14.21
Bellows
28 344098920 5.18 6.27
Profielpakking
29 344098850 2.28 2.76
Sealing felt
30 344070670 1.55 1.88
Bekrachtigingsbus
31 341059620 16.25 19.66
Retaining ring
41 343399540 1.55 1.88
Pressure spring, 34.7x38.3x1.8x27.7
42 342003490 1.55 1.88
Steunschijf
43 141155590 1.55 1.88
Circlip
44 141156540 1.55 1.88
Naaldlager
45 143114690 5.18 6.27
Corrugated sealing ring
46 143195340 1.55 1.88
Schakelknop compl.
48 316047340 7.22 8.74
Seal
49 343376750 1.67 2.02
Fill. head screw(DIN 7985)
50 141121640 1.55 1.88
O-ring
51 143195350 1.55 1.88
Complete Switching Element
52 316047910 18.80 22.75
SCHALTBOLZEN
53 341540140 1.55 1.88
Pressure spring
54 342002790 1.55 1.88
Keyless Chuck
55 316071590 73.31 88.71
Typeplaatje
56 338056420 1.55 1.88
No information available, not orderable
57 399999990
Tandwielhuis compl.
59 316049960 60.59 73.31
Tandwielas compl.
60 316049950 121.19 146.64
Striker
61 341059520 11.74 14.21
Boorhuls compl.
62 316049940 128.32 155.27
Complete Lager Ring
63 316050020 26.95 32.61
Complete Safety Coupling
64 316047900 48.48 58.66
Spring pin complete
65 316048840 24.23 29.32
Maintenance Equipment
66 316050120 107.70 130.32
Cilinderkopschroef
69 341703360 5.18 6.27
Quick release drill chuck,1.5-13
70 301003140 43.15 52.21
Quick Change Adapter
71 316050630 43.15 52.21
Koolborstelset,230 V
72 316046950 12.23 14.80
Quick-Release Drill Chuck with Adapter
73 316047500 87.60 106.00
Kogellager 15x32x 9
74 143115790 3.71 4.49
Tandwielhuis achter
75 315104930 37.65 45.56
Fan
85 330001950 1.55 1.88
Clutch Sleeve
86 340004210 16.25 19.66
Tube of grease 50 gr. SF 126
880 344130800 18.80 22.75
Tube of grease, 50g Klueber Microlube GL 261
885 344131210 24.23 29.32
No information available, not orderable
1001 338505160
