Here you will find all available parts and drawings of the 'Metabo 00332001 (KHE32)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

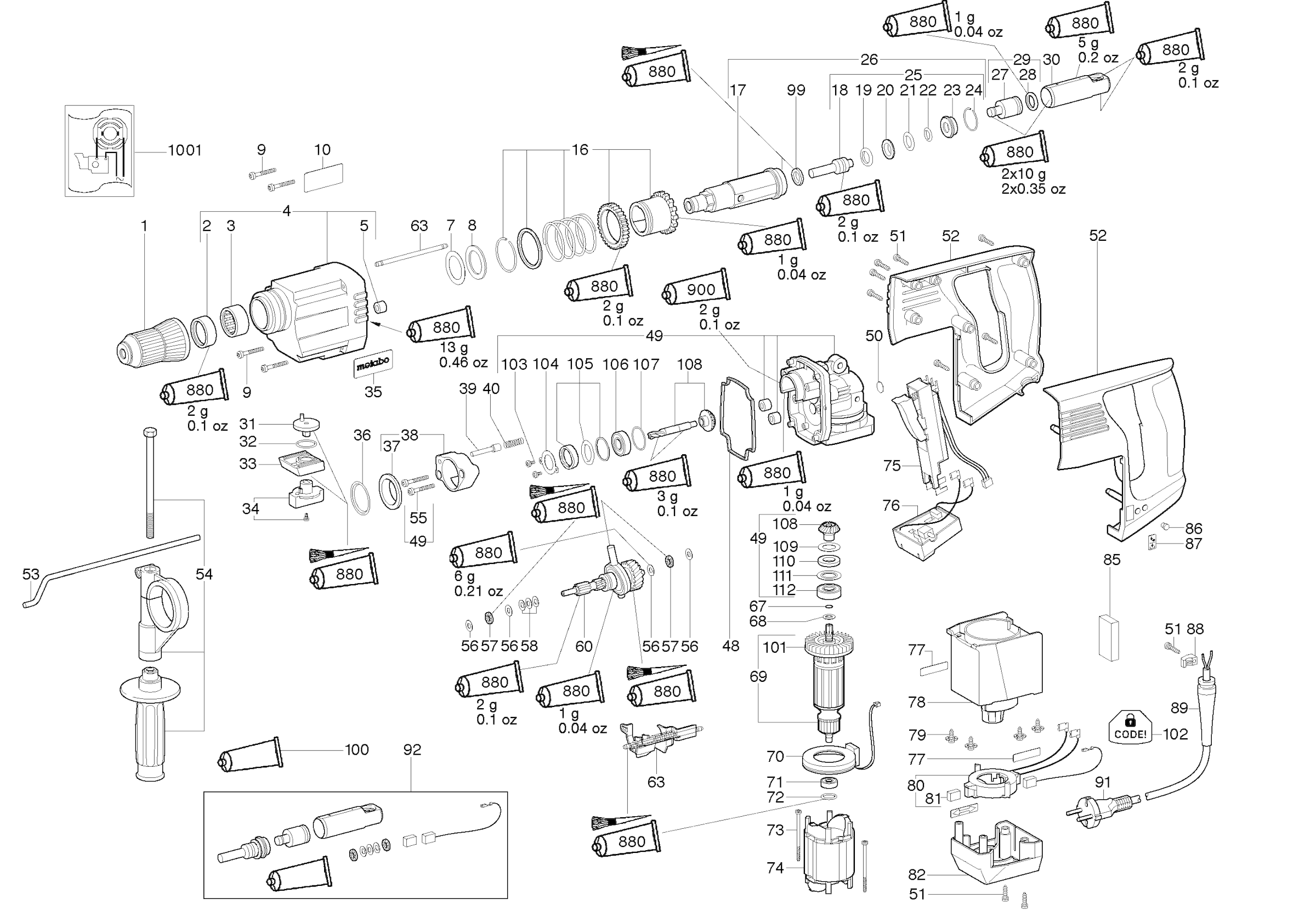

Technical drawing of model Metabo 00332001 (KHE32)
Spare parts list of model Metabo 00332001 (KHE32)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 316030980 | |||
| Oil seal | ||||
| 2 | 143194780 | 7.22 | 8.74 | |
| Naaldlager | ||||
| 3 | 143114690 | 5.18 | 6.27 | |
| No information available, not orderable | ||||
| 4 | 316031680 | |||
| Naaldlager | ||||
| 5 | 143111430 | 5.18 | 6.27 | |
| No information available, not orderable | ||||
| 7 | 141155770 | |||
| Steunschijf | ||||
| 8 | 141155590 | 1.56 | 1.89 | |
| Fillister head screw | ||||
| 9 | 141111430 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 10 | 338045300 | |||
| No information available, not orderable | ||||
| 16 | 316036750 | |||
| No information available, not orderable | ||||
| 17 | 341057080 | |||
| No information available, not orderable | ||||
| 18 | 316031620 | |||
| O-ring | ||||
| 19 | 143194790 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 20 | 341012640 | |||
| O-ring | ||||
| 21 | 143193910 | 1.68 | 2.03 | |
| O-ring | ||||
| 22 | 143193920 | 5.87 | 7.10 | |
| Catching sleeve | ||||
| 23 | 341054190 | 5.18 | 6.27 | |
| Borgveer-ring | ||||
| 24 | 141181840 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 25 | 316031630 | |||
| No information available, not orderable | ||||
| 26 | 316036760 | |||
| No information available, not orderable | ||||
| 27 | 341056040 | |||
| Profile sealing ring | ||||
| 28 | 344096110 | 3.02 | 3.65 | |
| No information available, not orderable | ||||
| 29 | 316031700 | |||
| No information available, not orderable | ||||
| 30 | 341056050 | |||
| No information available, not orderable | ||||
| 31 | 343375620 | |||
| O-ring | ||||
| 32 | 143192260 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 33 | 343375770 | |||
| No information available, not orderable | ||||
| 34 | 316032550 | |||
| M-label 56x25 | ||||
| 35 | 338122370 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 36 | 339060330 | |||
| Bearing bushing | ||||
| 37 | 341060250 | 3.71 | 4.49 | |
| No information available, not orderable | ||||
| 38 | 316030930 | |||
| No information available, not orderable | ||||
| 39 | 341056030 | |||
| Pressure spring | ||||
| 40 | 342001770 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 48 | 344095730 | |||
| Bearing flange cpl. | ||||
| 49 | 316031650 | 242.14 | 292.99 | |
| Sealing felt | ||||
| 50 | 344070670 | 1.56 | 1.89 | |
| Self-tap fill h screw | ||||
| 51 | 141116020 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 52 | 343378860 | |||
| Dieptegeleider | ||||
| 53 | 341511630 | 4.51 | 5.46 | |
| Handgreep compl. | ||||
| 54 | 314001380 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 55 | 141119890 | |||
| Washer | ||||
| 56 | 339129610 | 1.56 | 1.89 | |
| Axiaal-naaldlager | ||||
| 57 | 143114280 | 5.87 | 7.10 | |
| Schotelveer | ||||
| 58 | 141154920 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 60 | 316031690 | |||
| Shift element | ||||
| 63 | 316030940 | 16.25 | 19.66 | |
| O-ring | ||||
| 67 | 143193650 | 1.56 | 1.89 | |
| Washer | ||||
| 68 | 141156000 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 69 | 310007930 | |||
| No information available, not orderable | ||||
| 70 | 343078040 | |||
| Kogellager 6x19x 6 | ||||
| 71 | 143115660 | 2.28 | 2.76 | |
| O-ring | ||||
| 72 | 143192430 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 73 | 141118260 | 1.56 | 1.89 | |
| Field | ||||
| 74 | 311009810 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 75 | 343406980 | |||
| No information available, not orderable | ||||
| 76 | 343078800 | |||
| Aanduidingsplaatje | ||||
| 77 | 338115410 | 1.56 | 1.89 | |
| Motor housing | ||||
| 78 | 343375560 | 24.23 | 29.32 | |
| Fillister head screw | ||||
| 79 | 141122790 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 80 | 316030970 | |||
| Carbon brush set 230V | ||||
| 81 | 316032520 | 26.95 | 32.61 | |
| No information available, not orderable | ||||
| 82 | 343375580 | |||
| Inleg licht ontvlambaar | ||||
| 85 | 344103000 | 1.56 | 1.89 | |
| Light transmission | ||||
| 86 | 343370050 | 1.56 | 1.89 | |
| Indication lable | ||||
| 87 | 338115570 | 1.68 | 2.03 | |
| Cable clip | ||||
| 88 | 343362490 | 1.68 | 2.03 | |
| Kabeldoorvoer | ||||
| 89 | 344100970 | 1.68 | 2.03 | |
| Cable with CEE plug | ||||
| 91 | 344486730 | 18.80 | 22.75 | |
| No information available, not orderable | ||||
| 92 | 316032720 | |||
| No information available, not orderable | ||||
| 99 | 341012650 | |||
| Grease Tube Kajo-Bio GE2 | ||||
| 100 | 344131000 | 8.89 | 10.76 | |
| Waaier m. stofbescherming | ||||
| 101 | 316035740 | 11.74 | 14.21 | |
| Aanduidingsplaatje | ||||
| 102 | 338117880 | 1.68 | 2.03 | |
| Bolcilinderkop draadvorm | ||||
| 103 | 141119570 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 104 | 339131220 | |||
| No information available, not orderable | ||||
| 105 | 316033110 | |||
| Kogellager 12x28x 8 | ||||
| 106 | 143114500 | 8.89 | 10.76 | |
| No information available, not orderable | ||||
| 107 | 141155730 | |||
| No information available, not orderable | ||||
| 108 | 316036220 | |||
| Washer | ||||
| 109 | 141153220 | 1.56 | 1.89 | |
| Felt ring | ||||
| 110 | 143194710 | 1.56 | 1.89 | |
| Washer | ||||
| 111 | 339011340 | 1.56 | 1.89 | |
| Kogellager 12x28x 8 | ||||
| 112 | 143114800 | 12.23 | 14.80 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 18.80 | 22.75 | |
| Grease tube 50 gr. 1,8oz | ||||
| 900 | 344130970 | 11.74 | 14.21 | |
| No information available, not orderable | ||||
| 1001 | 338504120 | |||
