Here you will find all available parts and drawings of the 'Metabo 00332000 ( KHE32 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

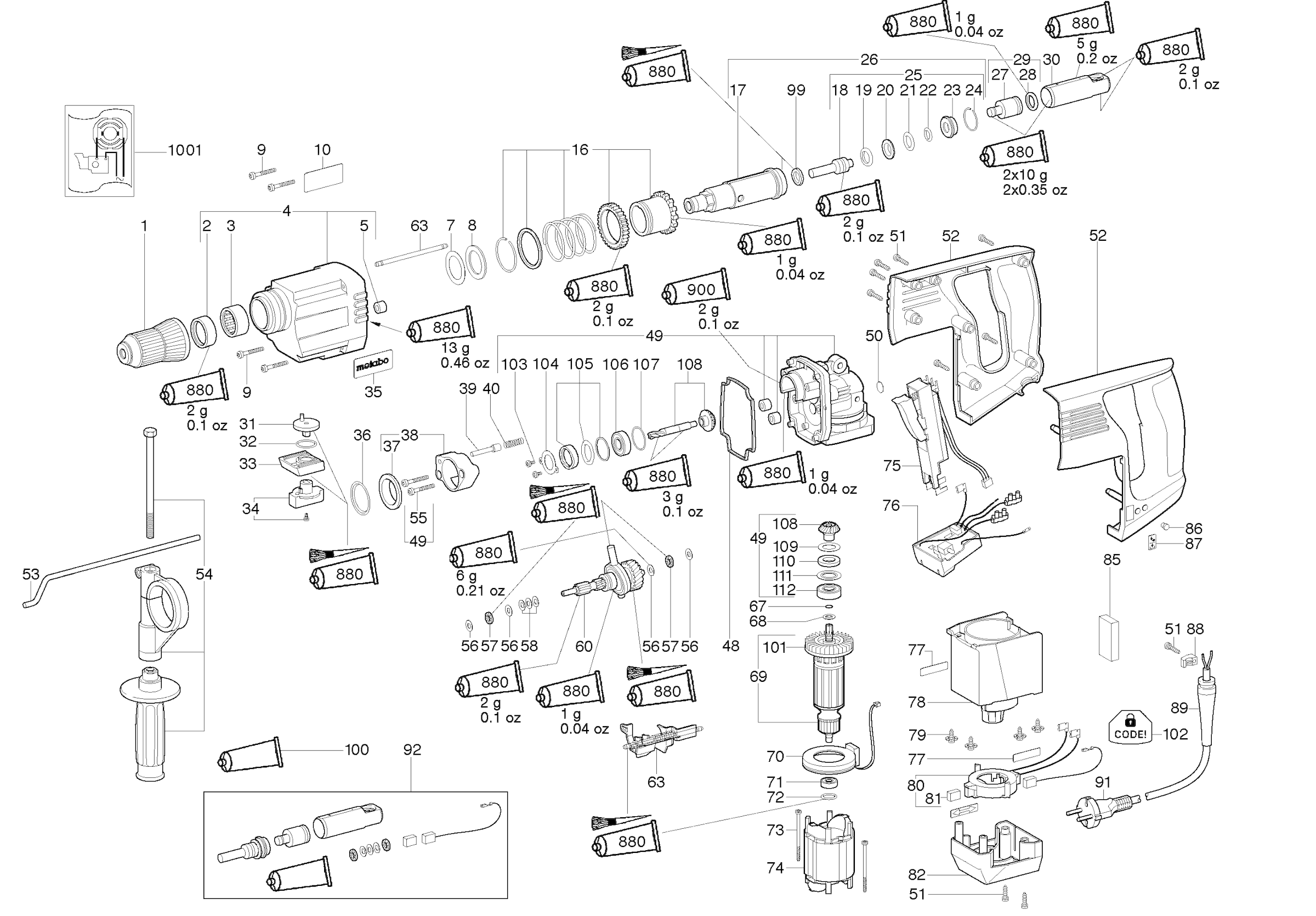

Technical drawing of model Metabo 00332000 ( KHE32 )

Spare parts list of model Metabo 00332000 ( KHE32 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
1 316030980
Oil seal
2 143194780 7.22 8.74
Naaldlager
3 143114690 5.18 6.27
No information available, not orderable
4 316031680
Naaldlager
5 143111430 5.18 6.27
No information available, not orderable
7 141155770
Steunschijf
8 141155590 1.55 1.88
Fillister head screw
9 141111430 1.67 2.02
No information available, not orderable
10 338045300
No information available, not orderable
16 316033240
No information available, not orderable
17 341056060
No information available, not orderable
18 316031620
O-ring
19 143194790 1.55 1.88
No information available, not orderable
20 341012640
O-ring
21 143193910 1.67 2.02
O-ring
22 143193920 5.87 7.10
Catching sleeve
23 341054190 5.18 6.27
Borgveer-ring
24 141181840 1.55 1.88
No information available, not orderable
25 316031630
No information available, not orderable
26 316031640
No information available, not orderable
27 341056040
Profile sealing ring
28 344096110 3.02 3.65
No information available, not orderable
29 316031700
No information available, not orderable
30 341056050
No information available, not orderable
31 343375620
O-ring
32 143192260 1.67 2.02
No information available, not orderable
33 343375770
No information available, not orderable
34 316032550
M-label 56x25
35 338122370 1.67 2.02
No information available, not orderable
36 339060330
Bearing bushing
37 341060250 3.71 4.49
No information available, not orderable
38 316030930
No information available, not orderable
39 341056030
Pressure spring
40 342001770 1.55 1.88
No information available, not orderable
48 344095730
Bearing flange cpl.
49 316031650 242.14 292.99
Sealing felt
50 344070670 1.55 1.88
Self-tap fill h screw
51 141116020 1.67 2.02
No information available, not orderable
52 343378860
Dieptegeleider
53 341511630 4.51 5.46
Handgreep compl.
54 314001380 18.80 22.75
No information available, not orderable
55 141119890
Washer
56 339129610 1.55 1.88
Axiaal-naaldlager
57 143114280 5.87 7.10
Schotelveer
58 141154920 1.67 2.02
No information available, not orderable
60 316031690
Shift element
63 316030940 16.25 19.66
O-ring
67 143193650 1.55 1.88
Washer
68 141156000 1.55 1.88
No information available, not orderable
69 310007930
No information available, not orderable
70 343078040
Kogellager 6x19x 6
71 143115660 2.28 2.76
O-ring
72 143192430 1.67 2.02
Self-tap. fill. h. screw
73 141118260 1.55 1.88
Field
74 311009810 18.80 22.75
No information available, not orderable
75 343406980
No information available, not orderable
76 343078800
Aanduidingsplaatje
77 338115410 1.55 1.88
Motor housing
78 343375560 24.23 29.32
Fillister head screw
79 141122790 1.55 1.88
No information available, not orderable
80 316030970
Carbon brush set 230V
81 316032520 26.95 32.61
No information available, not orderable
82 343375580
Inleg licht ontvlambaar
85 344103000 1.55 1.88
Light transmission
86 343370050 1.55 1.88
Indication lable
87 338115570 1.67 2.02
Cable clip
88 343362490 1.67 2.02
Kabeldoorvoer
89 344100970 1.67 2.02
Cable with CEE plug
91 344486730 18.80 22.75
No information available, not orderable
92 316032720
No information available, not orderable
99 341012650
Grease Tube Kajo-Bio GE2
100 344131000 8.89 10.76
Waaier m. stofbescherming
101 316035740 11.74 14.21
Aanduidingsplaatje
102 338117880 1.67 2.02
Bolcilinderkop draadvorm
103 141119570 1.55 1.88
No information available, not orderable
104 339131220
No information available, not orderable
105 316033110
Kogellager 12x28x 8
106 143114500 8.89 10.76
No information available, not orderable
107 141155730
No information available, not orderable
108 316036220
Washer
109 141153220 1.55 1.88
Felt ring
110 143194710 1.55 1.88
Washer
111 339011340 1.55 1.88
Kogellager 12x28x 8
112 143114800 12.23 14.80
Tube of grease 50 gr. SF 126
880 344130800 18.80 22.75
Grease tube 50 gr. 1,8oz
900 344130970 11.74 14.21
No information available, not orderable
1001 338504120
