Here you will find all available parts and drawings of the 'Metabo 00364000 (KHE28PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

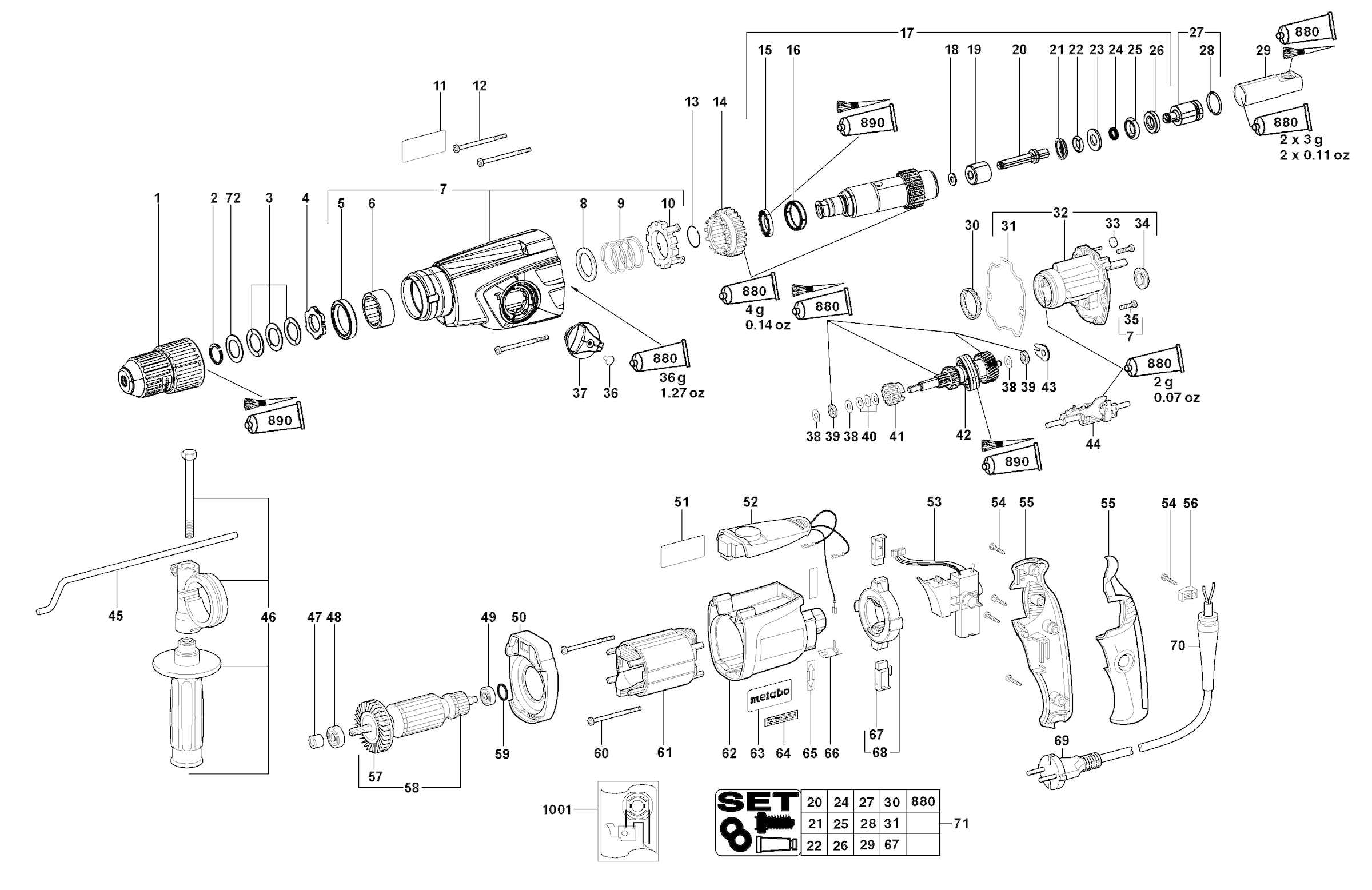

Technical drawing of model Metabo 00364000 (KHE28PLUS)
Spare parts list of model Metabo 00364000 (KHE28PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 316042850 | |||
| Circlip | ||||
| 2 | 141156380 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 3 | 342070590 | |||
| No longer available, no replacement | ||||
| 4 | 341070620 | |||
| Gegolfde dichtring | ||||
| 5 | 143195160 | 8.89 | 10.76 | |
| Needle sleeve, 30x37x16 | ||||
| 6 | 143115090 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 7 | 316042870 | |||
| Washer | ||||
| 8 | 339007150 | 1.68 | 2.03 | |
| Pressure spring, 34.7x38.3x1.8x27.7 | ||||
| 9 | 342003490 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 10 | 343394470 | |||
| No information available, not orderable | ||||
| 11 | 338121400 | |||
| Self-tap. fill. h. screw | ||||
| 12 | 141122490 | 1.68 | 2.03 | |
| Circlip | ||||
| 13 | 141156360 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 14 | 316042770 | |||
| Ratched wheel | ||||
| 15 | 341071480 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 16 | 343395250 | |||
| No information available, not orderable | ||||
| 17 | 316043310 | |||
| Gegolfde dichtring | ||||
| 18 | 143195200 | 2.28 | 2.76 | |
| Bushing | ||||
| 19 | 341005810 | 12.23 | 14.80 | |
| Piston | ||||
| 20 | 341059030 | 11.74 | 14.21 | |
| Support ring | ||||
| 21 | 341012980 | 3.71 | 4.49 | |
| O-ring | ||||
| 22 | 143195150 | 1.68 | 2.03 | |
| Washer | ||||
| 23 | 339007190 | 1.56 | 1.89 | |
| O-ring | ||||
| 24 | 143195210 | 1.56 | 1.89 | |
| Vangerhuls | ||||
| 25 | 341058950 | 3.71 | 4.49 | |
| Borgveer-ring | ||||
| 26 | 141181840 | 1.56 | 1.89 | |
| Plunjer compl. | ||||
| 27 | 316043350 | 21.64 | 26.18 | |
| Profile-plunger-ring | ||||
| 28 | 344093140 | 4.51 | 5.46 | |
| Bekrachtigingsbus compl. | ||||
| 29 | 341058680 | 21.64 | 26.18 | |
| Kogelhouder | ||||
| 30 | 320050480 | 3.02 | 3.65 | |
| Profile seal | ||||
| 31 | 344095570 | 1.68 | 2.03 | |
| Gear flange cpl. | ||||
| 32 | 316030540 | 48.48 | 58.66 | |
| Sealing felt | ||||
| 33 | 344070670 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 34 | 344095920 | 1.56 | 1.89 | |
| Ball cylinder head Thread Form | ||||
| 35 | 141119440 | 1.56 | 1.89 | |
| Seal | ||||
| 36 | 343376750 | 1.68 | 2.03 | |
| No information available, not orderable | ||||
| 37 | 316042710 | |||
| Washer | ||||
| 38 | 339129610 | 1.56 | 1.89 | |
| Axiaal-naaldlager | ||||
| 39 | 143114280 | 5.87 | 7.10 | |
| Schotelveer | ||||
| 40 | 141154920 | 1.68 | 2.03 | |
| Coupling sleeve | ||||
| 41 | 340003230 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 42 | 316043240 | |||
| Aanloopplaat | ||||
| 43 | 339130980 | 1.56 | 1.89 | |
| No longer available, no replacement | ||||
| 44 | 316029560 | |||
| Dieptegeleider | ||||
| 45 | 341511630 | 4.51 | 5.46 | |
| Support handle compl. | ||||
| 46 | 314001110 | 13.48 | 16.31 | |
| Afdichtring | ||||
| 47 | 343376040 | 1.68 | 2.03 | |
| Ball bearing 8x22x 7 | ||||
| 48 | 143114880 | 3.02 | 3.65 | |
| Ball bearing 6x19x 6 | ||||
| 49 | 143114750 | 3.02 | 3.65 | |
| Tussenflens | ||||
| 50 | 343374270 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 51 | 338050720 | |||
| No information available, not orderable | ||||
| 52 | 343081490 | |||
| Potentiometer switch | ||||
| 53 | 343406880 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 54 | 141117060 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 55 | 343393030 | |||
| Cable clip | ||||
| 56 | 343362490 | 1.68 | 2.03 | |
| Waaier m. stofbescherming | ||||
| 57 | 316035740 | 11.74 | 14.21 | |
| Anker 230 V | ||||
| 58 | 310007880 | 80.81 | 97.78 | |
| O-ring | ||||
| 59 | 143192430 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 60 | 141118260 | 1.56 | 1.89 | |
| Field | ||||
| 61 | 311009810 | 18.80 | 22.75 | |
| Motor housing | ||||
| 62 | 315012650 | 13.48 | 16.31 | |
| No information available, not orderable | ||||
| 63 | 338121600 | |||
| No information available, not orderable | ||||
| 64 | 399999990 | |||
| Aanduidingsplaatje | ||||
| 65 | 338115410 | 1.56 | 1.89 | |
| Carbon Brush Contact | ||||
| 66 | 339129390 | 3.02 | 3.65 | |
| No longer available, no replacement | ||||
| 67 | 316043740 | |||
| No longer available, no replacement | ||||
| 68 | 316043610 | |||
| Cable with CEE plug | ||||
| 69 | 344486730 | 18.80 | 22.75 | |
| Kabelbescherming | ||||
| 70 | 344101140 | 2.28 | 2.76 | |
| No information available, not orderable | ||||
| 71 | 316043670 | |||
| Support ring | ||||
| 72 | 341013060 | 4.51 | 5.46 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 18.80 | 22.75 | |
| Tube of grease, 50g Klueber Microlube GL 261 | ||||
| 890 | 344131210 | 24.23 | 29.32 | |
| No information available, not orderable | ||||
| 1001 | 338502410 | |||
