Here you will find all available parts and drawings of the 'Metabo 00247000 (KHE26DIAGNOSTIC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

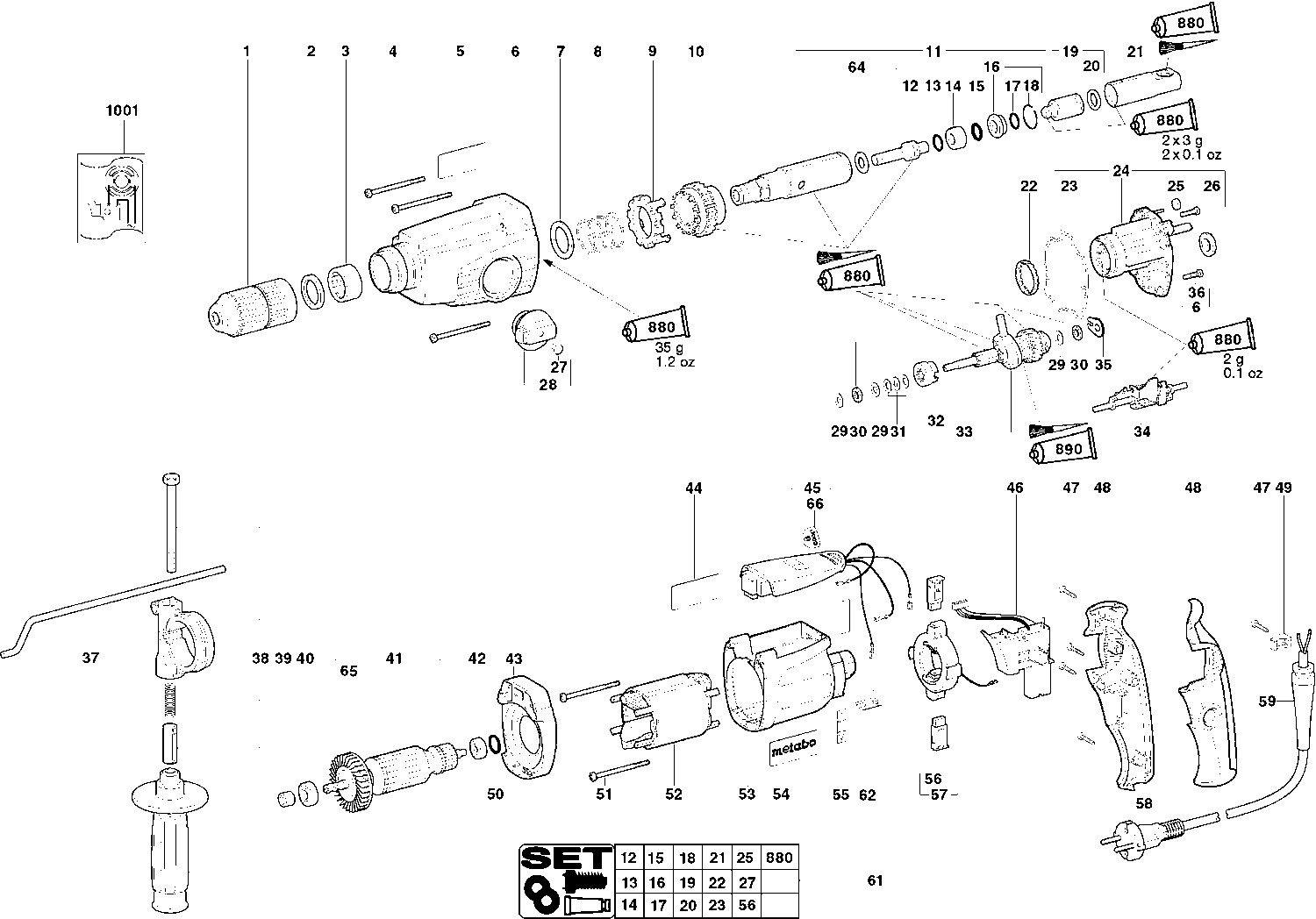

Technical drawing of model Metabo 00247000 (KHE26DIAGNOSTIC)
Spare parts list of model Metabo 00247000 (KHE26DIAGNOSTIC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 316029590 | |||
| No longer available, no replacement | ||||
| 2 | 143194910 | |||
| Needle sleeve | ||||
| 3 | 143113830 | 18.80 | 22.75 | |
| Self-tap. fill. h. screw | ||||
| 4 | 141122490 | 1.68 | 2.03 | |
| Indication label | ||||
| 5 | 338114490 | 1.68 | 2.03 | |
| Gear housing cpl. | ||||
| 6 | 316031850 | 67.33 | 81.47 | |
| Support Disk | ||||
| 7 | 141153750 | 1.68 | 2.03 | |
| Pressure spring | ||||
| 8 | 342002690 | 4.51 | 5.46 | |
| Retaining ring | ||||
| 9 | 343374440 | 1.56 | 1.89 | |
| Sliding sleeve complete | ||||
| 10 | 316031500 | 21.64 | 26.18 | |
| Drill driving sleeve cpl. | ||||
| 11 | 316032230 | 80.81 | 97.78 | |
| Intermediate striker complete | ||||
| 12 | 316031910 | 16.25 | 19.66 | |
| O-ring | ||||
| 13 | 143192400 | 1.68 | 2.03 | |
| Supporting ring | ||||
| 14 | 341012550 | 3.02 | 3.65 | |
| O-ring | ||||
| 15 | 143193910 | 1.68 | 2.03 | |
| Catching sleeve cpl. | ||||
| 16 | 316032200 | 24.23 | 29.32 | |
| O-ring | ||||
| 17 | 143193920 | 5.87 | 7.10 | |
| Borgveer-ring | ||||
| 18 | 141181840 | 1.56 | 1.89 | |
| Complete Plunger | ||||
| 19 | 316017660 | 32.27 | 39.05 | |
| Profile-plunger-ring | ||||
| 20 | 344093140 | 4.51 | 5.46 | |
| Exciter sleeve | ||||
| 21 | 341056150 | 24.23 | 29.32 | |
| Kogelhouder | ||||
| 22 | 320050480 | 3.02 | 3.65 | |
| Profile seal | ||||
| 23 | 344095570 | 1.68 | 2.03 | |
| Gear flange cpl. | ||||
| 24 | 316030540 | 48.48 | 58.66 | |
| Sealing felt | ||||
| 25 | 344070670 | 1.56 | 1.89 | |
| Rubber buffer | ||||
| 26 | 344095920 | 1.56 | 1.89 | |
| Seal | ||||
| 27 | 343376750 | 1.68 | 2.03 | |
| Control knob cpl. | ||||
| 28 | 316032640 | 8.89 | 10.76 | |
| Washer | ||||
| 29 | 339129610 | 1.56 | 1.89 | |
| Axiaal-naaldlager | ||||
| 30 | 143114280 | 5.87 | 7.10 | |
| Schotelveer | ||||
| 31 | 141154920 | 1.68 | 2.03 | |
| Coupling sleeve | ||||
| 32 | 340003220 | 7.22 | 8.74 | |
| Intermediate gear cpl. | ||||
| 33 | 316031610 | 100.74 | 121.90 | |
| Switch element cpl.w. rot. Stop | ||||
| 34 | 316031370 | 11.74 | 14.21 | |
| Aanloopplaat | ||||
| 35 | 339130980 | 1.56 | 1.89 | |
| Ball cylinder head Thread Form | ||||
| 36 | 141119440 | 1.56 | 1.89 | |
| Dieptegeleider | ||||
| 37 | 341511630 | 4.51 | 5.46 | |
| Support handle compl. | ||||
| 38 | 314000770 | 24.23 | 29.32 | |
| Afdichtring | ||||
| 39 | 343376040 | 1.68 | 2.03 | |
| Ball bearing 8x22x 7 | ||||
| 40 | 143114880 | 3.02 | 3.65 | |
| Anker 230 V | ||||
| 41 | 310007880 | 80.81 | 97.78 | |
| Ball bearing 6x19x 6 | ||||
| 42 | 143114750 | 3.02 | 3.65 | |
| Tussenflens | ||||
| 43 | 343374270 | 5.87 | 7.10 | |
| No information available, not orderable | ||||
| 44 | 338044790 | |||
| No information available, not orderable | ||||
| 45 | 343078880 | |||
| Potentiometer switch | ||||
| 46 | 343406880 | 24.23 | 29.32 | |
| Self-tap. fill. h. screw | ||||
| 47 | 141117060 | 1.68 | 2.03 | |
| No longer available, no replacement | ||||
| 48 | 343393030 | |||
| Cable clip | ||||
| 49 | 343362490 | 1.68 | 2.03 | |
| O-ring | ||||
| 50 | 143192430 | 1.68 | 2.03 | |
| Self-tap. fill. h. screw | ||||
| 51 | 141118260 | 1.56 | 1.89 | |
| Field | ||||
| 52 | 311009810 | 18.80 | 22.75 | |
| Motor housing | ||||
| 53 | 315012650 | 13.48 | 16.31 | |
| No longer available, no replacement | ||||
| 54 | 338122160 | |||
| Aanduidingsplaatje | ||||
| 55 | 338115410 | 1.56 | 1.89 | |
| Koolborstel set 230 V | ||||
| 56 | 316034960 | 13.48 | 16.31 | |
| Carbon Brush Holder Module R+L | ||||
| 57 | 316028790 | 26.95 | 32.61 | |
| Cable with CEE plug | ||||
| 58 | 344486730 | 18.80 | 22.75 | |
| Kabelbescherming | ||||
| 59 | 344101140 | 2.28 | 2.76 | |
| Maintenance kit | ||||
| 61 | 316032690 | 128.32 | 155.27 | |
| Carbon Brush Contact | ||||
| 62 | 339129390 | 3.02 | 3.65 | |
| Ring | ||||
| 64 | 341012630 | 1.68 | 2.03 | |
| Waaier m. stofbescherming | ||||
| 65 | 316035740 | 11.74 | 14.21 | |
| Aanduidingsplaatje | ||||
| 66 | 338117880 | 1.68 | 2.03 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 18.80 | 22.75 | |
| Grease Tube 50 gr. SF 011 1,8oz | ||||
| 890 | 344130560 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 1001 | 338502410 | |||
