Here you will find all available parts and drawings of the 'Metabo 00210000 (KHA18LTX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

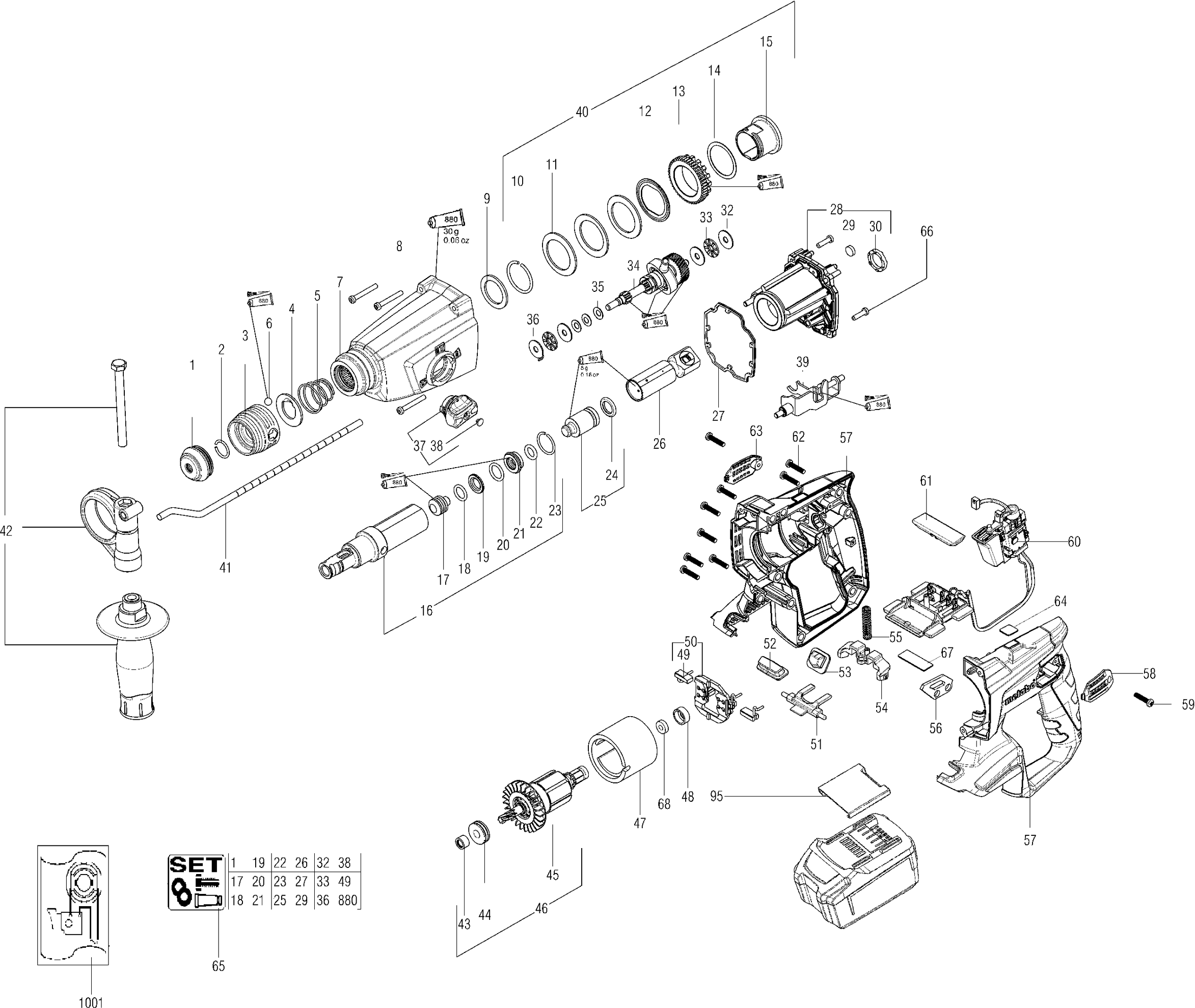

Technical drawing of model Metabo 00210000 (KHA18LTX)
Spare parts list of model Metabo 00210000 (KHA18LTX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Rubberen kap | ||||
| 1 | 344099390 | 1.67 | 2.02 | |
| Circlip | ||||
| 2 | 342022340 | 1.67 | 2.02 | |
| Verstelring | ||||
| 3 | 343432920 | 4.78 | 5.78 | |
| Washer | ||||
| 4 | 339007650 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 5 | 342003890 | 1.67 | 2.02 | |
| Ball | ||||
| 6 | 143115330 | 1.67 | 2.02 | |
| Tandwielhuis compl. | ||||
| 7 | 316052950 | 27.16 | 32.86 | |
| Screw | ||||
| 8 | 341704810 | 1.67 | 2.02 | |
| Steunschijf | ||||
| 9 | 341013210 | 1.67 | 2.02 | |
| Circlip | ||||
| 10 | 141181290 | 1.67 | 2.02 | |
| Schotelveer | ||||
| 11 | 342070340 | 3.20 | 3.87 | |
| Friction Disc | ||||
| 12 | 339004870 | 1.79 | 2.17 | |
| Spur gear | ||||
| 13 | 340004090 | 7.58 | 9.17 | |
| Friction disc | ||||
| 14 | 339006380 | 1.67 | 2.02 | |
| Koppelingshuls | ||||
| 15 | 341059230 | 18.28 | 22.12 | |
| Boorhuls compl. | ||||
| 16 | 316053030 | 57.79 | 69.93 | |
| Piston | ||||
| 17 | 341210610 | 5.49 | 6.64 | |
| O-ring, 11.9X2.62 | ||||
| 18 | 341161560 | 1.67 | 2.02 | |
| Dempingsring | ||||
| 19 | 341210600 | 2.43 | 2.94 | |
| O-ring | ||||
| 20 | 143194640 | 1.79 | 2.17 | |
| Vangerhuls | ||||
| 21 | 341059310 | 4.78 | 5.78 | |
| O-ring | ||||
| 22 | 143193920 | 6.05 | 7.32 | |
| Borgveer-ring | ||||
| 23 | 141181840 | 1.67 | 2.02 | |
| Profile-plunger-ring | ||||
| 24 | 344093140 | 4.78 | 5.78 | |
| Plunjer compl. | ||||
| 25 | 316048010 | 13.93 | 16.86 | |
| Bekrachtigingshuls compl. | ||||
| 26 | 341210800 | 12.19 | 14.75 | |
| sealing ring | ||||
| 27 | 342022350 | 1.67 | 2.02 | |
| Tandwielflens compl. | ||||
| 28 | 316053040 | 35.72 | 43.22 | |
| Sealing felt | ||||
| 29 | 344070670 | 1.67 | 2.02 | |
| Rubber buffer | ||||
| 30 | 344095920 | 1.67 | 2.02 | |
| Axial washer | ||||
| 32 | 143115300 | 1.67 | 2.02 | |
| Axiaal-naaldtaatskooi | ||||
| 33 | 143115500 | 3.20 | 3.87 | |
| Overbrengingsas compl. | ||||
| 34 | 316061080 | 77.08 | 93.27 | |
| Schotelveer | ||||
| 35 | 141154920 | 1.79 | 2.17 | |
| Washer | ||||
| 36 | 339007680 | 1.67 | 2.02 | |
| Schakelknop compl. | ||||
| 37 | 316052990 | 4.78 | 5.78 | |
| Seal | ||||
| 38 | 343398340 | 1.67 | 2.02 | |
| Schakel-element compl. | ||||
| 39 | 316045610 | 7.58 | 9.17 | |
| Veiligheidskoppeling | ||||
| 40 | 316045700 | 35.72 | 43.22 | |
| Dieptegeleider | ||||
| 41 | 341511630 | 4.78 | 5.78 | |
| Handgreep compl. | ||||
| 42 | 314001140 | 13.93 | 16.86 | |
| Centrifugeerschijf | ||||
| 43 | 343398310 | 1.67 | 2.02 | |
| Kogellager, 8X 22X 7 | ||||
| 44 | 143115890 | 4.78 | 5.78 | |
| Armature | ||||
| 45 | 310011300 | 57.79 | 69.93 | |
| Anker compl. | ||||
| 46 | 316061090 | 83.19 | 100.66 | |
| Field package compl., 2 poles | ||||
| 47 | 311011880 | 57.79 | 69.93 | |
| Bus rubber | ||||
| 48 | 344098740 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 49 | 399999990 | |||
| Carbon brush holder compl., 18 V | ||||
| 50 | 316053210 | 13.93 | 16.86 | |
| Schakelschuif | ||||
| 51 | 343410570 | 1.67 | 2.02 | |
| Drukknop geel | ||||
| 52 | 343440140 | 1.67 | 2.02 | |
| LED cover | ||||
| 53 | 343083380 | 2.43 | 2.94 | |
| Druckplatte | ||||
| 54 | 343440150 | 1.67 | 2.02 | |
| Pressure spring | ||||
| 55 | 342001770 | 1.67 | 2.02 | |
| Hook | ||||
| 56 | 339147510 | 1.79 | 2.17 | |
| Motor Housing | ||||
| 57 | 343440130 | 24.26 | 29.35 | |
| Afdekking links | ||||
| 58 | 343440160 | 1.67 | 2.02 | |
| Screw, ST2,9x13 | ||||
| 59 | 341704710 | 1.67 | 2.02 | |
| Elektro.schakelaar | ||||
| 60 | 343084450 | 89.16 | 107.88 | |
| Switch slide, R+L | ||||
| 61 | 343410560 | 1.67 | 2.02 | |
| Self-tap fill h screw | ||||
| 62 | 141116020 | 1.79 | 2.17 | |
| Cover right | ||||
| 63 | 343440170 | 1.67 | 2.02 | |
| Identification plate | ||||
| 64 | 338129940 | 1.79 | 2.17 | |
| Onderhoudset | ||||
| 65 | 316061070 | 111.19 | 134.54 | |
| Self-tap fill h screw | ||||
| 66 | 141116020 | 1.79 | 2.17 | |
| Typeplaatje | ||||
| 67 | 338062590 | 1.67 | 2.02 | |
| Groove ball bearing, 5X 13X 4 | ||||
| 68 | 143116010 | 3.20 | 3.87 | |
| Cover cap | ||||
| 95 | 343439680 | 1.67 | 2.02 | |
| Tube of grease 50 gr. SF 126 | ||||
| 880 | 344130800 | 21.22 | 25.68 | |
| No information available, not orderable | ||||
| 1001 | 338505960 | |||
