Here you will find all available parts and drawings of the 'Metabo 12216000 (KGSV72XactSYM)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

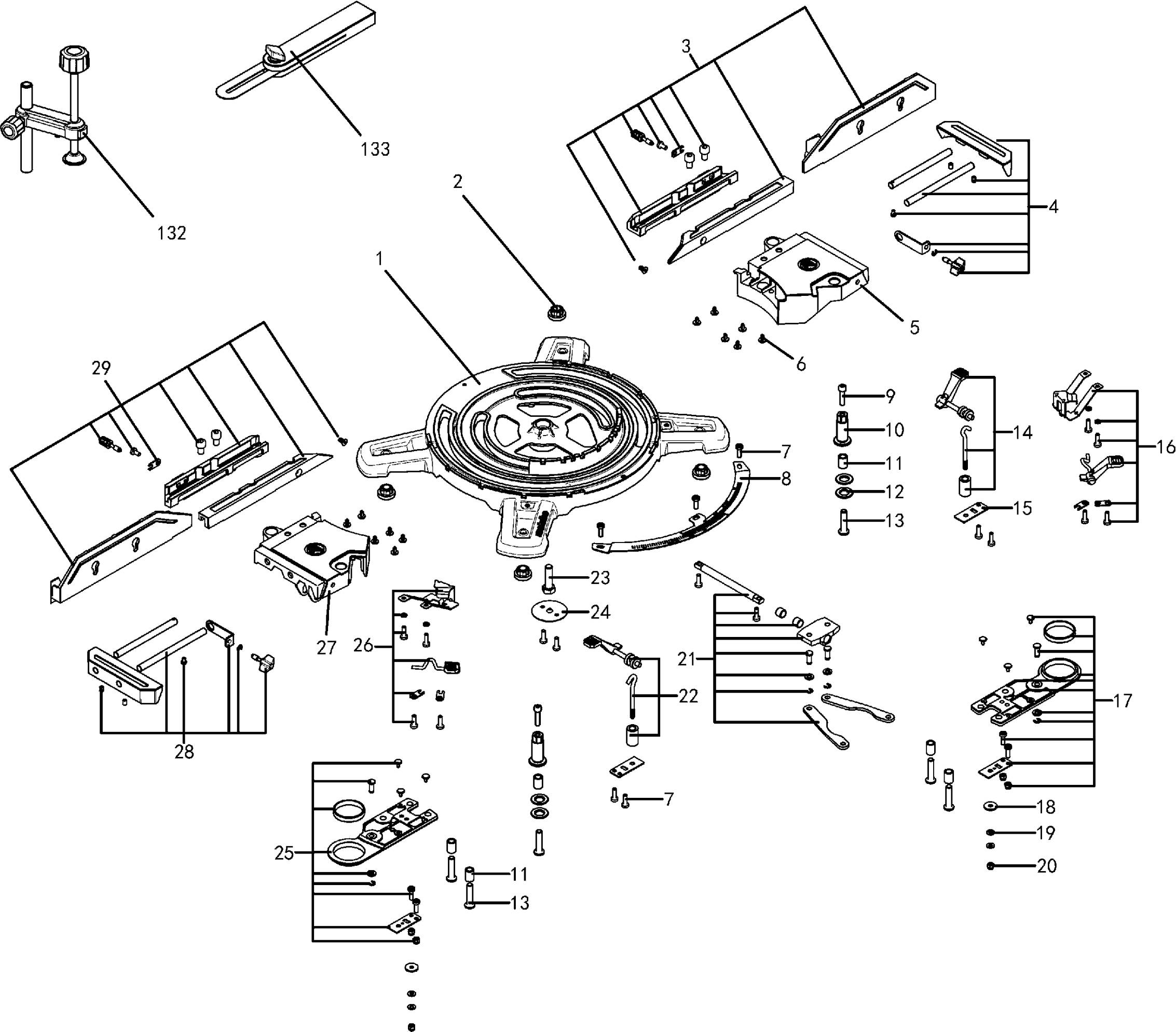

Technical drawing of model Metabo 12216000 (KGSV72XactSYM)
Spare parts list of model Metabo 12216000 (KGSV72XactSYM)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Base | ||||
| 1 | 315419350 | 117.12 | 141.72 | |
| Rubberen voet | ||||
| 2 | 343442110 | 1.67 | 2.02 | |
| No longer available, no replacement | ||||
| 3 | 316094350 | |||
| Complete table extension, right | ||||
| 4 | 316094360 | 35.72 | 43.22 | |
| Table with right insert | ||||
| 5 | 315419370 | 35.72 | 43.22 | |
| Table pad | ||||
| 6 | 343442550 | 1.67 | 2.02 | |
| Fill. head screw(DIN 7985) | ||||
| 7 | 141121640 | 1.67 | 2.02 | |
| Front Measuring Scale | ||||
| 8 | 339137430 | 10.82 | 13.09 | |
| Cilinderkopschroef | ||||
| 9 | 141113890 | 1.79 | 2.17 | |
| Geleidingshuls | ||||
| 10 | 341165970 | 9.36 | 11.33 | |
| Geleidingshuls | ||||
| 11 | 341165960 | 3.20 | 3.87 | |
| GLIJSCHIJF | ||||
| 12 | 343442560 | 1.67 | 2.02 | |
| Bolkopschroef | ||||
| 13 | 341705360 | 1.67 | 2.02 | |
| Vastzethendel compl. rechts | ||||
| 14 | 316094370 | 18.28 | 22.12 | |
| GUIDE CLAMP PLATE | ||||
| 15 | 339147900 | 1.67 | 2.02 | |
| Right locking button | ||||
| 16 | 316094380 | 15.31 | 18.53 | |
| Right table plate | ||||
| 17 | 316094390 | 52.36 | 63.36 | |
| Washer | ||||
| 18 | 339007860 | 1.67 | 2.02 | |
| Spannscheibe | ||||
| 19 | 141156750 | 1.67 | 2.02 | |
| Zeskantveiligheidsmoer | ||||
| 20 | 141132040 | 1.67 | 2.02 | |
| Complete sliding segment | ||||
| 21 | 316094400 | 35.72 | 43.22 | |
| Vastzethendel compl. links | ||||
| 22 | 316094420 | 18.28 | 22.12 | |
| Hexagonal Screw M 10x40 Galvanized | ||||
| 23 | 141124590 | 1.67 | 2.02 | |
| Base Bottom Washer | ||||
| 24 | 337002290 | 1.67 | 2.02 | |
| Complete left table plate | ||||
| 25 | 316094440 | 52.36 | 63.36 | |
| Left locking button | ||||
| 26 | 316094430 | 15.31 | 18.53 | |
| Table with left insert | ||||
| 27 | 315419360 | 35.72 | 43.22 | |
| Complete left table extension | ||||
| 28 | 316094410 | 35.72 | 43.22 | |
| Complete left guide | ||||
| 29 | 316094450 | 94.99 | 114.94 | |
| Complete swivel table clamp unit | ||||
| 30 | 316094480 | 52.36 | 63.36 | |
| Spanhendel | ||||
| 31 | 343442180 | 13.93 | 16.86 | |
| Bevel Cover | ||||
| 32 | 343442310 | 9.36 | 11.33 | |
| Handgreep cpl. | ||||
| 33 | 316094490 | 21.22 | 25.68 | |
| Complete Support Piece | ||||
| 34 | 316094530 | 94.99 | 114.94 | |
| Zeskantveiligheidsmoer | ||||
| 35 | 141132060 | 2.43 | 2.94 | |
| Spring washer | ||||
| 36 | 341162160 | 1.67 | 2.02 | |
| Washer | ||||
| 37 | 141156740 | 1.67 | 2.02 | |
| Spanhendel compl. | ||||
| 38 | 316094540 | 13.93 | 16.86 | |
| allen key | ||||
| 40 | 344199210 | 1.67 | 2.02 | |
| Lenskopschroef | ||||
| 41 | 341705340 | 1.67 | 2.02 | |
| KABELHOUDER | ||||
| 42 | 343442350 | 1.67 | 2.02 | |
| Complete Indicator | ||||
| 43 | 316094520 | 9.36 | 11.33 | |
| Full Tilt Stop | ||||
| 44 | 316094510 | 21.22 | 25.68 | |
| Bevel Washer Plate | ||||
| 45 | 339147960 | 2.43 | 2.94 | |
| Drehtisch vollst. | ||||
| 46 | 316094460 | 155.07 | 187.63 | |
| Spanhendel compl. | ||||
| 47 | 316094470 | 10.82 | 13.09 | |
| Zeskante moer | ||||
| 48 | 141130100 | 1.67 | 2.02 | |
| STIFTTAP M.MORSEKONUS VERZ. | ||||
| 49 | 141124610 | 1.67 | 2.02 | |
| Pointer | ||||
| 50 | 339137440 | 1.79 | 2.17 | |
| Voet Ergänzung fehlt in dieser Sprache | ||||
| 51 | 343443260 | 1.79 | 2.17 | |
| Scale Plate | ||||
| 52 | 339137280 | 5.49 | 6.64 | |
| Turning Table Cover | ||||
| 53 | 343442280 | 4.78 | 5.78 | |
| Platkopbout | ||||
| 54 | 341722850 | 1.67 | 2.02 | |
| Plain Washer | ||||
| 55 | 339007880 | 1.67 | 2.02 | |
| Schotelveer | ||||
| 56 | 141153300 | 1.67 | 2.02 | |
| Lock washer | ||||
| 56 | 141150390 | 1.67 | 2.02 | |
| Zeskantveiligheidsmoer | ||||
| 57 | 141132050 | 1.67 | 2.02 | |
| Washer | ||||
| 59 | 141151940 | 1.67 | 2.02 | |
| Long handle | ||||
| 60 | 343442330 | 1.79 | 2.17 | |
| Short lever | ||||
| 61 | 343442340 | 1.67 | 2.02 | |
| Bevel bracket comp. | ||||
| 62 | 316094500 | 111.19 | 134.54 | |
| Complete Slide Piece | ||||
| 63 | 316094550 | 100.68 | 121.82 | |
| Schaalverdeling plaat | ||||
| 65 | 339137290 | 2.43 | 2.94 | |
| Dieptegeleider compl. | ||||
| 66 | 316094580 | 9.36 | 11.33 | |
| Lever compl | ||||
| 67 | 316094570 | 35.72 | 43.22 | |
| Complete Transport Lock | ||||
| 68 | 316094560 | 9.36 | 11.33 | |
| Fillister head screw | ||||
| 69 | 141124660 | 1.67 | 2.02 | |
| Cable clip | ||||
| 70 | 343362490 | 1.79 | 2.17 | |
| Spanhendel | ||||
| 71 | 343442190 | 2.43 | 2.94 | |
| Upper Guard Shaft | ||||
| 72 | 341570940 | 1.79 | 2.17 | |
| Big Torque Spring | ||||
| 73 | 342024080 | 9.36 | 11.33 | |
| Spring Bushing | ||||
| 74 | 339148010 | 1.67 | 2.02 | |
| Motor End Cap | ||||
| 75 | 343442530 | 5.49 | 6.64 | |
| Koolborstel compl. | ||||
| 76 | 316094600 | 12.19 | 14.75 | |
| Typeplaatje | ||||
| 77 | 338065330 | 1.67 | 2.02 | |
| Kogellager 8x22x 7 | ||||
| 78 | 143115800 | 2.43 | 2.94 | |
| Anker compl. | ||||
| 79 | 310012190 | 64.44 | 77.97 | |
| Complete armature | ||||
| 79 | 310011850 | 57.79 | 69.93 | |
| Kogellager | ||||
| 80 | 143115860 | 3.20 | 3.87 | |
| Luchtgeleiderschijf | ||||
| 81 | 343442540 | 1.67 | 2.02 | |
| Motor compl. | ||||
| 82 | 316094590 | 145.97 | 176.62 | |
| Extraction Tube | ||||
| 83 | 343438930 | 3.89 | 4.71 | |
| Afzuigverbindingsstuk compl. | ||||
| 84 | 316094710 | 18.28 | 22.12 | |
| Pendelbeschermkap compl. | ||||
| 85 | 316094690 | 35.72 | 43.22 | |
| Rubber element | ||||
| 86 | 344113310 | 3.20 | 3.87 | |
| Beschermkap compl. | ||||
| 87 | 316065070 | 126.62 | 153.21 | |
| GUARD UPPER | ||||
| 87 | 315419510 | 111.19 | 134.54 | |
| Looprol cpl. | ||||
| 88 | 316094620 | 7.58 | 9.17 | |
| Output shaft compl. | ||||
| 89 | 316094640 | 27.16 | 32.86 | |
| Dieptegeleider compl. | ||||
| 90 | 316094610 | 13.93 | 16.86 | |
| Tussenas compl. | ||||
| 91 | 316094630 | 24.26 | 29.35 | |
| Pulley complete | ||||
| 92 | 316065120 | 27.16 | 32.86 | |
| Pulley | ||||
| 92 | 315419560 | 13.93 | 16.86 | |
| Ribbed belt | ||||
| 93 | 344260410 | 15.31 | 18.53 | |
| Riemschijf | ||||
| 94 | 341203210 | 9.36 | 11.33 | |
| Top protection B | ||||
| 95 | 315419540 | 9.36 | 11.33 | |
| Beschermkap boven compl. | ||||
| 96 | 316065110 | 27.16 | 32.86 | |
| Top protection A | ||||
| 96 | 315419530 | 15.31 | 18.53 | |
| Spilblokkering compl. | ||||
| 97 | 316094650 | 9.36 | 11.33 | |
| Condensator compl. | ||||
| 98 | 343255110 | 6.05 | 7.32 | |
| Capacitor | ||||
| 98 | 343255020 | 1.79 | 2.17 | |
| Lever compl | ||||
| 99 | 316094660 | 13.93 | 16.86 | |
| Cilinderkopschroef | ||||
| 100 | 141124640 | 1.67 | 2.02 | |
| Laser Bracket | ||||
| 101 | 343442490 | 1.79 | 2.17 | |
| Laser Spring | ||||
| 102 | 342024110 | 1.67 | 2.02 | |
| Beschermkap boven compl. | ||||
| 103 | 316065080 | 52.36 | 63.36 | |
| Flens compl. | ||||
| 104 | 316094700 | 15.31 | 18.53 | |
| Synchronous Belt | ||||
| 105 | 344260400 | 13.93 | 16.86 | |
| Handgreep compl. | ||||
| 106 | 316065090 | 57.79 | 69.93 | |
| Handle | ||||
| 106 | 343442410 | 21.22 | 25.68 | |
| Platkopbout | ||||
| 107 | 341705350 | 1.67 | 2.02 | |
| Aanduidingsplaatje | ||||
| 108 | 338126980 | 1.67 | 2.02 | |
| Terminal Block | ||||
| 109 | 343050340 | 1.67 | 2.02 | |
| Connection wire set | ||||
| 110 | 344530370 | 1.79 | 2.17 | |
| TRANSFORMER | ||||
| 111 | 343085340 | 9.36 | 11.33 | |
| Kroonsteentje | ||||
| 112 | 343085350 | 1.67 | 2.02 | |
| Schakelaar | ||||
| 114 | 343411290 | 1.79 | 2.17 | |
| LED Switch | ||||
| 115 | 343411180 | 1.79 | 2.17 | |
| Aanduidingsplaatje | ||||
| 117 | 338126970 | 1.67 | 2.02 | |
| Top protection cap complete | ||||
| 118 | 316065100 | 27.16 | 32.86 | |
| Knob | ||||
| 118 | 343442470 | 9.36 | 11.33 | |
| Elektro.unit compl. | ||||
| 119 | 343085980 | 70.83 | 85.70 | |
| Electronic unit, 230v 50/60hz | ||||
| 119 | 343084510 | 52.36 | 63.36 | |
| Pan head screw,(DIN 7985) | ||||
| 120 | 141123890 | 1.67 | 2.02 | |
| Guard button comp. | ||||
| 121 | 316094680 | 12.19 | 14.75 | |
| Main switch compl. | ||||
| 122 | 316094670 | 27.16 | 32.86 | |
| LED unit with laser, complete | ||||
| 123 | 343085970 | 29.97 | 36.26 | |
| LED compl. | ||||
| 123 | 343085330 | 21.22 | 25.68 | |
| Kabeldoorvoer | ||||
| 124 | 344113320 | 1.67 | 2.02 | |
| AANSLUITKABEL | ||||
| 125 | 344530360 | 15.31 | 18.53 | |
| Self-tap fill h screw | ||||
| 126 | 141116020 | 1.79 | 2.17 | |
| Aanduidingsplaatje | ||||
| 131 | 338126960 | 1.67 | 2.02 | |
| Complete workpiece holder | ||||
| 132 | 316056680 | 18.28 | 22.12 | |
| Klemhouder | ||||
| 133 | 339148190 | 24.26 | 29.35 | |
| No information available, not orderable | ||||
| 1001 | 338506220 | |||
