Here you will find all available parts and drawings of the 'Metabo 19263000 ( KGS216 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

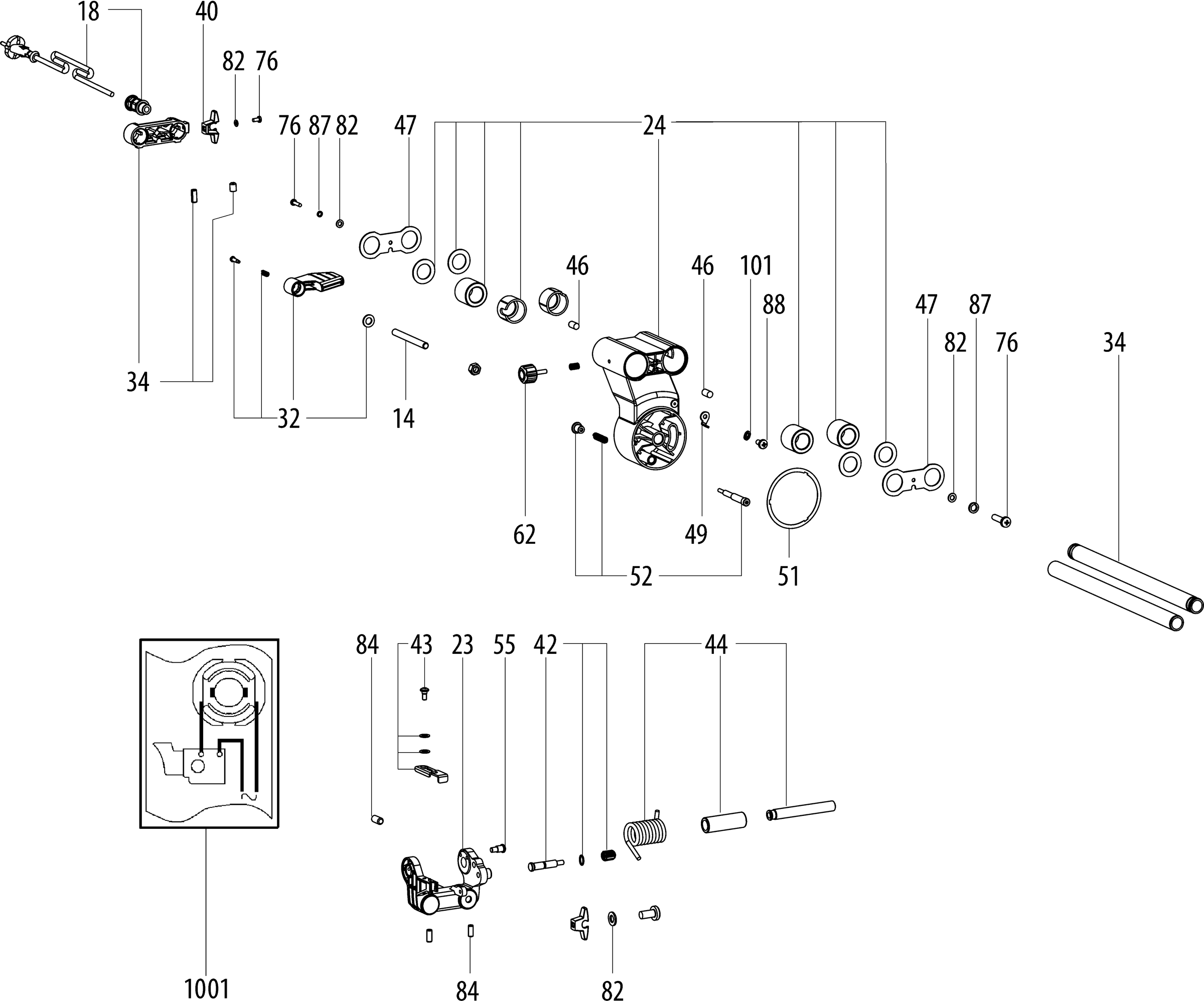

Technical drawing of model Metabo 19263000 ( KGS216 )

Spare parts list of model Metabo 19263000 ( KGS216 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Kohlebuerstenhalter vollst.
1 316060620 4.51 5.46
Motordeksel
2 343435810 3.02 3.65
Flens compl.
3 316060610 10.38 12.56
Koolborstelset
4 316060650 3.71 4.49
Aandrijving compl.
9 316060690 21.64 26.18
Condensator
10 343254900 1.55 1.88
Upper handle part complete
11 316068870 10.38 12.56
Schakelaar compl.
12 316056690 10.38 12.56
Complete Rotary Table
14 316055960 87.60 106.00
Tafel compl.
15 316055930 87.60 106.00
Pendulum protection cap complete
16 316092910 21.64 26.18
Voet compl.
17 316060840 1.55 1.88
Beschermkap compl.
19 316056230 60.59 73.31
Ontkoppelingshendel compl.
20 316056710 3.02 3.65
Greepdeel onder
22 343435740 16.25 19.66
Kapparm vollst.
23 316056070 26.95 32.61
Kipparm vollst.
24 316056100 80.81 97.78
Arretierung vollst.
26 316060960 10.38 12.56
Draaigreep compl.
27 316056790 7.22 8.74
Table extension right
28 315420500 13.48 16.31
Table extension, left
29 315420510 13.48 16.31
Motorhuis compl.
30 316056270 24.23 29.32
No longer available, no replacement
31 316068880
Tension lever complete
32 316075440 24.23 29.32
Geleider compl.
33 316055990 37.65 45.56
Tafel-inlegstuk
35 343436020 3.02 3.65
Laser with holder
36 343436070 11.74 14.21
No longer available, no replacement
37 316075450
Spanfanghaube
38 343435780 3.02 3.65
Extraction Funnel
39 343436260 1.55 1.88
KABELHOUDER
40 343436170 1.55 1.88
Spilblokkering compl.
41 316056870 3.02 3.65
Transportarretierung vollst.
42 316061380 1.67 2.02
Dieptegeleider compl.
43 316057450 1.55 1.88
Complete cap for axle
44 316061400 12.23 14.80
Abdeckung Kipparm v+h
47 339136680 1.55 1.88
Complete Adjusting Screw
48 316056820 1.55 1.88
Skalensatz vollst.
49 316061440 3.71 4.49
Motor compl.
50 316061470 161.61 195.55
End guide complete
52 316061520 3.71 4.49
Stergreep-schroef
53 343436220 1.55 1.88
Bearing cover complete
54 316061540 3.02 3.65
Geleider Schroef
55 341722210 1.55 1.88
Bus rubber
57 344113040 1.55 1.88
Gereedschaphouder cpl.
58 316061550 1.55 1.88
Type plate HK 85 EB 230V
61 338072140 1.67 2.02
Stergreep-schroef
62 343437020 1.55 1.88
Stergreep-schroef
64 343437040 1.55 1.88
Groefkogellager,8x22x7
65 143115700 3.02 3.65
Groefkogellager
66 143115730 3.02 3.65
Moer zeskant
67 141132030 1.55 1.88
Cilinderkopschroef
70 141113890 1.67 2.02
Hexagon safety nut
73 141130890 1.67 2.02
Cilinderkopschroef
75 141113840 1.67 2.02
Countersunk screw
79 141112180 1.55 1.88
Lensplaatschroef
81 141123710 1.55 1.88
Countersunk screw
83 141123840 1.55 1.88
Taper Pin with Morse Taper M 6X8 Plated
84 141124510 1.55 1.88
Taper Pin with Morse Taper
90 141124460 1.55 1.88
Zeskante moer
91 141131010 1.55 1.88
Stelschroef
92 141123410 1.55 1.88
Stelschroef
93 141116480 1.55 1.88
Cilinderkopschroef
94 141113590 1.67 2.02
PLAATSCHROEF M.KRUISKOP ST 4,2X9,5-C-H V
95 141124470 1.55 1.88
