Here you will find all available parts and drawings of the 'Metabo 0102160200-10 (KGS216PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

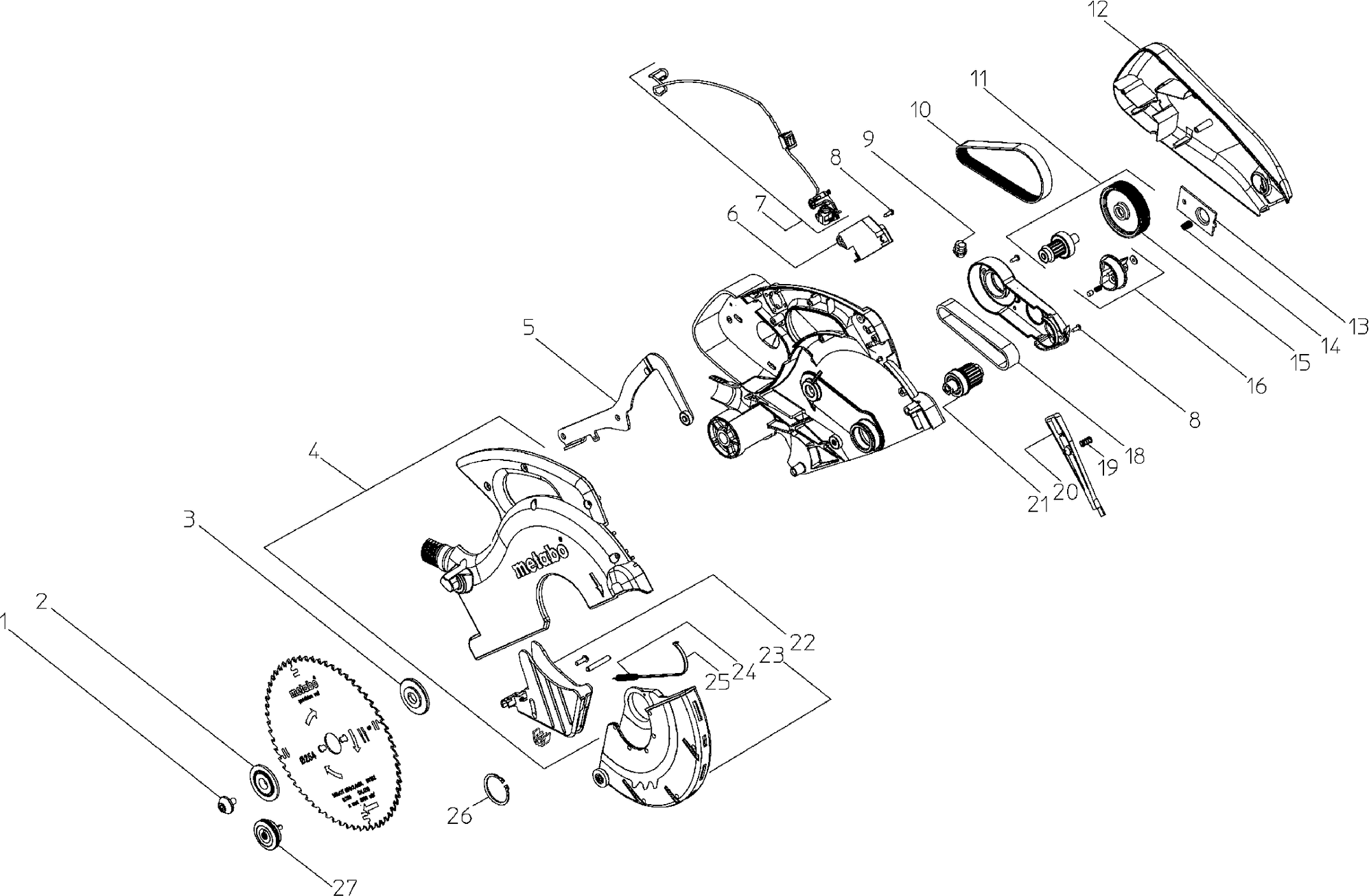

Technical drawing of model Metabo 0102160200-10 (KGS216PLUS)
Spare parts list of model Metabo 0102160200-10 (KGS216PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| FLANGE SCREW M 8x20 | ||||
| 1 | 1395739162 | 8.89 | 10.76 | |
| Saw blade counter flange KGS 254 I Plus | ||||
| 2 | 1482736560 | 11.74 | 14.21 | |
| SAW BLADE FLANGE | ||||
| 3 | 1485221618 | 12.23 | 14.80 | |
| Protective Cover KGS 216 Plus | ||||
| 4 | 1010739469 | 87.60 | 106.00 | |
| Swiveling Lever KGS 216 Plus | ||||
| 5 | 1010739477 | 16.25 | 19.66 | |
| Transformer KGS Plus | ||||
| 6 | 8056736540 | 37.65 | 45.56 | |
| Complete Laser KGS 216/254 Plus | ||||
| 7 | 1010739205 | 53.86 | 65.17 | |
| Flathead bolt | ||||
| 8 | 141123670 | 1.56 | 1.89 | |
| GROMMET | ||||
| 9 | 8243740097 | 1.55 | 1.88 | |
| V-GROOVE 5 PJ 381 KGS 216 | ||||
| 10 | 7233739493 | 32.27 | 39.05 | |
| Intermediate Shaft KGS 216/254/315 Plus | ||||
| 11 | 1010739248 | 53.86 | 65.17 | |
| Belt protection hood KGS 216 Plus | ||||
| 12 | 1381739500 | 16.25 | 19.66 | |
| Complete saw blade lock | ||||
| 13 | 1010739230 | 8.89 | 10.76 | |
| Compression Spring | ||||
| 14 | 7051722854 | 2.28 | 2.76 | |
| V-GROOVE DISC KGS 216/254/315 Plus | ||||
| 15 | 1380739255 | 53.86 | 65.17 | |
| Transport lock compl. KGS 216/254 | ||||
| 16 | 1010739035 | 7.22 | 8.74 | |
| Drive belt HTD 300-5M-20 CXP KGT300 | ||||
| 18 | 7231703351 | 26.95 | 32.61 | |
| Compression Spring | ||||
| 19 | 7051711623 | 1.55 | 1.88 | |
| Hood Lock | ||||
| 20 | 1381736799 | 1.56 | 1.89 | |
| Complete Saw Blade Shaft KGS 216/254/315 | ||||
| 21 | 1010739132 | 53.86 | 65.17 | |
| Chip catching hood KGS 216 Plus | ||||
| 22 | 1394729177 | 8.89 | 10.76 | |
| COMPLETE HINGED GUARD KGS 216 Plus | ||||
| 23 | 1010739515 | 13.48 | 16.31 | |
| No longer available, no replacement | ||||
| 24 | 7051739528 | |||
| No longer available, no replacement | ||||
| 25 | 1381739488 | |||
| Locking ring shaft | ||||
| 26 | 6400736810 | 1.56 | 1.89 | |
| Flange screw | ||||
| 27 | 1010736893 | 48.48 | 58.66 | |
| Additional Comp. Support KGS 216 Plus | ||||
| 30 | 1010739574 | 37.65 | 45.56 | |
| Complete tilt stop KGS Plus | ||||
| 31 | 1010736257 | 3.02 | 3.65 | |
| Indicator compl. KGS 216/254/315 Plus | ||||
| 32 | 1010739108 | 53.86 | 65.17 | |
| Grid clamp compl. KGS 216/254/315 Plus | ||||
| 33 | 1010739124 | 11.74 | 14.21 | |
| Table insert compl. KGS 216/254/315 P | ||||
| 36 | 1010739116 | 8.89 | 10.76 | |
| Full Turntable KGS 216 Plus | ||||
| 37 | 1010739639 | 228.10 | 276.00 | |
| No information available, not orderable | ||||
| 38 | 1010739140 | |||
| Full Twist Handle KGS 216 Plus | ||||
| 39 | 1010739655 | 16.25 | 19.66 | |
| Slide Shoe KGS 216 Plus | ||||
| 40 | 1388739610 | 3.71 | 4.49 | |
| Table Extension Left KGS 216 Plus | ||||
| 41 | 1010739590 | 148.53 | 179.72 | |
| Pin Wrench SW 2.5 Black | ||||
| 42 | 9102076823 | 1.55 | 1.88 | |
| Hexagon-Socket Key | ||||
| 43 | 9102689833 | 4.51 | 5.46 | |
| Stergreep-schroef | ||||
| 44 | 341704570 | 2.28 | 2.76 | |
| Rubberen voet | ||||
| 45 | 341147920 | 8.89 | 10.76 | |
| Table KGS 216 Plus | ||||
| 46 | 1010740297 | 228.10 | 276.00 | |
| Table Extension Left KGS 216 Plus | ||||
| 47 | 1010739604 | 67.33 | 81.47 | |
| LOCKING TABLE EXTENSION KS 254/305 Plus | ||||
| 48 | 1010737555 | 10.38 | 12.56 | |
| Comp. Guide KGS 216 Plus | ||||
| 49 | 1010739582 | 60.59 | 73.31 | |
| COUNTERSUNK SCREW W. INTERNAL | ||||
| 50 | 6132002060 | 1.56 | 1.89 | |
| Stergreep-schroef | ||||
| 51 | 341704580 | 2.28 | 2.76 | |
| End Cap KGS 216/254 | ||||
| 60 | 1010739400 | 53.86 | 65.17 | |
| Elektro.unit | ||||
| 61 | 343081380 | 74.13 | 89.70 | |
| Connector cap Mate-N-Lock KGS Plus | ||||
| 62 | 1381737167 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 63 | 1010739043 | |||
| STATOR 230V KGS 216 Plus | ||||
| 64 | 8011739270 | 67.33 | 81.47 | |
| Rotor 230V complete. KGS 216 Plus | ||||
| 66 | 1010739078 | 228.10 | 276.00 | |
| Complete Motor KGS 216 | ||||
| 67 | 1010739450 | 242.14 | 292.99 | |
| Gasket | ||||
| 68 | 7631740116 | 1.67 | 2.02 | |
| Screw | ||||
| 69 | 341702050 | 1.56 | 1.89 | |
| Complete Handgrip | ||||
| 70 | 1010736168 | 37.65 | 45.56 | |
| Switch KS 254/305 | ||||
| 71 | 8111737712 | 21.64 | 26.18 | |
| Pan head screw m.flens | ||||
| 73 | 6143661561 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 74 | 339135110 | |||
| Strain relief with kink protection sleeve | ||||
| 80 | 8402736722 | 2.28 | 2.76 | |
| Stabilizer KGS 216 Plus | ||||
| 81 | 1380739530 | 26.95 | 32.61 | |
| Base body with bolts | ||||
| 82 | 6164029245 | 1.56 | 1.89 | |
| Exhaust Piece 44/35-44/32 | ||||
| 83 | 1381691566 | 4.51 | 5.46 | |
| Drawbar KGS 216 | ||||
| 84 | 1385739547 | 161.61 | 195.55 | |
| Extraction Hose | ||||
| 85 | 1381736535 | 4.51 | 5.46 | |
| Torsion spring | ||||
| 86 | 7051736600 | 7.22 | 8.74 | |
| Cover cap STM 1800 | ||||
| 87 | 1381736594 | 1.68 | 2.03 | |
| Tipping Axle KGS Plus | ||||
| 89 | 1385736505 | 10.38 | 12.56 | |
| GUIDE SCREW | ||||
| 90 | 1485735689 | 7.22 | 8.74 | |
| No longer available, no replacement | ||||
| 91 | 1381739550 | |||
| Cable with plug, 2x1,0x2900 2xAH | ||||
| 92 | 8402736632 | 11.74 | 14.21 | |
| Screw | ||||
| 93 | 341702050 | 1.56 | 1.89 | |
| Repair Set Complete Linear Guide | ||||
| 96 | 1010739426 | 53.86 | 65.17 | |
| Sealing washer | ||||
| 97 | 7631738677 | 1.55 | 1.88 | |
| Rotary Spring Sleeve | ||||
| 98 | 1381736497 | 1.56 | 1.89 | |
| Compression Spring | ||||
| 99 | 7051736413 | 1.55 | 1.88 | |
| Depth stop | ||||
| 100 | 1380736787 | 7.22 | 8.74 | |
| Rotary knob D34 M6/8T blue | ||||
| 101 | 1381736519 | 2.28 | 2.76 | |
| No longer available, no replacement | ||||
| 102 | 6143736880 | |||
| Hexagon adjustment screw | ||||
| 103 | 6104220876 | 3.02 | 3.65 | |
| Miter Joint KGS 216 Plus | ||||
| 104 | 1380739565 | 53.86 | 65.17 | |
| Tensioning Lever compl. KGS 216/254/315 Plus | ||||
| 105 | 1010739027 | 32.27 | 39.05 | |
| No information available, not orderable | ||||
| 106 | 141132000 | |||
| Washer | ||||
| 107 | 141156740 | 1.56 | 1.89 | |
| Complete work piece holder | ||||
| 108 | 1010737440 | 53.86 | 65.17 | |
| Vleugelschroef | ||||
| 151 | 341704560 | 3.02 | 3.65 | |
| Lensplaatschroef | ||||
| 152 | 141123800 | 1.56 | 1.89 | |
| No information available, not orderable | ||||
| 153 | 399999990 | |||
| CONNECTION END PIECE | ||||
| 154 | 1381212943 | 2.28 | 2.76 | |
| Indication label,Laser radiation | ||||
| 155 | 338125960 | 7.22 | 8.74 | |
